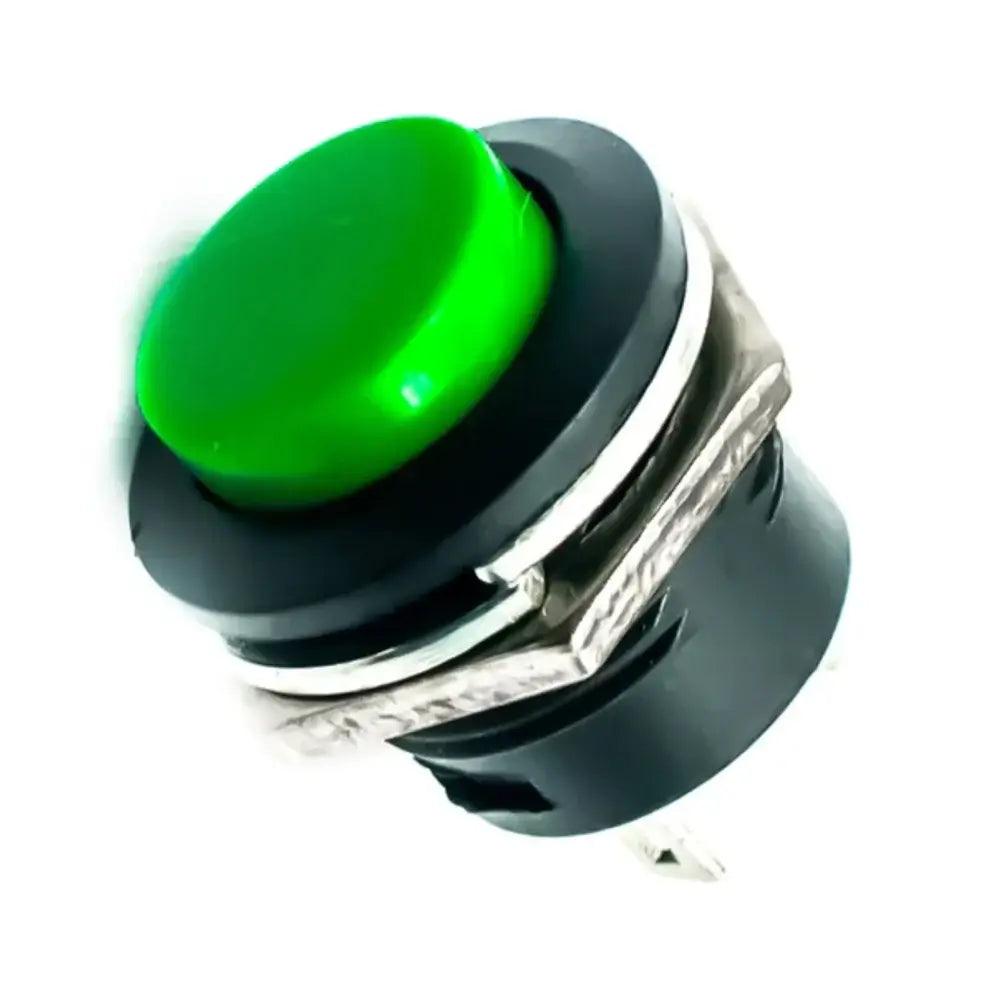

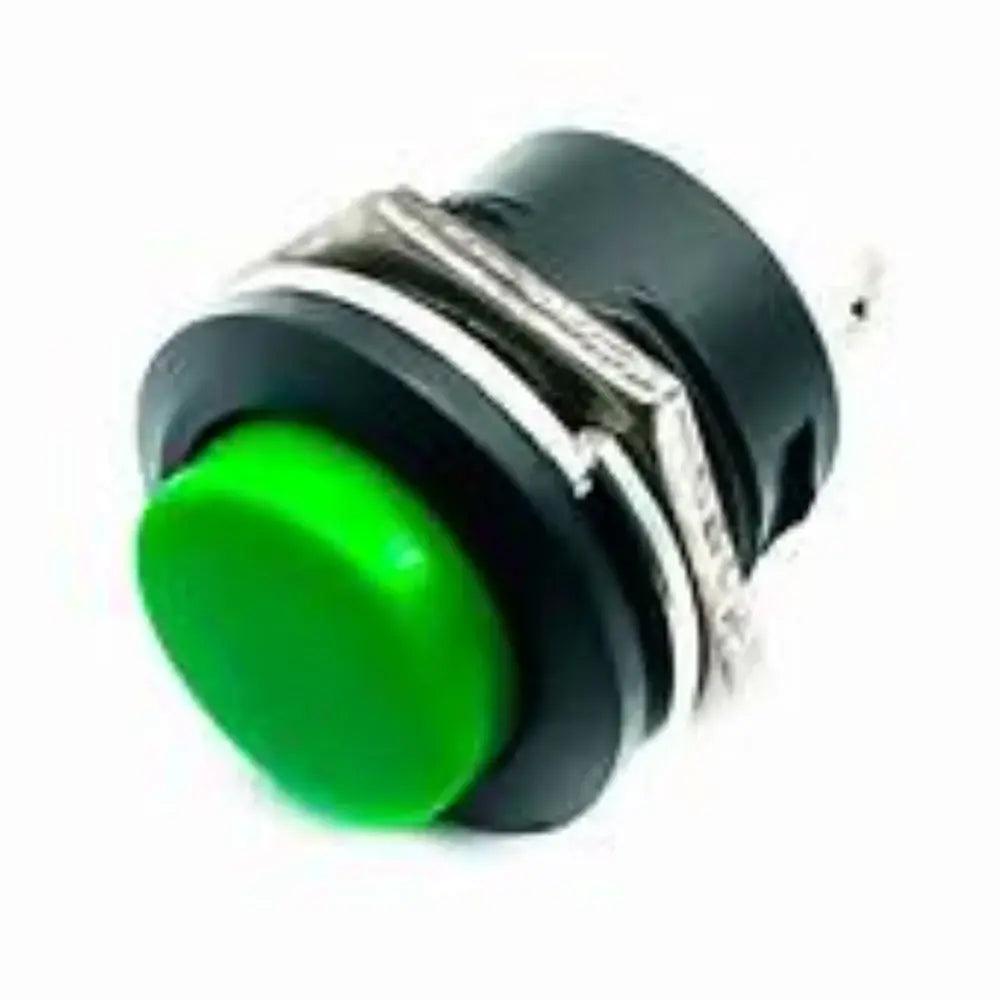

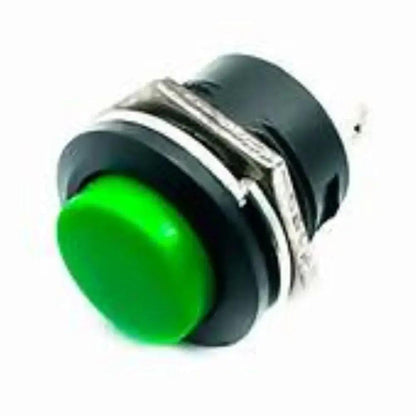

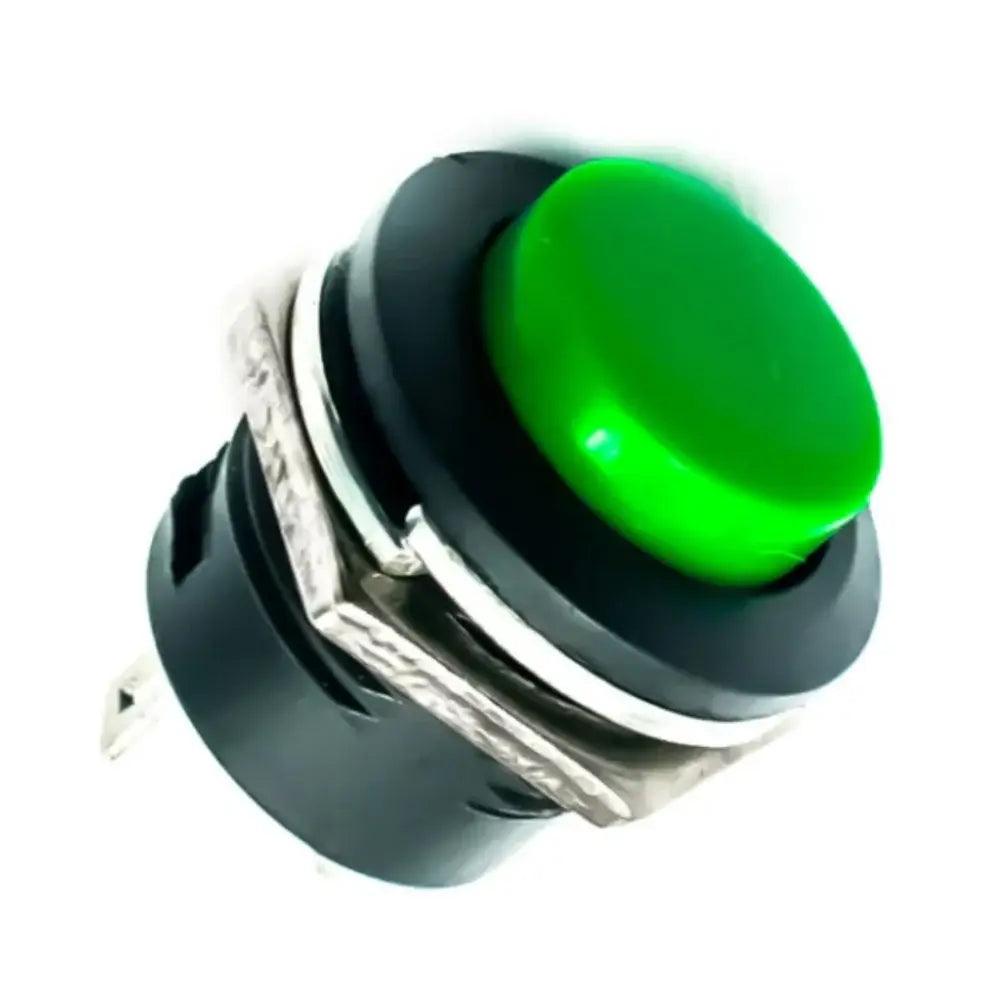

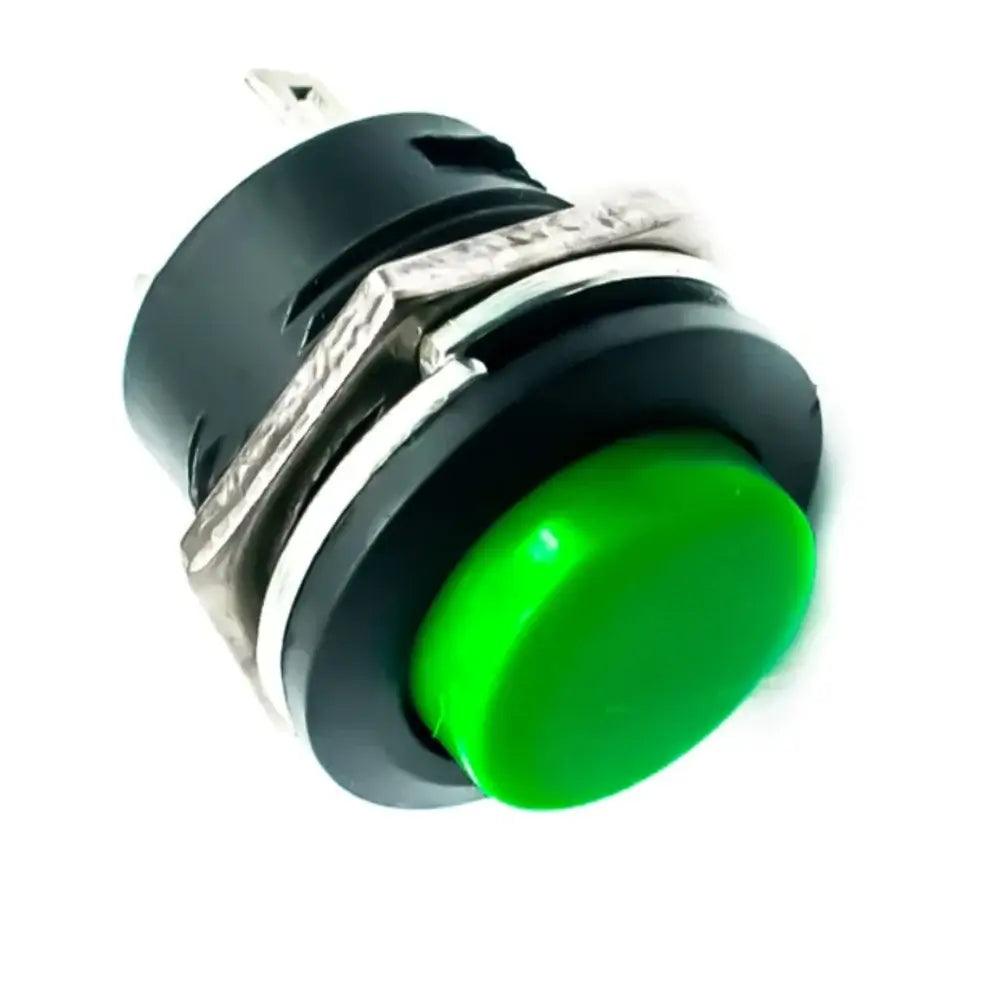

Green R13-507 16mm Round Cap Momentary Push Button Switch – 2 Pin

SKU: IT36CGXJ1U
The Green R13-507 16mm Round Cap Momentary Push Button Switch is a compact and reliable control component designed for both industrial and household electrical applications. This 2-pin Push Button Switch works on a momentary mechanism, meaning the circuit is activated only when the button is pressed and automatically turns off when released. With a standard 16mm mounting size and a...
Rs. 29.00
Rs. 39.00 Rs. 29.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Name: Green R13-507 16mm Round Cap Momentary Push Button Switch
Model Number: R13-507
Rated Voltage & Current: 1.5A at 250V AC / 3A at 125V AC
Operation Type: Momentary (Press ON – Release OFF)
Number of Terminals: 2 Pins
Mounting Diameter: 16 mm
Material: Plastic
Color: Green
Operating Temperature Range: -25°C to +85°C
Dimensional Tolerance: Standard 16 mm fit
Shipping Weight: 0.001 kg
Shipping Dimensions: 1 × 1 × 1 cm

Additional Resources

Green R13-507 16mm Round Cap Momentary Push Button Switch – 2 Pin.PDF

FAQ

1. What type of switch is the Green R13-507 push button?

It is a momentary push button switch, meaning it only remains ON while being pressed and automatically returns to the OFF state when released.

2. What does the 2-pin configuration indicate?

The 2-pin design represents a simple SPST (Single Pole Single Throw) configuration, where the circuit is completed when the button is pressed.

3. What are the electrical ratings of this switch?

This switch is rated for 1.5A at 250V AC or 3A at 125V AC, making it suitable for low to moderate power applications.

4. Where can this push button switch be used?

It is commonly used in:

  • Control panels
  • Home appliances
  • DIY electronics projects
  • Industrial equipment interfaces
  • Automation systems

5. What are the key advantages of this switch?

  • Simple and reliable operation
  • Easy panel mounting with 16mm hole size
  • Compact and lightweight design
  • Durable plastic construction
  • Clear visibility due to green round cap
View full product details

The Green R13-507 16mm Round Cap Momentary Push Button Switch is a compact and reliable control component designed for both industrial and household electrical applications. This 2-pin Push Button Switch works on a momentary mechanism, meaning the circuit is activated only when the button is pressed and automatically turns off when released.

With a standard 16mm mounting size and a durable metal body, it provides easy installation and long-lasting performance. It is widely used in control panels, kitchen appliances, magnetic locks, relays, motors, and automation systems, where temporary circuit activation is required. This switch plays a core role in controlling power flow safely and efficiently in electronic and electrical systems.

Features:

  • Easy to use
  • Best for your DIY projeccts
  • Self-locking/Latching Self-reset
  • Good electrical conductivity
  • This is Momentary type push-button switch
