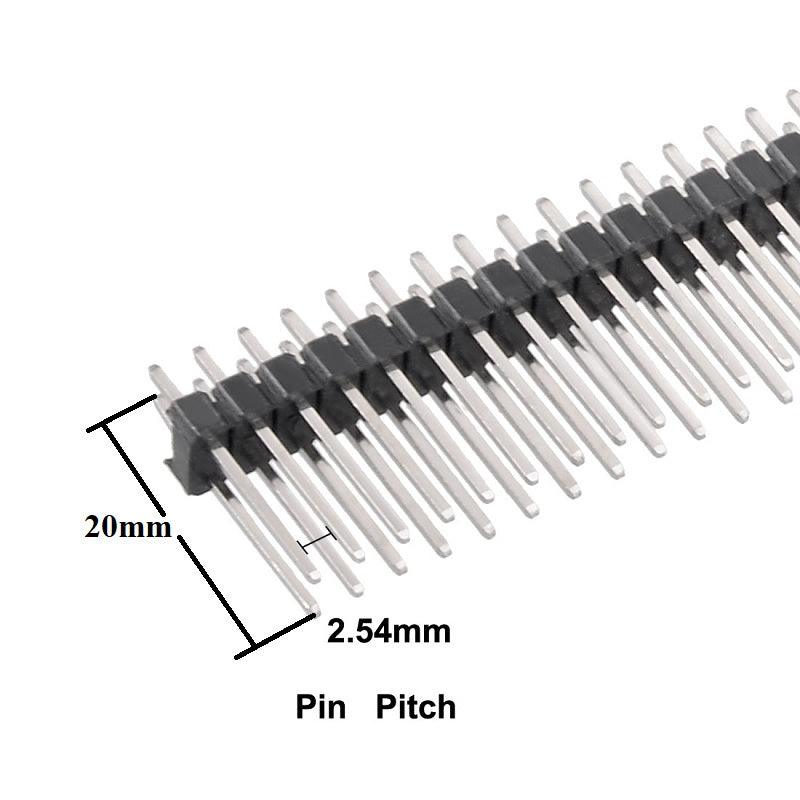

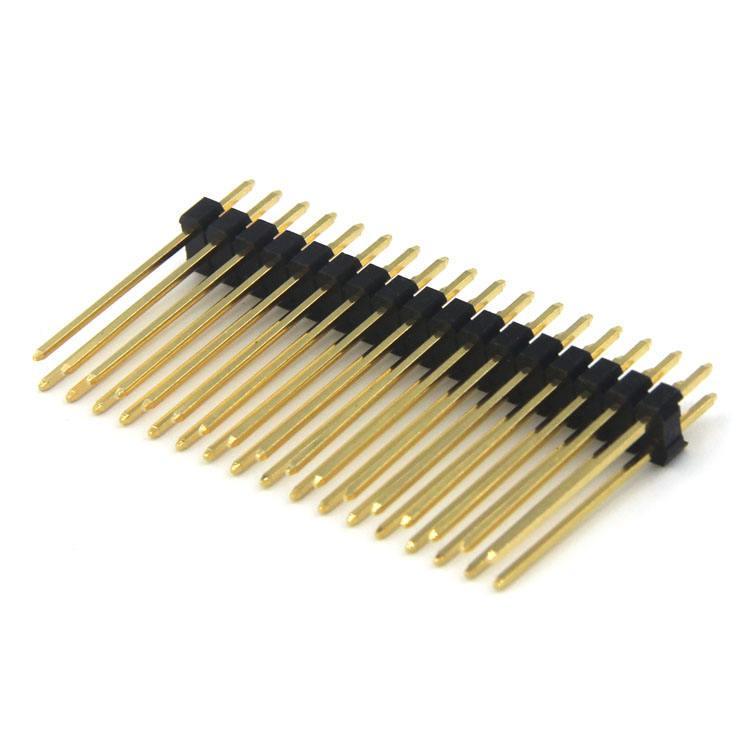

Header Pins 40×2 – 2.54mm Pitch – Brass 20mm Height

SKU: 6WESS8XQUI
Header Pins 40×2 – 2.54mm Pitch are widely used electronic connectors designed for creating secure and reliable connections between PCBs, modules, sensors, and development boards. These dual-row header pins are commonly found in Arduino, Raspberry Pi, embedded systems, and DIY electronics projects. With a standard 2.54mm pin spacing, they ensure compatibility with most breadboards, prototyping PCBs, and electronic modules. The...
Rs. 19.00
Rs. 23.00 Rs. 19.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specification:

40×2 Male Header
Material: Brass
Straight Type
Pitch: 2.54 mm
Height Above PCB: 17mm
Total Height: 20 mm

Additional Resources

Header Pins 40×2 – 2.54mm Pitch – Brass 20mm Height.PDF

FAQ

1.What are Header Pins 40×2 – 2.54mm Pitch used for?

Header Pins 40×2 are commonly used for PCB connections, prototyping, Arduino projects, breadboards, and module interfacing. They provide a reliable way to connect electronic components and circuits.

2.What does 2.54mm pitch mean in header pins?

A 2.54mm pitch refers to the distance between the center of one pin and the center of the next pin. It is the standard spacing used in most breadboards, development boards, and electronic modules.

3.Can the 40×2 header pin strip be cut into smaller sections?

Yes, the header pin strip can easily be cut into smaller sizes using pliers or cutters, allowing customization according to project requirements.

4.What material is used in these header pins?

These header pins are made from brass with conductive metal plating, offering good electrical conductivity, durability, and resistance to corrosion.

5.Are these header pins compatible with Arduino and Raspberry Pi boards?

Yes, Header Pins 40×2 with 2.54mm pitch are widely compatible with Arduino boards, Raspberry Pi GPIO headers, sensors, shields, and various DIY electronic modules.

View full product details

Header Pins 40×2 – 2.54mm Pitch are widely used electronic connectors designed for creating secure and reliable connections between PCBs, modules, sensors, and development boards. These dual-row header pins are commonly found in Arduino, Raspberry Pi, embedded systems, and DIY electronics projects. With a standard 2.54mm pin spacing, they ensure compatibility with most breadboards, prototyping PCBs, and electronic modules.

The connector features 40 pins arranged in 2 parallel rows, making it suitable for high-density connections where multiple signals or power lines are required. Manufactured using durable brass material, these header pins provide excellent electrical conductivity, corrosion resistance, and long service life. The 20mm pin height offers sufficient clearance and stable connectivity for stacking boards or connecting jumper wires.

These header strips can easily be cut into smaller sections according to project requirements, making them highly versatile for custom electronic designs. They are commonly used in circuit prototyping, shield connections, module interfacing, and PCB assembly applications.
