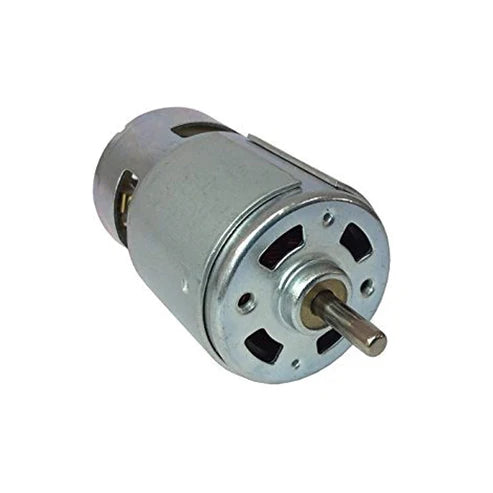

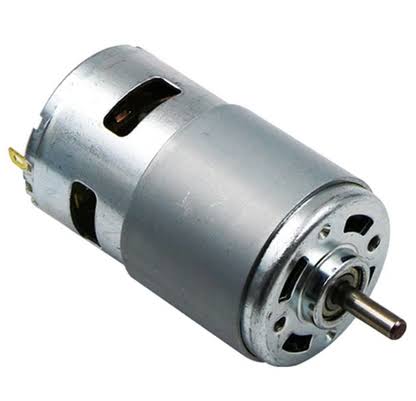

High Torque RS-775 DC motor 12V to 24V

SKU: GUTU9JXC4W
The RS-775 High Torque DC Motor is a powerful brushed DC motor widely used in industrial, commercial, and DIY applications that require high speed and substantial torque. Designed to operate within a voltage range of 12V to 24V DC, the RS-775 motor delivers reliable performance for demanding tasks such as drilling, cutting, pumping, polishing, and robotic motion control. Featuring a...
Rs. 215.00
Rs. 229.00 Rs. 215.00
Save Rs. 14
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Motor Type: Brushed DC Motor
Model: RS-775
Operating Voltage: 12V – 24V DC
Rated Voltage: 12V / 24V (depending on model)
No-Load Speed: Approximately 6,000 – 18,000 RPM (voltage dependent)
Current Consumption: Varies with load
Starting Current: High current during startup
Rotation Direction: Reversible by changing polarity
Speed Control: Compatible with PWM motor controllers

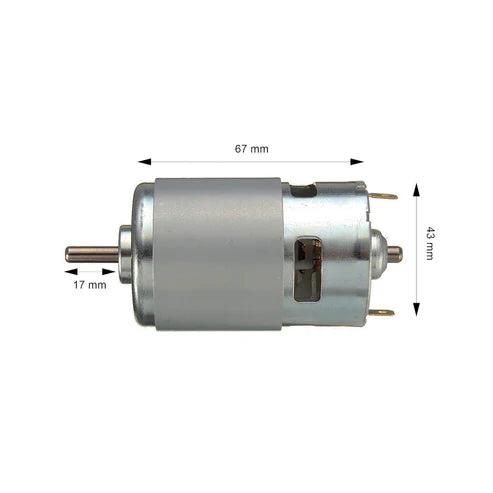

Mechanical Specifications
Motor Diameter: Approximately 42mm
Motor Length: Approximately 66mm
Shaft Diameter: Typically 5mm
Shaft Length: Approximately 15–20mm
Bearing Type: Ball Bearing
Housing Material: Metal
Weight: Approximately 300–400g

Additional Resources

High Torque RS-775 DC motor 12V to 24V.PDF

FAQ

1. What is the High Torque RS-775 DC Motor 12V to 24V?

The RS-775 is a powerful brushed DC motor designed for high-speed and high-torque applications. Operating within a voltage range of 12V to 24V DC, it is widely used in power tools, robotics, DIY machinery, pumps, and industrial automation projects.

2. What are the typical applications of the RS-775 DC motor?

The RS-775 motor is commonly used in electric drills, mini CNC machines, robotic platforms, conveyor systems, vacuum cleaners, water pumps, polishing machines, and various DIY engineering projects that require high power and torque.

3. What are the advantages of using an RS-775 motor?

The RS-775 offers high torque output, high rotational speed, durable construction, long service life, excellent efficiency, and compatibility with a wide range of voltage supplies, making it suitable for demanding applications.

4. Can the RS-775 motor operate at both 12V and 24V?

Yes. The RS-775 motor is designed to operate within a voltage range of 12V to 24V DC. Running the motor at higher voltages generally increases its speed and power output, provided it remains within the manufacturer's specified limits.

5. Why is the RS-775 motor popular in robotics and DIY projects?

The RS-775 motor is popular because it provides a good balance of power, speed, and affordability. Its high torque capability, easy availability, and compatibility with motor drivers and speed controllers make it an excellent choice for robotics, automation, and custom-built machines.

View full product details

The RS-775 High Torque DC Motor is a powerful brushed DC motor widely used in industrial, commercial, and DIY applications that require high speed and substantial torque. Designed to operate within a voltage range of 12V to 24V DC, the RS-775 motor delivers reliable performance for demanding tasks such as drilling, cutting, pumping, polishing, and robotic motion control.

Featuring a robust metal housing, high-quality bearings, and efficient copper windings, the RS-775 motor is capable of achieving high rotational speeds while maintaining excellent torque output. Its compact size and powerful performance make it a popular choice among engineers, hobbyists, and manufacturers for a variety of mechanical and automation projects.

The motor can be easily integrated with motor drivers, PWM speed controllers, and battery-powered systems, making it suitable for both portable and stationary applications. With its durable construction and long service life, the RS-775 is one of the most commonly used high-power DC motors in electronics and mechanical engineering projects.

Features

  • Wide operating voltage range of 12V to 24V DC
  • High torque output for demanding applications
  • High-speed performance
  • Durable metal motor housing
  • High-quality copper windings
  • Ball-bearing supported shaft for smooth operation
  • Suitable for continuous-duty applications
  • Easy integration with motor controllers
  • Compact and lightweight design
  • Long operational lifespan
