Specifications:

Uses the PCF8574 chip for I2C communication
Operating input voltage: 5V DC
Enables serial I2C control of LCD through the PCF8574 interface
Typical current consumption: 1.5 mA
Built on a durable PCB (Printed Circuit Board)
Supports operation at temperatures up to 85°C
Standard pin spacing (pitch): 2.54 mm
Optimal viewing angle: 6 o’clock position
Designed for LCD interfacing applications
Available in black color
Dimensions: 42 mm (L) × 20 mm (W) × 7 mm (H)
Lightweight design: approximately 4 grams

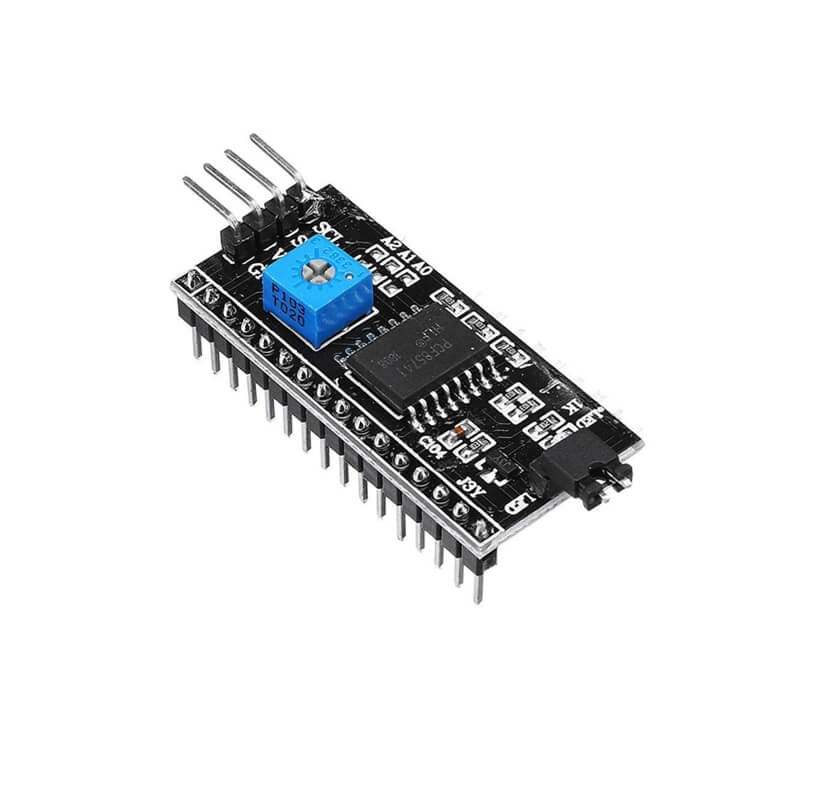

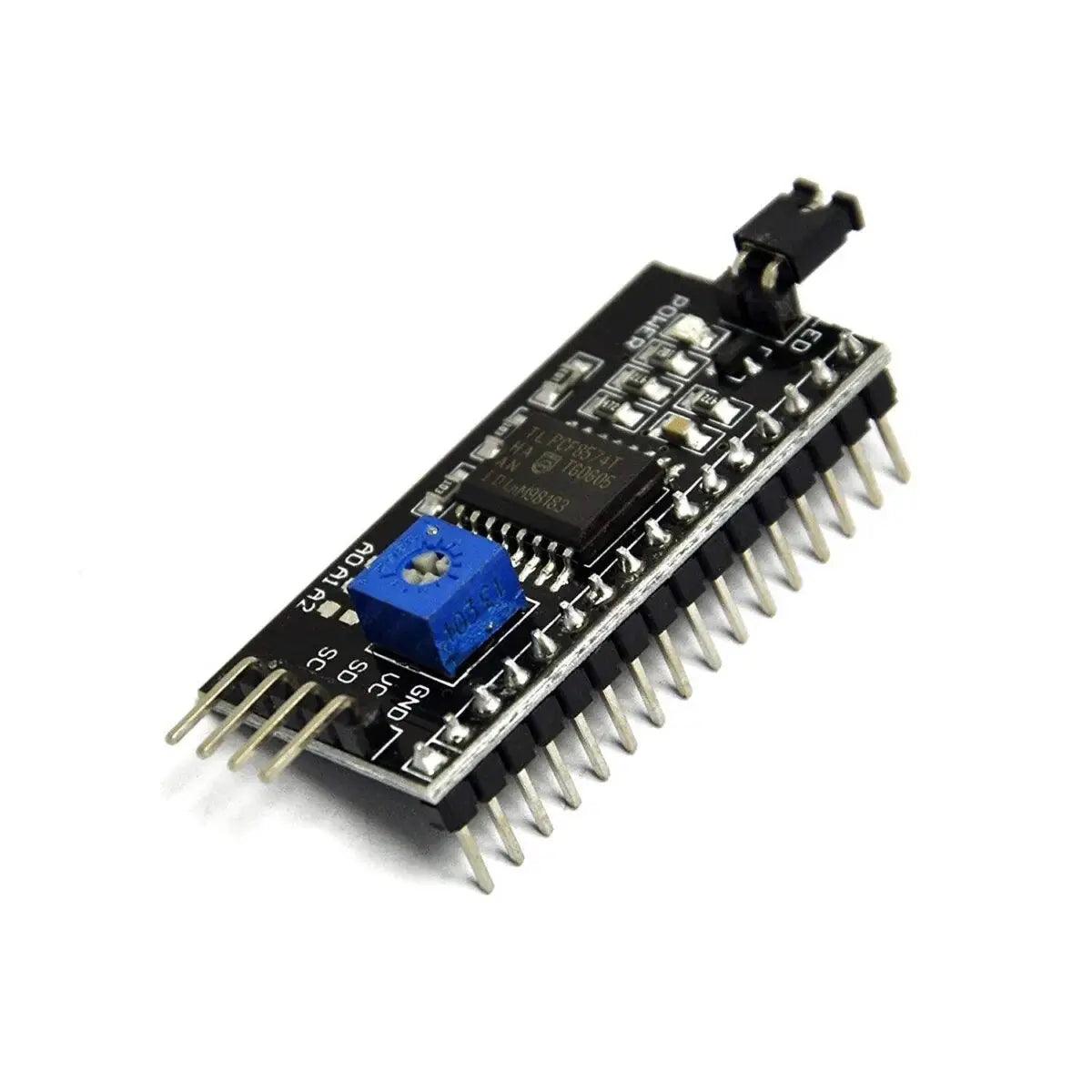

1. What is an I2C module for character LCD displays?

An I2C module is an interface adapter that allows a standard parallel LCD (like 16×2, 16×4, or 20×4) to communicate using the I2C protocol. It reduces the number of required microcontroller pins to just two: SDA (data) and SCL (clock), making wiring simpler and cleaner.

2. Which microcontroller pins are required to use an I2C LCD module?

Only two communication pins are required:

• SDA (Serial Data)
• SCL (Serial Clock)
  Along with power connections (VCC and GND). For example, on an Arduino Uno, SDA is A4 and SCL is A5.

3. What are the advantages of using an I2C module with an LCD?

Key advantages include:

• Saves multiple GPIO pins (uses only 2 instead of 6–10)
• Simplifies wiring
• Supports multiple devices on the same bus
• Ideal for complex projects with limited I/O pins

4. Can the I2C module be used with different LCD sizes like 16×2, 16×4, and 20×4?

Yes, the same I2C module can be used with different LCD sizes (16×2, 16×4, 20×4), as long as the LCD uses the standard HD44780 controller. Only the display dimensions need to be defined correctly in the code.

5. How do you find the I2C address of the LCD module?

The I2C address can be identified by running an I2C scanner code on your microcontroller. Common addresses are 0x27 and 0x3F, but it may vary depending on the module. The detected address must be used in the program for proper communication.
