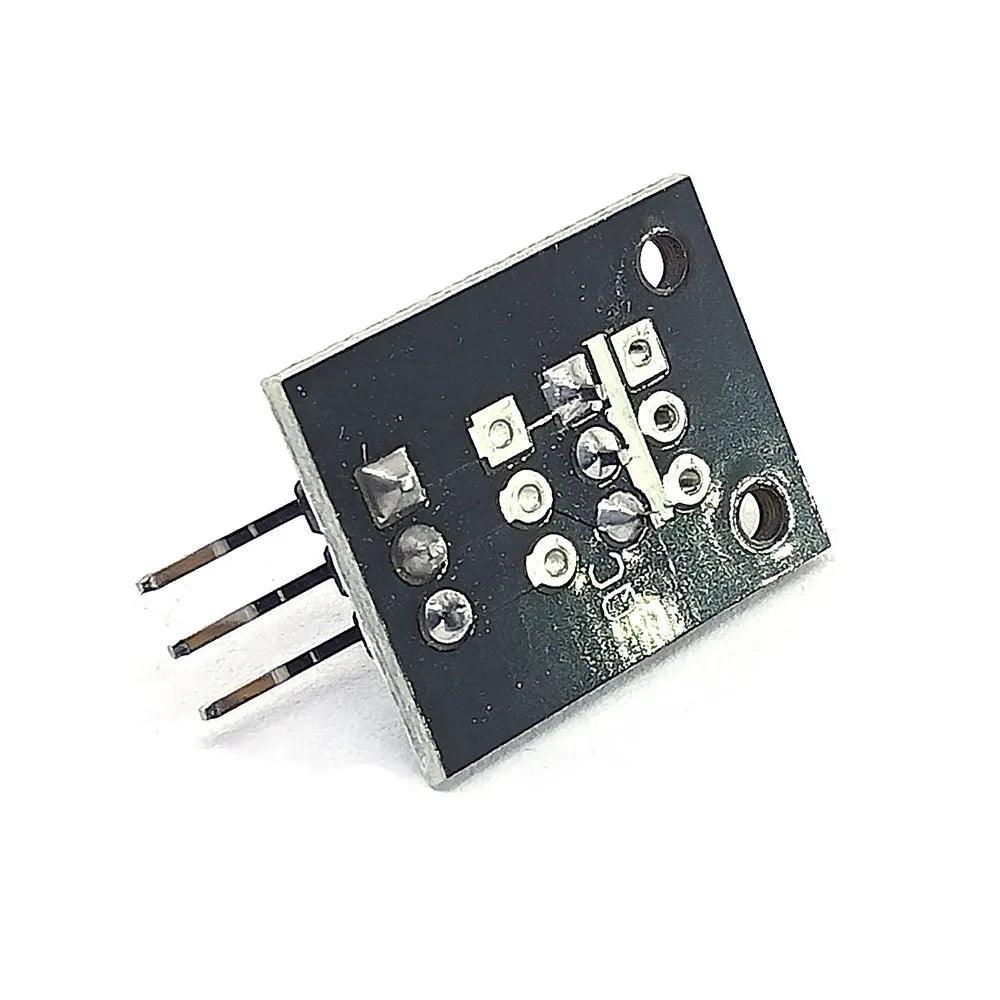

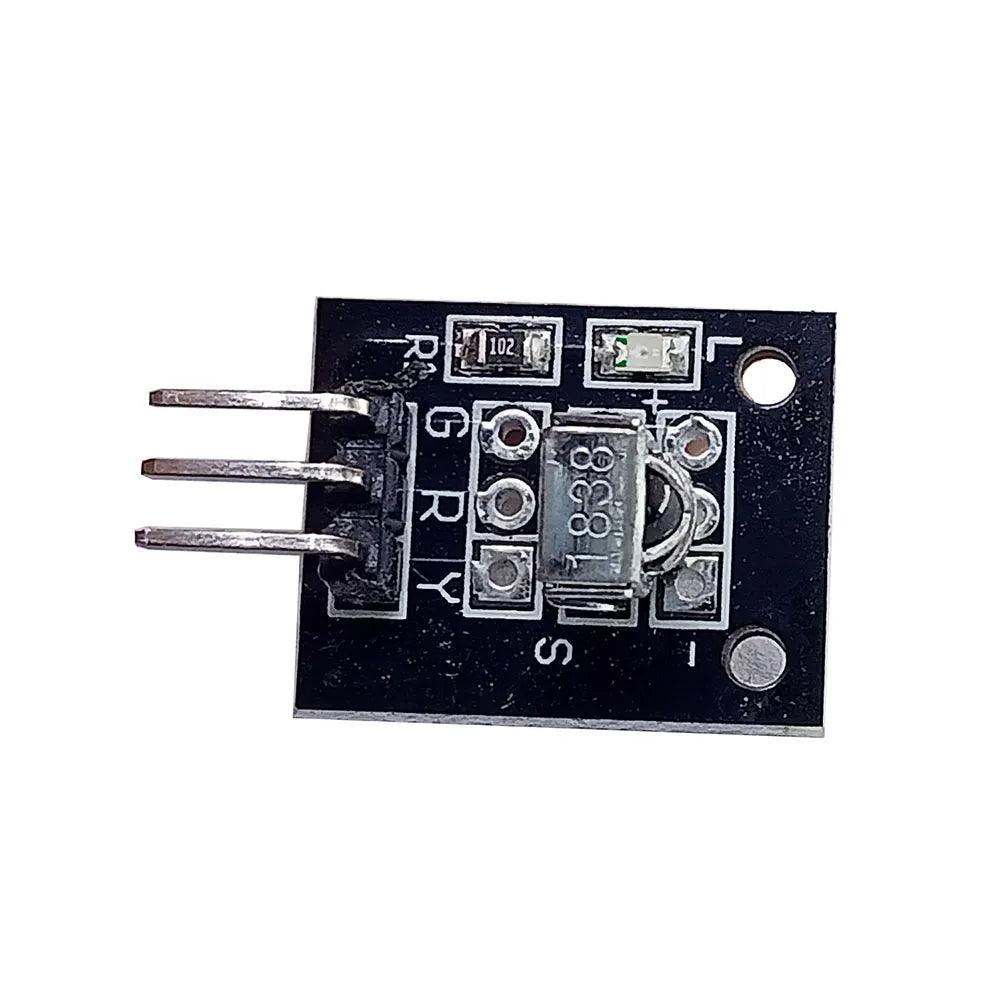

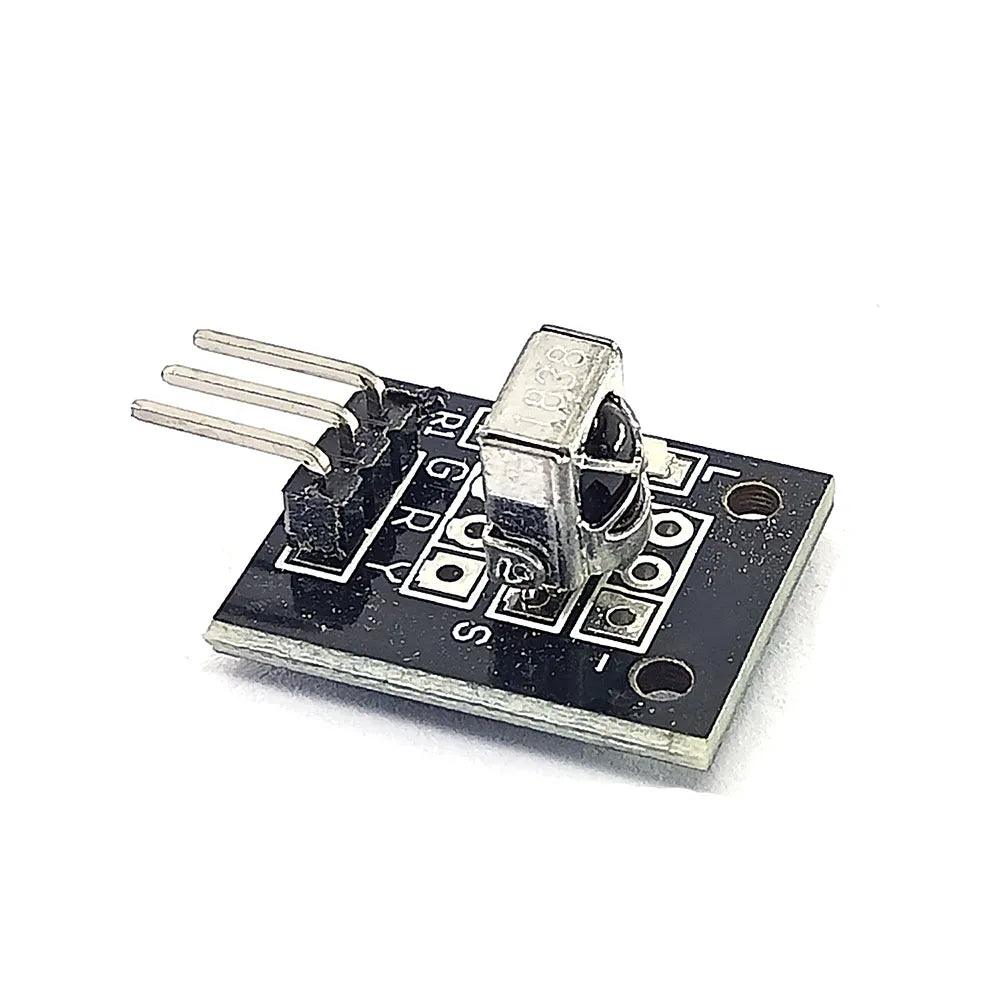

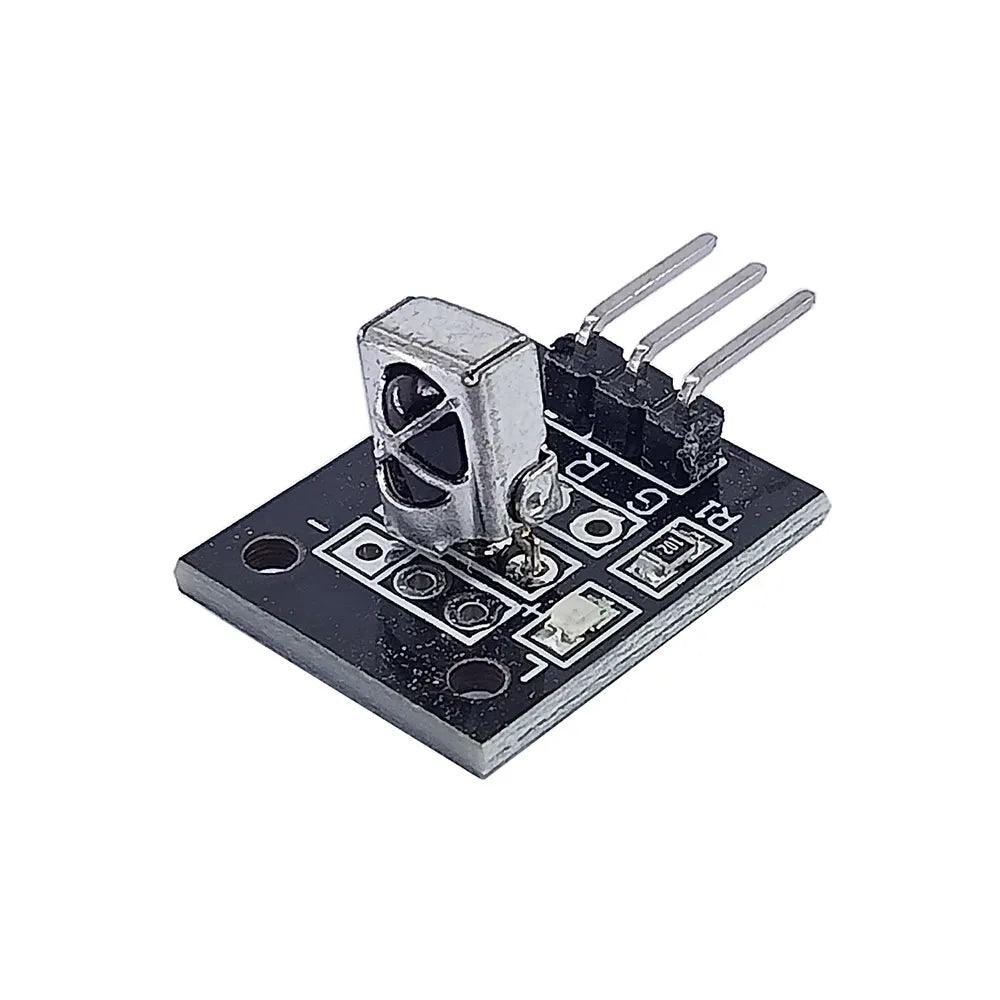

Infrared IR Receiver Module (KY-022)

SKU: 6NVF4OUUNS
★★★★ ★ ★
4.9 (144 reviews)
The KY-022 Infrared IR Receiver Module is a compact infrared receiver designed to detect and decode 38kHz modulated infrared signals transmitted by standard remote controls. Built around a 1838-series IR receiver IC (such as VS1838B, TL1838, or TSOP1838 equivalent), the module converts infrared signals into clean digital pulses that can be processed by a microcontroller. The module features an integrated...
Rs. 32.00
Rs. 35.00 Rs. 32.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The KY-022 Infrared IR Receiver Module is a compact infrared receiver designed to detect and decode 38kHz modulated infrared signals transmitted by standard remote controls. Built around a 1838-series IR receiver IC (such as VS1838B, TL1838, or TSOP1838 equivalent), the module converts infrared signals into clean digital pulses that can be processed by a microcontroller.

The module features an integrated IR receiver, signal conditioning circuitry, and a status LED that flashes whenever an infrared signal is received. It is widely used in remote-controlled electronics, home automation systems, robotics, consumer electronics, wireless control applications, and educational projects.

The KY-022 operates from 2.7V to 5.5V, making it fully compatible with Arduino, ESP32, STM32, Raspberry Pi Pico, ESP8266, and other microcontroller platforms. It pairs perfectly with the KY-005 IR Transmitter Module for complete infrared communication projects.

Key Features

  • Receives 38kHz modulated infrared signals
  • Built around a 1838-series IR receiver IC
  • Digital output for easy microcontroller interfacing
  • Compatible with most TV and appliance remote controls
  • Long reception distance
  • Wide reception angle
  • Built-in ambient light filtering
  • High immunity to electrical noise
  • Onboard signal indicator LED
  • Low power consumption
  • Compact PCB module design
  • Easy plug-and-play interface
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Ideal for remote control and wireless communication projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Infrared Receiver Module
Model: KY-022
Receiver IC: VS1838B / TL1838 / 1838 Series (Equivalent)
Detection Principle: Infrared Signal Reception
Carrier Frequency: 38kHz
Operating Voltage: 2.7V to 5.5V DC
Operating Current: Approximately 0.4mA to 1.5mA
Output Type: Digital Output
Output Logic: TTL Compatible
Reception Distance: Up to 18m (Typical)
Reception Angle: ±45° (Typical)
Infrared Wavelength: 940nm
Ambient Light Immunity: Up to 500 Lux
Response Time: Fast Response
Indicator LED: Yes (Signal Reception)
Interface Pins: S, VCC, GND
Operating Temperature: -25°C to +85°C
Storage Temperature: -40°C to +85°C
PCB Dimensions: Approximately 19mm × 15mm
Mounting Type: Through-Hole Module
Compatibility: Arduino, ESP32, STM32, Raspberry Pi Pico, ESP8266, AVR, PIC

Additional Resources

IR Receiver.PDF

FAQ

1. What is the KY-022 Infrared IR Receiver Module used for?

The KY-022 is used to receive and decode 38kHz infrared signals from remote controls, making it ideal for home automation, robotics, wireless control, and embedded electronics projects.

2. What type of remote controls are compatible with the KY-022?

The module is compatible with most standard infrared remote controls that transmit using a 38kHz carrier frequency, including TV, DVD, air conditioner, and multimedia remotes.

3. Can the KY-022 be connected directly to Arduino and ESP32 boards?

Yes, the module operates from 2.7V to 5.5V and provides a TTL-compatible digital output that can be directly connected to Arduino, ESP32, STM32, Raspberry Pi Pico, ESP8266, and other microcontrollers.

4. What is the typical operating range of the KY-022 module?

Under normal conditions, the module can receive infrared signals from distances of up to 18 meters, depending on the remote control, alignment, and surrounding lighting conditions.

5. Can the KY-022 be used together with the KY-005 IR Transmitter Module?

Yes. The KY-022 receiver is commonly paired with the KY-005 IR Transmitter Module to build complete infrared communication systems capable of receiving, decoding, and retransmitting remote control signals.
