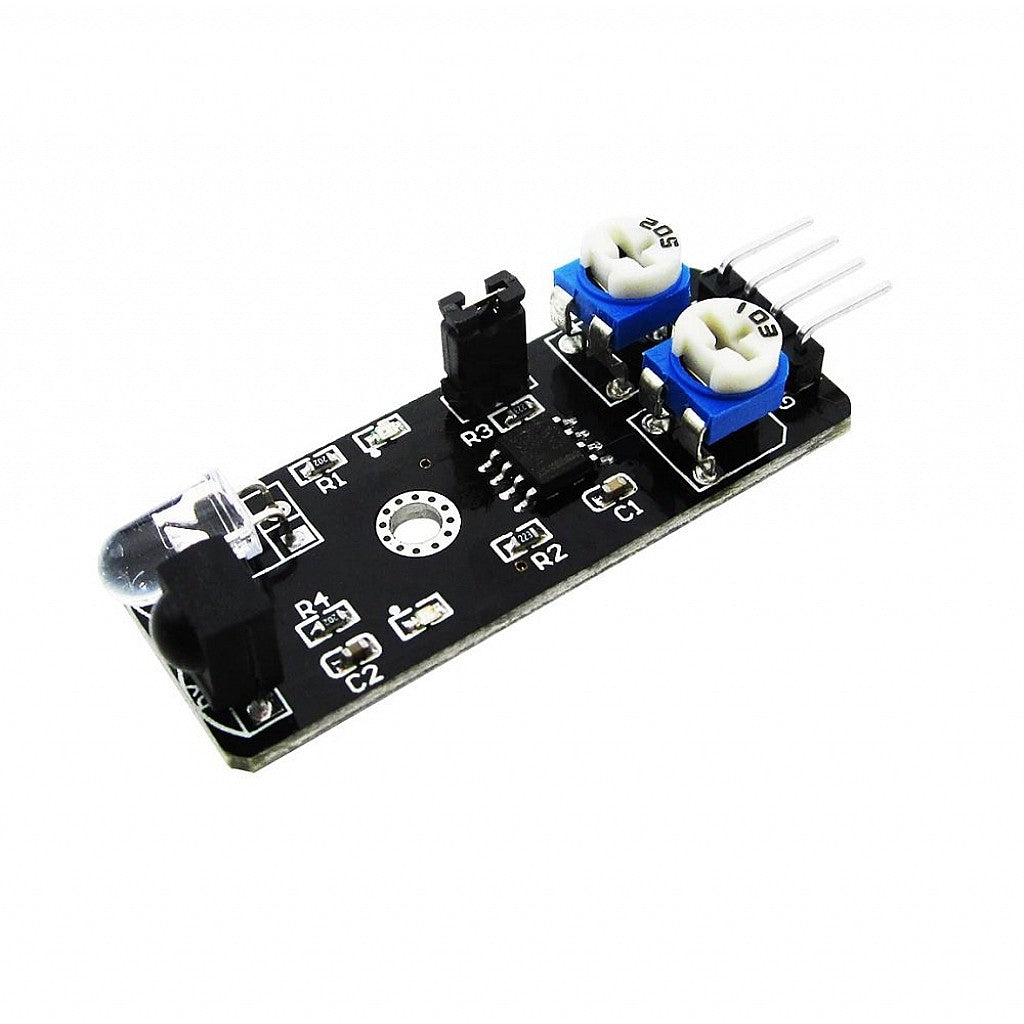

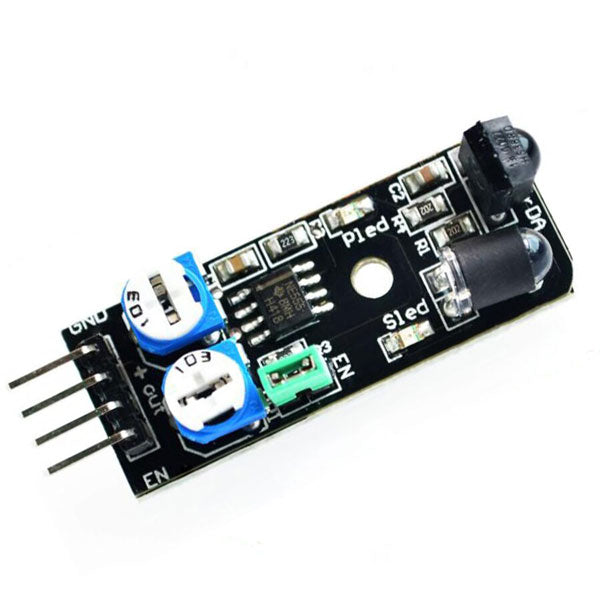

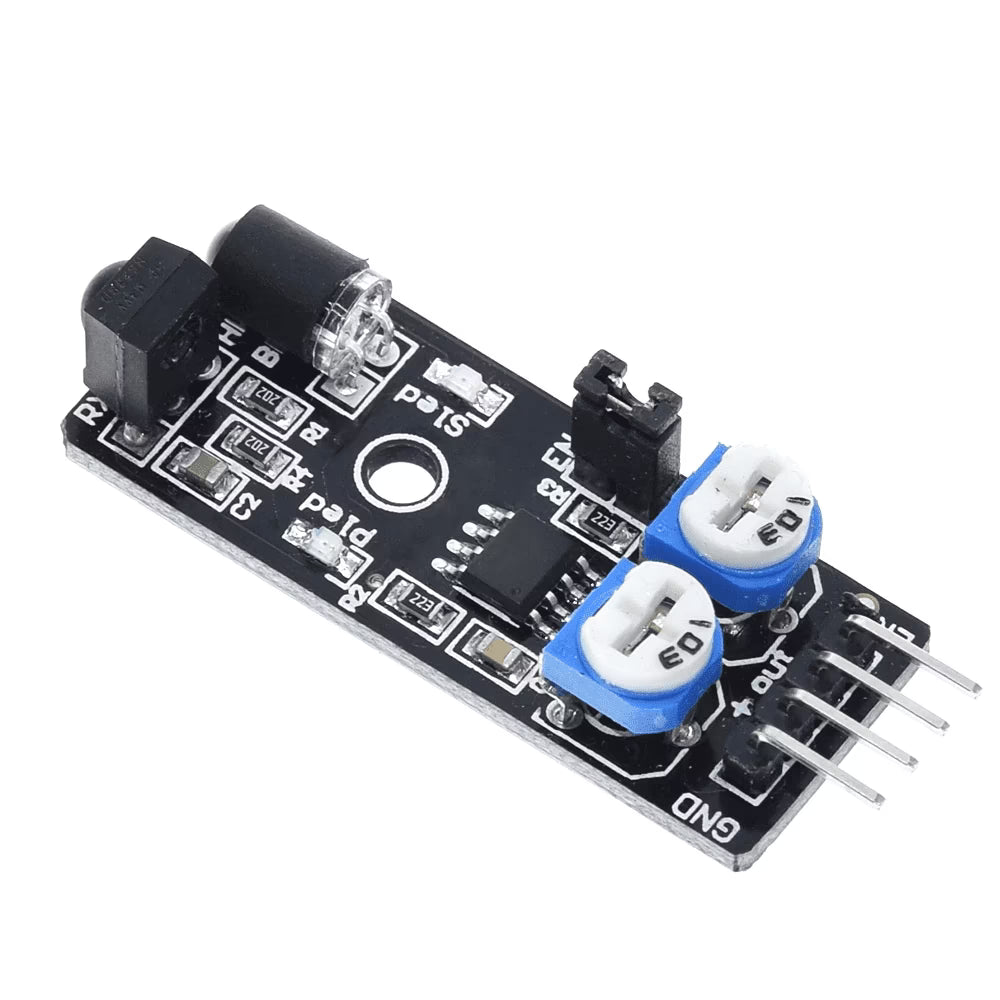

Infrared Obstacle Avoidance Sensor Module (KY-032)

SKU: PS3YEFJSBK
The KY-032 Infrared Obstacle Avoidance Sensor Module is a compact proximity sensor designed to detect nearby objects using reflected infrared light. The module combines an infrared LED transmitter and a 38kHz infrared receiver to detect obstacles without physical contact. When an object enters the sensing range, the reflected infrared signal is detected, causing the module to change its digital output...
Rs. 89.00
Rs. 99.00 Rs. 89.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Infrared Obstacle Avoidance Sensor Module
Model: KY-032
Detection Principle: Infrared Reflection
Infrared Carrier Frequency: 38kHz
Operating Voltage: 3.3V to 5V DC
Operating Current: Approximately 20mA
Output Type: Digital Output (TTL)
Output Logic: LOW When Obstacle Detected, HIGH When No Obstacle
Detection Distance: Adjustable from Approximately 2cm to 40cm
Detection Angle: Approximately 35°
Sensitivity Adjustment: Onboard Multi-turn Potentiometer
Distance Adjustment: Onboard Potentiometer
Response Time: Fast Response
Interface Pins: GND, VCC, OUT, EN
Indicator LEDs: Power LED and Detection LED
Operating Temperature: -10°C to +50°C
Storage Temperature: -20°C to +70°C
PCB Dimensions: Approximately 28mm × 23mm
Mounting Type: Through-Hole Module
Compatibility: Arduino, ESP32, STM32, Raspberry Pi Pico, AVR, PIC

Additional Resources

Infrared Obstacle Avoidance Sensor.PDF

FAQ

1. What is the KY-032 Infrared Obstacle Avoidance Sensor Module used for?

The KY-032 is used to detect nearby objects without physical contact and is commonly used in obstacle avoidance robots, automation systems, and smart vehicles.

2. How does the KY-032 detect obstacles?

The module emits a 38kHz infrared signal and detects the reflected infrared light from nearby objects. When an object is detected, the digital output changes state.

3. Can the KY-032 be connected directly to Arduino and ESP32 boards?

Yes, the module operates from 3.3V to 5V and provides a TTL-compatible digital output, making it fully compatible with Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers.

4. What is the purpose of the EN pin?

The EN (Enable) pin allows the sensor to be enabled or disabled through a microcontroller, making it useful for power management and advanced control applications.

5. What is the typical detection range of the KY-032 sensor?

The detection distance is adjustable and typically ranges from 2cm to 40cm, depending on the object's size, surface reflectivity, and the sensitivity settings.

View full product details

The KY-032 Infrared Obstacle Avoidance Sensor Module is a compact proximity sensor designed to detect nearby objects using reflected infrared light. The module combines an infrared LED transmitter and a 38kHz infrared receiver to detect obstacles without physical contact. When an object enters the sensing range, the reflected infrared signal is detected, causing the module to change its digital output state.

The KY-032 features adjustable detection distance and sensitivity using onboard potentiometers, allowing it to be optimized for different applications and environments. An additional Enable (EN) pin allows the sensor to be enabled or disabled through a microcontroller, making it suitable for power-saving and advanced control applications.

The module is widely used in obstacle avoidance robots, autonomous vehicles, line-following robots, smart automation systems, industrial equipment, and educational electronics projects. It interfaces easily with Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontroller platforms.

Key Features

  • Infrared obstacle detection using reflected IR light
  • 38kHz modulated infrared transmission
  • Adjustable detection distance
  • Adjustable detection sensitivity
  • Digital TTL output
  • Built-in infrared transmitter and receiver
  • Enable (EN) control pin
  • Fast response time
  • Low power consumption
  • High immunity to ambient light interference
  • Compact PCB module design
  • Onboard power and status indicator LEDs
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Ideal for robotics and automation projects
