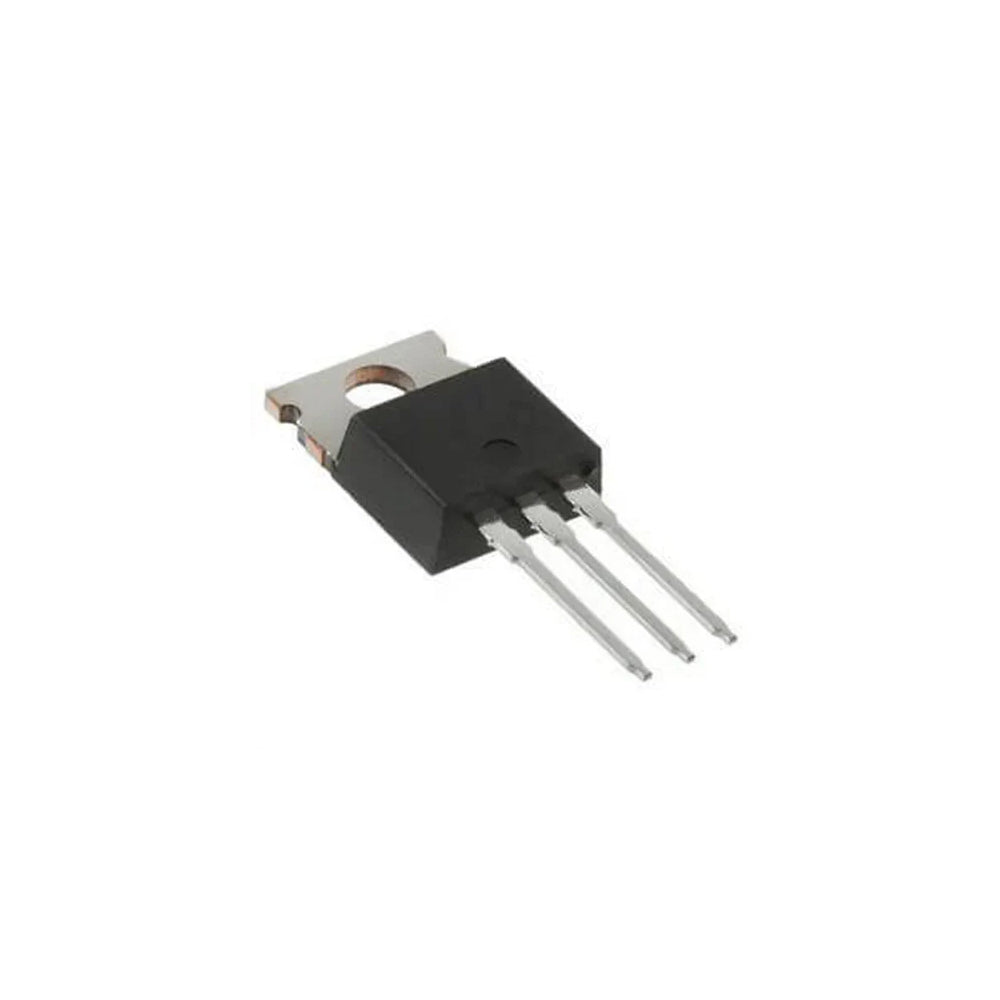

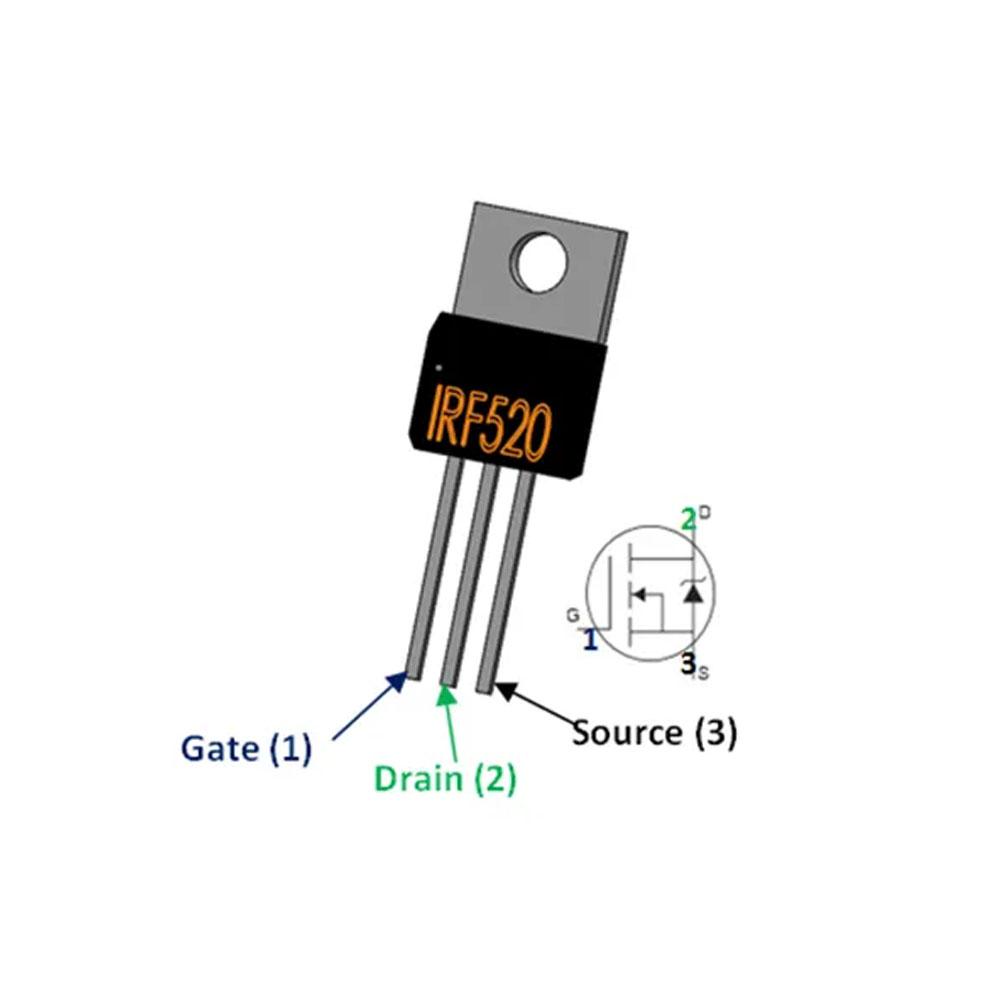

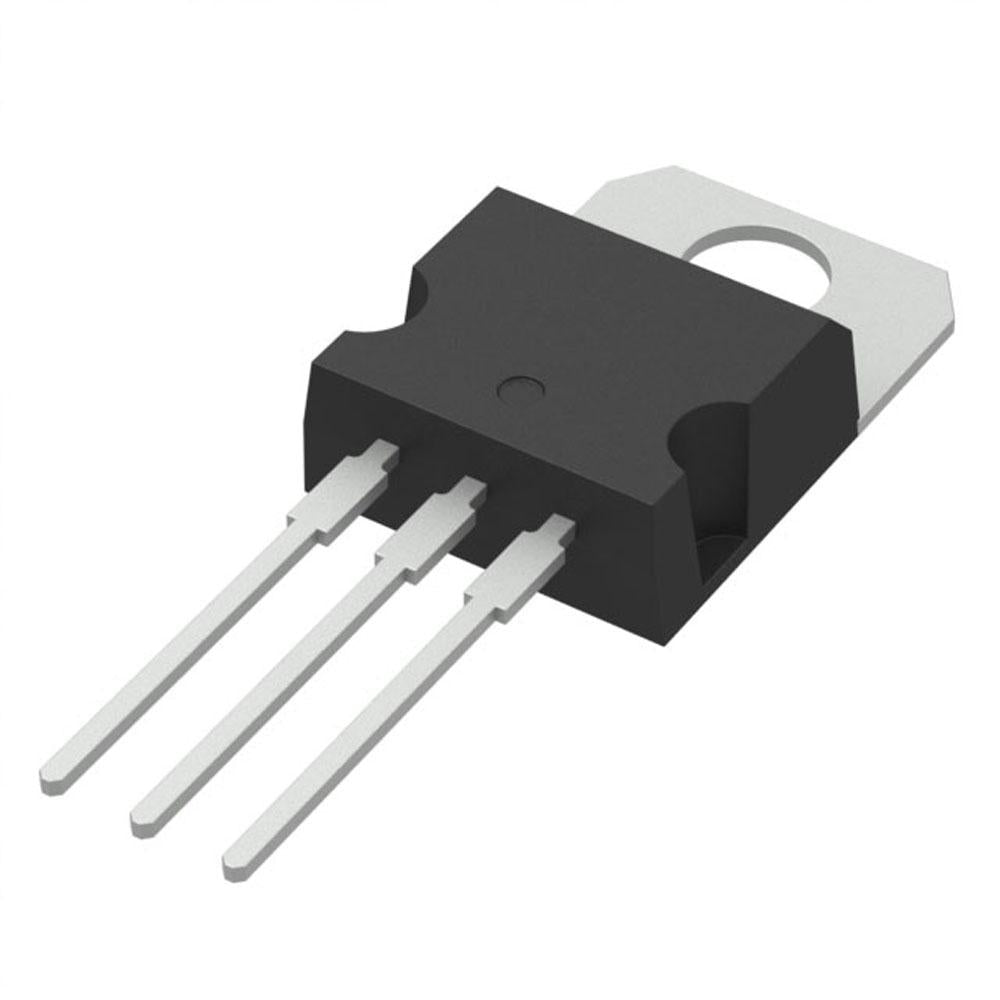

IRF520 MOSFET TO-220

SKU: 4H3N137F4G
★★★★ ★ ★
4.3 (146 reviews)
The IRF520 is a widely used N-Channel Power MOSFET designed for high-speed switching and power management applications. It is commonly used in electronics projects, motor control circuits, LED dimmers, power supplies, and Arduino-based automation systems. Due to its compact TO-220 package and reliable performance, the IRF520 is popular among hobbyists, students, and professionals. Features N-Channel Enhancement Mode MOSFET High switching...
Rs. 36.00
Rs. 39.00 Rs. 36.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The IRF520 is a widely used N-Channel Power MOSFET designed for high-speed switching and power management applications. It is commonly used in electronics projects, motor control circuits, LED dimmers, power supplies, and Arduino-based automation systems. Due to its compact TO-220 package and reliable performance, the IRF520 is popular among hobbyists, students, and professionals.

Features

  • N-Channel Enhancement Mode MOSFET
  • High switching speed
  • Low on-state resistance
  • Suitable for high-current applications
  • Easy interfacing with microcontrollers
  • Compact TO-220 package
  • Durable and efficient power handling

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Drain-to-Source Voltage (VDS): 100V
Continuous Drain Current (ID): 9.2A
Gate Threshold Voltage (VGS): 2V to 4V
Power Dissipation: 60W
Package Type: TO-220
Operating Temperature Range: -55°C to +175°C

Additional Resources

IRF520 MOSFET.PDF

FAQ

  1. What is the IRF520 MOSFET used for?

     The IRF520 MOSFET is commonly used for switching and amplifying electronic signals in applications such as motor drivers, LED dimmers, power supplies, and Arduino projects.
  2. Can the IRF520 MOSFET be controlled using Arduino or other microcontrollers?

     Yes, the IRF520 MOSFET can be controlled using Arduino and other microcontrollers, making it popular for DIY electronics and robotics projects.
  3. What is the maximum voltage and current rating of the IRF520 MOSFET?

     The IRF520 MOSFET supports a drain-to-source voltage of up to 100V and can handle currents up to 9.2A under proper cooling conditions.
  4. Does the IRF520 MOSFET require a heatsink?

     For low-power applications a heatsink may not be necessary, but for higher current loads or continuous operation, using a heatsink is recommended to prevent overheating.
  5. What package type does the IRF520 MOSFET come in?

     The IRF520 MOSFET is usually available in the TO-220 package, which is easy to mount and suitable for prototyping and PCB designs.
