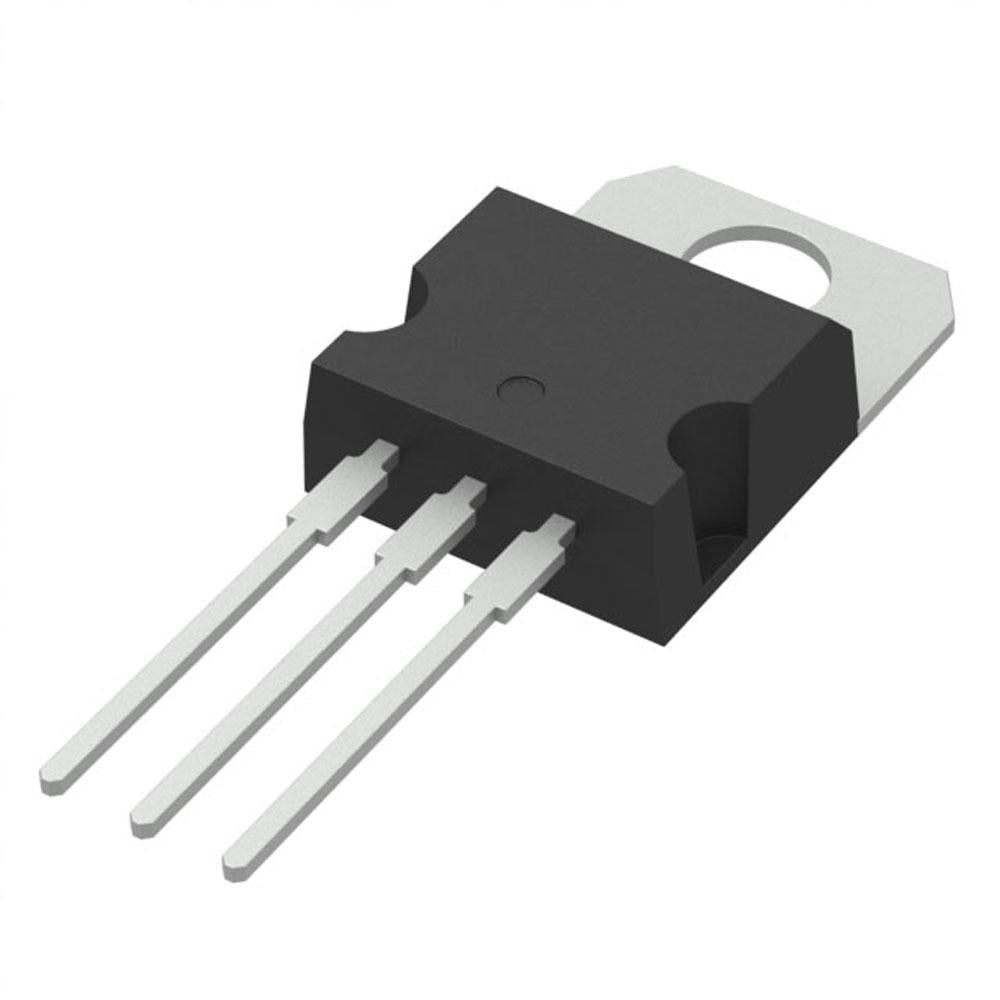

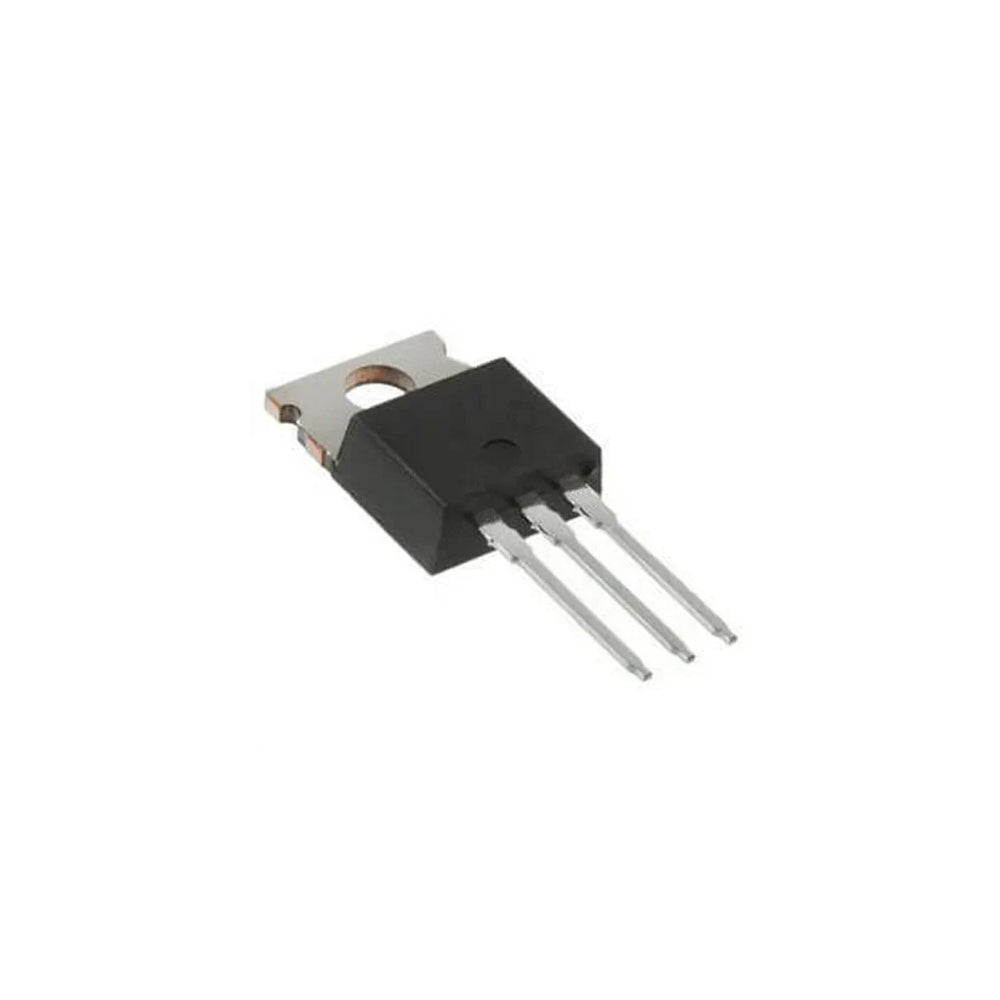

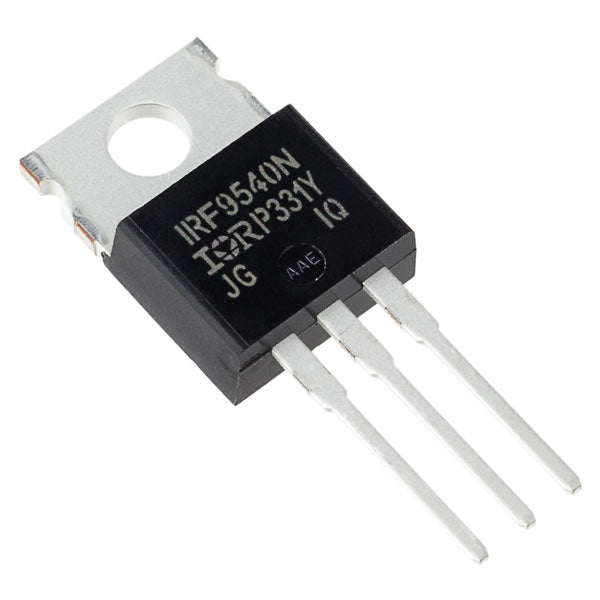

IRF9540N MOSFET – 100V 23A P-Channel Power MOSFET TO-220

SKU: STXEDFE7MT
The IRF9540N is a high-performance P-Channel Power MOSFET designed for efficient power switching and amplification applications. With a drain-to-source voltage rating of 100V and a continuous drain current capacity of 23A, this MOSFET is widely used in power management circuits, motor drivers, battery-operated systems, and DC switching applications. Its TO-220 package provides excellent thermal performance and easy installation. Key Features...
Rs. 79.00
Rs. 89.00 Rs. 79.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

MOSFET Type: P-Channel
Drain-to-Source Voltage (VDS): -100V
Continuous Drain Current (ID): -23A
Gate-to-Source Voltage (VGS): ±20V
Power Dissipation: 140W
Package Type: TO-220
Operating Temperature Range: -55°C to +175°C

Additional Resources

IRF9540N MOSFET – 100V 23A P-Channel Power MOSFET TO-220.PDF

FAQ

1. What is the IRF9540N MOSFET used for?

 The IRF9540N is a P-Channel power MOSFET commonly used in power switching circuits, motor control, battery protection systems, and DC power management applications.

2. What are the voltage and current ratings of the IRF9540N MOSFET?

 The IRF9540N MOSFET supports a drain-to-source voltage of up to 100V and can handle continuous currents up to 23A with proper cooling.

3. What package does the IRF9540N MOSFET come in?

 The IRF9540N is available in the TO-220 package, which provides easy mounting and efficient heat dissipation.

4. Can the IRF9540N MOSFET be used with microcontroller projects?

 Yes, the IRF9540N MOSFET can be used in Arduino and other microcontroller-based projects for switching high-power loads and controlling DC circuits.

5. Does the IRF9540N MOSFET require a heatsink?

 For high-current or continuous operation applications, using a heatsink is recommended to maintain safe operating temperatures and improve performance.

View full product details

The IRF9540N is a high-performance P-Channel Power MOSFET designed for efficient power switching and amplification applications. With a drain-to-source voltage rating of 100V and a continuous drain current capacity of 23A, this MOSFET is widely used in power management circuits, motor drivers, battery-operated systems, and DC switching applications. Its TO-220 package provides excellent thermal performance and easy installation.

Key Features

  • P-Channel Enhancement Mode MOSFET
  • High current handling capability up to 23A
  • Drain-to-source voltage up to 100V
  • Low ON resistance for efficient switching
  • Fast switching speed
  • Durable TO-220 package
  • Suitable for high-power electronic circuits
