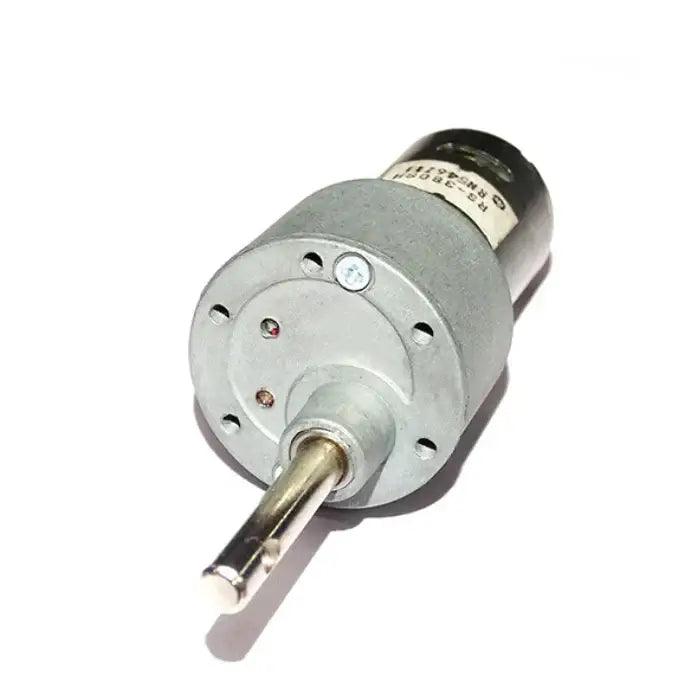

Johnson 10 RPM 12V DC Geared Motor (Grade B)

SKU: 5QQ5L2XEQ8
The Johnson 10 RPM 12V DC Geared Motor (Grade B) is a reliable and budget-friendly 12v dc gear motor ideal for various DIY and robotic applications. With its robust metal gearbox and side shaft configuration, this 10 rpm johnson motor strikes a perfect balance between torque and size. Delivering a torque of 11.7 kg-cm at 12V, it provides ample power...
Rs. 499.00
Rs. 559.00 Rs. 499.00
Save Rs. 60
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Item Type: Johnson Geared Motor
Rated Torque: 11.7 kg-cm
Stall Torque: 46 kg-cm
Operating Voltage Range: 6–18 V DC
Nominal Voltage: 12 V DC
Rated Speed: 10 RPM
Base Motor Speed: 18,000 RPM
No-Load Current: 300 mA
Maximum Load Current: 900 mA
Material: Metal construction
Shaft Diameter: 6 mm
Shaft Length: 25 mm
Gearbox Diameter: 37 mm
Motor Body Diameter: 27 mm
Motor Length: 68 mm

Additional Resources

Johnson 10 RPM 12V DC Geared Motor (Grade B).PDF

FAQ

1. What is the Johnson 10 RPM 12V DC Geared Motor (Grade B) used for?

The Johnson 10 RPM 12V DC Geared Motor (Grade B) is used in low-speed, high-torque applications such as robotics, automation systems, rotating platforms, and DIY mechanical projects where precise movement is required.

2. What is the operating voltage of this motor?

This motor operates on 12V DC, making it suitable for standard battery packs and regulated power supplies commonly used in robotics and automation systems.

3. What does 10 RPM mean in this motor?

The 10 RPM rating means the motor completes 10 rotations per minute. This very low speed provides excellent control and stability, especially in applications requiring slow and accurate motion.

4. What is meant by “Grade B” in this motor?

“Grade B” refers to a budget or standard-quality version of the Johnson geared motor. It may have slightly lower finishing or precision compared to premium grades but still delivers reliable performance for educational and DIY projects.

5. In which projects can the Johnson 10 RPM motor be used?

It is commonly used in:

  • Solar tracking systems
  • Conveyor belt mechanisms
  • Rotating display platforms
  • Robotics and automation projects
  • Mechanical DIY prototypes and engineering models
View full product details

The Johnson 10 RPM 12V DC Geared Motor (Grade B) is a reliable and budget-friendly 12v dc gear motor ideal for various DIY and robotic applications.

With its robust metal gearbox and side shaft configuration, this 10 rpm johnson motor strikes a perfect balance between torque and size. Delivering a torque of 11.7 kg-cm at 12V, it provides ample power for medium-load applications.

Its shaft includes a metal bushing for enhanced durability and a center hole for secure coupling. Though classified as Grade B, this motor is widely appreciated for its solid performance at a lower price point compared to its Grade A counterparts.

Whether you're building mobile robots, actuators, or automation systems, this geared motor ensures smooth operation between 6V and 18V DC.

Note: This motor will have a ±20% error in the RPM

Features:

  • The motor is built to last.
  • Metal bushes are equipped with shafts for long-term use.
  • High-quality gear is included.
  • A hole in the shaft allows for improved connection.
