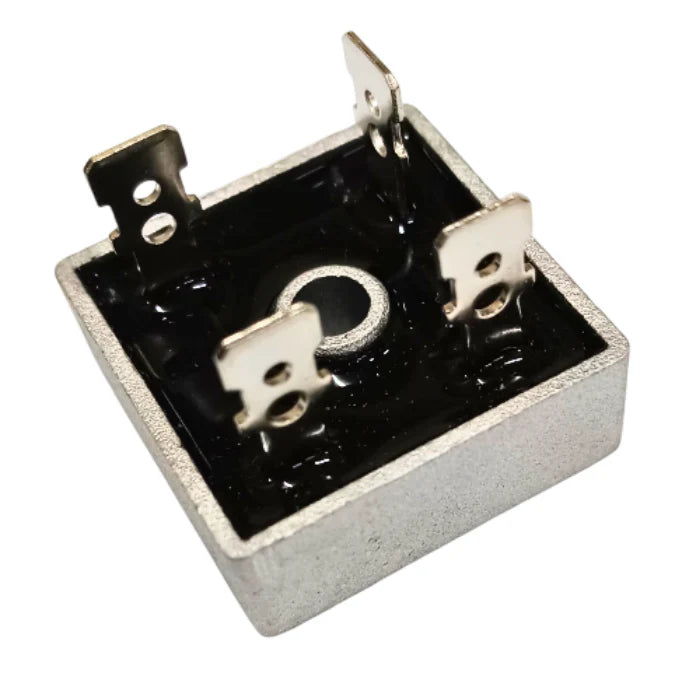

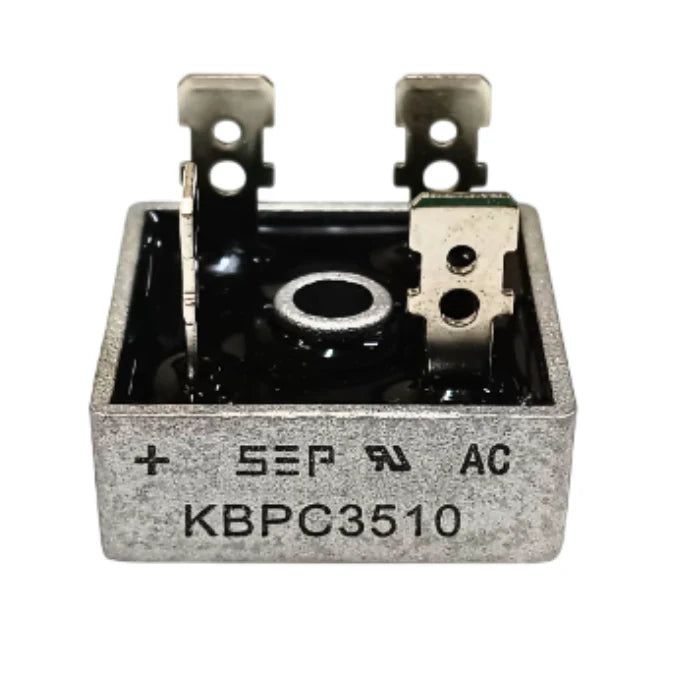

KBPC3510 35A 1000V Single-Phase Bridge Rectifier Diode Module

SKU: 9X3FY86YQI
The KBPC3510 35A 1000V Single-Phase Bridge Rectifier Diode Module is a robust power semiconductor device designed to convert alternating current (AC) into direct current (DC) through full-wave rectification. It integrates four high-current diodes in a bridge configuration within a compact metal package, providing an efficient and reliable solution for AC-to-DC power conversion in industrial, commercial, and electronic applications. With a...
Rs. 51.00
Rs. 55.00 Rs. 51.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model: KBPC3510
Device Type: Single-Phase Bridge Rectifier
Maximum Average Forward Current (IF): 35A
Peak Repetitive Reverse Voltage (VRRM): 1000V
Maximum RMS Voltage: 700V
Maximum DC Blocking Voltage: 1000V
Forward Voltage Drop: Approximately 1.1V per diode
Peak Forward Surge Current (IFSM): Up to 400A
Rectification Type: Full-Wave Bridge Rectifier
Operating Frequency: 50Hz/60Hz and compatible with higher-frequency rectification circuits

Additional Resources

KBPC3510 35A 1000V Single-Phase Bridge Rectifier Diode Module.PDF

FAQ

1. What is the KBPC3510 35A 1000V Single-Phase Bridge Rectifier Diode Module?

The KBPC3510 is a high-power single-phase bridge rectifier module designed to convert AC (Alternating Current) into DC (Direct Current). It can handle up to 35A average forward current and withstand a peak reverse voltage of 1000V, making it suitable for high-power rectification applications.

2. What are the common applications of the KBPC3510 Bridge Rectifier Module?

The KBPC3510 is commonly used in AC-to-DC power supplies, battery chargers, motor control circuits, welding machines, industrial automation systems, UPS units, and power conversion equipment.

3. What do the 35A and 1000V ratings signify?

The 35A rating indicates the maximum average current the rectifier can safely conduct, while the 1000V rating represents the maximum peak reverse voltage the module can withstand without damage.

4. How are the terminals of the KBPC3510 arranged?

The module features four terminals:~ AC Input 1~ AC Input 2+ Positive DC Output− Negative DC Output
This configuration enables efficient full-wave rectification of single-phase AC power.

5. What are the advantages of using the KBPC3510 Bridge Rectifier?

The KBPC3510 offers high current capacity, excellent voltage tolerance, efficient full-wave rectification, durable metal-case construction, good heat dissipation, easy mounting, and reliable performance in industrial and high-power electronic applications.

View full product details

The KBPC3510 35A 1000V Single-Phase Bridge Rectifier Diode Module is a robust power semiconductor device designed to convert alternating current (AC) into direct current (DC) through full-wave rectification. It integrates four high-current diodes in a bridge configuration within a compact metal package, providing an efficient and reliable solution for AC-to-DC power conversion in industrial, commercial, and electronic applications.

With a maximum average forward current rating of 35 Amperes and a peak reverse voltage rating of 1000 Volts, the KBPC3510 is well-suited for medium- to high-power power supplies, battery charging systems, motor controllers, welding equipment, and industrial automation systems. Its metal housing ensures excellent heat dissipation and long-term reliability under demanding operating conditions.

Features

  • High current handling capability of up to 35A
  • Peak reverse voltage rating of 1000V
  • Full-wave bridge rectification
  • Compact and rugged metal package
  • Excellent thermal conductivity
  • High surge current capability
  • Reliable and durable construction
  • Easy chassis mounting
  • Low forward voltage drop
  • Suitable for industrial and commercial applications
