Specifications:

Model: KBPC5010
Device Type: Bridge Rectifier Module
Maximum Average Forward Current (IF): 50A
Peak Repetitive Reverse Voltage (VRRM): 1000V
Maximum RMS Voltage: 700V
Maximum DC Blocking Voltage: 1000V
Forward Voltage Drop: Approximately 1.1V per diode
Peak Forward Surge Current (IFSM): Up to 400A
Rectification Type: Full-Wave Bridge Rectifier
Operating Frequency: 50Hz to 60Hz and higher-frequency rectification applications

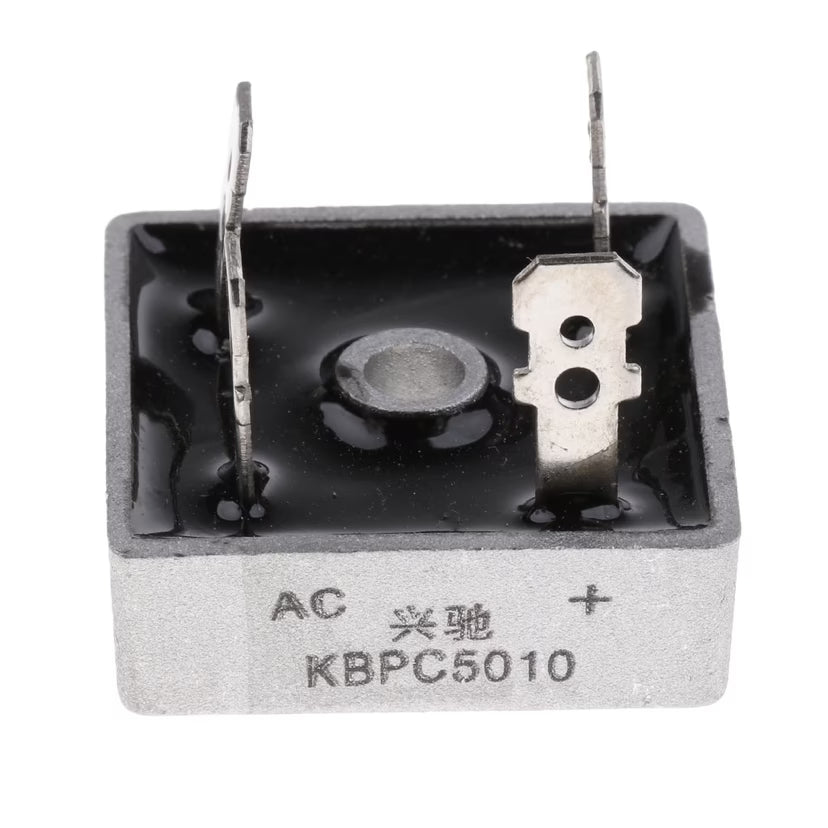

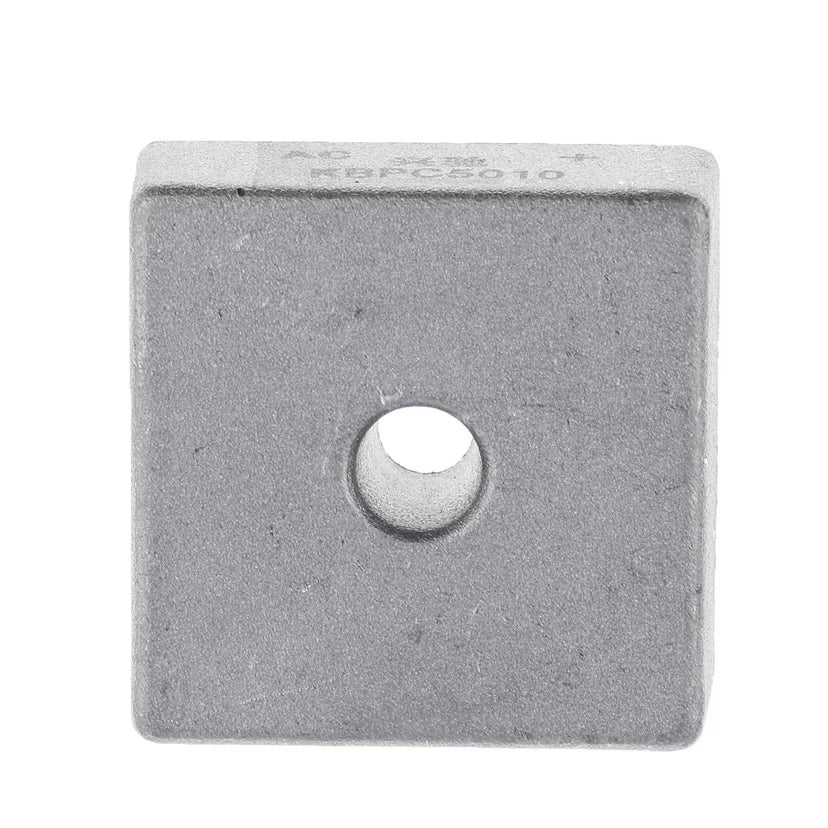

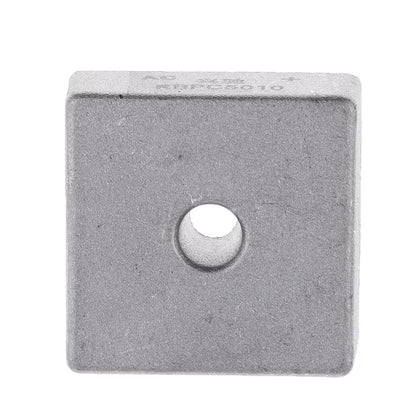

1. What is the KBPC5010 50A 1000V Bridge Rectifier Diode Module?

The KBPC5010 is a high-current bridge rectifier module designed to convert alternating current (AC) into direct current (DC). It can handle up to 50A average forward current and withstand a peak reverse voltage of 1000V, making it suitable for high-power power supply applications.

2. What are the common applications of the KBPC5010 Bridge Rectifier?

The KBPC5010 is widely used in AC-to-DC power supplies, battery chargers, welding equipment, motor drives, industrial control systems, inverters, and high-power electronic circuits requiring efficient rectification.

3. What do the ratings 50A and 1000V indicate?

The 50A rating refers to the maximum average forward current the rectifier can handle, while the 1000V rating indicates the maximum peak reverse voltage that the device can withstand without breakdown.

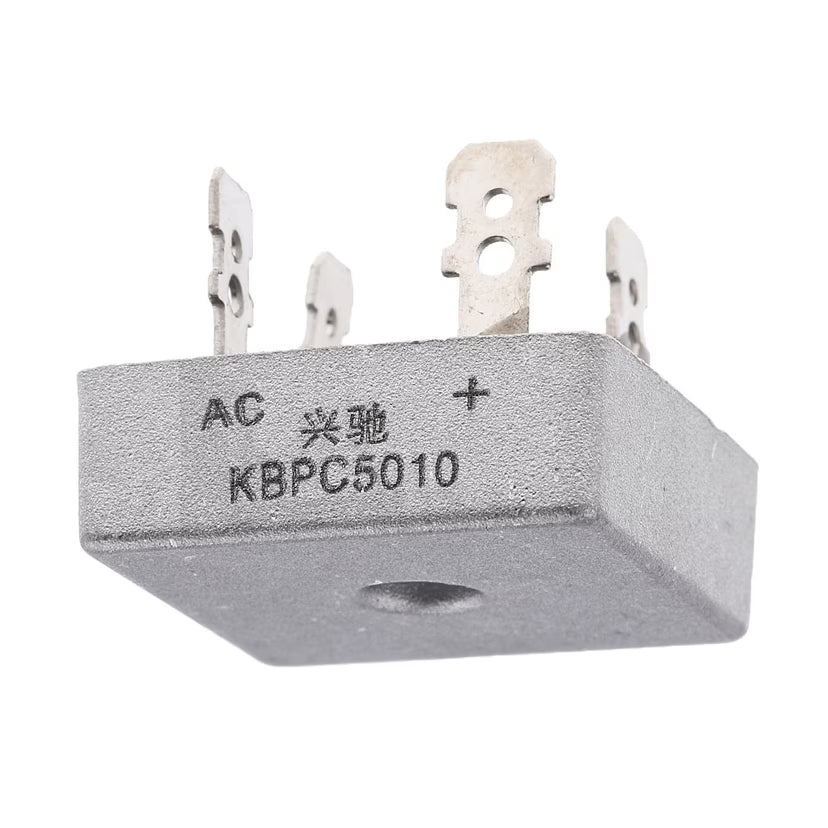

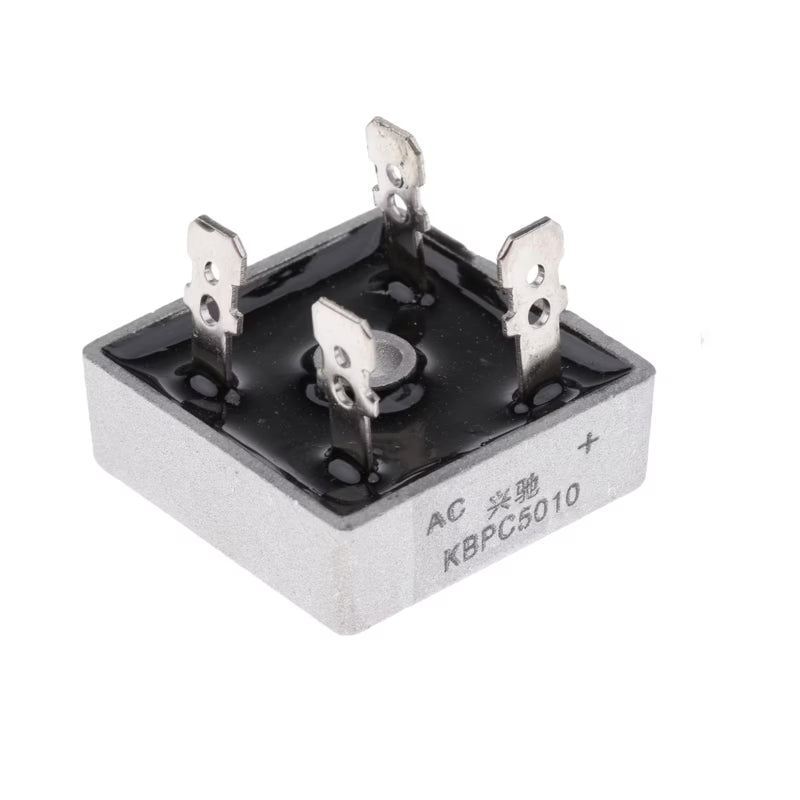

4. How are the terminals of the KBPC5010 identified?

The module typically has four terminals:~ (AC Input) – Two terminals for AC input+ (Positive Output) – Positive DC output− (Negative Output) – Negative DC output
This configuration allows easy conversion of AC voltage into DC voltage.

5. What are the advantages of using the KBPC5010 Bridge Rectifier Module?

The KBPC5010 offers high current-handling capability, high voltage tolerance, compact metal package construction, efficient heat dissipation, reliable operation, and easy mounting, making it ideal for demanding industrial and power electronics applications.
