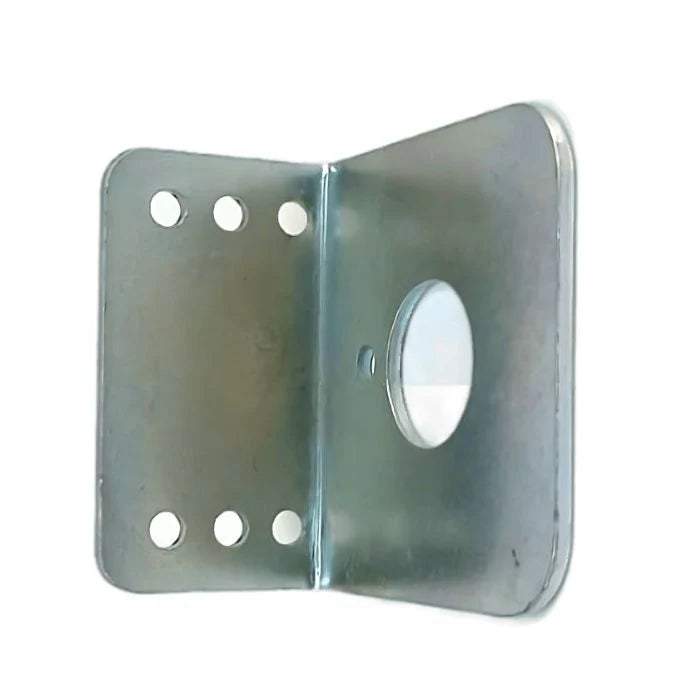

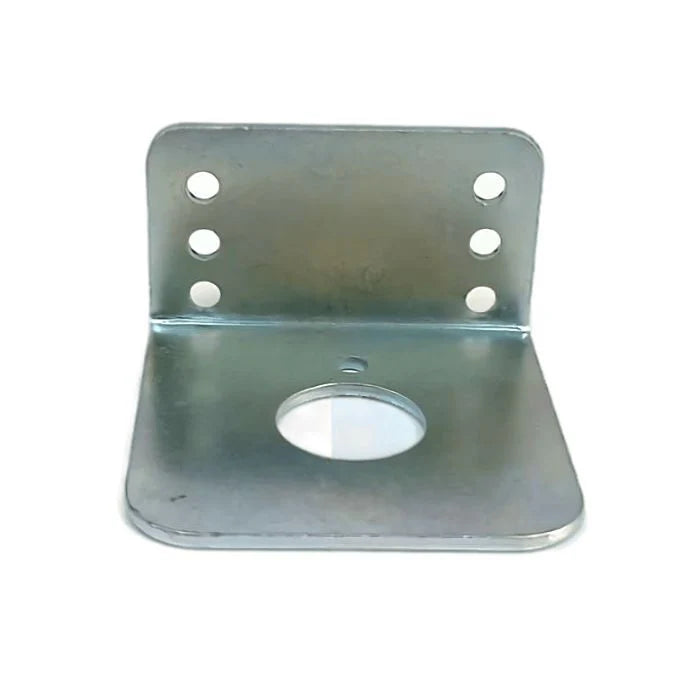

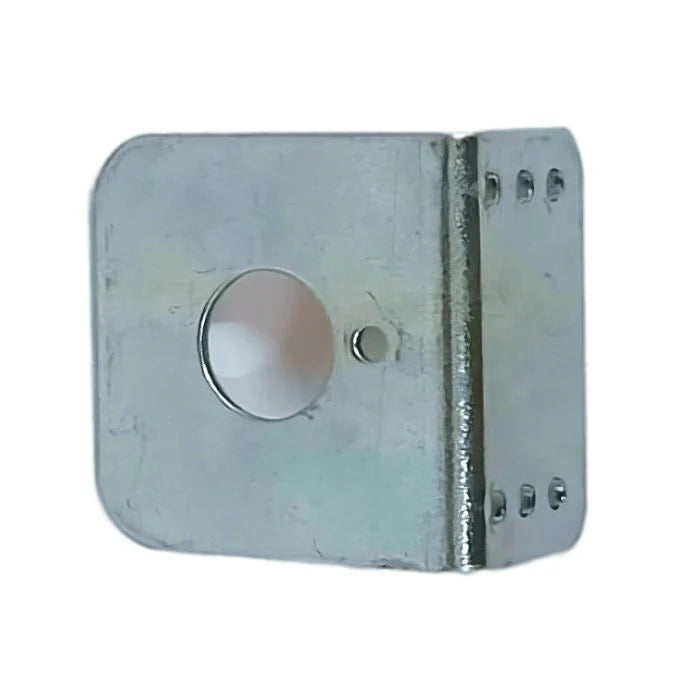

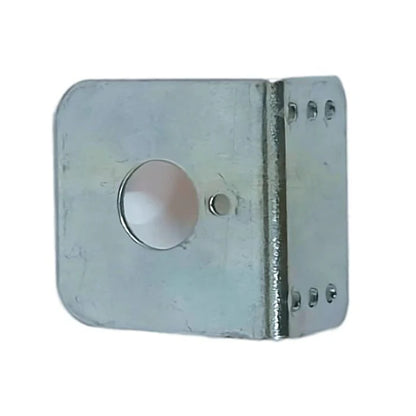

L Clamp (Bracket) For Center Shaft Gear Motor

SKU: AQ63AWNGQ3
The L Clamp (Bracket) for Center Shaft Gear Motor is a precision mounting accessory designed to securely hold DC gear motors in robotic and mechanical assemblies. Its L-shaped structure provides strong mechanical support, ensuring stable alignment between the motor shaft and the chassis. It is widely used in educational robotics, DIY automation projects, and mobile robot platforms. This bracket is...
Rs. 22.00
Rs. 25.00 Rs. 22.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Material: Mild steel or aluminum alloy
Shape: L-shaped mounting bracket
Thickness: Typically 1.5 mm – 2.5 mm
Surface Finish: Zinc-plated / powder-coated / anodized (varies by model)
Mounting Holes: Pre-drilled holes for motor and chassis fixing
Hole Diameter: Approximately 3 mm – 5 mm (standard M3/M4 screws)
Weight: Lightweight (varies depending on material and thickness)
Dimensions: Designed to fit standard center shaft gear motors (varies by manufacturer)

Additional Resources

L Clamp (Bracket) For Center Shaft Gear Motor.PDF

FAQ

  1. What is an L Clamp (Bracket) for Center Shaft Gear Motor?

    An L Clamp (Bracket) is a metal mounting accessory used to securely fix a center shaft gear motor onto a chassis or robotic frame. It provides strong support and proper alignment for motor installation.
  2. What is the main purpose of using an L Clamp in robotics?

    The main purpose of an L Clamp is to hold the gear motor firmly in place, prevent vibration during operation, and ensure stable wheel movement in robotic applications.
  3. Which motors are compatible with an L Clamp bracket?

    It is mainly compatible with center shaft DC gear motors commonly used in robotics kits, including BO-type and metal gearbox motors depending on the bracket size.
  4. What material is typically used to make L Clamp brackets?

    L Clamp brackets are usually made from aluminum or mild steel, providing high strength, durability, and resistance to bending under load.
  5. Where is an L Clamp (Bracket) commonly used?

    It is widely used in robot chassis assemblies, especially in line-following robots, obstacle-avoiding robots, and DIY mobile robot platforms to mount motors securely.
View full product details

The L Clamp (Bracket) for Center Shaft Gear Motor is a precision mounting accessory designed to securely hold DC gear motors in robotic and mechanical assemblies. Its L-shaped structure provides strong mechanical support, ensuring stable alignment between the motor shaft and the chassis. It is widely used in educational robotics, DIY automation projects, and mobile robot platforms.

This bracket is specially engineered to mount center shaft gear motors firmly onto metal or acrylic chassis plates. It reduces vibration, prevents motor misalignment, and improves overall mechanical stability. The simple L-shape design allows easy installation using screws and standard mounting holes.

Key Features

  • Strong L-shaped structural design for rigid motor support
  • High durability and vibration resistance
  • Easy installation with standard screws and bolts
  • Compatible with most center shaft DC gear motors
  • Lightweight yet strong construction
  • Corrosion-resistant surface finish
