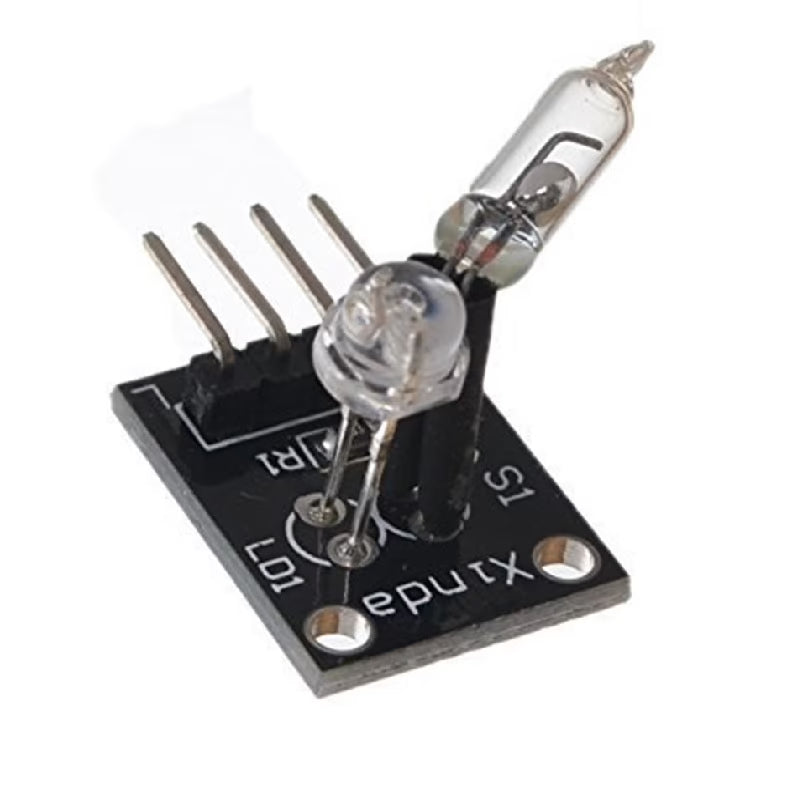

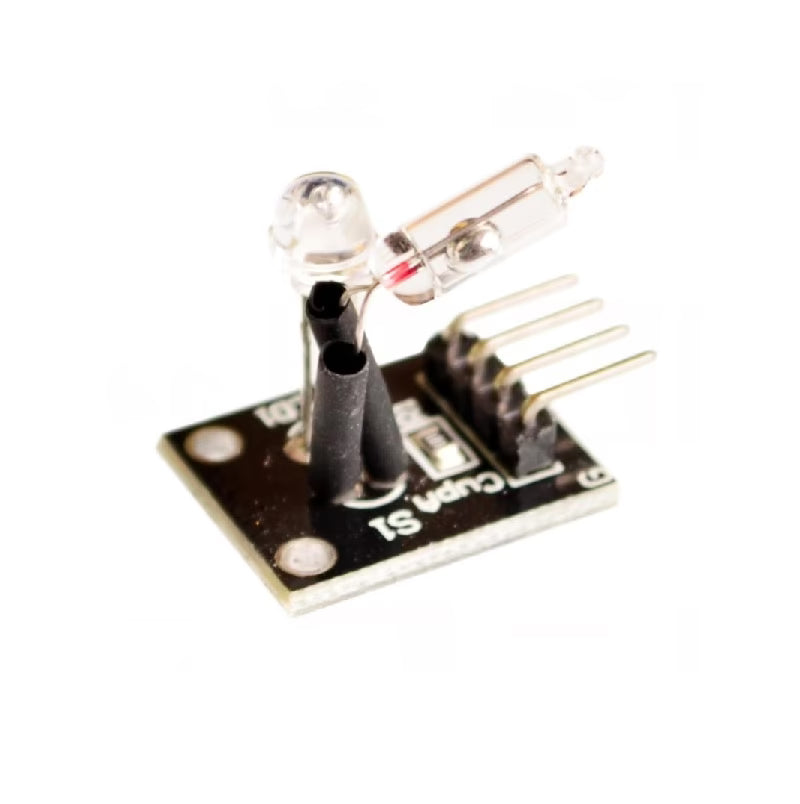

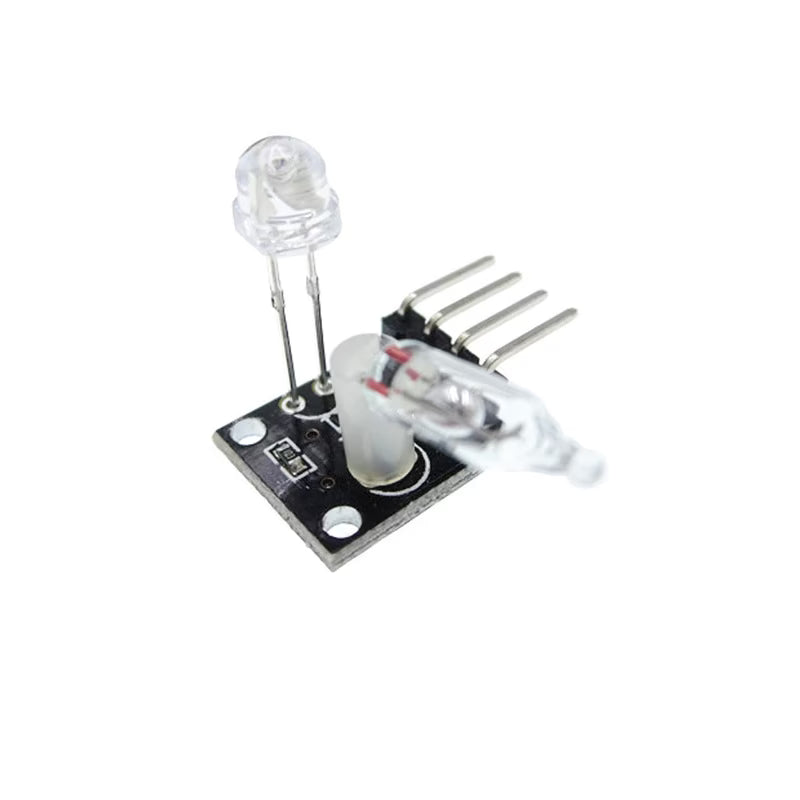

Magic Cup Light Module

SKU: LJMUH3GMV3
The Magic Cup Light Module is an interactive LED sensor module that demonstrates a unique lighting effect using a tilt switch and dual LEDs. When the module is tilted in one direction, one LED illuminates while the other turns off. Tilting the module in the opposite direction reverses the effect, creating an engaging "magic cup" lighting behavior. The module is...
Rs. 49.00
Rs. 59.00 Rs. 49.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Magic Cup Light Sensor Module
Detection Method: Tilt Detection
Sensor Element: Rolling Ball Tilt Switch
Operating Voltage: 3.3V to 5V DC
Operating Current: Typically Less Than 20mA
Output Type: Digital Output
Indicator LEDs: 2 Onboard LEDs
Interface Pins: VCC, GND, DO
Signal Output: TTL Compatible
Response Time: Real-Time Detection
Sensitivity: Orientation-Based Switching
Mounting Type: Through-Hole Module
PCB Dimensions: Approximately 32mm × 14mm
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Compatibility: Arduino, ESP32, STM32, Raspberry Pi Pico, AVR, PIC

Additional Resources

Magic Cup.PDF

FAQ

1. What is the Magic Cup Light Module used for?

The module is used to detect tilt and orientation changes while creating an interactive LED lighting effect, making it ideal for educational and demonstration projects.

2. How does the Magic Cup Light Module work?

The module uses an internal rolling ball tilt switch to detect orientation changes and control the onboard LEDs accordingly.

3. Can the Magic Cup Light Module be connected to Arduino?

Yes, the module can be easily interfaced with Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers through its digital output.

4. What happens when the module is tilted?

Tilting the module changes the state of the internal tilt switch, causing the LEDs and output signal to change accordingly.

5. Is the Magic Cup Light Module suitable for beginners?

Yes, its simple operation, visual feedback, and easy interfacing make it an excellent module for beginners learning about sensors and microcontrollers.

View full product details

The Magic Cup Light Module is an interactive LED sensor module that demonstrates a unique lighting effect using a tilt switch and dual LEDs. When the module is tilted in one direction, one LED illuminates while the other turns off. Tilting the module in the opposite direction reverses the effect, creating an engaging "magic cup" lighting behavior.

The module is based on a rolling ball tilt switch and onboard control circuitry that detects orientation changes. It is commonly used in educational electronics kits, Arduino projects, STEM learning activities, interactive displays, and beginner sensor experiments.

Its simple operation and visual feedback make it an excellent tool for learning about tilt sensing, digital inputs, and motion detection in embedded systems.

Key Features

  • Interactive tilt-based LED module
  • Built-in rolling ball tilt switch
  • Dual LED lighting effect
  • Detects orientation changes
  • Simple digital output interface
  • Real-time tilt detection
  • Compact PCB design
  • Easy microcontroller interfacing
  • Low power consumption
  • Visual demonstration of motion sensing
  • Suitable for beginners and educational projects
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Durable and reliable operation
  • Ideal for STEM and DIY electronics learning
