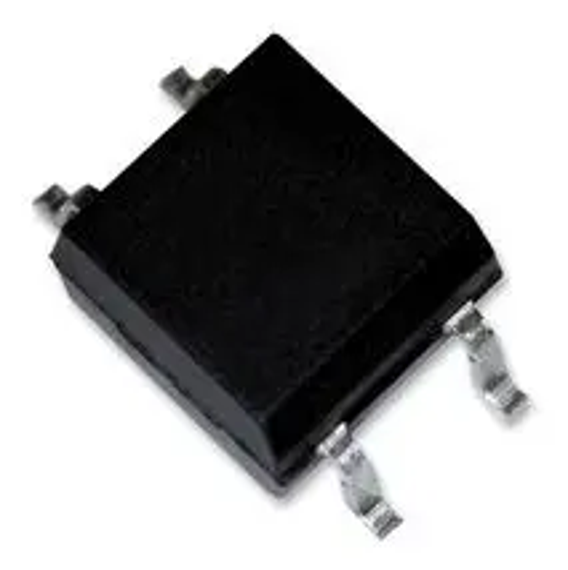

MB10F Bridge Rectifier

SKU: I0GD7NXYTH
★★★★ ★ ★
4.7 (38 reviews)
The MB10F Bridge Rectifier is a compact surface-mount rectifier designed to efficiently convert alternating current (AC) into direct current (DC). It consists of four internally connected diodes arranged in a bridge configuration, providing full-wave rectification in a single package. The MB10F is widely used in power supplies, battery chargers, LED drivers, and various electronic circuits requiring reliable AC-to-DC conversion. Its...
Rs. 8.00
Rs. 10.00 Rs. 8.00
Save Rs. 2 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The MB10F Bridge Rectifier is a compact surface-mount rectifier designed to efficiently convert alternating current (AC) into direct current (DC). It consists of four internally connected diodes arranged in a bridge configuration, providing full-wave rectification in a single package. The MB10F is widely used in power supplies, battery chargers, LED drivers, and various electronic circuits requiring reliable AC-to-DC conversion.

Its small form factor, high reverse voltage capability, and ease of integration make it a popular choice for modern electronic designs where PCB space is limited.

Features

  • Full-wave bridge rectifier in a single compact package
  • High peak repetitive reverse voltage of up to 1000V
  • Low leakage current
  • Surface-mount MBF package
  • Space-saving design compared to discrete diode solutions

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Surface-Mount Bridge Rectifier
Model Number: MB10F
Rectifier Type: Full-Wave Bridge Rectifier
Maximum Average Forward Current: 0.5
Peak Repetitive Reverse Voltage (VRRM): 1000V
Peak Forward Surge Current: High Surge Capability
Package Type: MBF / SMD
Mounting Type: Surface Mount
Number of Diodes: 4 (Integrated Bridge Configuration)
Operating Temperature: Suitable for Industrial Applications

Additional Resources

MB10F Bridge Rectifier.PDF

FAQ

1. What is the MB10F Bridge Rectifier?

The MB10F is a compact surface-mount bridge rectifier designed to convert alternating current (AC) into direct current (DC). It integrates four diodes in a single package, simplifying circuit design and reducing PCB space requirements.

2. What are the key specifications of the MB10F Bridge Rectifier?

The MB10F typically supports a maximum average forward rectified current of 0.5A and a peak repetitive reverse voltage of 1000V. It is commonly available in an MBF/SMD package for space-efficient designs.

3. What are the common applications of the MB10F Bridge Rectifier?

The MB10F is widely used in AC-to-DC power supplies, battery chargers, LED drivers, adapters, consumer electronics, and industrial control circuits where efficient rectification is required.

4. What are the advantages of using the MB10F instead of four separate diodes?

Using an MB10F bridge rectifier reduces component count, saves PCB space, simplifies assembly, improves reliability, and provides a convenient all-in-one solution for full-wave rectification.

5. How is the MB10F Bridge Rectifier connected in a circuit?

The MB10F has two AC input terminals marked "~" and two DC output terminals marked "+" and "-". The AC source is connected to the "~" terminals, while the rectified DC output is obtained from the "+" and "-" terminals.
