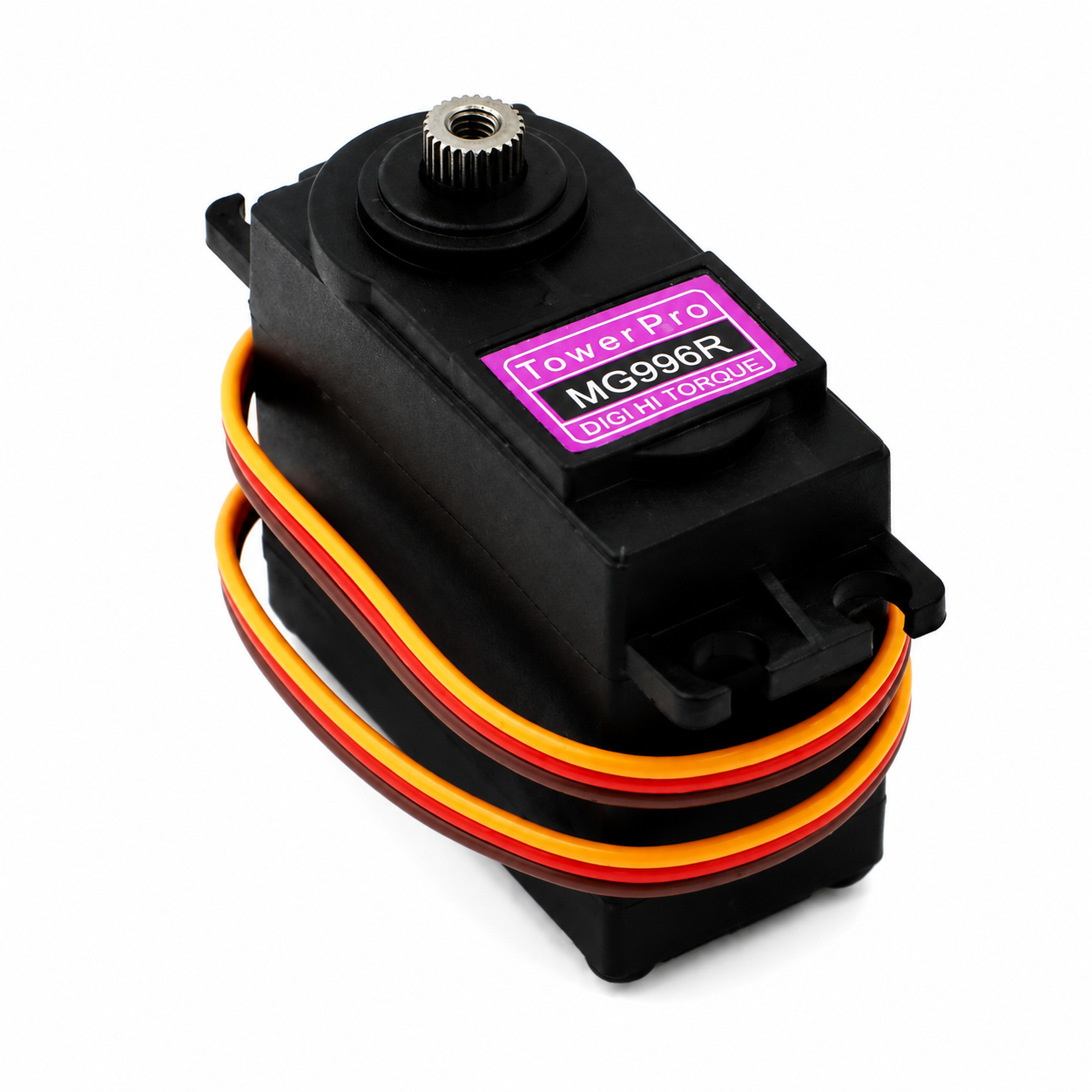

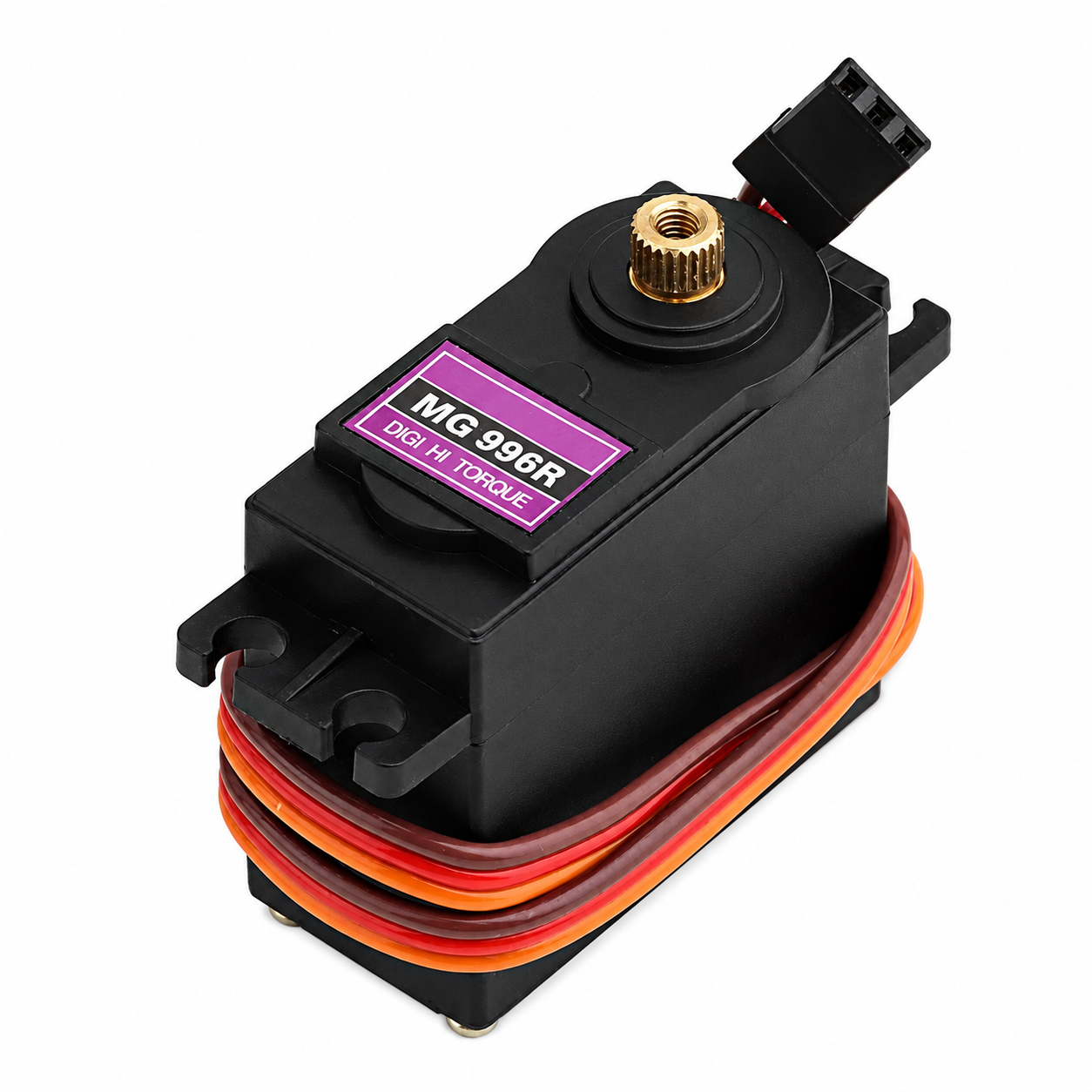

MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

SKU: 9DUKAZU8YZ
The MG996R Tower Pro Digital Servo Motor is a high-performance metal gear servo designed for robotics, RC vehicles, robotic arms, automation systems, and DIY electronics projects. Featuring a powerful DC motor and durable metal gear train, the MG996R delivers high torque, precise positioning, and reliable operation under demanding conditions. With a rotation range of approximately 180 degrees, the servo can...
Rs. 329.00
Rs. 359.00 Rs. 329.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Digital Servo Motor
Model: MG996R
Brand: Tower Pro
Rotation Angle: Approximately 180°
Gear Material: Metal Gears
Operating Voltage: 4.8V – 7.2V DC
Rated Voltage: 6V DC
Stall Torque:
9.4 kg·cm @ 4.8V
11 kg·cm @ 6V|
Operating Speed:
0.19 sec/60° @ 4.8V
0.15 sec/60° @ 6V
Control Signal: PWM (Pulse Width Modulation)
PWM Frequency: 50Hz
Dead Band Width: 5µs Typical
Bearing Type: Dual Ball Bearing
Motor Type: DC Motor
Connector Type: Standard 3-Pin Servo Connector
Wire Length: Approximately 300mm
Dimensions: 40.7mm × 19.7mm × 42.9mm
Weight: Approximately 55g
Operating Temperature: 0°C to +55°C

Additional Resources

MG996R.PDF

FAQ

1. What is the MG996R servo motor used for?

The MG996R is used in robotics, RC vehicles, robotic arms, pan-tilt systems, automation projects, and other applications requiring precise position control and high torque.

2. What is the rotation range of the MG996R servo?

The servo provides approximately 180 degrees of controlled rotation using standard PWM signals.

3. Why does the MG996R use metal gears?

Metal gears provide greater strength, durability, wear resistance, and torque handling capability compared to plastic gear servos.

4. Can the MG996R be controlled using Arduino and ESP32 boards?

Yes, the servo is fully compatible with Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers that generate standard servo PWM signals.

5. What voltage should be used to power the MG996R?

The recommended operating voltage range is 4.8V to 7.2V DC, with 6V commonly used for optimal torque and performance.

View full product details

The MG996R Tower Pro Digital Servo Motor is a high-performance metal gear servo designed for robotics, RC vehicles, robotic arms, automation systems, and DIY electronics projects. Featuring a powerful DC motor and durable metal gear train, the MG996R delivers high torque, precise positioning, and reliable operation under demanding conditions.

With a rotation range of approximately 180 degrees, the servo can accurately position its output shaft based on PWM control signals from microcontrollers such as Arduino, ESP32, STM32, Raspberry Pi Pico, and other development platforms. The upgraded digital control circuitry provides improved accuracy, faster response times, and higher holding torque compared to standard analog servos.

Its robust construction and high torque output make it an ideal choice for projects requiring powerful and precise motion control.

Key Features

  • High torque digital servo motor
  • Durable metal gear construction
  • Approximately 180° rotation range
  • Digital control circuitry
  • High positioning accuracy
  • Fast response and smooth movement
  • Strong holding torque
  • Compatible with standard servo PWM signals
  • Dual ball-bearing design
  • Robust and durable housing
  • Suitable for robotics and RC applications
  • Easy interfacing with Arduino and microcontrollers
  • Reliable long-life operation

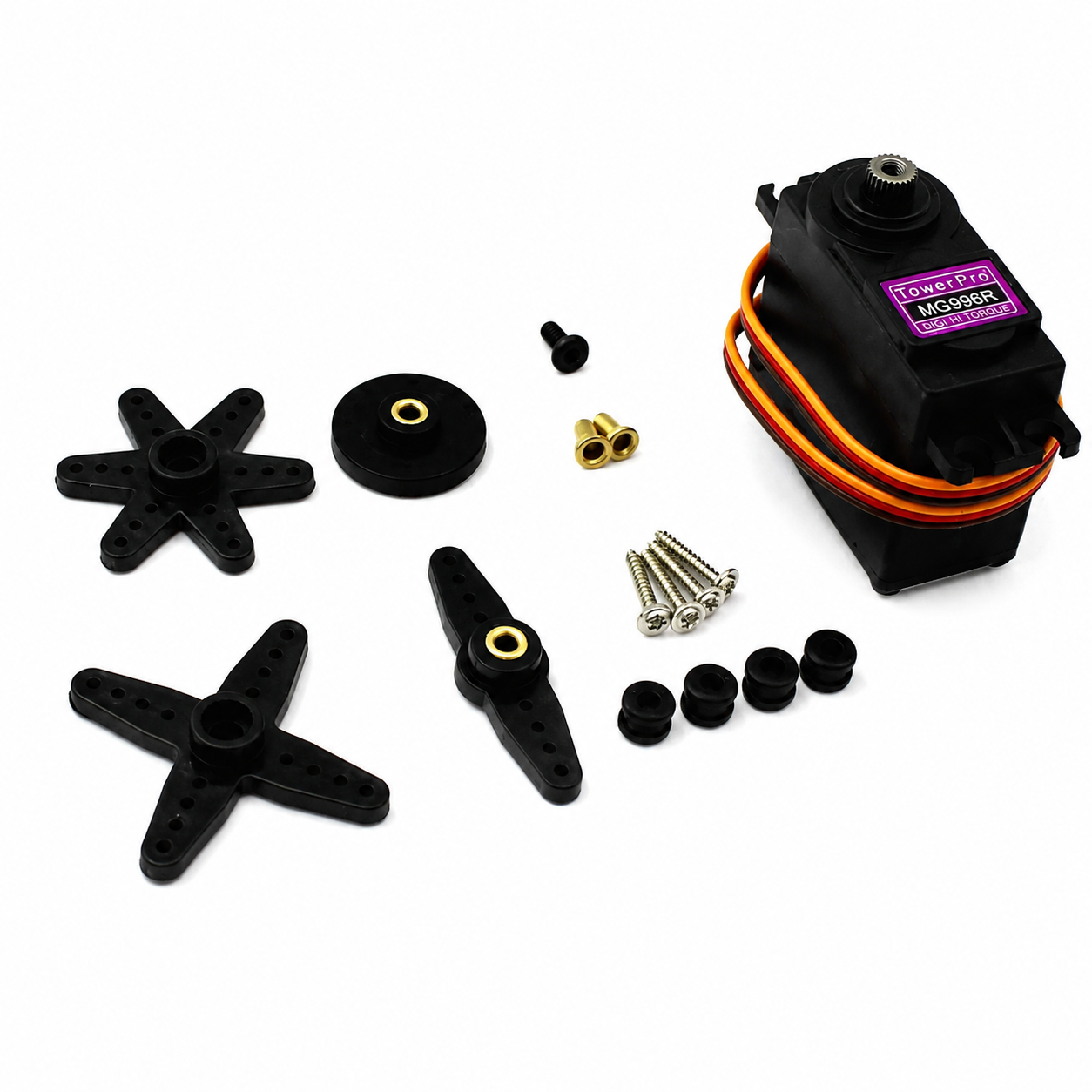

  • Includes servo horns and mounting hardware
