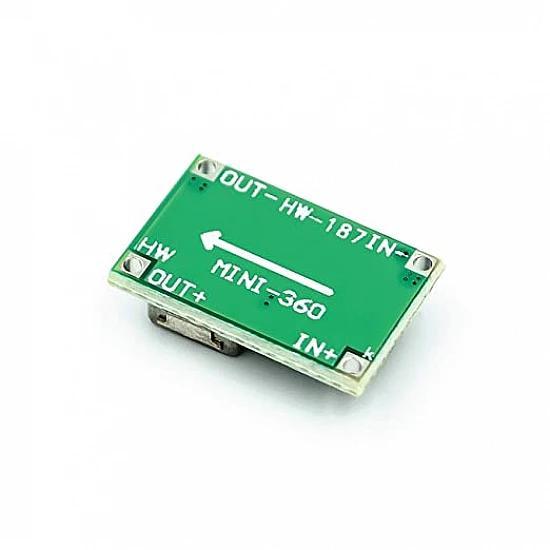

Mini 360 DC DC Buck Converter Module

SKU: MPGU801KH0
★★★★ ★ ★
4.1 (100 reviews)

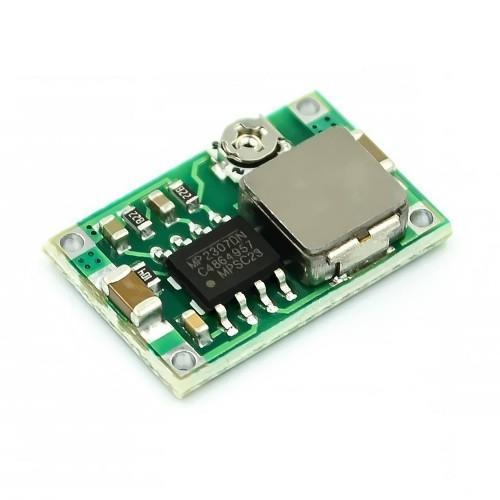

Mini 360 DC DC Buck Converter Module uses integrally molded power inductor and synchronous rectifier control chip, is smaller and more efficient. This Module can be use as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc. Features: Module:...
Rs. 39.00
Rs. 49.00 Rs. 39.00
Save Rs. 10 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

Mini 360 DC DC Buck Converter Module uses integrally molded power inductor and synchronous rectifier control chip, is smaller and more efficient. This Module can be use as a DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, various right size and weight for demanding applications (such as aviation models, etc.

Features:

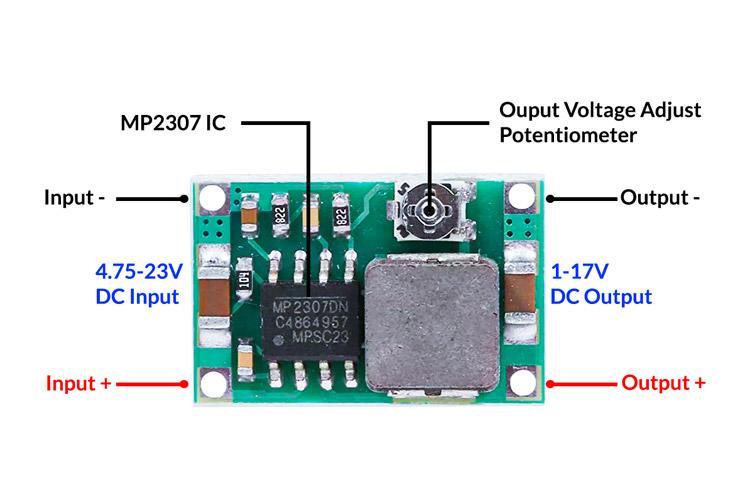

  • Module: Non-isolated step-down module (BUCK)
  • Rectification: Synchronous rectification
  • Built-in 160° C thermal shutdown
  • Output ripple: 30mV (no-load)
  • Regulator IC: MPS MP2307DN
  • Input Voltage Range: 4.75V – 23VDC
  • Selectable Output Voltage: 1.0V – 17VDC
  • Rated Current: 1.8A Continuous (3A Surge Current)
  • Switching Frequency: 340kHz
  • Voltage Regulation: ±2.5%

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Voltage: 4.5V – 23V DC
Output Voltage: 0.8V – 17V DC (adjustable)
Output Current: Up to 3A (recommended ≤2A continuous)
Efficiency: Up to 95%
Switching Frequency: ~1.5 MHz
Operating Temperature: -40°C to +85°C

Additional Resources

Mini 360 DC DC Buck Converter Module.PDF

FAQ

1. What is a Mini 360 DC-DC buck converter module?

The Mini 360 is a compact step-down voltage regulator based on the MP1584 that efficiently converts a higher DC input voltage into a lower adjustable output voltage.

2. How do you adjust the output voltage on the Mini 360 module?

The output voltage is adjusted using the onboard potentiometer. You need to rotate the small screw while measuring the output with a multimeter to set the desired voltage accurately.

3. What is the maximum current output of the Mini 360 module?

It can deliver up to 3A peak current, but for reliable continuous operation, it is recommended to use around 1.5A to 2A.

4. Can the Mini 360 module increase voltage?

No, it is a buck (step-down) converter, meaning it can only reduce voltage and cannot boost it above the input voltage.

5. What are typical applications of the Mini 360 module?

It is commonly used to power devices like Arduino Uno, IoT systems, portable electronics, battery-powered circuits, and compact embedded projects.
