Mini Tesla Coil Circuit DIY Kit

SKU: KXLT5EYQQ1
The Mini DIY Tesla Coil Circuit Kit is an educational and entertaining electronics kit that demonstrates the principles of wireless energy transmission, high-frequency oscillation, and electromagnetic induction. Designed for DIY assembly, the kit allows users to build a compact solid-state Tesla coil capable of generating high-frequency electric fields and small plasma discharges. Once assembled, the Tesla coil can wirelessly illuminate...
Rs. 279.00
Rs. 299.00 Rs. 279.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: DIY Tesla Coil Kit
Circuit Type: Solid-State Tesla Coil
Assembly Type: Through-Hole DIY Kit
Input Voltage: 12V DC
Current Consumption: Approximately 0.5A ā€“ 2A
Oscillation Frequency: Approximately 100kHz ā€“ 500kHz
Coil Type: Air-Core Tesla Coil
Secondary Coil Material: Enameled Copper Wire
PCB Type: Single-Sided Printed Circuit Board
Components Included:
PCB Board
Transistor/MOSFET
Resistors
Capacitors
LEDs (varies by version)

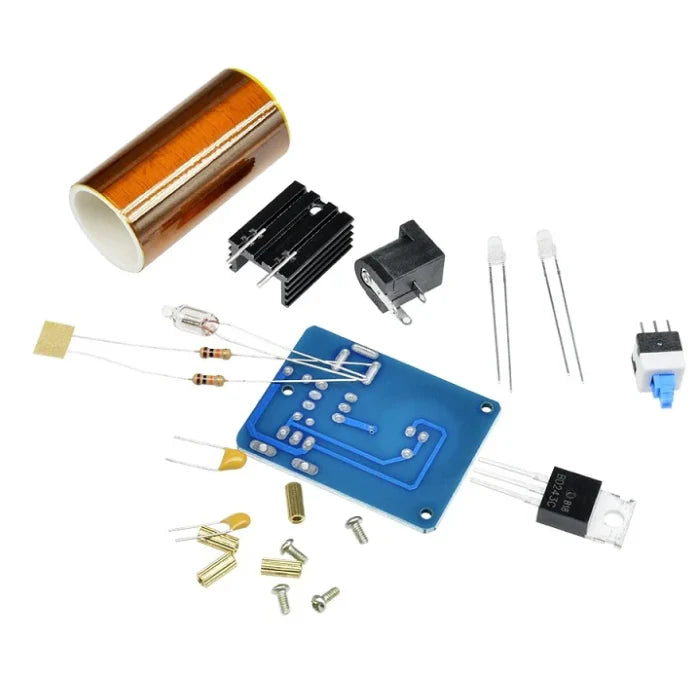

Copper Coil Assembly
Terminal Connectors
Assembly Skill Level: Beginner to Intermediate
Output Effect:
Wireless lamp lighting
Small plasma discharge generation
Operating Temperature: 0Ā°C to +50Ā°C
Mounting Type: Desktop / Experimental Setup
Dimensions: Vary by kit version

Additional Resources

Tesla.PDF

FAQ

1. What is the Mini DIY Tesla Coil Circuit Kit used for?

The kit is used to demonstrate wireless energy transmission, electromagnetic induction, and high-frequency electrical phenomena through a hands-on DIY electronics project.

2. Can the Tesla Coil wirelessly light bulbs?

Yes, the assembled Tesla coil can wirelessly illuminate fluorescent lamps, neon bulbs, and similar gas-discharge lighting devices brought near the coil.

3. What power supply is required for the Tesla Coil Kit?

The kit typically operates from a 15Vā€“24V DC power supply, with 24V DC commonly recommended for best performance.

4. Is the Mini Tesla Coil suitable for beginners?

Yes, the kit is designed for beginners and hobbyists with basic soldering skills, making it an excellent educational project.

5. Are there any safety precautions when using the Tesla Coil?

Yes, the coil generates high-frequency high voltage. Users should avoid touching the coil during operation and keep it away from sensitive electronics, medical devices, and flammable materials.

View full product details

The Mini DIY Tesla Coil Circuit Kit is an educational and entertaining electronics kit that demonstrates the principles of wireless energy transmission, high-frequency oscillation, and electromagnetic induction. Designed for DIY assembly, the kit allows users to build a compact solid-state Tesla coil capable of generating high-frequency electric fields and small plasma discharges.

Once assembled, the Tesla coil can wirelessly illuminate fluorescent lamps, neon bulbs, and other gas-discharge devices brought near the coil without direct electrical contact. The kit provides an engaging hands-on learning experience for students, hobbyists, and electronics enthusiasts interested in high-voltage technology and electromagnetic phenomena.

Its compact design, simple assembly process, and impressive visual effects make it ideal for STEM education, science demonstrations, and electronics experimentation.

Key Features

  • DIY Tesla coil assembly kit
  • Demonstrates wireless power transmission
  • Generates high-frequency electromagnetic fields
  • Can wirelessly light fluorescent and neon lamps
  • Educational STEM learning project
  • Compact and lightweight design
  • Simple through-hole component assembly
  • Visual demonstration of electromagnetic induction
  • Suitable for beginners and electronics enthusiasts
  • Low-voltage powered operation
  • Ideal for science exhibitions and demonstrations
  • Fun and educational electronics project
