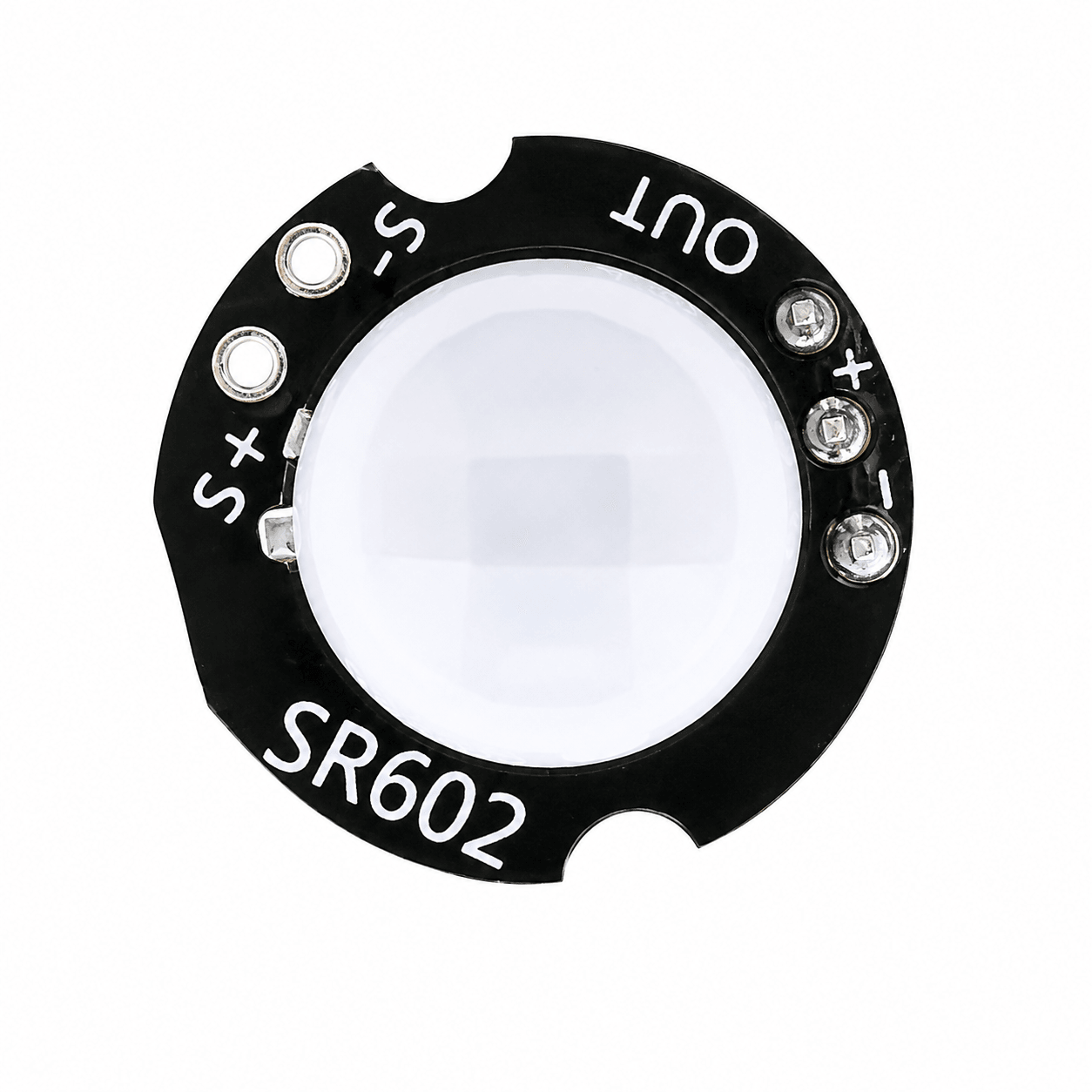

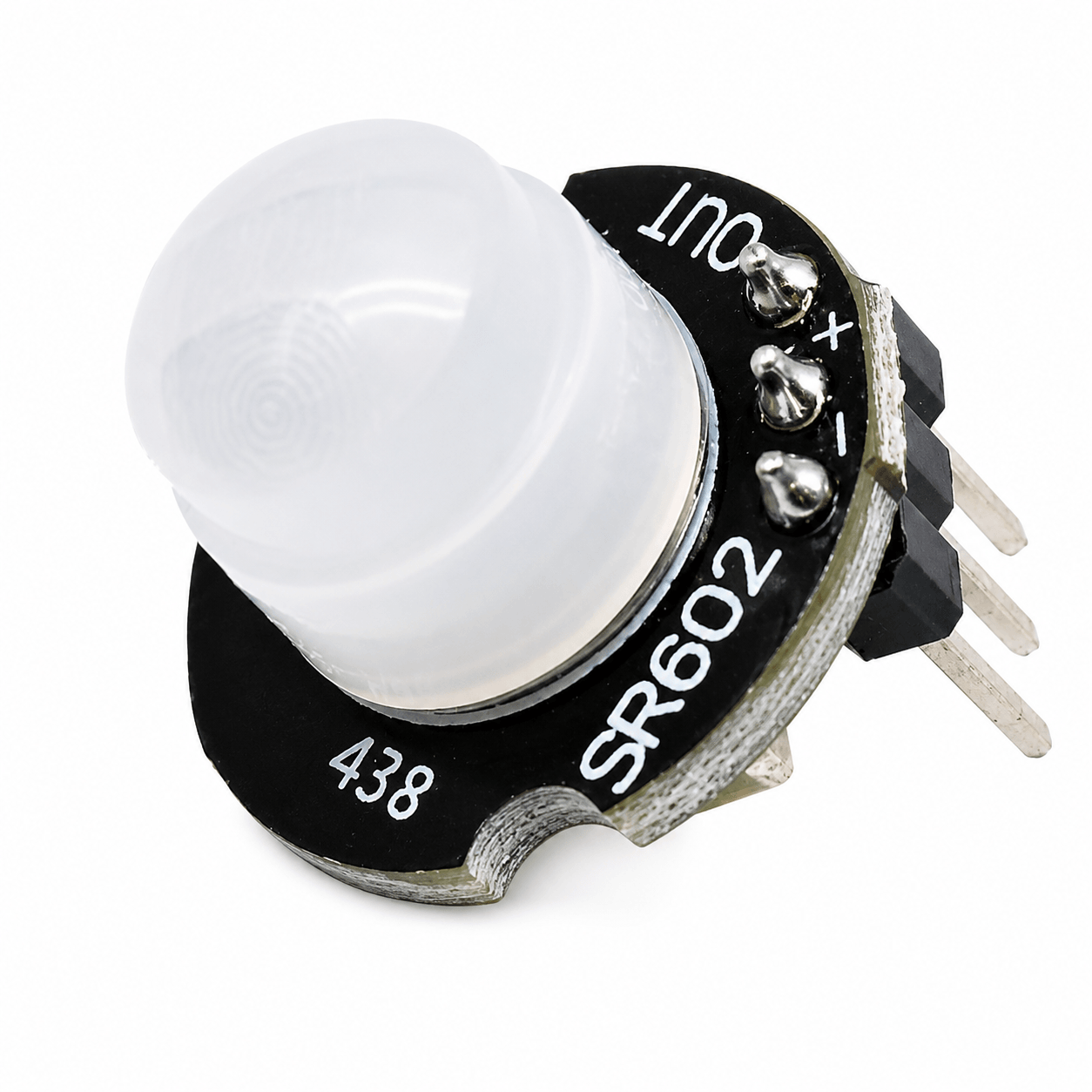

Mini PIR Motion Detector Sensor Module (MH-SR602)

SKU: VO8RQDH406
★★★★ ★ ★
4.1 (22 reviews)
The Mini PIR Motion Detector Sensor Module – MH-SR602 is a compact and low-power Passive Infrared (PIR) motion sensor designed for detecting the movement of people, animals, and other warm objects within its sensing area. The module detects changes in infrared radiation caused by movement and provides a digital output signal that can be easily read by a microcontroller or...
Rs. 115.00
Rs. 120.00 Rs. 115.00
Save Rs. 5
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Mini PIR Motion Detector Sensor Module – MH-SR602 is a compact and low-power Passive Infrared (PIR) motion sensor designed for detecting the movement of people, animals, and other warm objects within its sensing area. The module detects changes in infrared radiation caused by movement and provides a digital output signal that can be easily read by a microcontroller or control circuit.

The MH-SR602 combines a pyroelectric infrared sensing element, signal-processing circuitry, and a Fresnel lens in a very small package. When motion is detected, the module output changes to a HIGH level of approximately 3.3V. When no motion is detected, the output remains LOW at approximately 0V.

The sensor operates from a wide 3.3V to 15V DC supply range and consumes approximately 20µA in standby, making it suitable for compact and battery-powered motion detection systems. It can detect movement up to approximately 5 metres, with a recommended practical sensing distance of around 0 to 3.5 metres for reliable operation.

The MH-SR602 uses a repeatable trigger operating mode. If motion continues within the sensing area, the output can remain active or retrigger according to the module's internal timing behavior. The default output HIGH duration is approximately 2.5 seconds, and the delay time and sensitivity can be modified on supported board versions by changing designated SMD resistor values.

Its miniature size, wide operating voltage range, low standby current, and simple three-pin interface make the module suitable for security alarms, automatic lighting, smart home devices, battery-powered detectors, robotics, camera activation systems, and other motion-triggered electronics projects.

Key Features

  • Compact miniature PIR motion sensor module
  • Detects movement of people and other warm objects
  • Passive infrared sensing technology
  • Wide 3.3V to 15V DC operating range
  • Digital HIGH/LOW output
  • Approximately 3.3V HIGH output level
  • Approximately 0V LOW output level
  • Detection distance up to approximately 5 metres
  • Recommended sensing range up to approximately 3.5 metres
  • Very low standby current of approximately 20µA
  • Default output HIGH duration of approximately 2.5 seconds
  • Repeatable trigger operation
  • High sensitivity and fast response
  • Integrated Fresnel lens
  • Compact and lightweight PCB design
  • Simple three-pin electrical interface
  • Suitable for battery-powered applications
  • Easy interfacing with microcontrollers
  • Optional modification points on common versions for timing and sensitivity adjustment
  • Optional photosensor connection support on some module revisions

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Mini PIR Motion Detector Sensor Module
Model: MH-SR602 / SR602
Sensor Technology: Passive Infrared (PIR)
Sensing Element: Pyroelectric Infrared Sensor
Detection Type: Motion Detection
Operating Voltage: 3.3V to 15V DC
Quiescent Current: Approximately 20µA
Output Type: Digital Logic Output
Output HIGH Level: Approximately 3.3V
Output LOW Level: Approximately 0V
Maximum Detection Distance: Up to Approximately 5m
Recommended Detection Distance: Approximately 0 to 3.5m
Default Output HIGH Time: Approximately 2.5 Seconds
Delay Adjustment: Possible by Resistor Modification on Common Version
Maximum Modified Delay: Up to Approximately 1 Hour on Documented Versions
Trigger Mode: Repeatable Trigger
Blocking Time: Approximately 2 Seconds on Common Versions

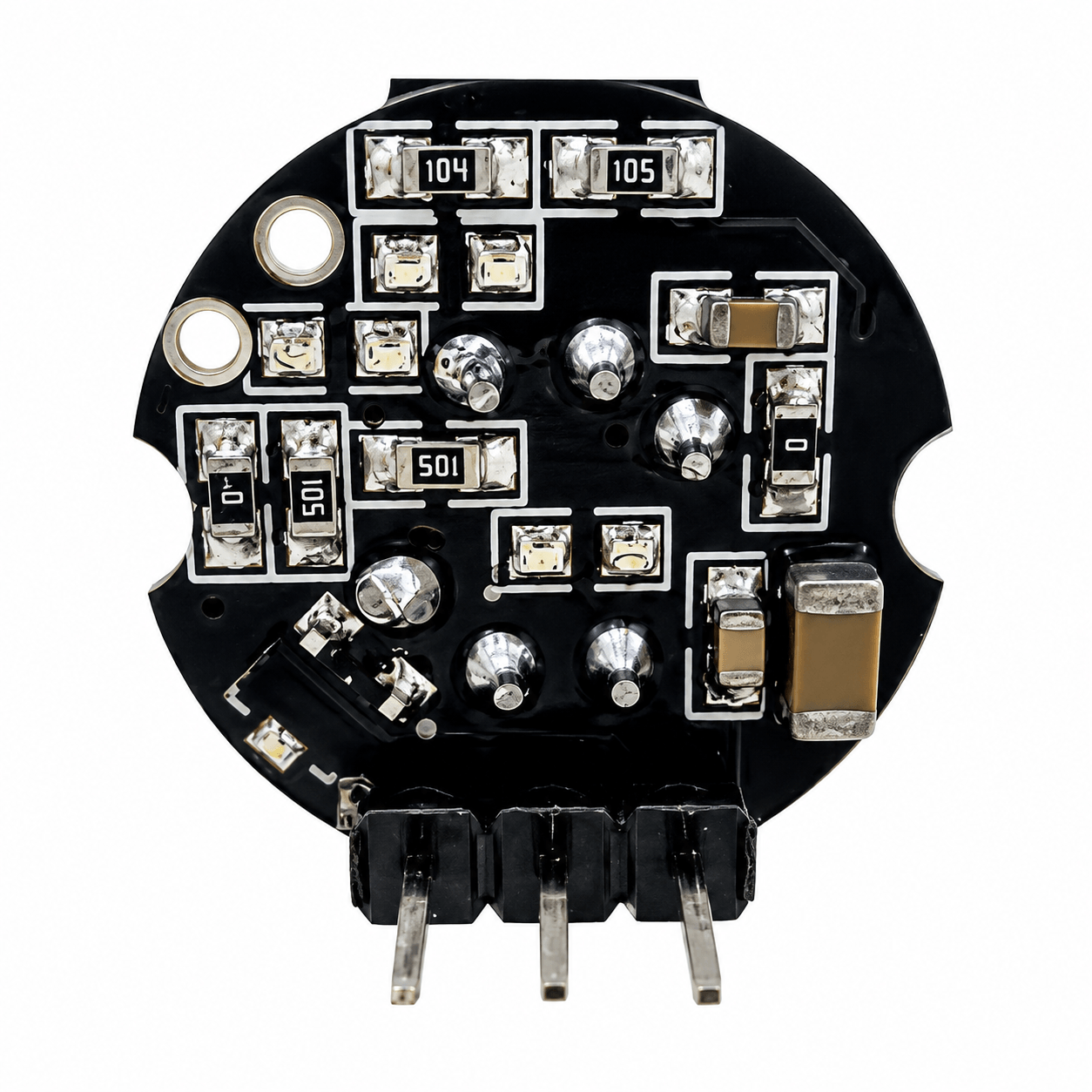

Sensitivity Adjustment: Possible Through SMD Resistor Modification on Supported Versions
Light Sensor Support: Optional Photodiode Connection on Some Versions

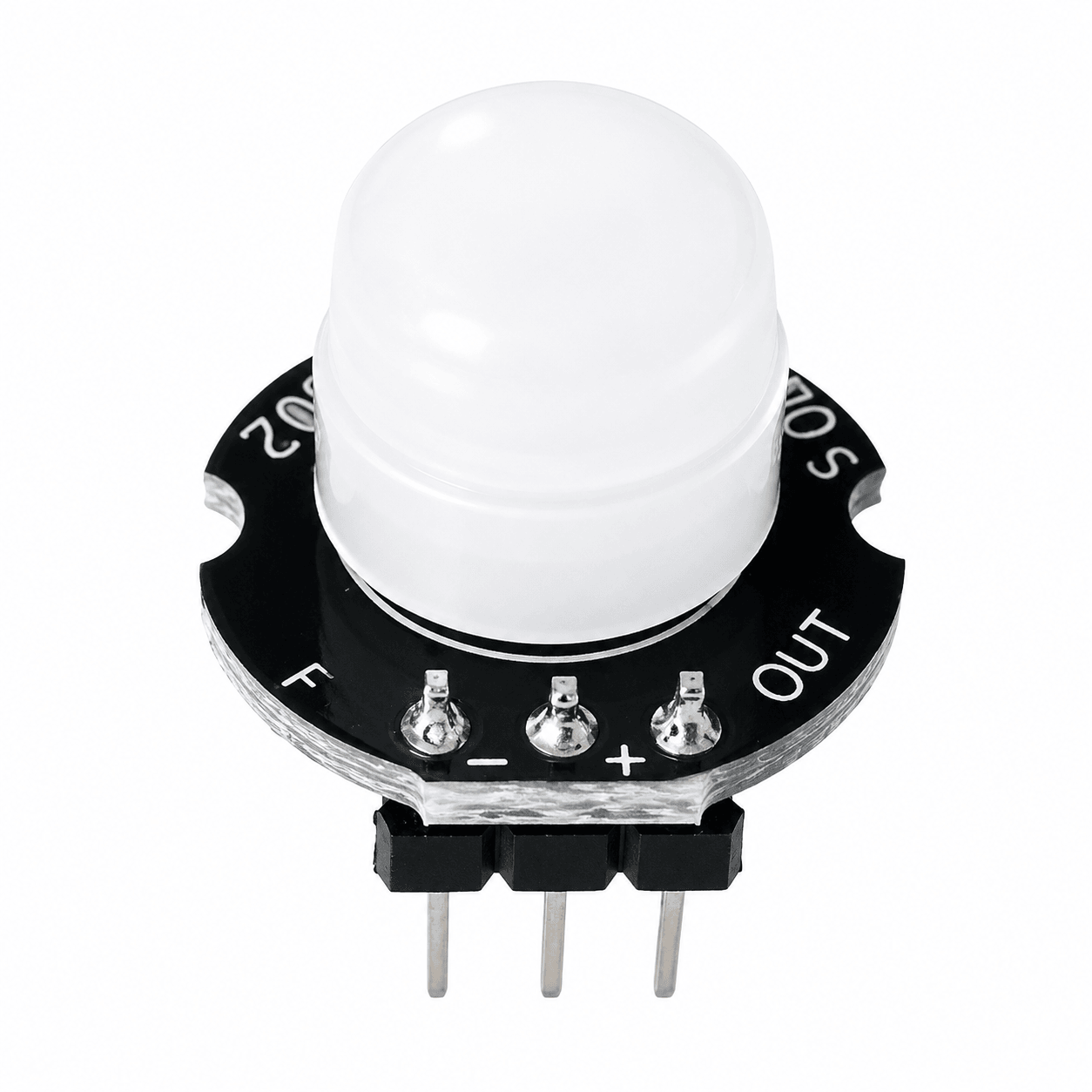

Number of Connection Pins: 3
Typical Module Size: Approximately 19.6mm × 16mm Including Lens and Pins, Depending on Version
Output Compatibility: Suitable for 3.3V and 5V Microcontroller Digital Inputs
Compatibility: Arduino UNO, Nano, Mega, ESP32, ESP8266, STM32, Raspberry Pi Pico, RP2040, PIC, AVR and Other Digital Controllers.

Additional Resources

Motion Detector Sensor.PDF

FAQ

1. What is the MH-SR602 Mini PIR Motion Sensor used for?

The MH-SR602 is used for detecting movement of people, animals, and other warm objects. It is commonly used in security alarms, automatic lights, smart home systems, robotics, camera triggers, and battery-powered motion detection projects.

2. What is the detection range of the MH-SR602 sensor?

The sensor can detect movement up to approximately 5 metres under suitable conditions, while a practical recommended sensing range of up to approximately 3.5 metres is commonly specified for reliable detection.

3. Can the MH-SR602 be used with Arduino and ESP32?

Yes. The module provides a digital output of approximately 3.3V when motion is detected, making it suitable for Arduino, ESP32, ESP8266, STM32, Raspberry Pi Pico, RP2040, PIC, AVR, and other digital controllers.

4. How much current does the MH-SR602 consume?

The module has a very low quiescent current of approximately 20µA, making it suitable for low-power and battery-operated motion detection applications.

5. Can the detection delay of the MH-SR602 be adjusted?

Yes, on common versions the output HIGH duration can be changed by modifying a designated resistor on the PCB. The factory default is typically around 2.5 seconds, while longer delays can be configured through hardware modification.
