Mounting Bracket For Ultrasonic Sensor HC-SR04

SKU: JUKKVH5K7O
★★★★ ★ ★
4.5 (12 reviews)
The Mounting Bracket for Ultrasonic Sensor HC-SR04 is a lightweight and durable holder designed specifically for securely mounting the HC-SR04 ultrasonic distance sensor module in robotics, automation, and electronic projects. The bracket provides stable sensor positioning and helps maintain proper alignment of the ultrasonic transmitter and receiver for reliable obstacle detection and distance measurement applications. The bracket is commonly manufactured...
Rs. 24.00
Rs. 27.00 Rs. 24.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

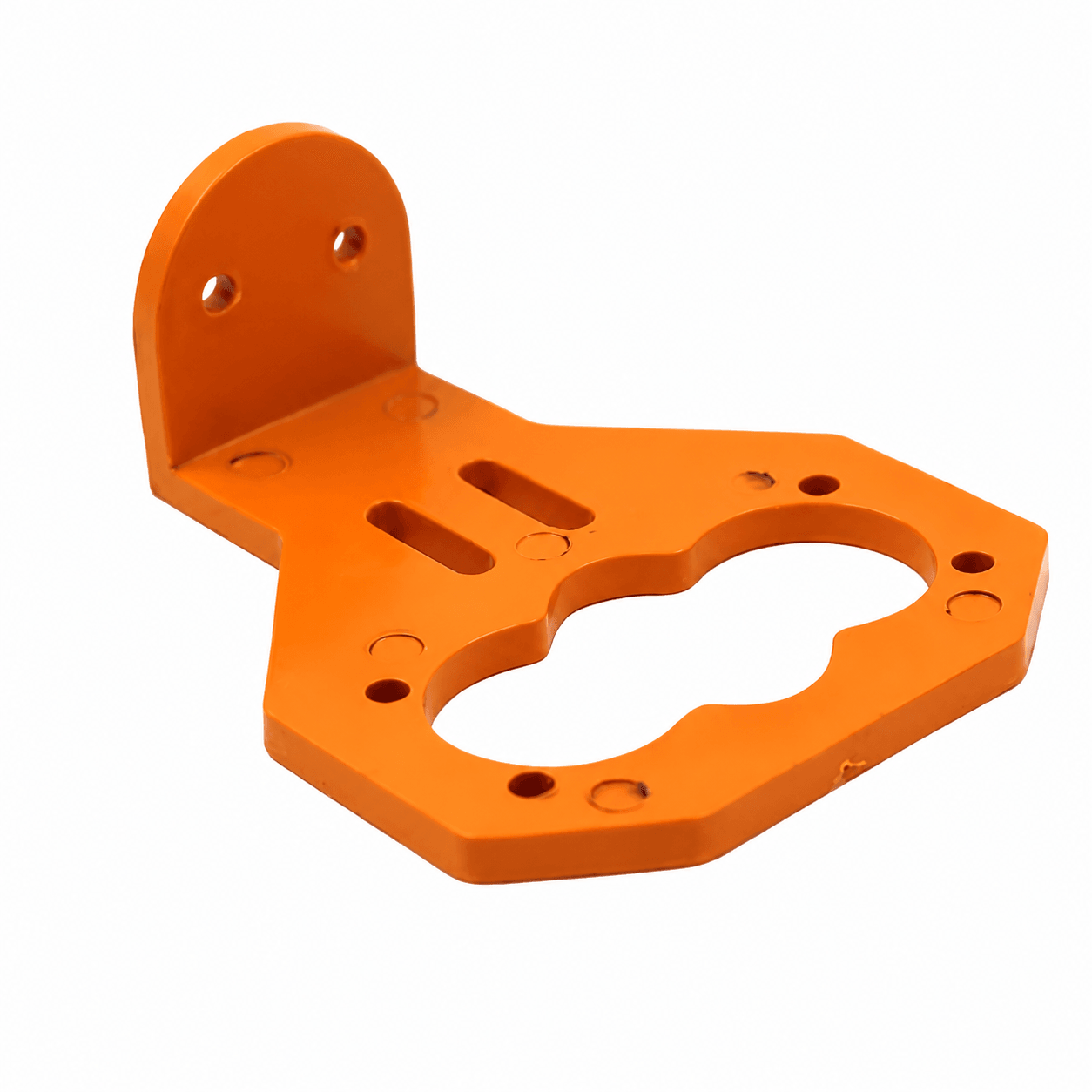

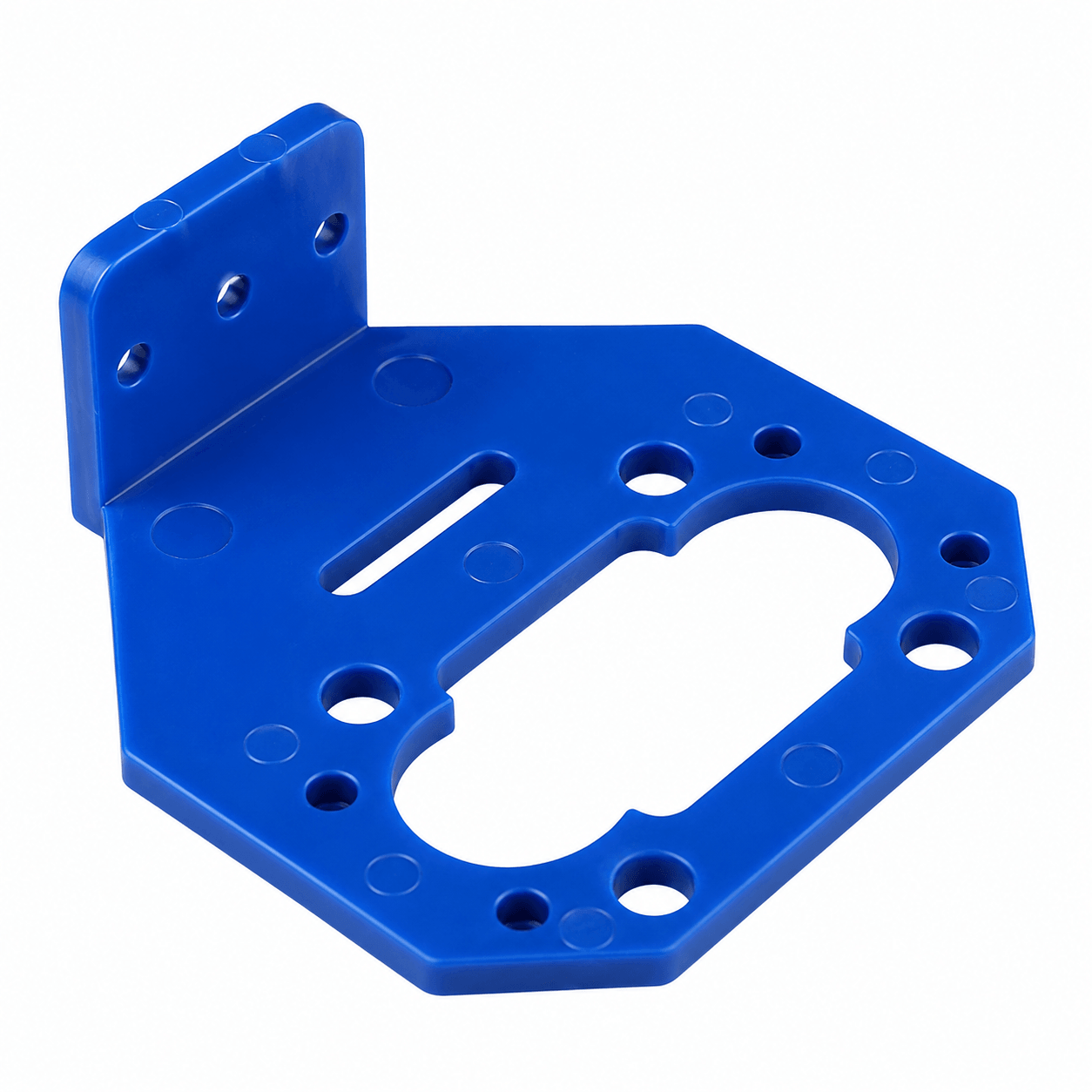

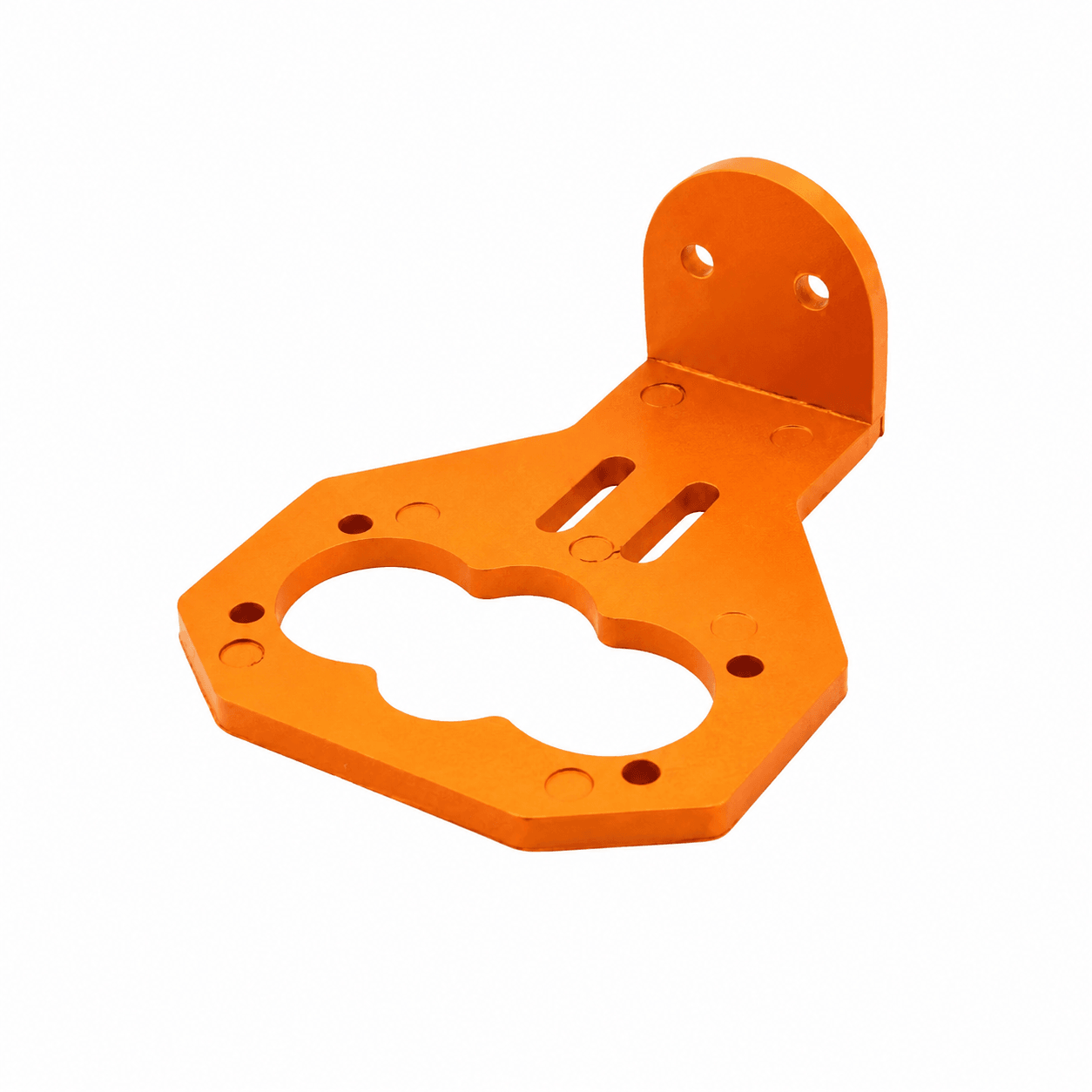

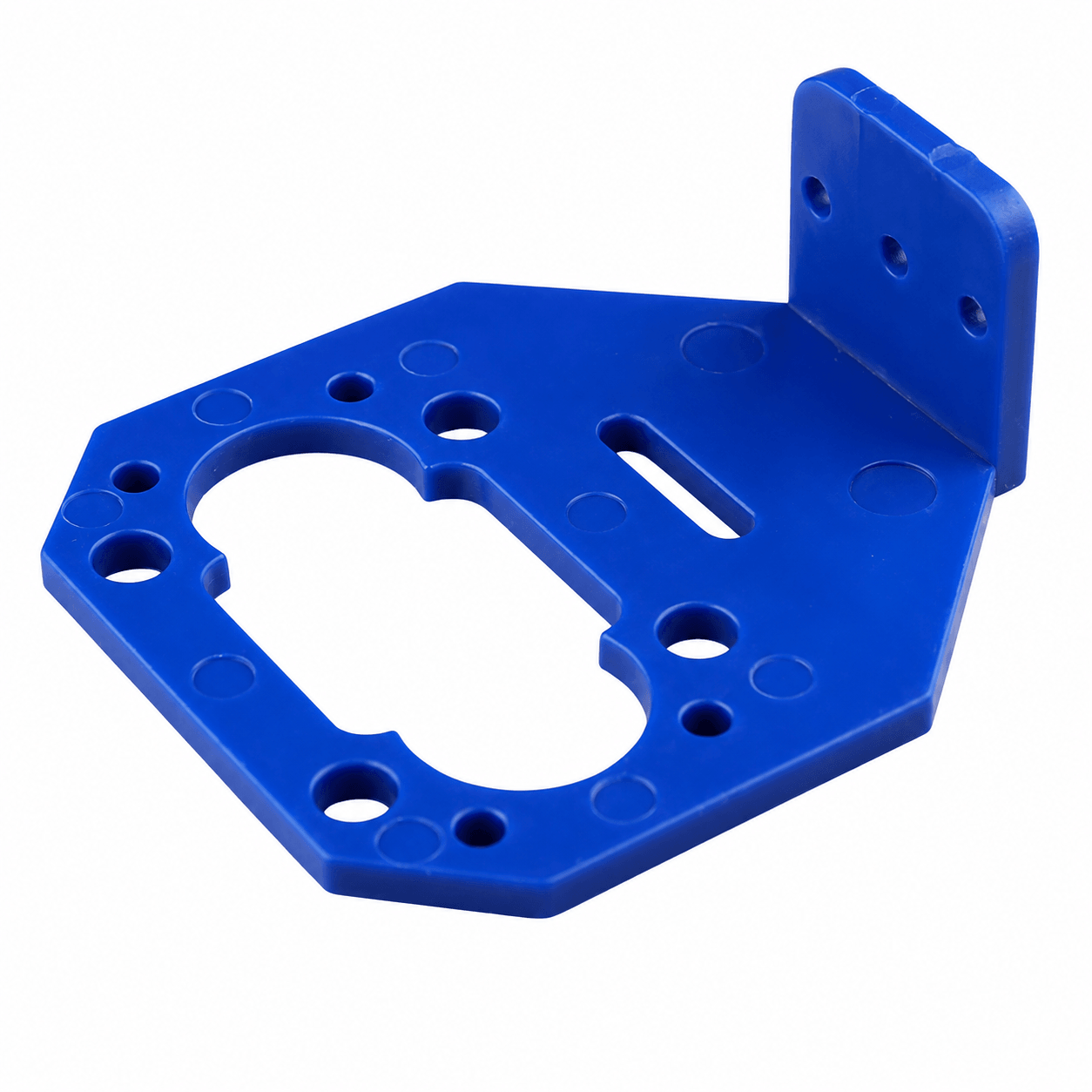

The Mounting Bracket for Ultrasonic Sensor HC-SR04 is a lightweight and durable holder designed specifically for securely mounting the HC-SR04 ultrasonic distance sensor module in robotics, automation, and electronic projects. The bracket provides stable sensor positioning and helps maintain proper alignment of the ultrasonic transmitter and receiver for reliable obstacle detection and distance measurement applications.

The bracket is commonly manufactured from acrylic material and features two circular openings that align with the ultrasonic transmitter and receiver of the HC-SR04 sensor. Its precision-cut construction allows the sensor module to fit securely while keeping the sensing elements unobstructed. Common acrylic versions have a thickness of approximately 2.8–3mm, sensor openings around 16mm, and mounting holes around 3.4mm, although dimensions vary by bracket design.

The mounting bracket can be installed on robot chassis, smart cars, servo motor assemblies, pan-and-tilt mechanisms, and fixed structures. It is especially useful in obstacle avoidance robots where the sensor must remain securely positioned and correctly oriented during vehicle movement.

Its compact size, simple installation, and compatibility with the standard HC-SR04 sensor make it suitable for Arduino robots, Raspberry Pi projects, ESP32-based automation systems, autonomous vehicles, parking sensors, and educational STEM projects.

Key Features

  • Designed specifically for the HC-SR04 ultrasonic sensor
  • Provides secure and stable sensor mounting
  • Lightweight acrylic construction on common versions
  • Precision-cut sensor openings
  • Keeps ultrasonic transmitter and receiver unobstructed
  • Helps maintain proper sensor alignment
  • Compact and space-saving design
  • Easy to assemble and install
  • Suitable for robot chassis mounting
  • Can be used with servo-based scanning mechanisms
  • Suitable for fixed and movable sensor installations
  • Durable and reusable construction
  • Compatible with smart robot car platforms
  • Ideal for obstacle avoidance applications
  • Suitable for Arduino and Raspberry Pi robotics projects
  • Useful for DIY and educational STEM projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Ultrasonic Sensor Mounting Bracket
Compatible Sensor: HC-SR04 Ultrasonic Distance Sensor
Primary Function: Sensor Holding and Mechanical Mounting
Material: Acrylic on Common Versions
Bracket Color: Transparent, Blue, or Other Colors Depending on Variant
Material Thickness: Approximately 2.8mm to 3mm on Common Versions
Sensor Opening Diameter: Approximately 16mm
Mounting Hole Diameter: Approximately 3.4mm on Common Versions
Typical Width: Approximately 45mm to 50mm, Depending on Design
Typical Height: Approximately 30mm to 35mm, Depending on Design
Typical Bend / Base Depth: Approximately 16mm on Common L-Shaped Versions
Typical Weight: Approximately 5g, Depending on Design
Mounting Orientation: Fixed or Adjustable Through External Mechanism
Installation Type: Screw-Mounted
Sensor Retention: Mechanical Fit / Screw-Assisted Installation, Depending on Bracket Design
Electrical Connections: None
Power Requirement: None
Suitable Platform: Robot Cars, Robot Chassis, Servo Assemblies, Fixed Panels and Prototype Structures
Compatibility: HC-SR04-Based Arduino, ESP32, STM32, Raspberry Pi, RP2040, PIC, AVR and Other Robotics Projects.

Additional Resources

Mounting Bracket.PDF

FAQ

1. What is the HC-SR04 Ultrasonic Sensor Mounting Bracket used for?

The bracket is used to securely hold and position an HC-SR04 ultrasonic sensor in robotics, automation, distance measurement, and obstacle detection projects.

2. Is the mounting bracket compatible with the HC-SR04 ultrasonic sensor?

Yes. The bracket is specifically designed for the HC-SR04 sensor and includes openings positioned for its ultrasonic transmitter and receiver.

3. Can the bracket be mounted on a robot car chassis?

Yes. The bracket can be attached to compatible robot car chassis, project panels, and mechanical structures using suitable screws and mounting hardware.

4. Can the HC-SR04 bracket be attached to a servo motor?

Yes. The bracket can be combined with a suitable servo horn, adapter, or servo mounting mechanism to create a rotating ultrasonic scanner for obstacle detection and robotic navigation.

5. Does the mounting bracket require any electrical connection?

No. The bracket is a purely mechanical mounting accessory and does not require power or electrical wiring. The HC-SR04 sensor itself must be connected separately to the microcontroller and power supply.
