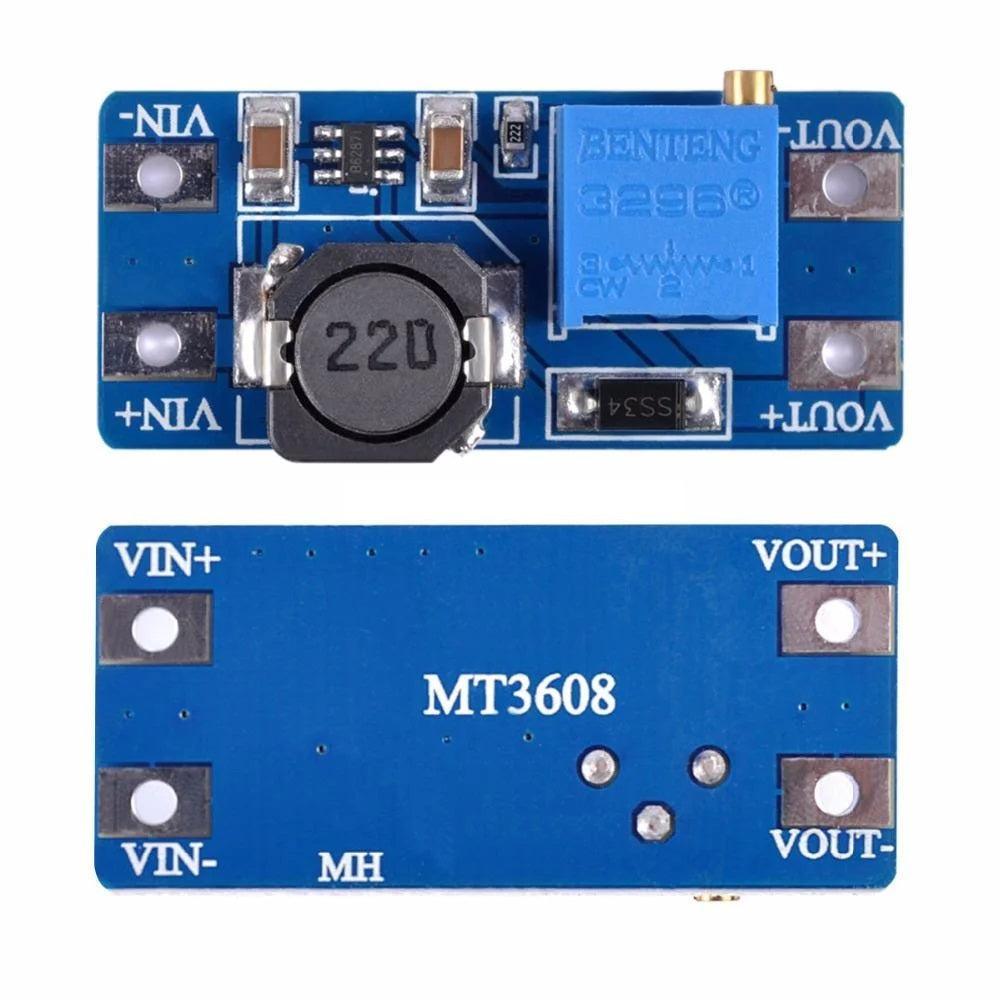

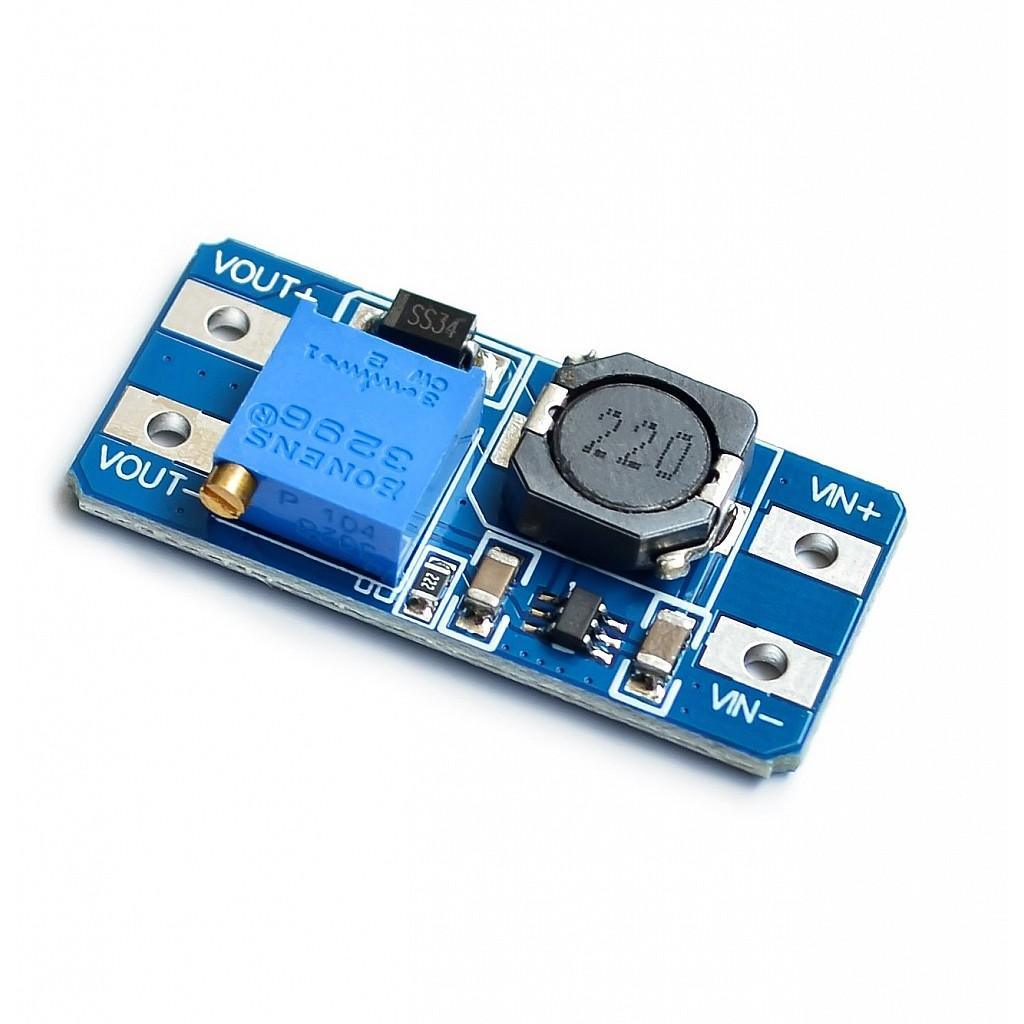

MT3608 Step Up Module With Micro USB – Variable Voltage

SKU: PA6RPMWCYJ
MT3608 Step Up Module is one of the most used and most efficient DC to DC step up module. Its a low cost step up module that can step up 2V to 24V input voltage to output 5V-28V at upto max 2A. Its a adjustable DC DC Step Up Module, so the output voltage can be changed according to the...
Rs. 59.00
Rs. 69.00 Rs. 59.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Voltage: 2V – 24V DC (5V via Micro USB typical)
Output Voltage: 5V – 28V DC (adjustable)
Output Current: Up to 2A (recommended ≤1.5A continuous)
Efficiency: Up to 93%
Switching Frequency: ~1.2 MHz
Operating Temperature: -40°C to +85°C

Additional Resources

MT3608 Step Up Module With Micro USB.PDF

FAQ

1. What is an MT3608 step-up module with Micro USB?

It is a compact DC-DC boost converter based on the MT3608 that increases a low input voltage (commonly 5V via Micro USB) to a higher adjustable output voltage.

2. How do you adjust the output voltage of this module?

The output voltage is adjusted using the onboard potentiometer. Rotate the screw while measuring the output with a multimeter to achieve the desired voltage.

3. What is the advantage of having a Micro USB input?

The Micro USB input allows easy powering from USB chargers, laptops, or power banks without needing additional connectors or wiring.

4. What is the maximum output current of the MT3608 module?

The module can deliver up to around 2A peak current, but for stable continuous operation, it is recommended to use up to 1–1.5A.

5. What are common applications of this module?

It is widely used for boosting battery voltage, powering devices like Arduino Uno, portable electronics, LED drivers, and DIY power supply projects.

View full product details

MT3608 Step Up Module is one of the most used and most efficient DC to DC step up module. Its a low cost step up module that can step up 2V to 24V input voltage to output 5V-28V at upto max 2A. Its a adjustable DC DC Step Up Module, so the output voltage can be changed according to the need. It provides continuous output of 1.5A, and 1A in most output voltage settings. The device uses Low ESR Bulk Ceramic Capacitors instead of Electrolytic Capacitors which tend to fail on long term, avoiding the long-term aging concerns, and also making the module a compact one. MT3608 has over current and thermal limiting features, which will turn the module off, when driven above the capacity. The input voltage of the module must be lower than the output voltage.

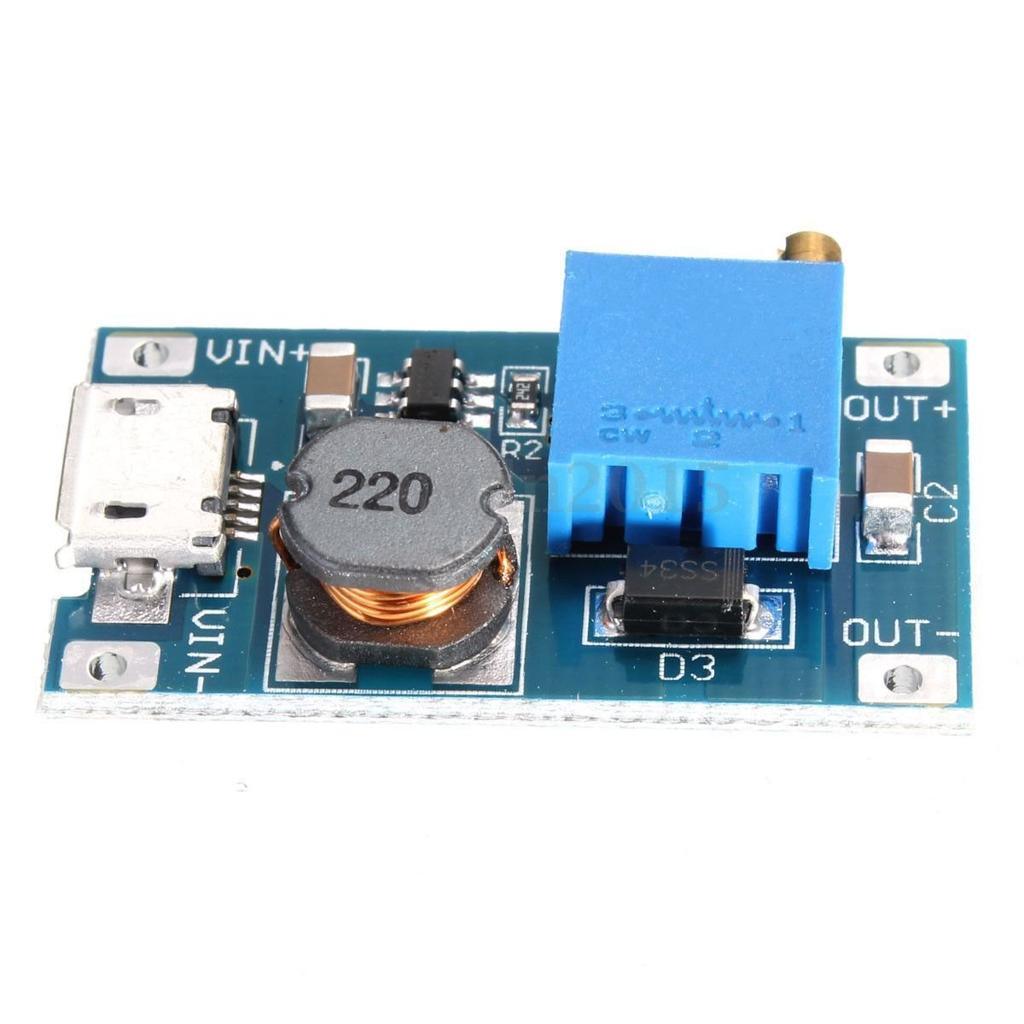

The MT3608 Step Up Module also has Micro USB Connector through which the input voltage can be supplied to the module, making it easy to step up the voltage from connector.

Voltage Adjustments:

The output voltage can be adjusted using the Potentiometer on the module. Turning the pot clockwise, will decrease the voltage, and counter clockwise, will increase the output voltage.

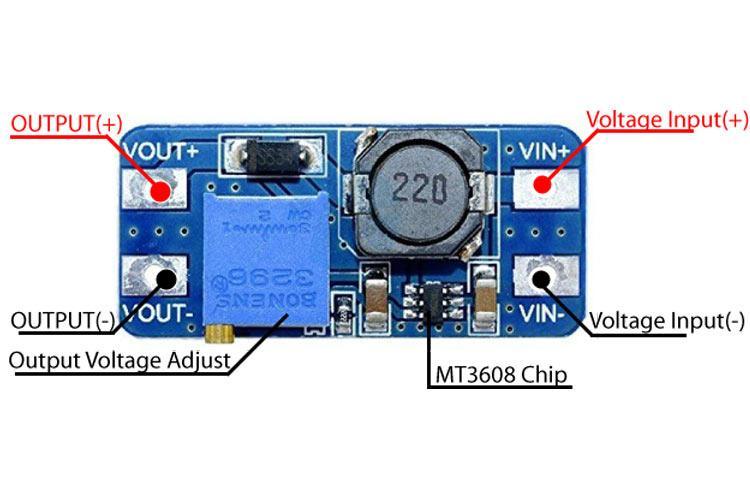

Connections:

  1. Vin+ = Input Voltage
  2. Vin- = Ground
  3. Micro USB Connector = Input Voltage
  4. Out+ = Output Voltage
  5. Out- = Ground

Precautions to be taken while using Module:

  1. The output voltage must be higher than input voltage.
  2. The input voltage must not exceed maximum input voltage specified.
  3. Peak Current Draw from output should not be more than 2A.
