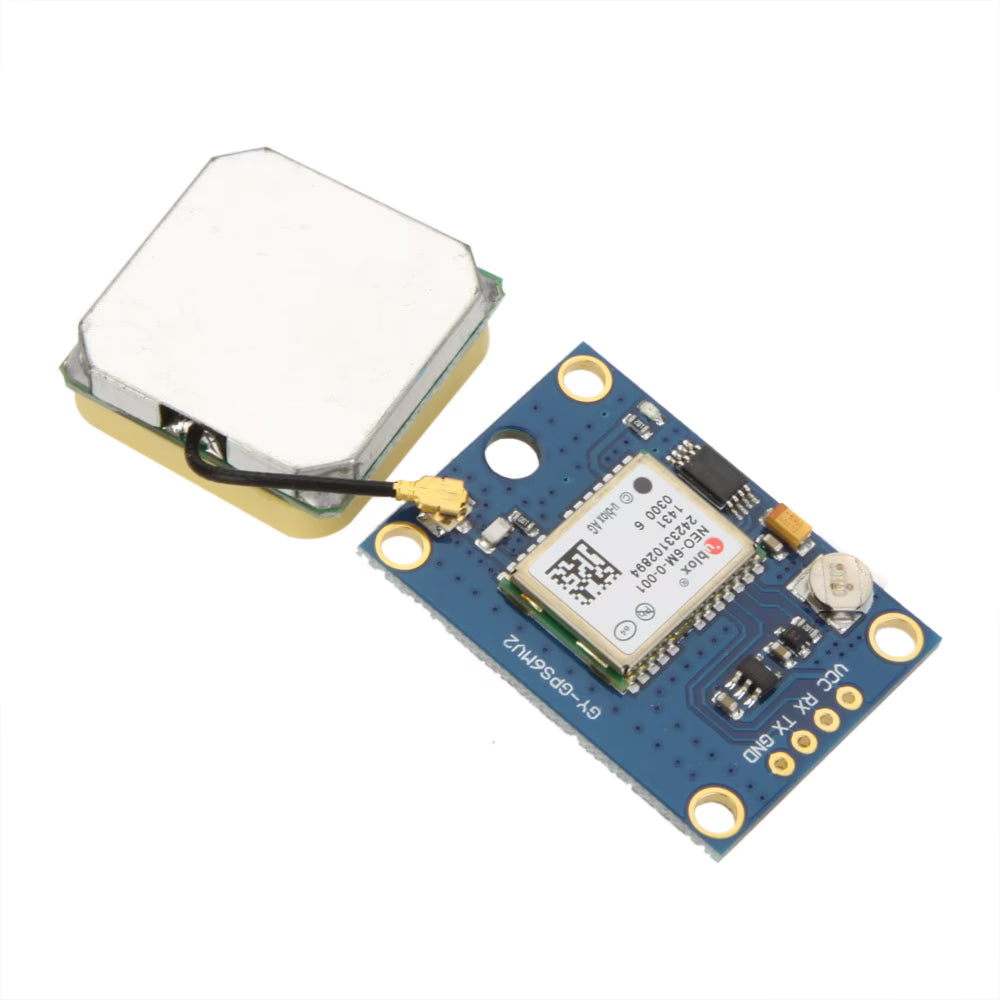

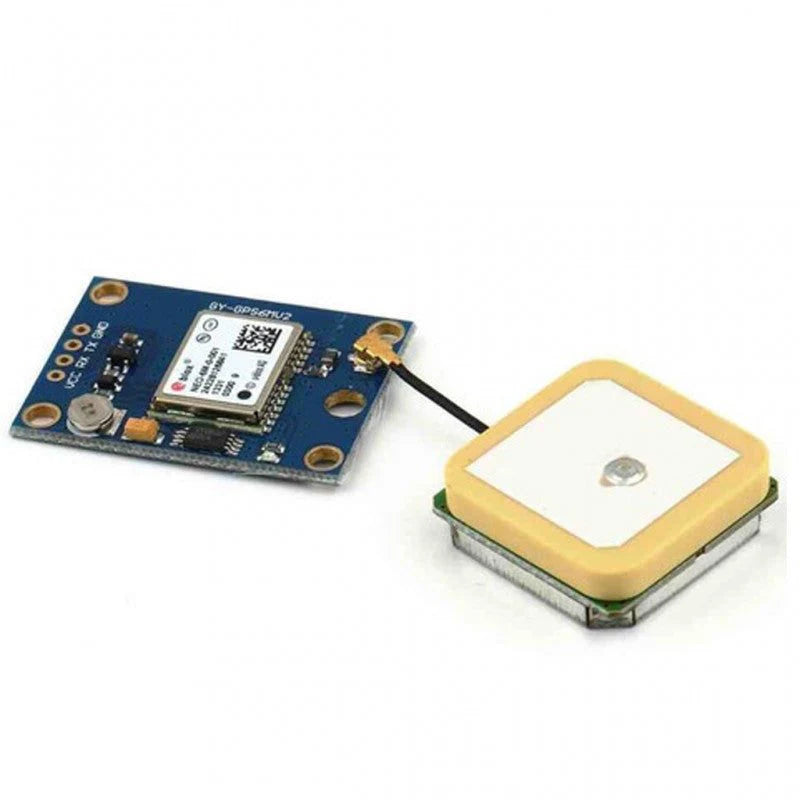

NEO-6M GPS Module with EPROM

SKU: LI3TLQ8SOJ
The NEO-6M GPS Module with EEPROM is a high-performance satellite positioning module based on the reliable u-blox NEO-6M GPS receiver. It provides accurate location, speed, altitude, and time data, making it an excellent choice for navigation systems, vehicle tracking, robotics, drones, and IoT applications. The module includes an onboard EEPROM that stores configuration settings even after power is removed, eliminating...
Rs. 299.00
Rs. 319.00 Rs. 299.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: GPS Receiver Module
GPS Chipset: u-blox NEO-6M
EEPROM: Onboard configuration memory
Position Accuracy: Up to 2.5 meters (typical)
Navigation Update Rate: 1Hz (up to 5Hz configurable)
Communication Interface: UART (TTL Serial)
Default Baud Rate: 9600 bps
Operating Voltage: 3.3V – 5V DC
Supply Current: Approximately 35mA – 50mA
Satellite Channels: 50 Channels
Tracking Sensitivity: -161 dBm
Cold Start Time: Approx. 27 seconds
Hot Start Time: Approx. 1 second
Antenna Type: Built-in Ceramic Patch Antenna
Backup Battery: Included for faster satellite reacquisition
Operating Temperature: -40°C to +85°C
Output Protocol: NMEA 0183

Additional Resources

NEO-6M GPS.PDF

FAQ

1. What is the NEO-6M GPS Module with EEPROM used for?

It is used for obtaining location, speed, altitude, and time data in applications such as vehicle tracking, navigation systems, drones, robotics, and IoT projects.

2. What is the purpose of the onboard EEPROM in the NEO-6M GPS module?

The onboard EEPROM stores configuration settings, allowing the module to retain customized parameters even after power is turned off.

3. Can the NEO-6M GPS Module be used with Arduino and Raspberry Pi?

Yes, the module communicates through a UART serial interface and is compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller platforms.

4. How accurate is the NEO-6M GPS Module?

Under normal operating conditions, the module can provide positioning accuracy of approximately 2.5 meters, depending on satellite visibility and environmental conditions.

5. What is the function of the backup battery on the GPS module?

The backup battery helps retain satellite data and configuration information, enabling faster satellite acquisition and reduced startup time after power cycling.

View full product details

The NEO-6M GPS Module with EEPROM is a high-performance satellite positioning module based on the reliable u-blox NEO-6M GPS receiver. It provides accurate location, speed, altitude, and time data, making it an excellent choice for navigation systems, vehicle tracking, robotics, drones, and IoT applications.

The module includes an onboard EEPROM that stores configuration settings even after power is removed, eliminating the need to reconfigure the GPS receiver each time it is powered on. It also features a built-in ceramic antenna and backup battery support for faster satellite acquisition and improved positioning performance. Communication with microcontrollers is achieved through a standard UART serial interface, making integration with Arduino, Raspberry Pi, ESP32, STM32, and other development platforms straightforward.

Key Features

  • Based on the reliable u-blox NEO-6M GPS chipset
  • Provides accurate latitude, longitude, altitude, and time data
  • Onboard EEPROM for storing configuration settings
  • Built-in ceramic GPS antenna for improved reception
  • Supports UART serial communication
  • Fast satellite acquisition and stable positioning
  • Compatible with Arduino, Raspberry Pi, ESP32, and STM32
  • Ideal for navigation, tracking, robotics, and IoT projects
