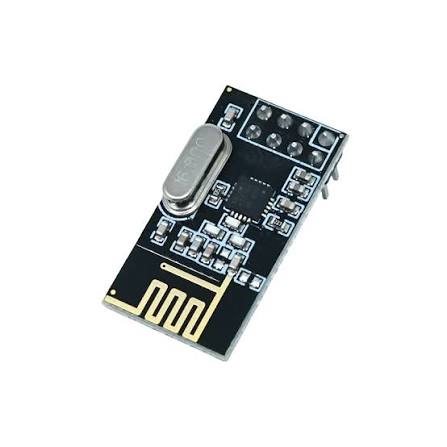

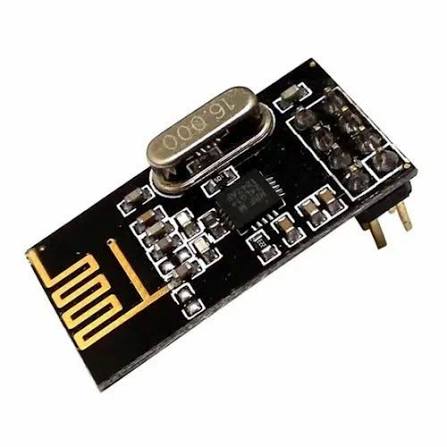

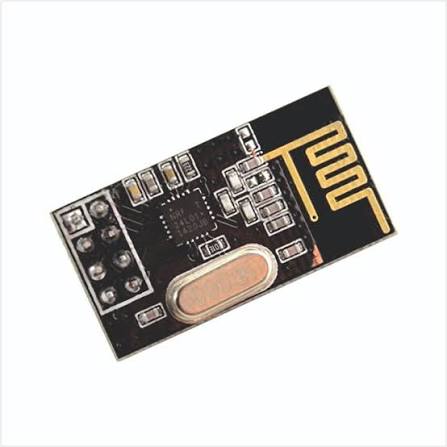

NRF24L01 2.4F RF Transceiver Module

SKU: JXDT9ASIRO
The NRF24L01 2.4GHz RF Transceiver Module is a low-cost, high-performance wireless communication module designed for short-range data transmission applications. Based on Nordic Semiconductor's NRF24L01 transceiver IC, this module operates in the globally available 2.4GHz ISM band and provides reliable wireless communication between microcontrollers, sensors, and embedded systems. The NRF24L01 supports bidirectional communication and offers multiple channels, automatic packet handling, error...
Rs. 83.00
Rs. 89.00 Rs. 83.00
Save Rs. 6
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: 2.4GHz RF Transceiver Module
IC Used: NRF24L01
Operating Frequency: 2.4GHz to 2.525GHz ISM Band
Supply Voltage: 1.9V to 3.6V DC
Recommended Operating Voltage: 3.3V DC
Logic Level: 3.3V
Interface: SPI (Serial Peripheral Interface)
Maximum Data Rate: 2 Mbps
Selectable Data Rates: 250 Kbps, 1 Mbps, and 2 Mbps
Number of Channels: 125
Channel Spacing: 1 MHz
Transmit Current: Approximately 11.3 mA
Receive Current: Approximately 13.5 mA
Standby Current: Approximately 26 µA
Power Down Current: Less than 1 µA
Output Power: Up to 0 dBm
Receiver Sensitivity: Up to -94 dBm

Additional Resources

NRF24L01 2.4F RF Transceiver Module.PDF

FAQ

1. What is the NRF24L01 2.4GHz RF Transceiver Module?

The NRF24L01 is a low-power 2.4GHz wireless transceiver module that enables two-way communication between microcontrollers and embedded systems. It is widely used in Arduino, ESP32, STM32, and IoT projects for wireless data transmission.

2. What is the communication range of the NRF24L01 module?

The communication range depends on the module version and operating conditions. A standard NRF24L01 module typically offers a range of up to 50–100 meters in open areas, while versions with an external antenna and power amplifier can achieve several hundred meters or more.

3. Which microcontrollers are compatible with the NRF24L01?

The NRF24L01 communicates using the SPI interface, making it compatible with popular development boards such as Arduino Uno, Nano, Mega, ESP8266, ESP32, STM32, Raspberry Pi, and other SPI-enabled microcontrollers.

4. What operating voltage does the NRF24L01 require?

The NRF24L01 operates at 1.9V to 3.6V, with 3.3V being the recommended supply voltage. Since the module is not 5V tolerant, proper voltage regulation or level shifting should be used when interfacing with 5V microcontrollers.

5. What are the common applications of the NRF24L01 module?

The NRF24L01 is commonly used in wireless sensor networks, remote controls, home automation systems, robotics, IoT devices, wireless data logging, telemetry systems, and multiplayer gaming projects due to its low power consumption and reliable wireless communication.

View full product details

The NRF24L01 2.4GHz RF Transceiver Module is a low-cost, high-performance wireless communication module designed for short-range data transmission applications. Based on Nordic Semiconductor's NRF24L01 transceiver IC, this module operates in the globally available 2.4GHz ISM band and provides reliable wireless communication between microcontrollers, sensors, and embedded systems.

The NRF24L01 supports bidirectional communication and offers multiple channels, automatic packet handling, error detection, and low power consumption. Due to its affordability and ease of integration, it is widely used in Arduino, ESP32, Raspberry Pi, STM32, and various IoT and robotics projects.

Features

  • Operates in the 2.4GHz ISM frequency band
  • Supports bidirectional wireless communication
  • Built-in SPI interface for easy microcontroller integration
  • Low power consumption for battery-powered applications
  • Automatic packet handling and retransmission
  • Multi-channel communication support
  • ShockBurst™ hardware protocol engine
