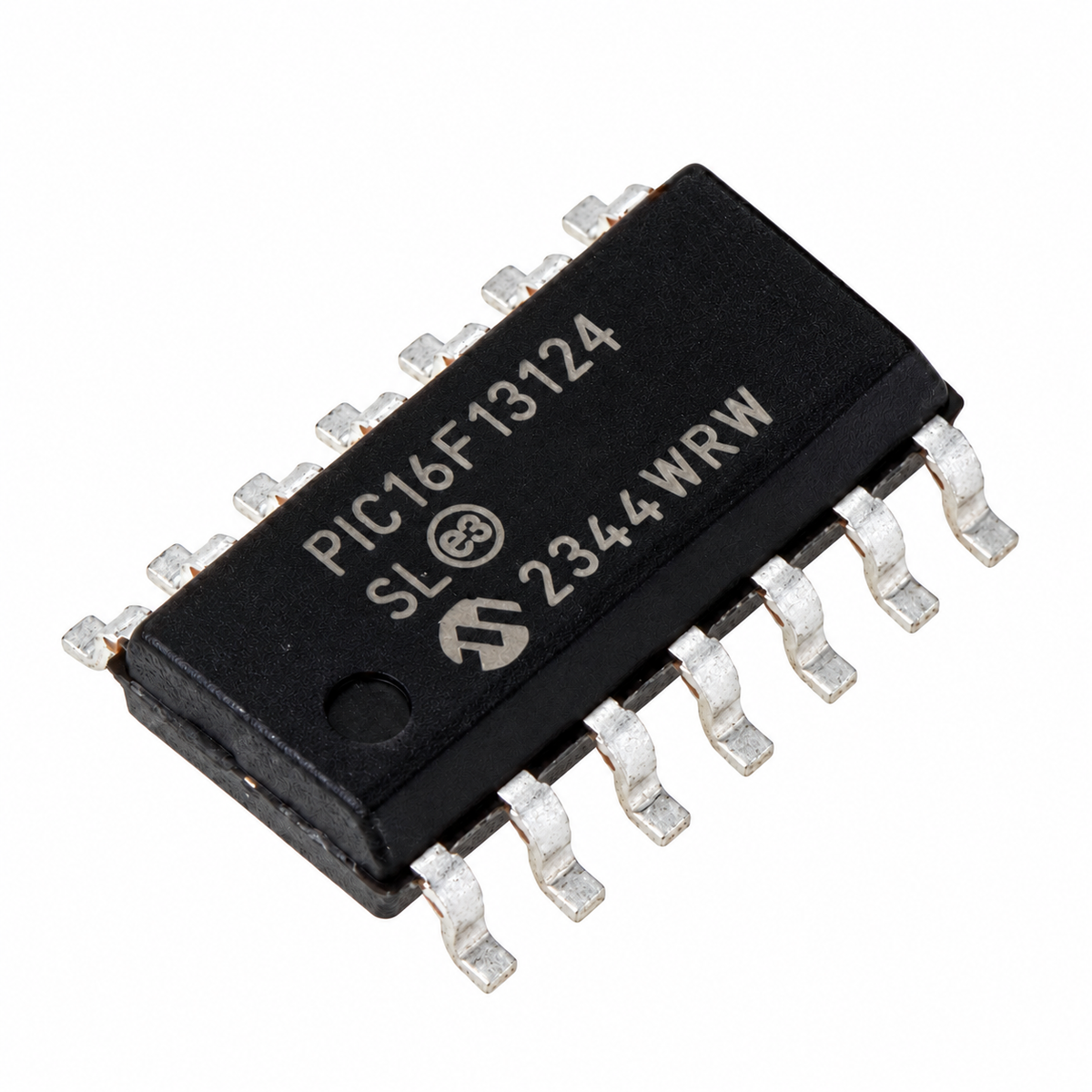

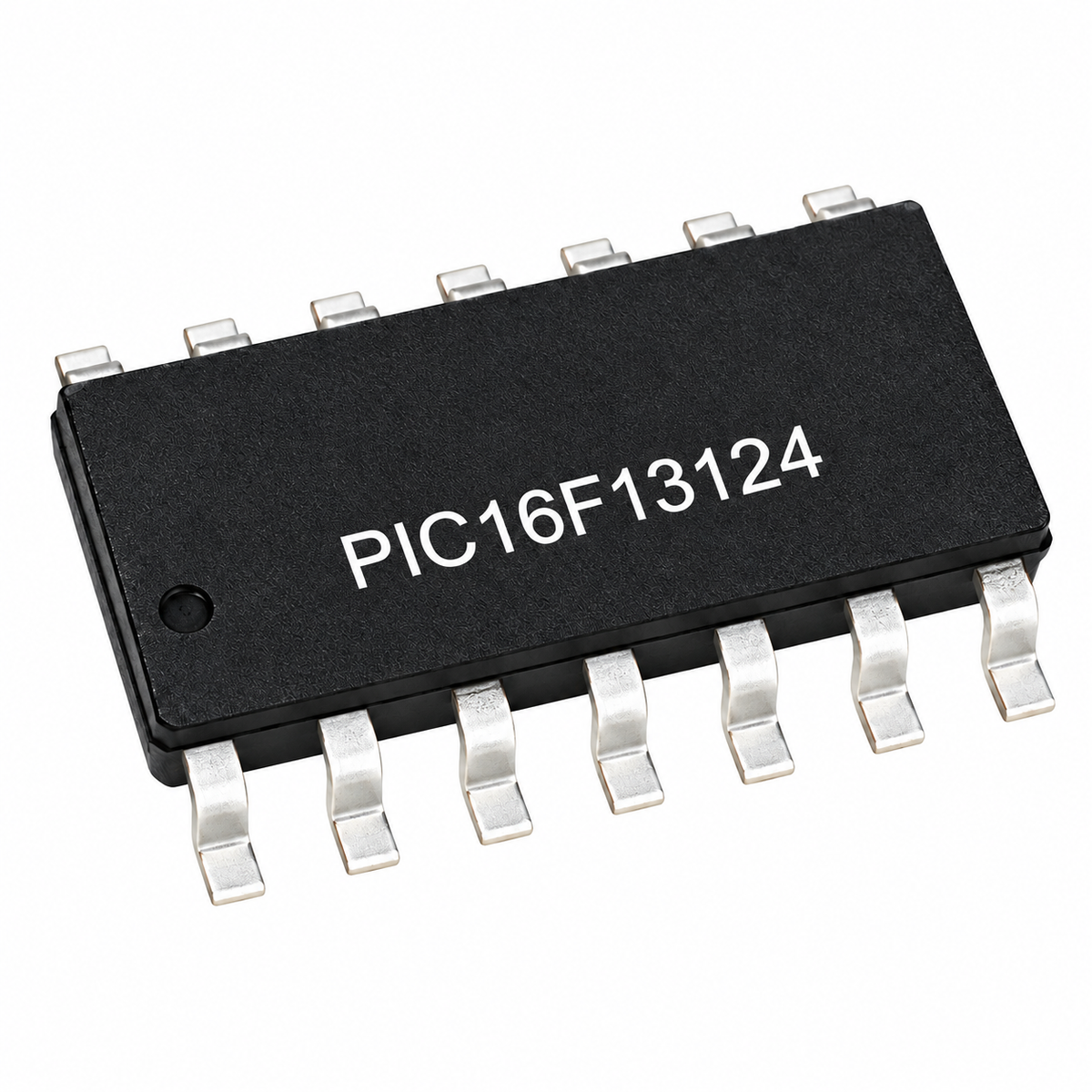

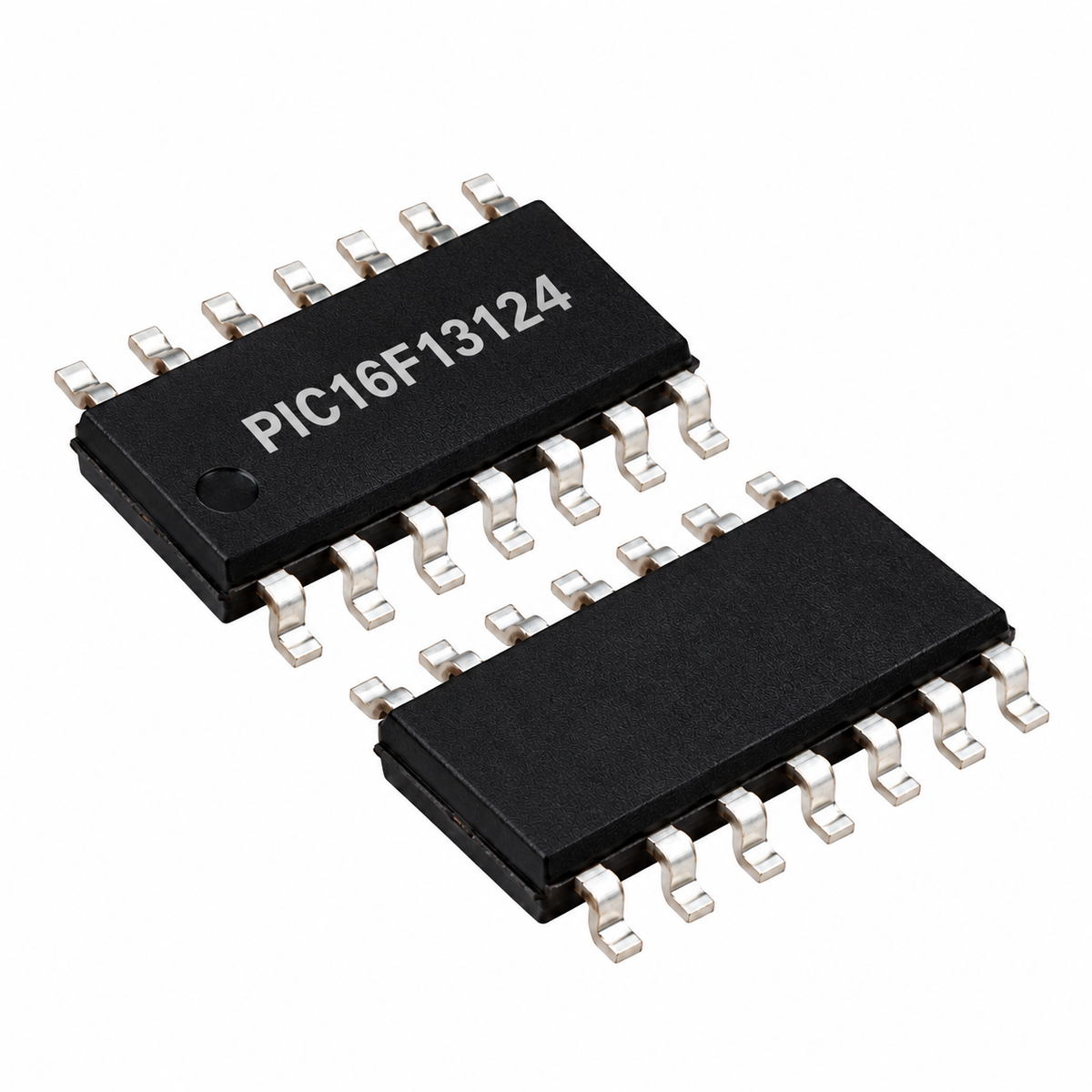

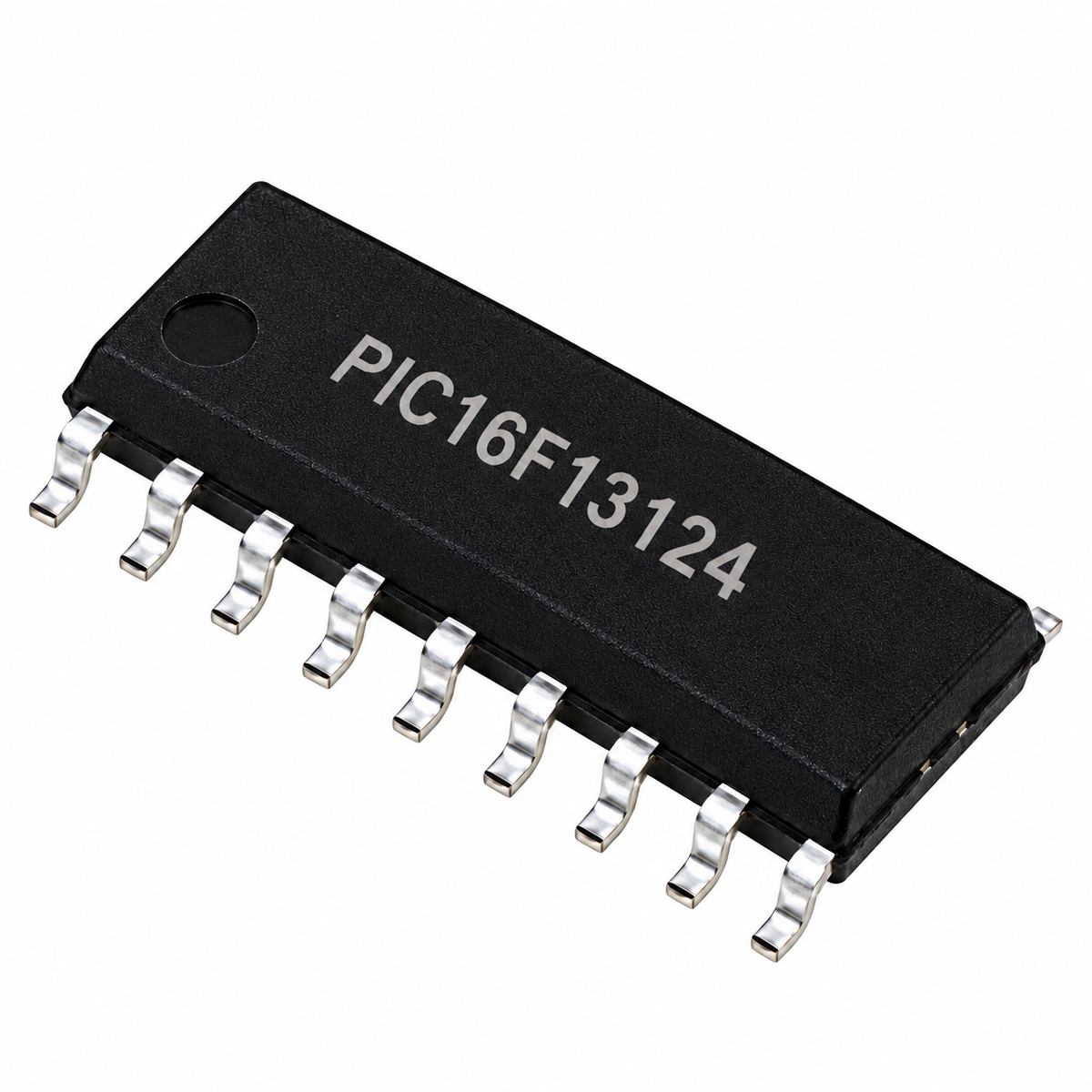

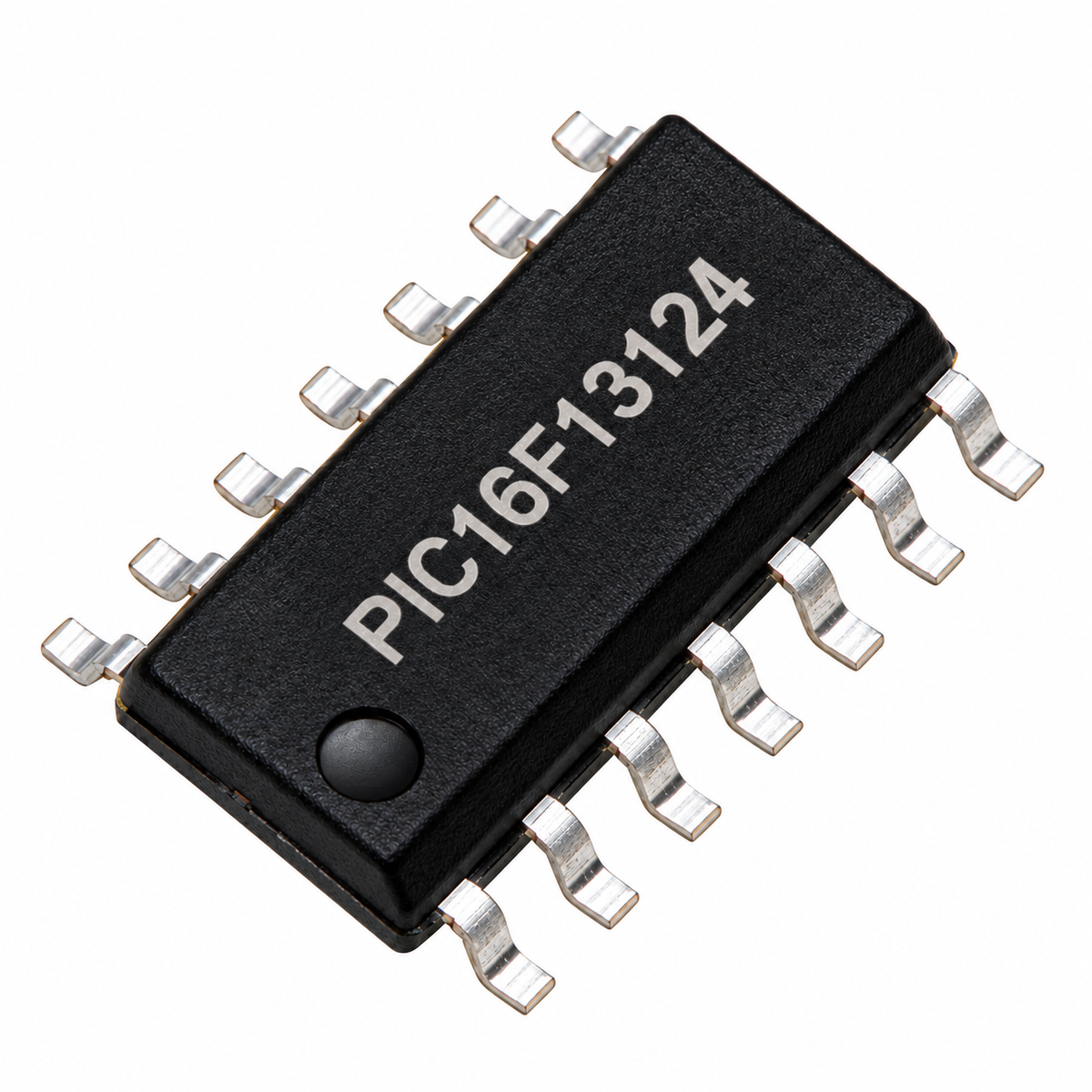

The PIC16F13124 Microcontroller Chip is an 8-bit microcontroller from Microchip Technology designed for embedded control, automation, sensing, robotics, and custom electronics applications. It combines a programmable PIC architecture with digital and analog peripherals in a compact integrated device.
The microcontroller is designed for applications requiring programmable I/O, timers, analog signal processing, communication interfaces, and configurable digital logic. Its integrated peripheral set can help reduce the number of external components required in many embedded circuit designs.
The PIC16F13124 can be used for sensor interfaces, control systems, automation, motor-control applications, robotics, user-interface circuits, and other embedded projects. It is suitable for custom PCB designs where an 8-bit microcontroller with integrated peripherals is required.
The device is part of Microchip's PIC16F131 family and is supported by Microchip's development ecosystem. The exact memory size, pin count, package, electrical characteristics, and peripheral availability depend on the specific PIC16F13124 variant, so the appropriate datasheet should be checked before PCB design and programming.
Microchip PIC16F13124 Microcontroller
8-Bit PIC Architecture
Programmable Flash-Based Microcontroller
Integrated Digital Peripherals
Integrated Analog Peripherals
Configurable Digital Logic
General-Purpose I/O
Peripheral Pin Select
ADC Function
DAC Function
Comparator Function
PWM Capability
Timer Peripherals
EUSART Communication
I2C Communication
SPI Communication
Watchdog Timer
Suitable for Embedded Control
Useful for Sensor Interfaces
Suitable for Robotics Projects
Ideal for Automation Systems
Useful for Custom Electronics
Suitable for DIY Projects
Ideal for Prototyping
