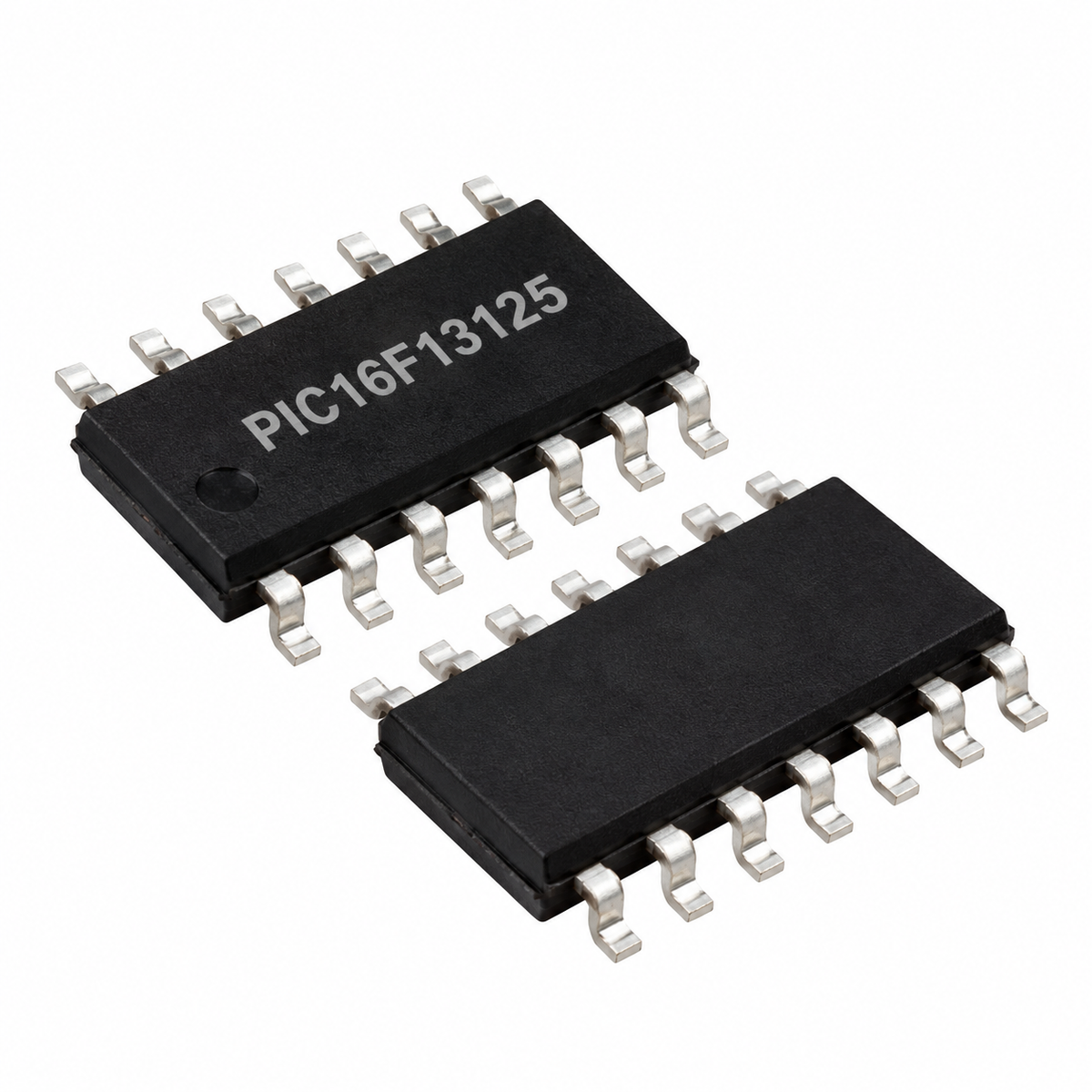

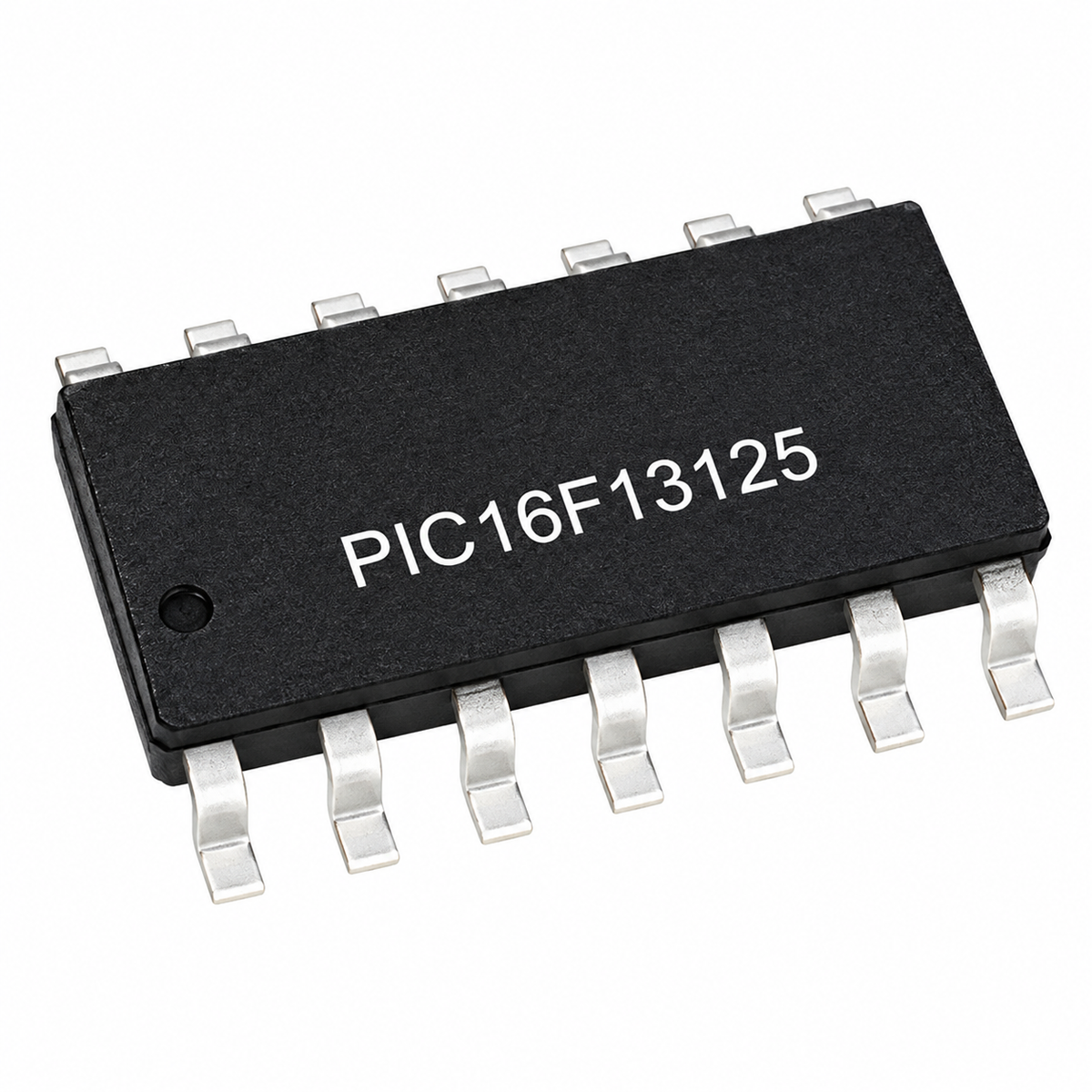

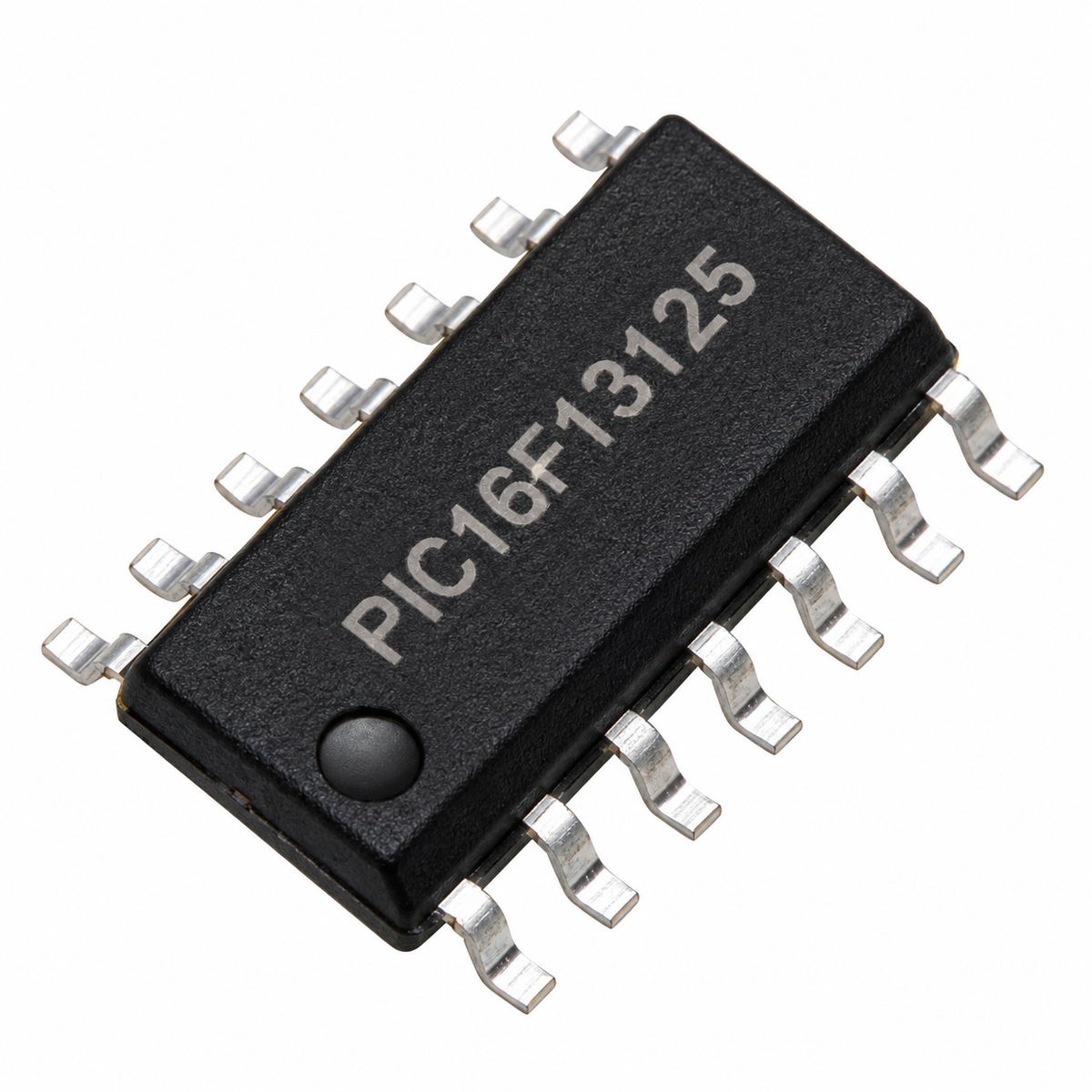

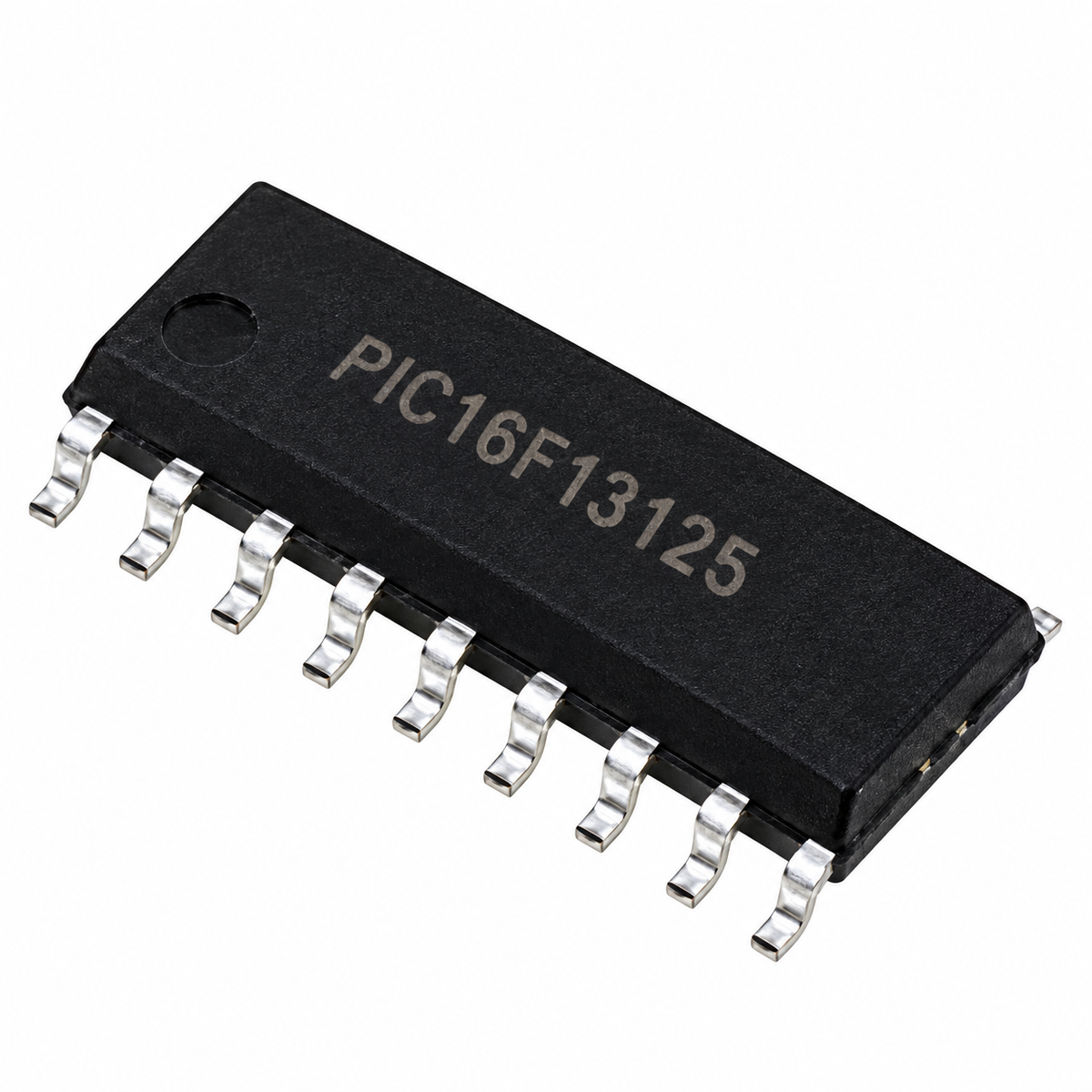

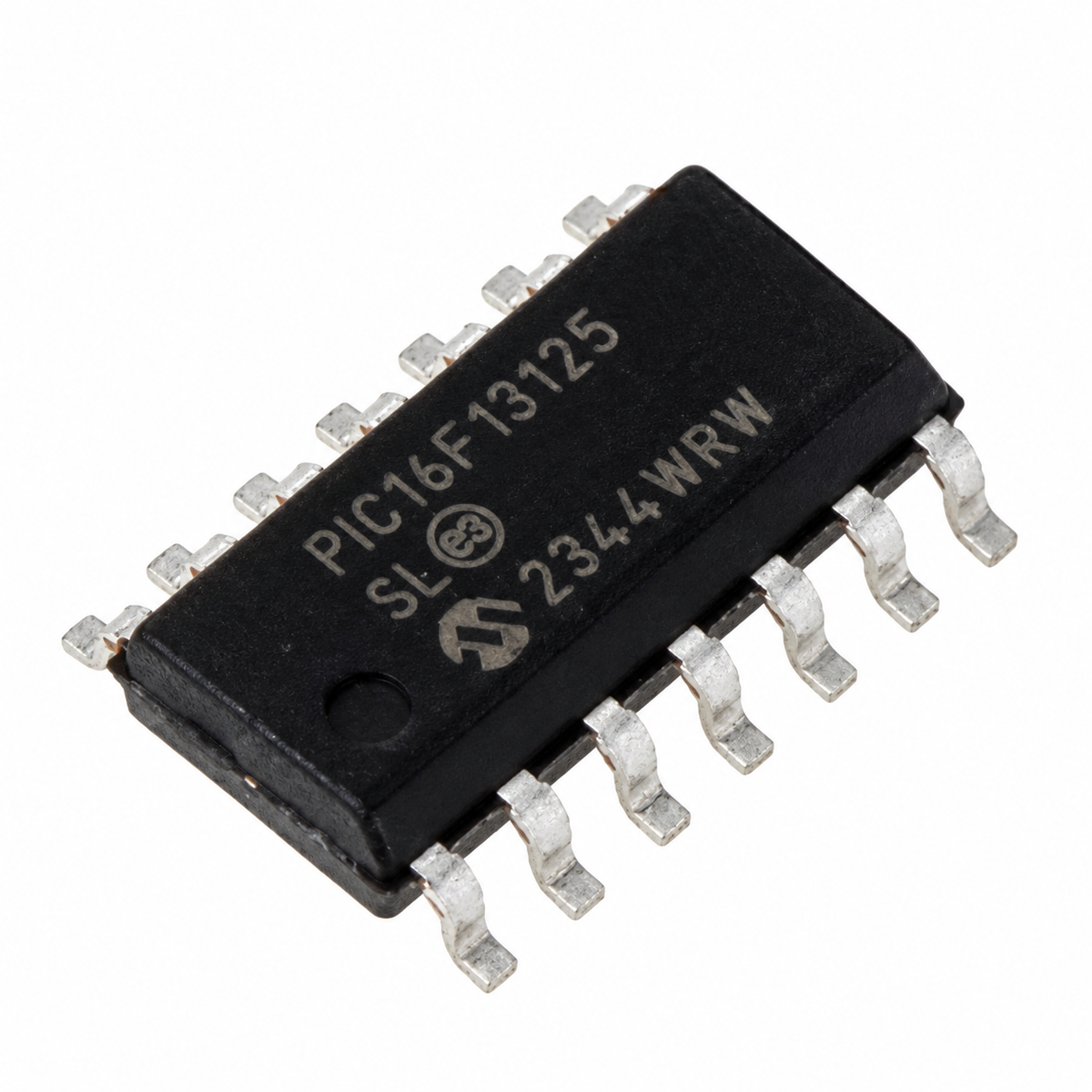

The PIC16F13125-I/SL is an 8-bit RISC microcontroller from Microchip Technology, designed for embedded control, automation, sensing, and custom electronics applications. It belongs to the PIC16F13125 family and combines programmable Flash memory, SRAM, configurable digital logic, analog peripherals, timers, communication interfaces, and general-purpose I/O in a compact integrated device.
The device includes a PIC 8-bit CPU architecture with 14KB of program Flash memory and 1KB of SRAM. It provides 12 I/O pins with Peripheral Pin Select, allowing peripheral functions to be assigned to available pins according to the application design.
A key feature of the PIC16F13125 family is its Configurable Logic Block (CLB), which enables hardware-based digital logic functions to be implemented inside the microcontroller. The device also integrates ADC, DAC, comparators, PWM/CCP, timers, EUSART, and I2C/SPI communication peripherals, reducing the need for additional external components in many designs.
The PIC16F13125-I/SL is suitable for embedded controllers, sensor interfaces, automation systems, robotics, motor-control applications, custom electronic products, and educational projects. The “I/SL” ordering code should be checked against the current Microchip package and ordering information before PCB design to confirm the exact package and operating specifications.
Microchip PIC16F13125 Microcontroller
8-Bit RISC PIC Architecture
Model: PIC16F13125
Ordering Code: PIC16F13125-I/SL
14KB Program Flash Memory
1KB Data SRAM
12 General-Purpose I/O Pins
Peripheral Pin Select
Configurable Logic Block (CLB)
4 Configurable Logic Cells (CLC)
10-Bit ADC
11 External ADC Channels
5 Internal ADC Channels
8-Bit DAC
2 Comparators
2 10-Bit PWM/CCP Modules
8-Bit Timer with Hardware Limit Timer
16-Bit Timer
EUSART Interface
I2C Interface
SPI Interface
Windowed Watchdog Timer
32-Bit CRC with NVM Scanner
Suitable for Embedded Control
Useful for Robotics and Automation
Suitable for Sensor-Based Applications
Ideal for Custom Electronics
Supported by Microchip Development Ecosystem
