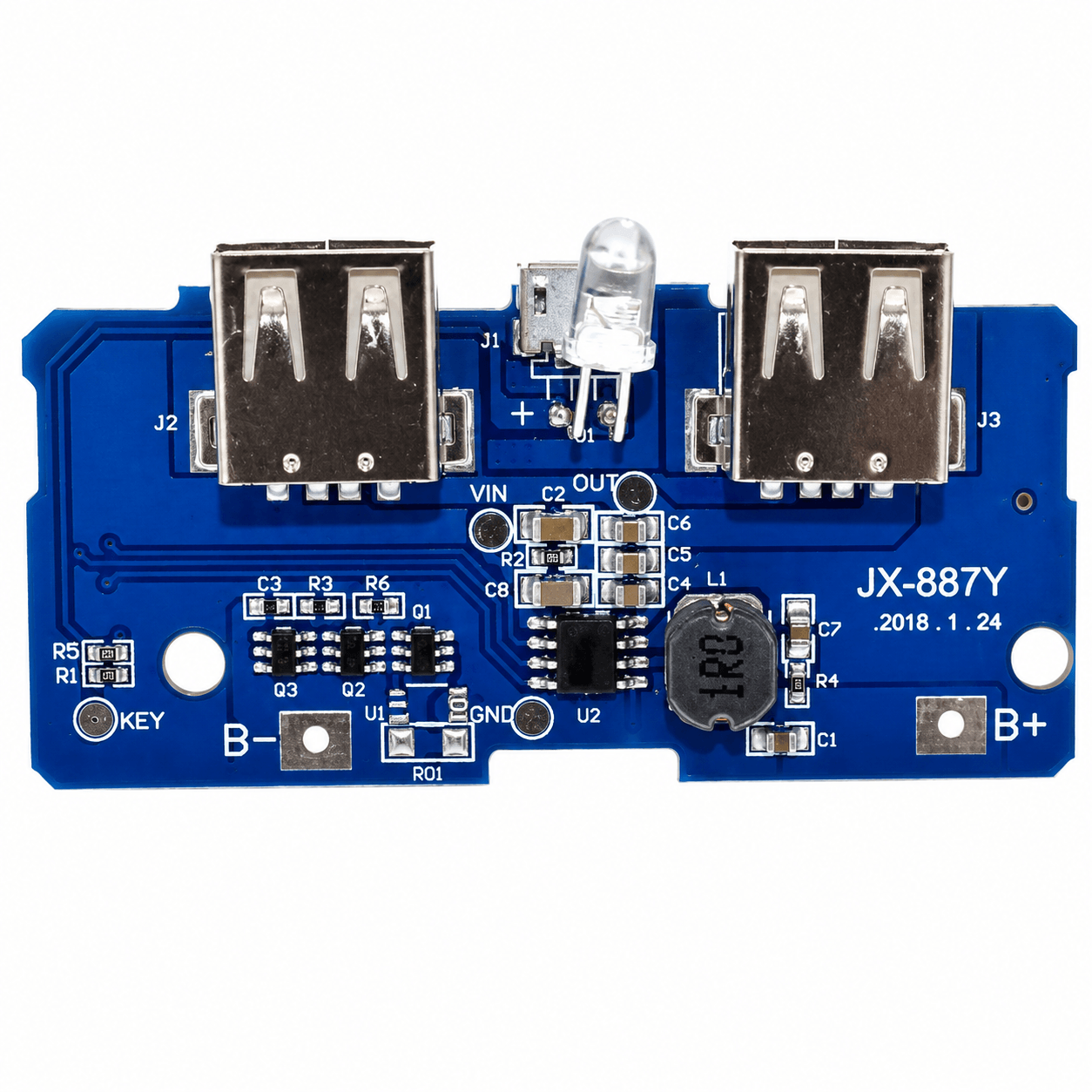

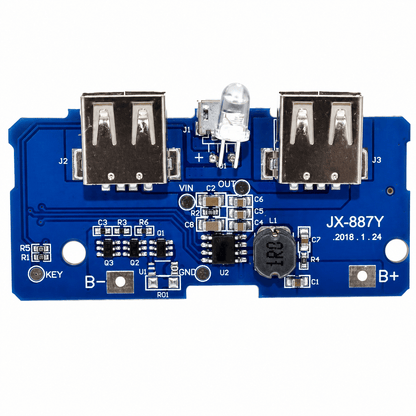

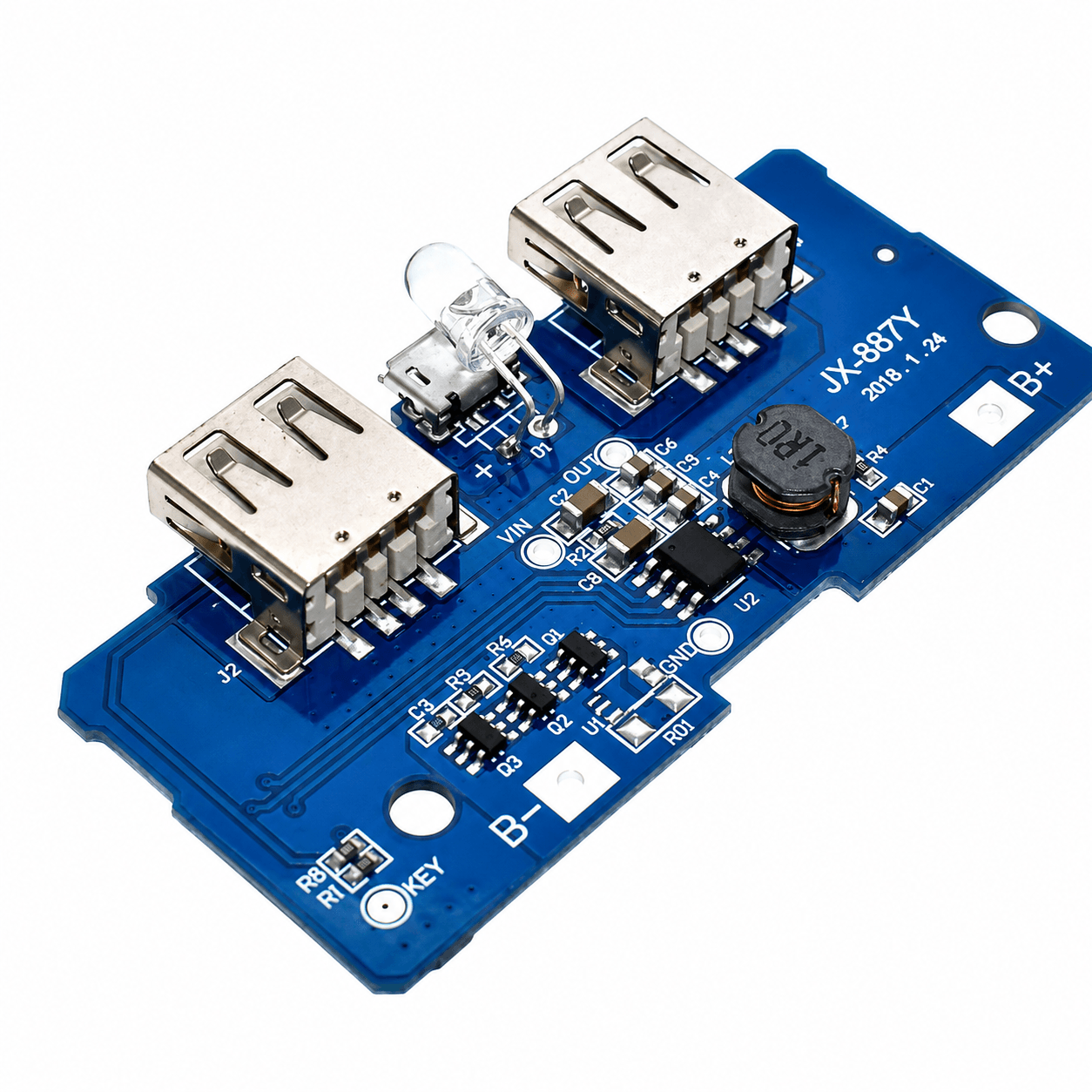

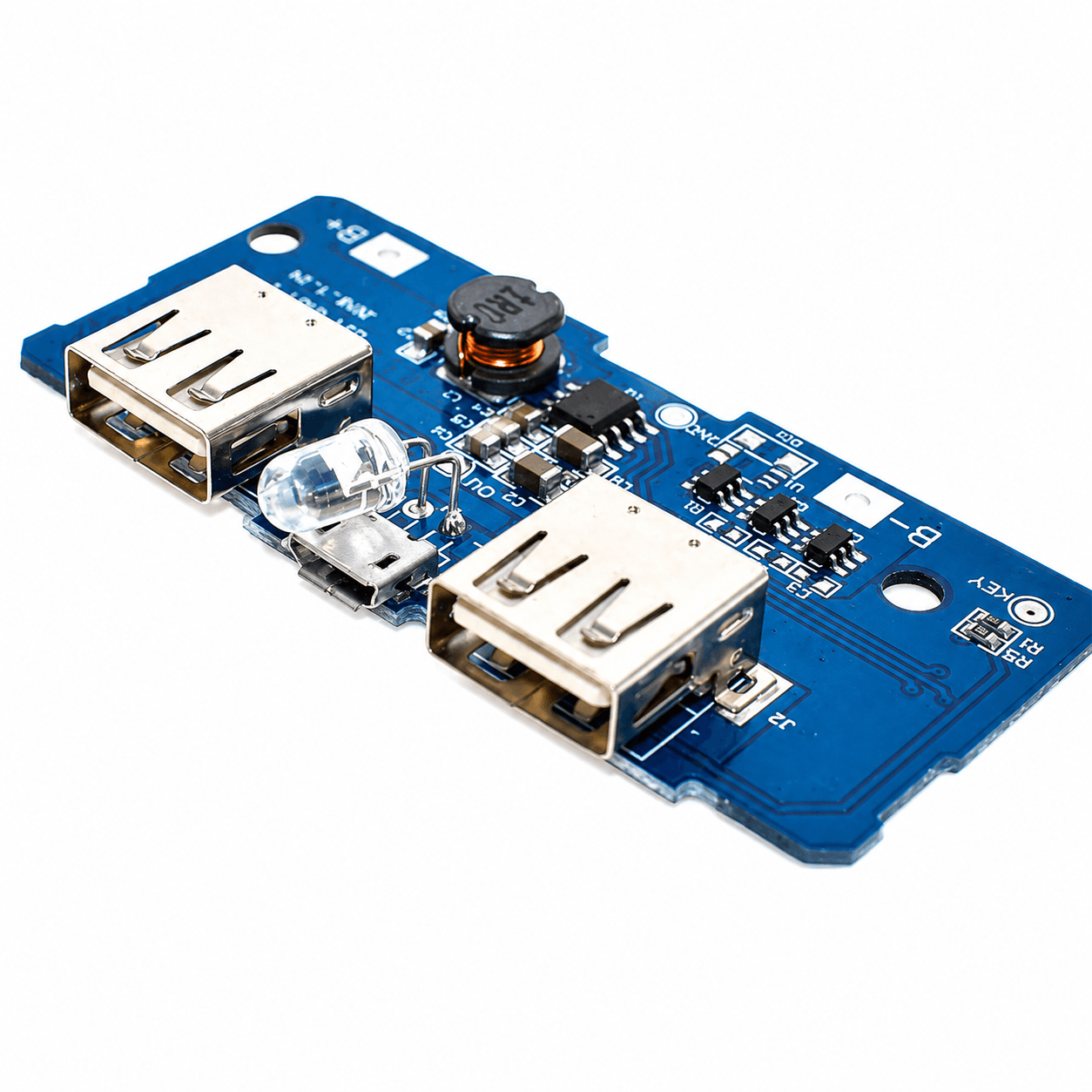

Power Bank Module with Dual USB Output- 3.7V to 5V 2A with 18650 LiPo Charger

SKU: HC63NHBEB6
★★★★ ★ ★
4.1 (116 reviews)
The Power Bank Module with Dual USB Output – 3.7V to 5V 2A with 18650 LiPo Charger is an integrated battery charging and DC-DC boost converter module designed for building DIY portable power banks and rechargeable 5V power supplies. The module combines lithium battery charging, battery protection, voltage boosting, USB output, and battery-level indication functions on a single compact PCB....
Rs. 99.00
Rs. 110.00 Rs. 99.00
Save Rs. 11
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Power Bank Module with Dual USB Output – 3.7V to 5V 2A with 18650 LiPo Charger is an integrated battery charging and DC-DC boost converter module designed for building DIY portable power banks and rechargeable 5V power supplies. The module combines lithium battery charging, battery protection, voltage boosting, USB output, and battery-level indication functions on a single compact PCB.

The module is designed to work with 3.7V nominal lithium-ion or lithium-polymer batteries, including 18650 cells. Its built-in boost converter steps the battery voltage up to a regulated 5V USB output, with common versions providing selectable or port-dependent 5V 1A and 5V 2A outputs through two USB-A ports. A Micro USB input is commonly provided for recharging the connected battery from a regulated 5V USB power source.

The board also includes a 4-level LED battery status indicator, automatic load detection, and intelligent automatic shutdown when no suitable load is detected. Common versions integrate protection functions such as overcharge, over-discharge, overcurrent, undervoltage, and output short-circuit protection.

Its all-in-one design makes it suitable for custom power banks, portable electronics, rechargeable robotics projects, emergency USB chargers, battery-powered Arduino projects, IoT devices, and other applications requiring a rechargeable 5V USB power source.

Key Features

  • Integrated lithium battery charger and boost converter
  • Converts 3.7V battery voltage to regulated 5V output
  • Dual USB-A output ports
  • Supports up to 2A output on common module variants
  • Compatible with 18650 lithium-ion batteries
  • Compatible with suitable 3.7V LiPo batteries
  • Micro USB charging input on common versions

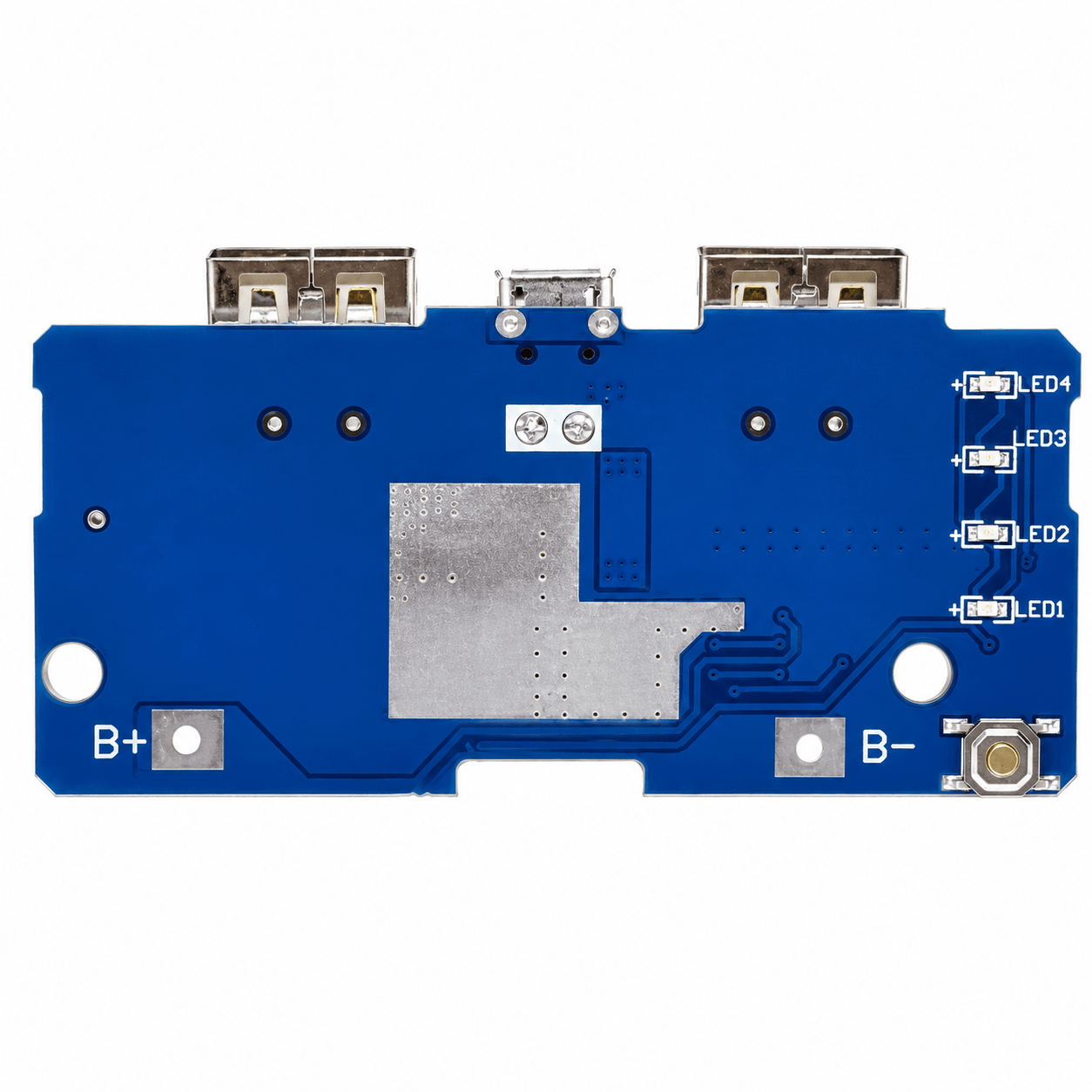

  • 4-level LED battery capacity indicator
  • Charging and discharging status indication
  • Intelligent automatic shutdown
  • Automatic load detection
  • Built-in overcharge protection
  • Built-in over-discharge protection
  • Undervoltage protection
  • Overcurrent protection
  • Output short-circuit protection
  • Compact all-in-one PCB design
  • Suitable for DIY power bank construction
  • Easy battery connection through B+ and B− terminals
  • Suitable for portable and rechargeable electronic projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Power Bank Charger and Boost Converter Module
Application: DIY Rechargeable USB Power Bank
Battery Type: Lithium-Ion / Lithium-Polymer
Recommended Battery Voltage: 3.7V Nominal
Battery Working Voltage Range: Approximately 3.2V to 4.2V
Compatible Cell Type: 18650 Li-Ion and Suitable 1S LiPo Cells
Battery Configuration: 1S Battery System; additional cells only in parallel when properly matched and suitable for the module
Charging Input Voltage: 5V DC
Charging Input Connector: Micro USB on Common Versions
USB Output Voltage: 5V DC
Maximum Output Current: Up to 2A, Module and Operating Condition Dependent
Number of USB Outputs: 2
Output Connector Type: USB Type-A
Voltage Conversion Type: DC-DC Boost / Step-Up Converter
Battery Indicator: 4-Level LED Display
Automatic Shutdown: Supported
Overcharge Protection: Supported on Common Versions
Over-Discharge Protection: Supported on Common Versions
Undervoltage Protection: Supported
Overcurrent Protection: Supported on Common Versions
Short-Circuit Protection: Supported
Typical Quiescent Circuit Consumption: Approximately 2mA on Common JX-887Y-Type Versions
Typical Module Dimensions: Approximately 68mm × 34.5mm × 8.5mm
Typical Module Weight: Approximately 12g
Mounting Type: PCB Module
Battery Connection: B+ and B− Soldering Terminals

Additional Resources

Power Bank Module.PDF

FAQ

1. What is the Dual USB Power Bank Module used for?

The module is used to build rechargeable portable power banks and battery-powered 5V USB supplies. It combines battery charging, voltage boosting, USB output, battery indication, and protection functions in a single module.

2. Can this module be used with a 3.7V 18650 battery?

Yes. The module is designed for 3.7V nominal lithium-ion batteries, including common 18650 cells. The battery voltage is boosted to a regulated 5V output for USB-powered devices.

3. Can both USB ports be used at the same time?

Yes, both USB ports can be used for powering compatible devices. However, the total practical output current depends on the exact module version, battery condition, battery current capability, wiring, and thermal conditions.

4. Does the module charge the connected 18650 battery?

Yes. A regulated 5V supply connected to the charging input allows the onboard charger circuit to recharge the connected lithium battery.

5. Can multiple 18650 batteries be connected to this module?

Multiple compatible 18650 cells may be connected in parallel on suitable module designs to increase capacity, but they must be properly matched in chemistry, voltage, capacity, condition, and age. Cells must not be connected in series to a module designed for a single-cell 1S battery system.
