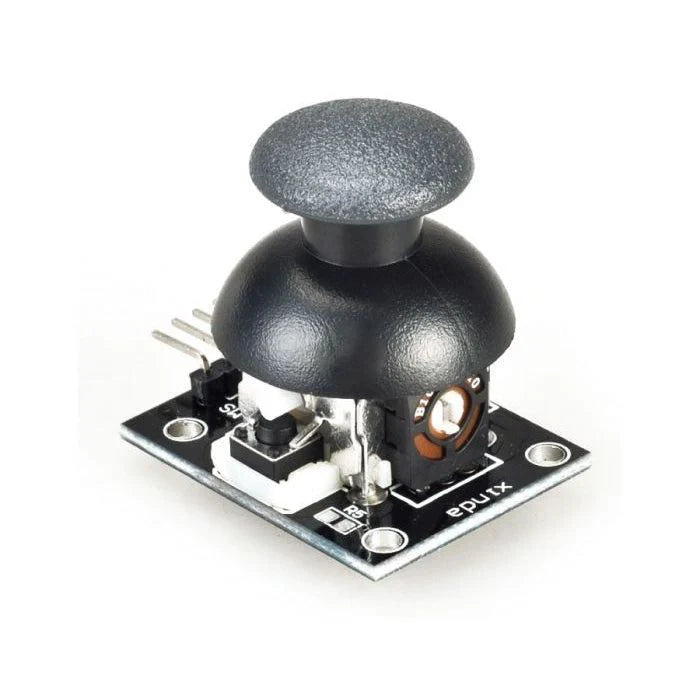

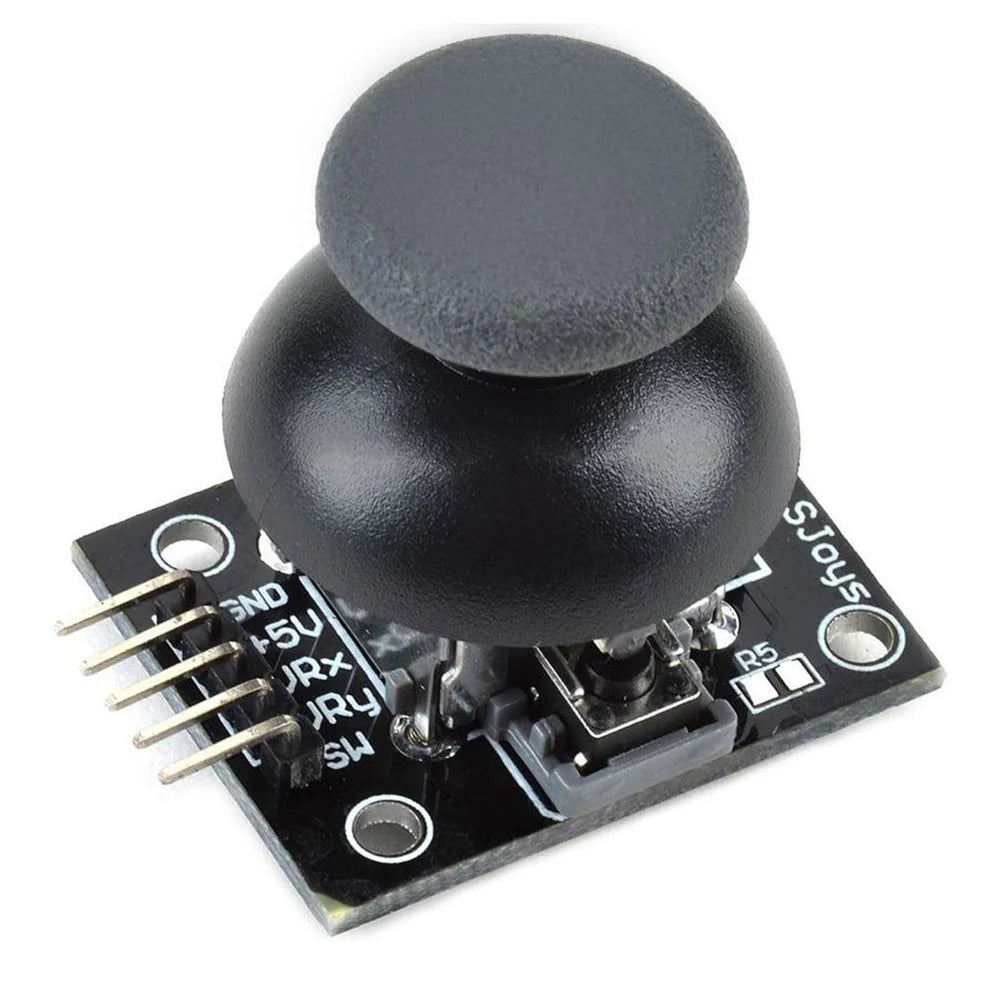

PS2 Dual Axis XY Joystick Module (KY0-23)

SKU: 5F1TOH3T3X
★★★★ ★ ★
4.5 (24 reviews)
The PS2 Dual Axis XY Joystick Module is a compact analog input device designed for controlling movement and navigation in electronic projects. The module features two potentiometers that provide analog outputs corresponding to the X-axis and Y-axis positions, along with an integrated push-button switch activated by pressing the joystick down. The joystick can detect movement in four directions (up, down,...
Rs. 49.00
Rs. 55.00 Rs. 49.00
Save Rs. 6 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The PS2 Dual Axis XY Joystick Module is a compact analog input device designed for controlling movement and navigation in electronic projects. The module features two potentiometers that provide analog outputs corresponding to the X-axis and Y-axis positions, along with an integrated push-button switch activated by pressing the joystick down.

The joystick can detect movement in four directions (up, down, left, and right) as well as intermediate positions, making it ideal for robotics, game controllers, RC projects, menu navigation systems, and microcontroller-based applications. The module provides simple analog outputs that can be directly interfaced with Arduino, ESP32, STM32, Raspberry Pi Pico, and other development platforms.

Its compact design and ease of use make it one of the most popular input modules for DIY electronics, embedded systems, and educational projects.

Key Features

  • Dual-axis analog joystick module
  • Provides X-axis and Y-axis position outputs
  • Built-in push-button switch
  • Analog voltage output for precise control
  • 360-degree directional movement
  • Compact PCB design
  • Simple interface for microcontrollers
  • Low power consumption
  • High reliability and durability
  • Easy breadboard integration
  • Suitable for gaming and robotics applications
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Plug-and-play operation
  • Ideal for DIY electronics projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Dual Axis Joystick Module
Joystick Type: Analog PS2 Joystick
Number of Axes: 2 (X-Axis and Y-Axis)
Switch Type: Momentary Push Button
Operating Voltage: 3.3V to 5V DC
Output Type: Analog (X and Y), Digital (Switch)
X-Axis Output Voltage Range: 0V to VCC
Y-Axis Output Voltage Range: 0V to VCC
Center Position Output: Approximately VCC/2

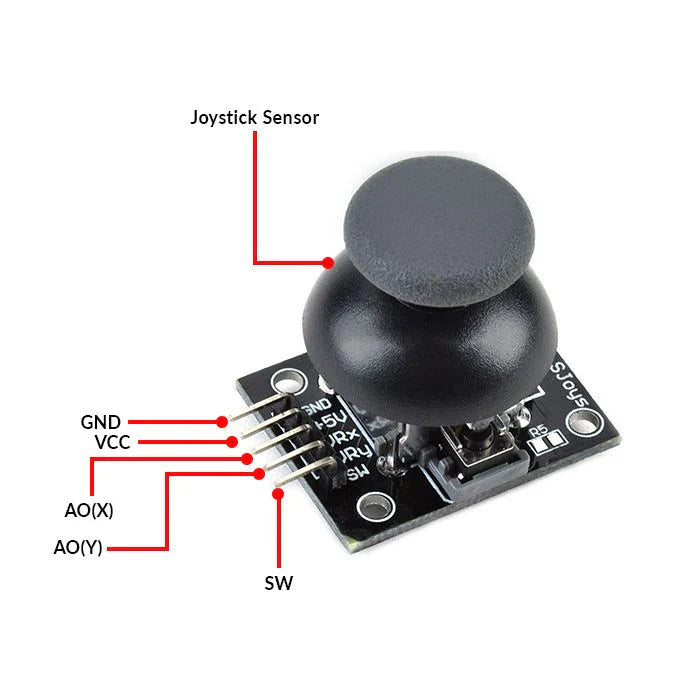

Interface Pins: GND, VCC, VRX, VRY, SW
Potentiometer Resistance: 10kΩ Typical
Rotation Angle: Approximately ±30° per Axis
Mounting Type: Through-Hole Module
PCB Dimensions: Approximately 34mm × 26mm × 32mm
Operating Temperature: -10°C to +70°C
Weight: Approximately 10g

Additional Resources

Joystick.PDF

FAQ

1. What is the PS2 Dual Axis XY Joystick Module used for?

The module is used to detect joystick movement in X and Y directions and is commonly used in robotics, gaming controllers, RC projects, and navigation interfaces.

2. How many outputs does the joystick module provide?

The module provides two analog outputs (X-axis and Y-axis) and one digital output from the built-in push-button switch.

3. Can the joystick module work with Arduino and ESP32?

Yes, the module is fully compatible with Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers that support analog inputs.

4. What voltage does the joystick module operate on?

The module operates from a supply voltage of 3.3V to 5V DC.

5. What happens when the joystick is pressed down?

Pressing the joystick activates the built-in momentary push-button switch, generating a digital signal that can be read by a microcontroller.
