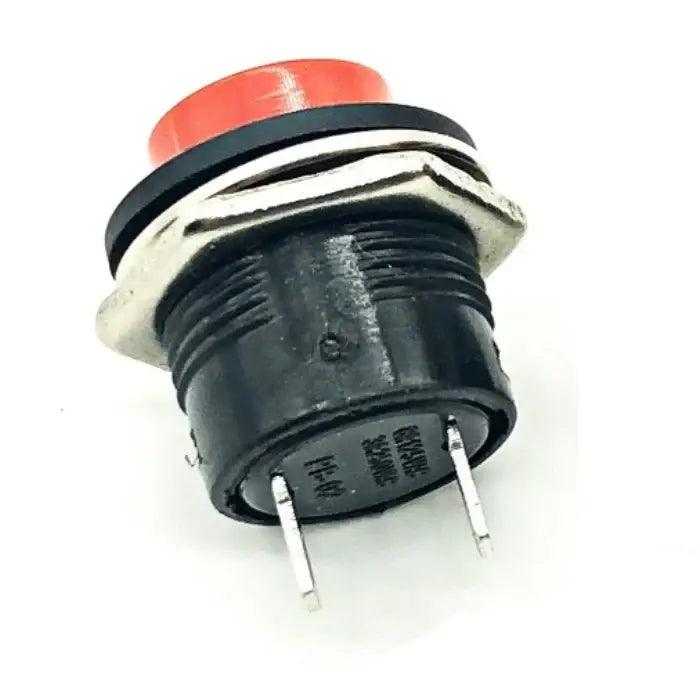

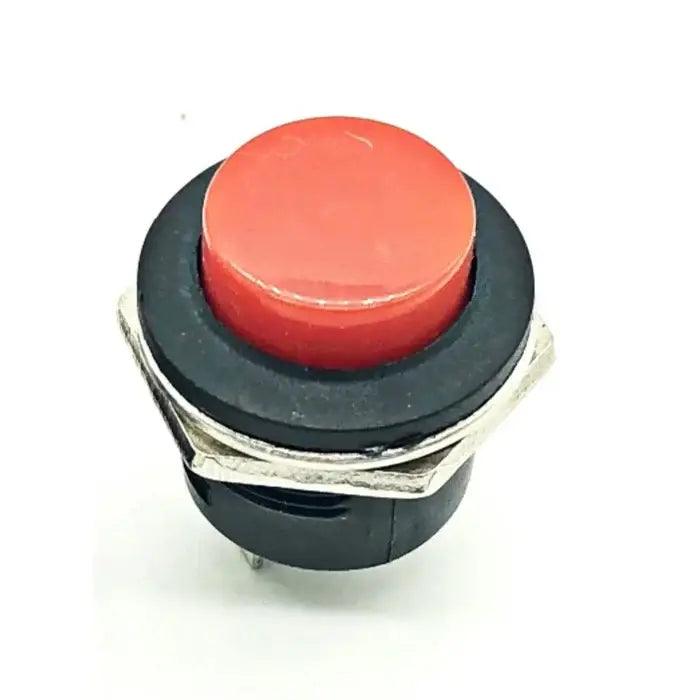

RED R13-507 16mm No Lock Push Button Momentary Switch 3A, 250V (PBS 25B Red)

SKU: 46IDC29EY7
★★★★ ★ ★
4.3 (66 reviews)
The RED R13-507 16mm No Lock Push Button Momentary Switch is a compact and dependable switch for managing electrical circuits. Designed to fit a 16mm mounting hole, it can handle up to 3A at 250V. The switch operates by turning ON when pressed and automatically returning to OFF when released, making it ideal for controlling motors or other electrical devices....
Rs. 49.00
Rs. 49.00
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The RED R13-507 16mm No Lock Push Button Momentary Switch is a compact and dependable switch for managing electrical circuits. Designed to fit a 16mm mounting hole, it can handle up to 3A at 250V. The switch operates by turning ON when pressed and automatically returning to OFF when released, making it ideal for controlling motors or other electrical devices. It is commonly used in equipment such as starters and contactors.

Features:

  • Single-pole push-to-make and push-to-break functionality
  • Excellent electrical conductivity for consistent and reliable operation
  • Momentary action for safe and temporary activation
  • Waterproof and dustproof design with a rubber ring and hex nut for secure installation

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model: R13-507-M-5S
Material: Plastic and Metal
Terminals: 2-pin configuration
Action Type: Momentary (Press to ON, Release to OFF)
Voltage Rating: 6A at 125V AC, 3A at 250V AC
Overall Dimensions: 24.4 x 20 mm (0.96" x 0.79")
Length: 25 mm
Height: 15 mm
Width: 20 mm
Weight: 4 grams

Additional Resources

RED R13-507 16mm No Lock Push Button Momentary Switch 3A, 250V (PBS 25B Red).PDF

FAQ

1. What type of switch is the RED R13-507 PBS 25B?

It is a momentary push button switch with no locking mechanism. The switch stays activated only while it is being pressed.

2. What are the electrical ratings of this switch?

The switch is rated for 3A at 250V AC, making it suitable for low to medium power control applications.

3. What is the diameter of the button?

The push button has a 16mm diameter, making it easy to press and operate in compact panels.

4. How many pins does this switch have?

This switch features 2 pins for simple and reliable wiring.

5. Where can this switch be used?

It is commonly used in electronic circuits, DIY projects, industrial panels, and robotics, where momentary on/off control is required.
