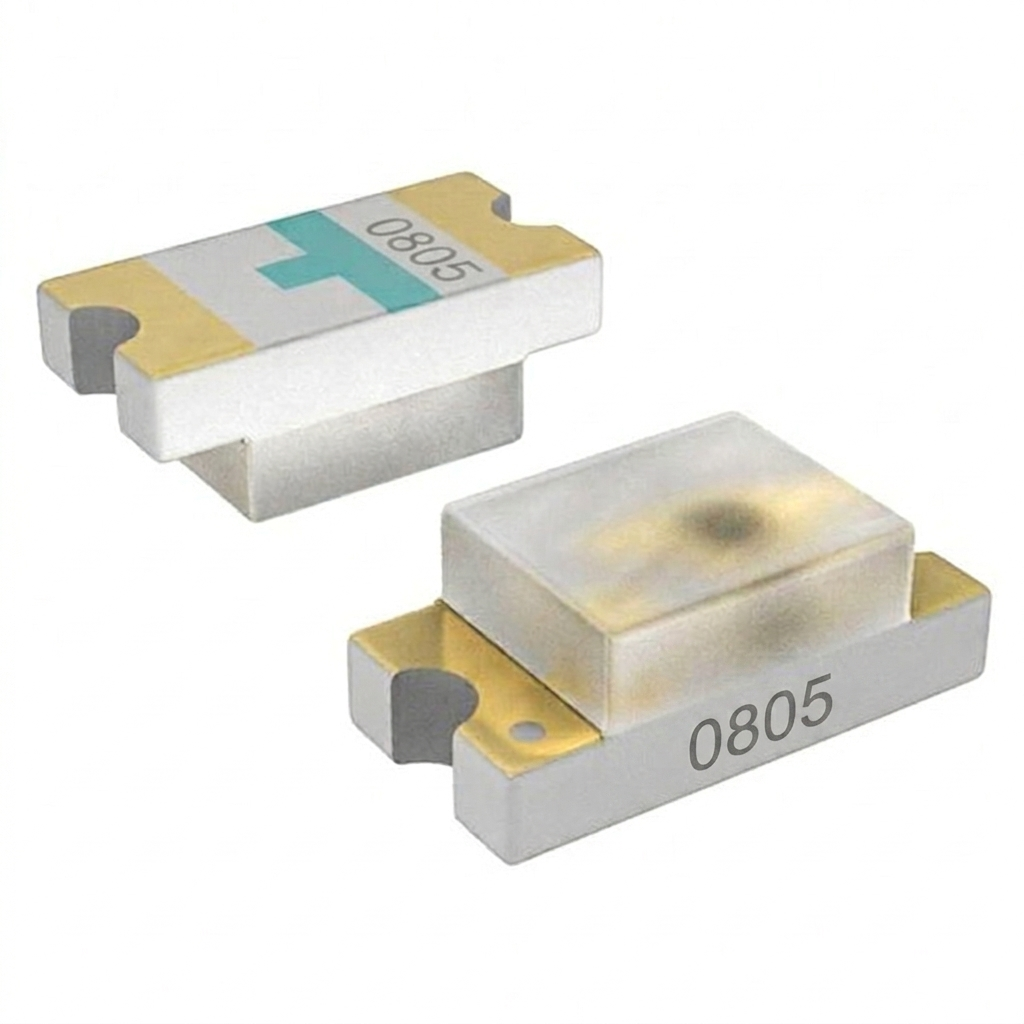

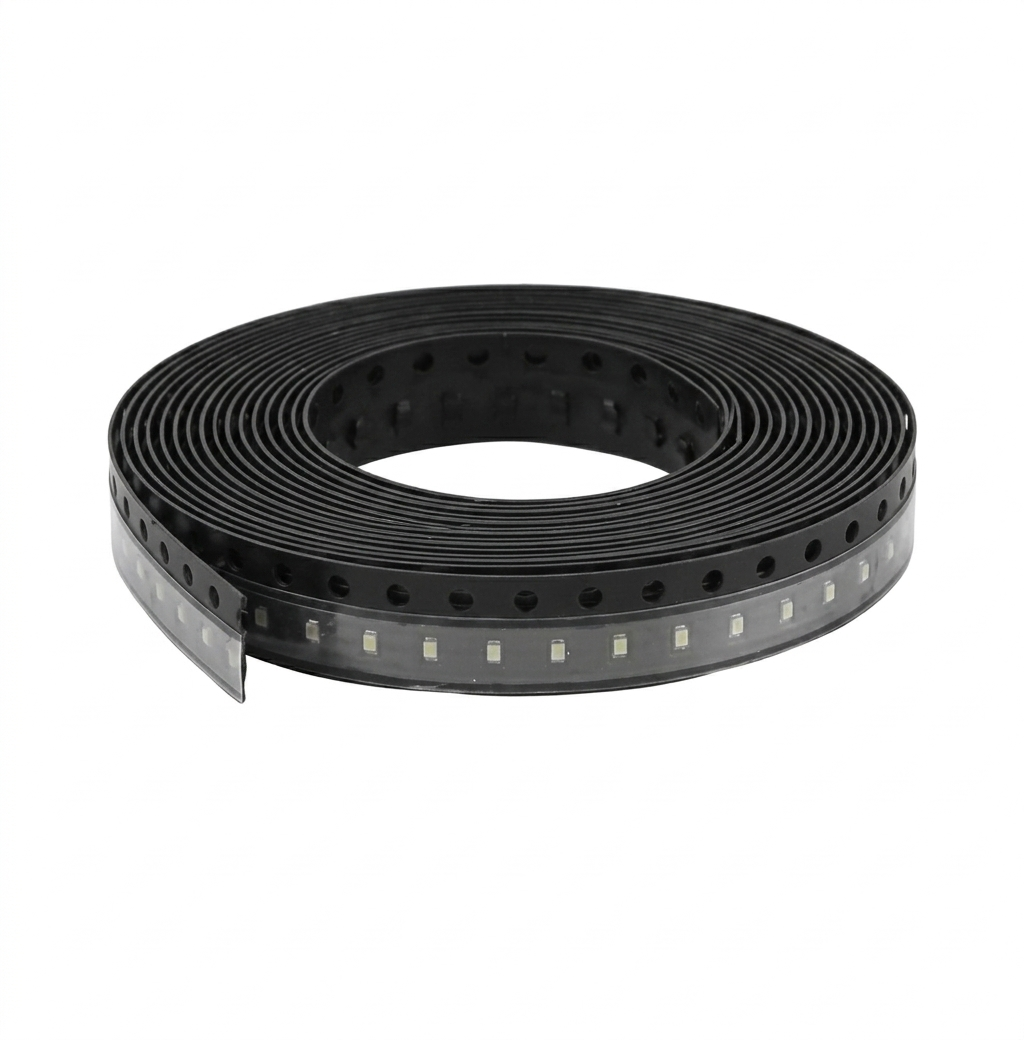

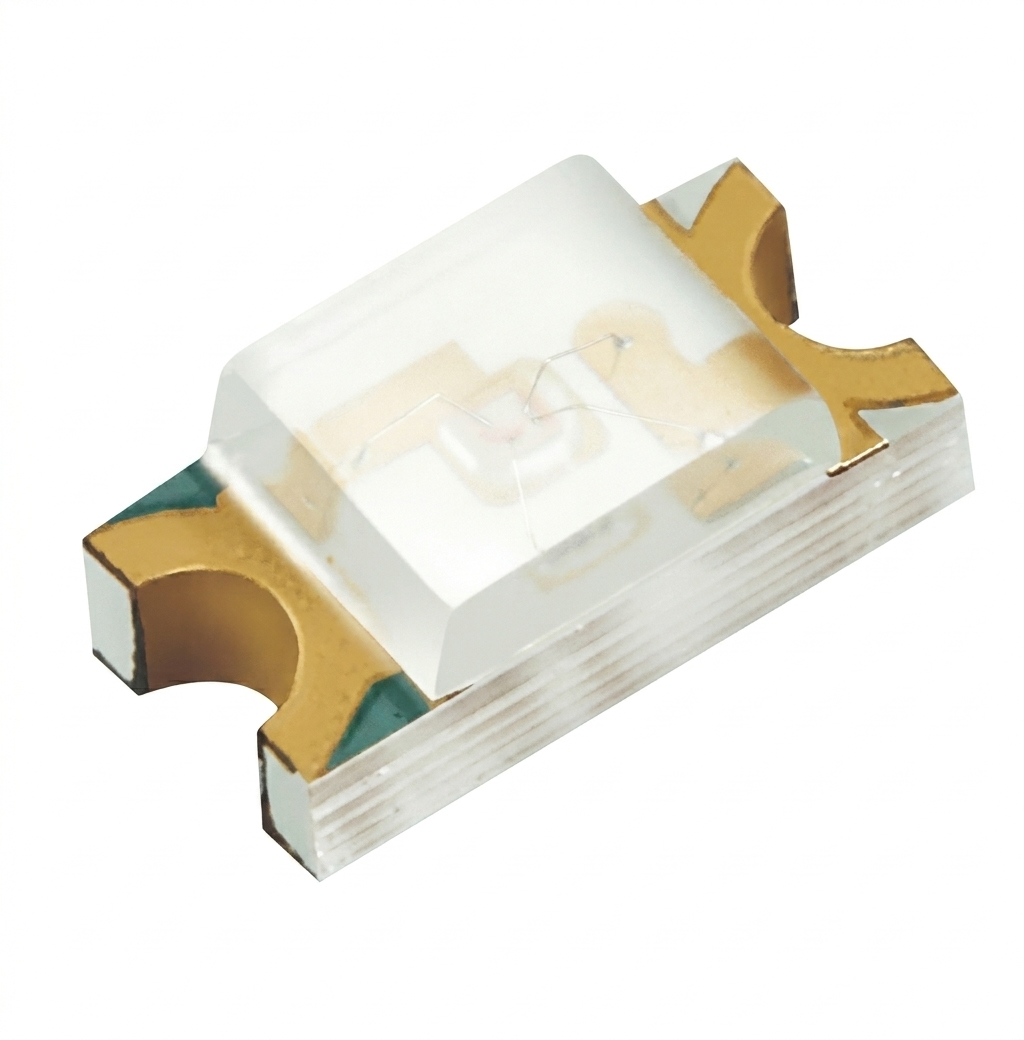

Red Side LED 0805 (Pack of 2)

SKU: J581ZUNDLX
★★★★ ★ ★
4.9 (30 reviews)
The Red Side LED 0805 is a compact surface-mount light-emitting diode (SMD LED) designed to emit bright red light from the side of the package. Unlike traditional top-emitting LEDs, this side-view LED directs light horizontally, making it ideal for edge-lighting, backlighting, and indicator applications where space is limited. Manufactured in the industry-standard 0805 package size, this LED is widely used...
Rs. 5.00
Rs. 7.00 Rs. 5.00
Save Rs. 2 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Red Side LED 0805 is a compact surface-mount light-emitting diode (SMD LED) designed to emit bright red light from the side of the package. Unlike traditional top-emitting LEDs, this side-view LED directs light horizontally, making it ideal for edge-lighting, backlighting, and indicator applications where space is limited.

Manufactured in the industry-standard 0805 package size, this LED is widely used in consumer electronics, display systems, control panels, automotive dashboards, and portable devices. Its small footprint, low power consumption, and reliable

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Surface Mount LED (SMD)
LED Color: Red
Package Size: 0805
Emission Direction: Side Emitting
Mounting Type: Surface Mount Technology (SMT)
Technology: Light Emitting Diode (LED)
Power Consumption: Low
Operating Life: Long Service Life
Compatibility: Automated Pick-and-Place Assembly

Additional Resources

Red Side LED 0805.PDF

FAQ

1. What is a Red Side LED 0805?

A Red Side LED 0805 is a compact surface-mount LED that emits red light from the side of the package. Its side-emitting design makes it ideal for edge-lighting, backlighting, and indicator applications in compact electronic devices.

2. What are the common uses of a Red Side LED 0805?

The Red Side LED 0805 is commonly used in LCD backlighting, keypad illumination, status indicators, automotive dashboards, control panels, and various consumer electronic products where side-directed light is required.

3. Why use a side-emitting LED instead of a top-emitting LED?

A side-emitting LED directs light horizontally rather than upward, making it suitable for applications such as edge-lit displays and backlit panels where light needs to spread across a surface efficiently.

4. Is the Red Side LED 0805 suitable for automated PCB assembly?

Yes, the 0805 package is designed for Surface Mount Technology (SMT) and is fully compatible with automated pick-and-place machines and standard reflow soldering processes.

5. What are the advantages of using a Red Side LED 0805?

The Red Side LED 0805 offers a compact footprint, low power consumption, long operating life, high reliability, and efficient side-directed illumination, making it ideal for modern electronic and lighting applications.
