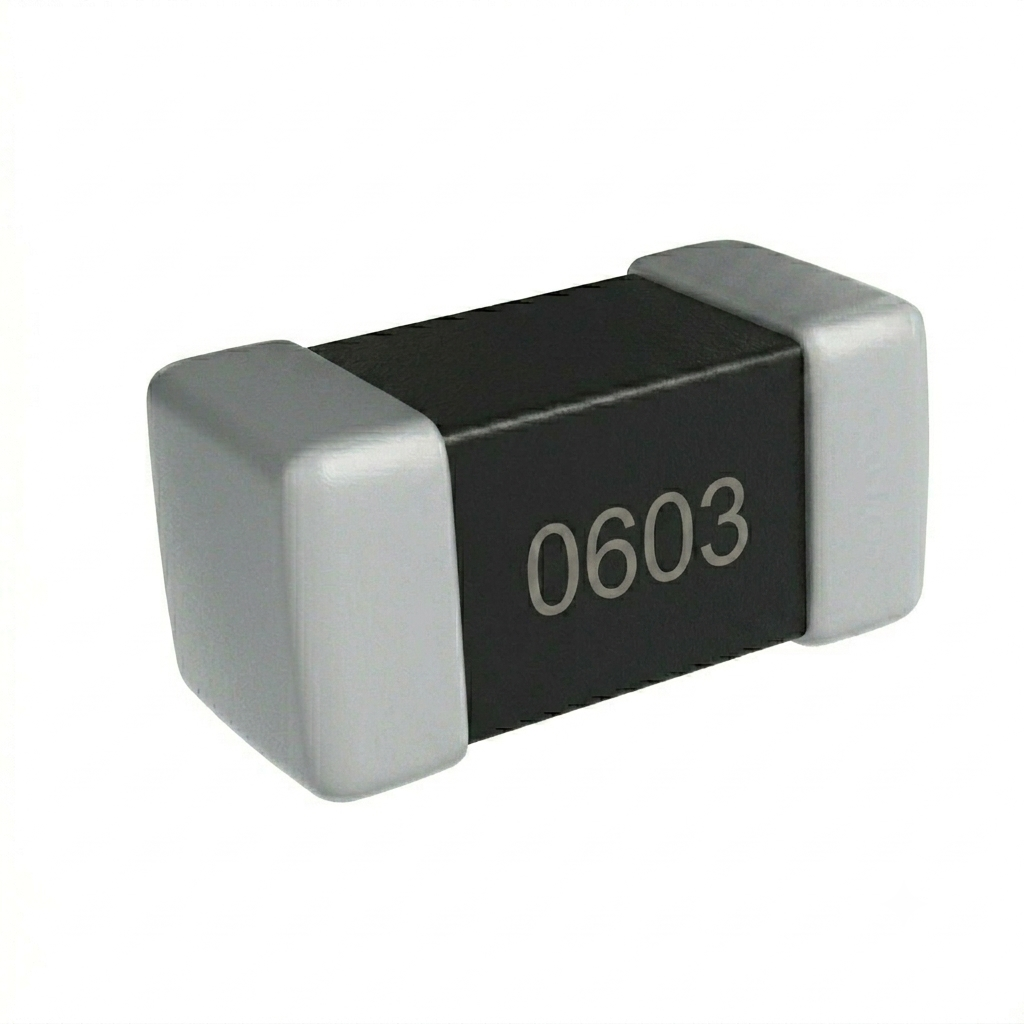

Resistor 1K Ohms 1% 1/10W SMD 0603 ( Pack of 5)

SKU: 2720J28NUP
The 1K Ohms 1% 1/10W SMD 0603 Resistor is a compact surface-mount resistor widely used in modern electronic circuits for current limiting, voltage division, signal conditioning, and biasing applications. Featuring a resistance value of 1,000Ω (1KΩ), a precise ±1% tolerance, and a 0.1W (1/10W) power rating, this resistor delivers reliable and consistent performance across a broad range of electronic devices....
Rs. 5.00
Rs. 8.00 Rs. 5.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance Value: 1KΩ (1,000 Ohms)
Tolerance: ±1%
Power Rating: 1/10W (0.1W)
Package Type: SMD 0603
Package Dimensions: 1.6mm × 0.8mm
Mounting Type: Surface Mount Device (SMD/SMT)
Resistor Technology: Thick Film
Operating Temperature Range: Typically -55°C to +155°C

Additional Resources

Resistor 1K Ohms SMD 0603.PDF

FAQ

1. What is the resistance value of this SMD resistor?

This resistor has a resistance value of 1K Ohms (1,000Ω), making it suitable for current limiting, voltage division, and signal conditioning applications.

2. What does the 1% tolerance specification mean?

The ±1% tolerance ensures that the actual resistance value remains within 1% of the nominal 1KΩ value, providing accurate and consistent performance in electronic circuits.

3. What is the power rating of this resistor?

The resistor is rated at 1/10W (0.1W), allowing it to safely dissipate up to 0.1 watts of power under normal operating conditions.

4. What are the dimensions of the 0603 package?

The 0603 SMD package measures approximately 1.6mm × 0.8mm, making it ideal for compact and high-density PCB designs.

5. Where is a 1KΩ SMD resistor commonly used?

A 1KΩ resistor is commonly used in LED current limiting circuits, pull-up and pull-down networks, transistor biasing, voltage dividers, microcontroller interfaces, and general-purpose electronic applications.

View full product details

The 1K Ohms 1% 1/10W SMD 0603 Resistor is a compact surface-mount resistor widely used in modern electronic circuits for current limiting, voltage division, signal conditioning, and biasing applications. Featuring a resistance value of 1,000Ω (1KΩ), a precise ±1% tolerance, and a 0.1W (1/10W) power rating, this resistor delivers reliable and consistent performance across a broad range of electronic devices.

The miniature 0603 package makes it ideal for high-density PCB layouts and automated assembly processes. Manufactured using thick-film technology, it offers excellent stability, durability, and long-term reliability in both consumer and industrial applications.
