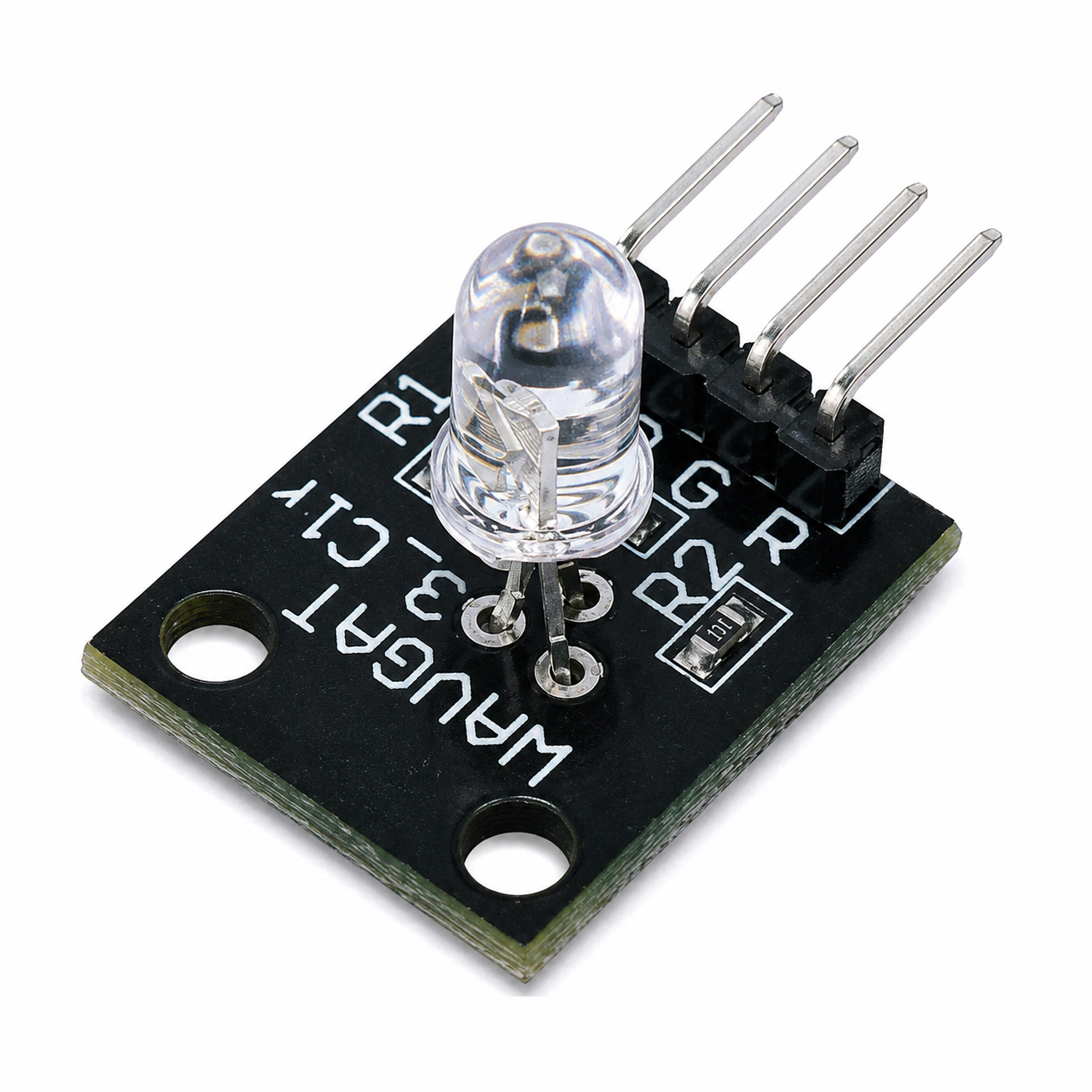

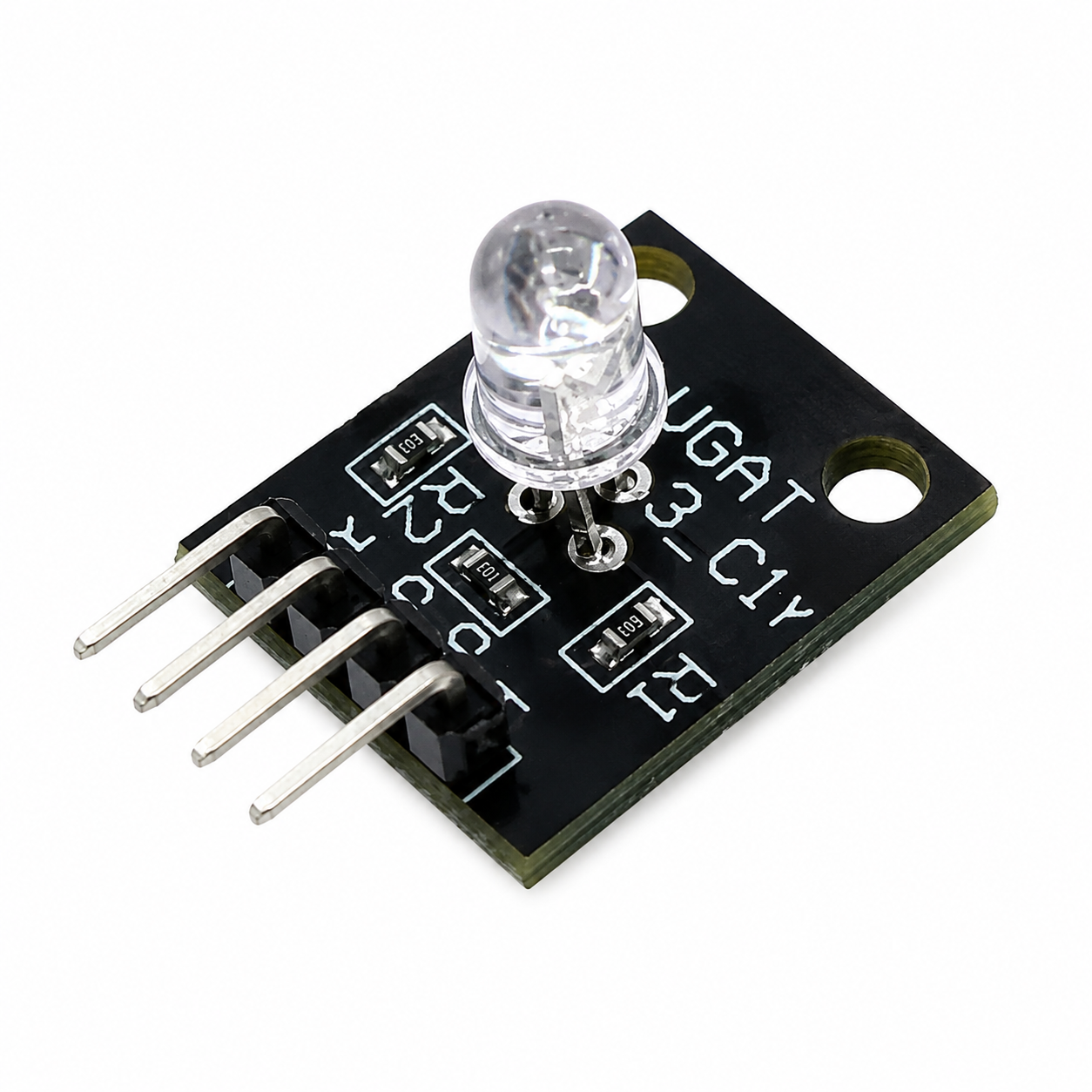

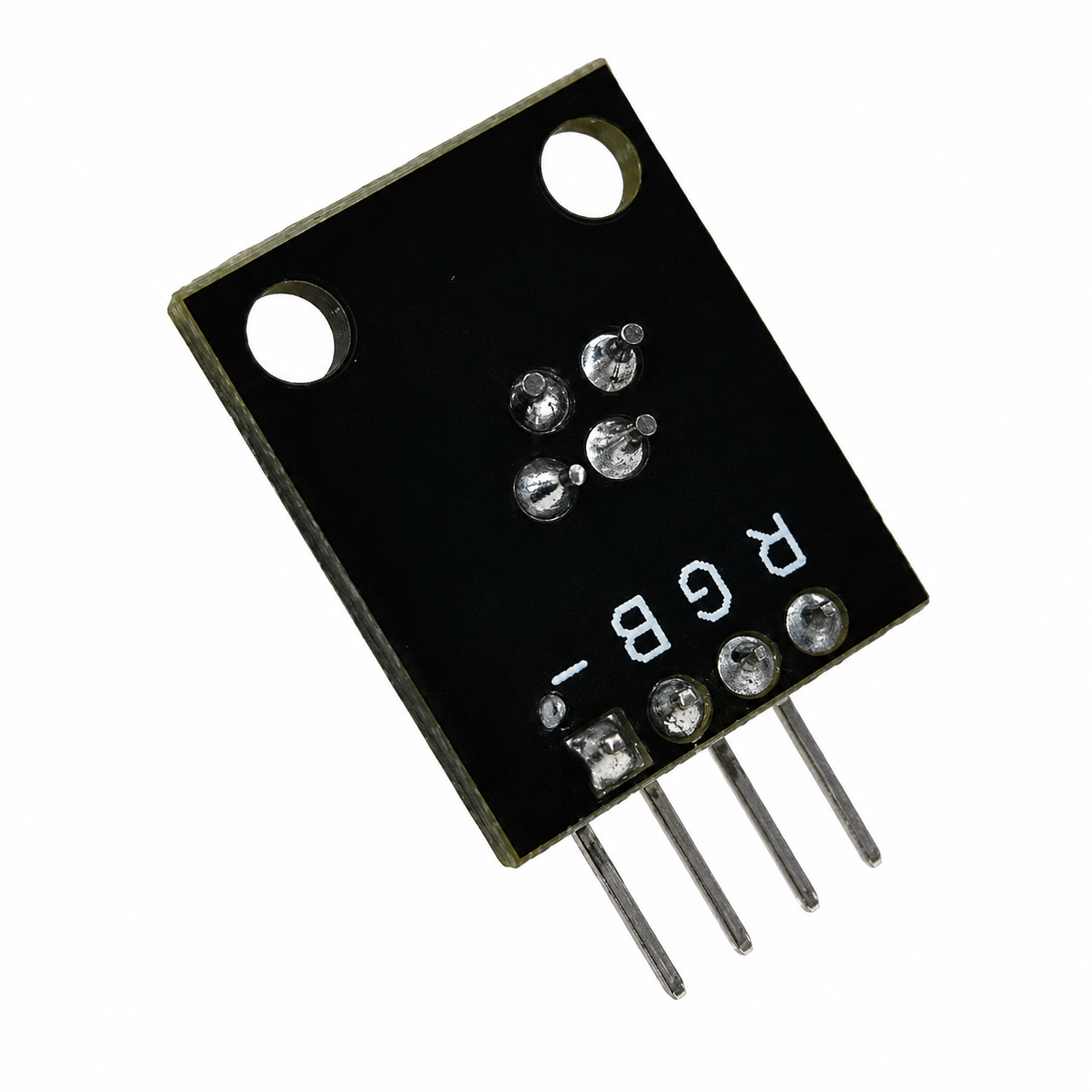

RGB 3 Color LED Module (KY-016)

SKU: HLSUSJK504
★★★★ ★ ★
4.9 (38 reviews)
The RGB 3 Color LED Module is a compact lighting module that integrates a Red, Green, and Blue (RGB) LED along with the necessary interface circuitry for easy connection to microcontrollers and development boards. By controlling the intensity of each color channel, the module can generate a wide spectrum of colors, making it ideal for visual indicators, decorative lighting, educational...
Rs. 29.00
Rs. 35.00 Rs. 29.00
Save Rs. 6 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The RGB 3 Color LED Module is a compact lighting module that integrates a Red, Green, and Blue (RGB) LED along with the necessary interface circuitry for easy connection to microcontrollers and development boards. By controlling the intensity of each color channel, the module can generate a wide spectrum of colors, making it ideal for visual indicators, decorative lighting, educational projects, and interactive electronics applications.

The module can be controlled using digital outputs or PWM (Pulse Width Modulation) signals from Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers. Its compact design and simple interface make it suitable for beginners as well as advanced electronics enthusiasts.

RGB LED modules are commonly used in robotics, IoT devices, status indication systems, smart lighting projects, and creative electronics applications.

Key Features

  • Integrated RGB (Red, Green, Blue) LED
  • Generates multiple colors through color mixing
  • Supports PWM brightness control
  • Compact PCB module design
  • Easy microcontroller interfacing
  • Low power consumption
  • Bright and vivid color output
  • Simple wiring and installation
  • Suitable for digital and PWM control
  • Built-in current limiting circuitry (module dependent)
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Ideal for decorative and status indication applications
  • Durable and reliable construction
  • Perfect for educational electronics projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: RGB LED Module
LED Type: 5mm RGB LED
Colors: Red, Green, Blue
Operating Voltage: 3.3V to 5V DC
Operating Current: Approximately 20mA per Color Channel
Control Method: Digital Output / PWM Control
Interface Pins: R, G, B, VCC, GND (Varies by Module)
Viewing Angle: Approximately 120°
LED Brightness: High Brightness
Wavelength (Red): 620nm – 630nm
Wavelength (Green): 520nm – 530nm
Wavelength (Blue): 460nm – 470nm
Response Time: Fast Switching
Mounting Type: Through-Hole Module
PCB Dimensions: Approximately 19mm × 15mm
Operating Temperature: -20°C to +70°C

Additional Resources

RGB Module.PDF

FAQ

1. What is an RGB LED Module used for?

The RGB LED Module is used for generating different colors, status indication, decorative lighting, and visual feedback in electronics and microcontroller projects.

2. How many colors can the RGB LED Module produce?

By mixing the red, green, and blue LEDs at different brightness levels, the module can produce a wide range of colors.

3. Can the RGB LED Module be controlled using Arduino?

Yes, the module can be easily controlled using Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers.

4. What is PWM control used for in an RGB LED Module?

PWM allows adjustment of the brightness of each color channel, enabling smooth color mixing and lighting effects.

5. What voltage does the RGB LED Module operate on?

Most RGB LED modules operate from 3.3V to 5V DC, making them compatible with common development boards and embedded systems.
