RGB LED 12 Bit-WS2812 (Straight)

SKU: C1UV4UEJ5E
The WS2812 8-Bit RGB LED (Straight) module is a compact addressable LED board that contains 8 WS2812 RGB LEDs arranged in a straight line. Each LED includes a built-in driver IC, allowing you to control the color and brightness of every LED individually using just a single data pin from a microcontroller. This module operates typically at 5V DC and...
Rs. 49.00
Rs. 79.00 Rs. 49.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Addressable RGB LED Ring
Model: WS2812
Number of LEDs: 12
Outer Diameter: 50 mm
Inner Diameter: 35 mm
Height: 3 mm
Operating Voltage: 5V DC
Weight: 15 grams

Additional Resources

WS2812 LED.PDF

FAQ

1. What is the WS2812 8-Bit RGB LED Straight module?

The WS2812 8-Bit RGB LED Straight module is a linear board with 8 individually addressable RGB LEDs. Each LED has a built-in driver chip, allowing you to control the color and brightness of every LED using a single data pin from a microcontroller.

2. What voltage is required to operate this LED module?

The WS2812 LED module typically operates at 5V DC. A stable 5V power supply is recommended for proper operation and consistent brightness.

3. Can this module be used with Arduino or other microcontrollers?

Yes, the module is compatible with Arduino, ESP32, ESP8266, and Raspberry Pi. It can be easily controlled using popular libraries such as Adafruit NeoPixel or FastLED.

4. Can multiple WS2812 LED modules be connected together?

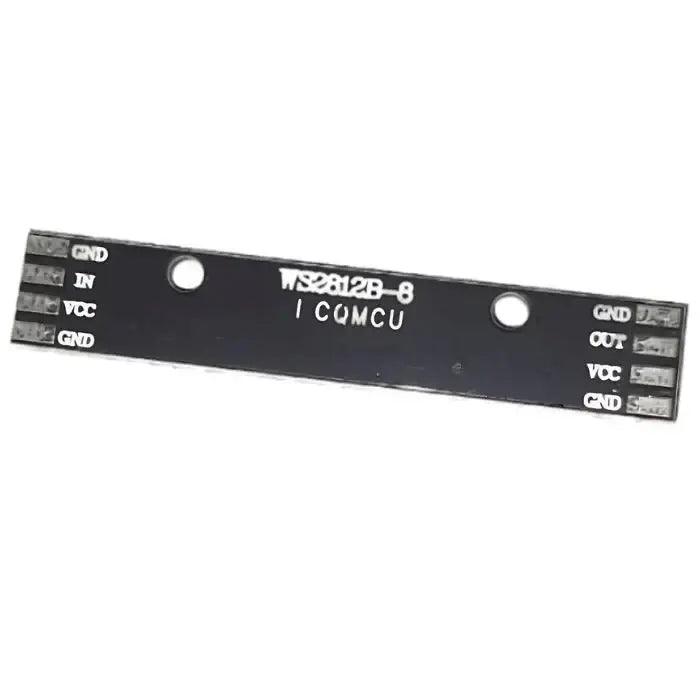

Yes, the LEDs support daisy-chaining. The data output (DOUT) from one module can be connected to the data input (DIN) of another module, allowing multiple LED boards to be controlled with a single data line.

5. What are the common applications of the WS2812 LED Straight module?

This module is commonly used in LED displays, decorative lighting, wearable electronics, robotics projects, status indicators, and interactive lighting effects because each LED can be individually programmed to display different colors.

View full product details

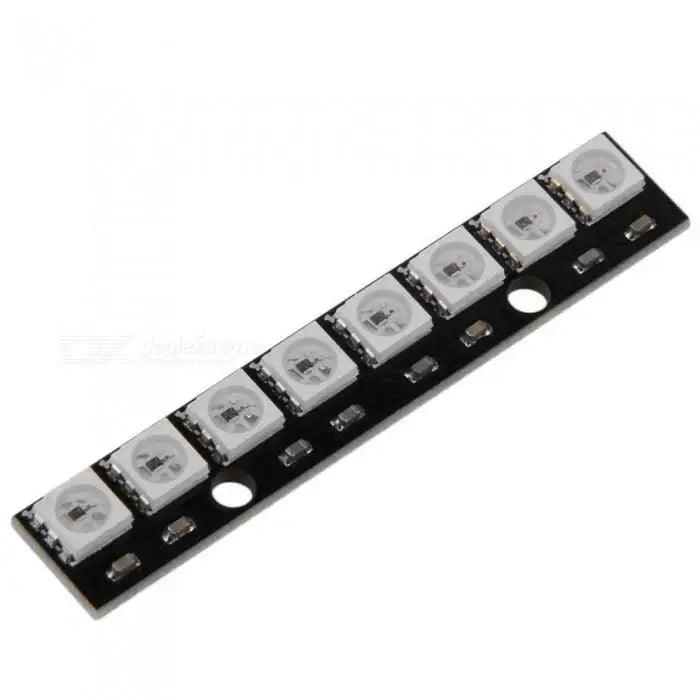

The WS2812 8-Bit RGB LED (Straight) module is a compact addressable LED board that contains 8 WS2812 RGB LEDs arranged in a straight line. Each LED includes a built-in driver IC, allowing you to control the color and brightness of every LED individually using just a single data pin from a microcontroller.

This module operates typically at 5V DC and uses a single-wire digital communication protocol, making it easy to interface with popular development boards such as Arduino, ESP32, ESP8266, and Raspberry Pi. By controlling the intensity of the red, green, and blue channels using PWM, each LED can produce millions of color combinations and dynamic lighting effects.

The WS2812 LEDs are designed with integrated control circuitry and RGB LEDs inside a single 5050 package, which ensures reliable signal transmission and consistent color output. Each LED receives the data signal, processes it, and passes the remaining data to the next LED, allowing multiple modules to be daisy-chained to create larger LED displays or lighting systems.
