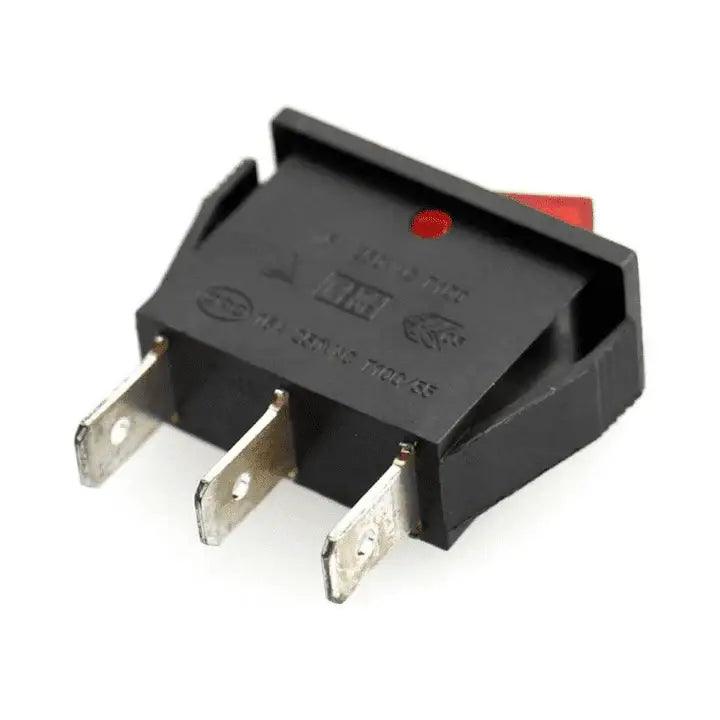

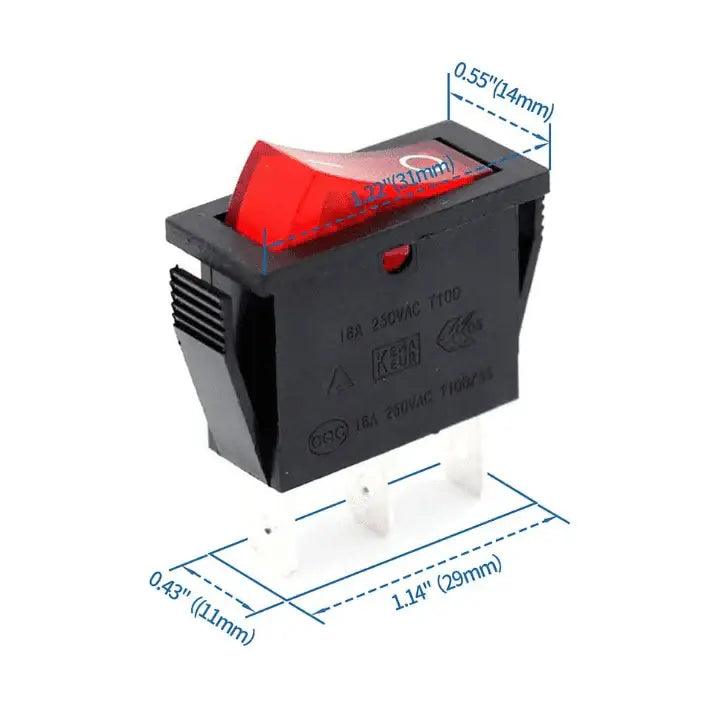

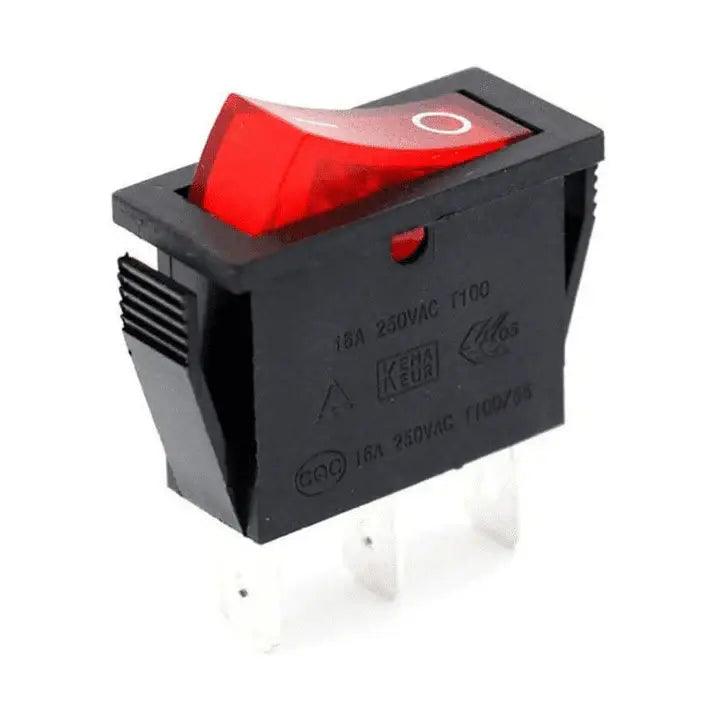

Rocker switch 16A 250V SPDT 3PIN Red LED

SKU: XVYA7P1M9J
The 16A 250V SPDT ON-OFF Rocker Switch with Light is a simple and reliable solution for controlling power in your projects. It features top and bottom tabs that allow secure mounting onto an enclosure without the need for screws. The On and Off positions are clearly marked, making it easy to identify the switch status at a glance. Additionally, the...
Rs. 59.00
Rs. 59.00
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: SPDT Rocker Switch
Rated Voltage: 250V
Rated Current: 16A
Color: Red
LED Indicator: Red
Structure: SPDT
Number of Pins: 3
Weight: 6 g

Additional Resources

Rocker switch 16A 250V SPDT 3PIN Red LED.PDF

FAQ

1. What type of switch is this?

This is a SPDT (Single Pole Double Throw) rocker switch with an ON-OFF function and a built-in red LED indicator to show the switch status.

2. What is the voltage and current rating of this rocker switch?

The switch is rated for 250V AC and can handle a maximum current of 16A, making it suitable for high-load applications.

3. How many pins does this switch have?

It has 3 pins, which allow for single-pole double-throw operation and easy integration into circuits requiring ON/OFF and LED indication.

4. What are the common applications of this switch?

It is widely used for controlling DC motors in robotics, cars, motorcycles, industrial machines, and water dispensers. The built-in LED also makes it easy to monitor the On/Off status.

5. How is the switch mounted?

The switch comes with top and bottom tabs for easy panel mounting without the need for screws, ensuring a secure and neat installation.

View full product details

The 16A 250V SPDT ON-OFF Rocker Switch with Light is a simple and reliable solution for controlling power in your projects. It features top and bottom tabs that allow secure mounting onto an enclosure without the need for screws. The On and Off positions are clearly marked, making it easy to identify the switch status at a glance. Additionally, the built-in indicator light shows whether the switch is On or Off.

This rocker switch is ideal for turning on/off and controlling DC motors in robotics, cars, motorcycles, industrial machines, water dispensers, and more. With a high load rating of 16A at 250VAC, it is suitable for most general-purpose applications.

Check out also: Rocker Switch 6A 250V SPDT 4 PIN with Red LED

  • Switching Mode: ON-OFF
  • Structure: SPDT
