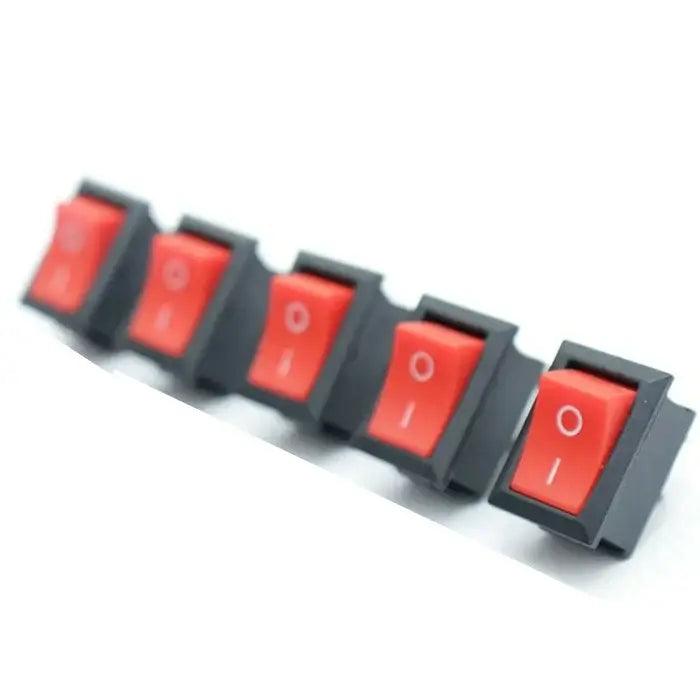

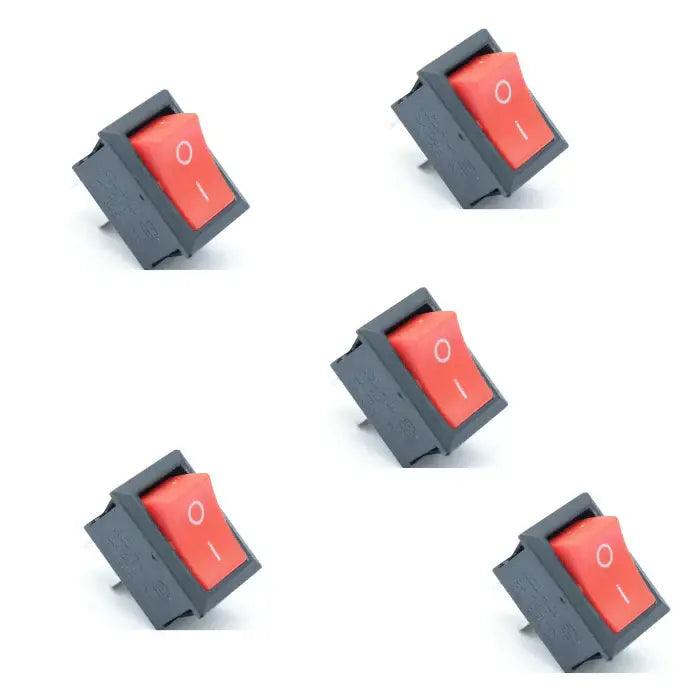

Rocker Switch Mini On Off SPST 2 Pin

SKU: 7DJL3ZSNB8
This mini On/Off rocker switch is an ideal solution for controlling power in electronic circuits, robotics, and various DIY applications. It is designed with a compact size and a high load capacity, making it suitable for general-purpose ON/OFF switching needs. The switch features two stable positions—ON and OFF—and remains in the selected state until pressed again. It includes two large...
Rs. 12.00
Rs. 17.00 Rs. 12.00
Save Rs. 5
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

  • Number of Pins: 2 (SPST)
  • Number of Positions: 2 (ON and OFF)
  • Operation Type: Latching
  • Electrical Rating: Up to 6A at 250V AC
  • Markings: Clearly labeled with “I” (ON) and “O” (OFF) for easy identification
  • Panel Cut-Out Size: 13.8 mm × 9.2 mm
  • Overall Dimensions: 20 × 11 × 25 mm (L × W × H)

Additional Resources

Rocker Switch Mini On Off SPST 2 Pin.PDF

FAQ

1. What is a Mini On/Off SPST Rocker Switch?

It is a compact electrical switch used to control a single circuit. Being an SPST (Single Pole Single Throw) switch, it allows simple ON and OFF functionality through a two-pin connection.

2. How does this rocker switch operate?

The switch has two stable positions—ON and OFF. When pressed to ON, it completes the circuit and allows current to flow. When switched to OFF, it breaks the circuit and stops the flow of electricity.

3. What are the common applications of this switch?

This mini rocker switch is widely used in:

  • Electronics and DIY projects
  • Robotics and automation systems
  • Household appliances
  • LED lighting circuits
  • Small control panels

4. What are the key features of this product?

  • Compact and space-saving design
  • Easy snap-in mounting
  • Two-pin configuration for simple wiring
  • Latching ON/OFF operation
  • Comes in a pack of 5 for multiple uses

5. What should be considered before using this switch?

Ensure that the switch rating (typically up to 6A at 250V AC) matches your application. Properly connect and insulate the terminals, and always turn off the power supply before installation for safety.

View full product details

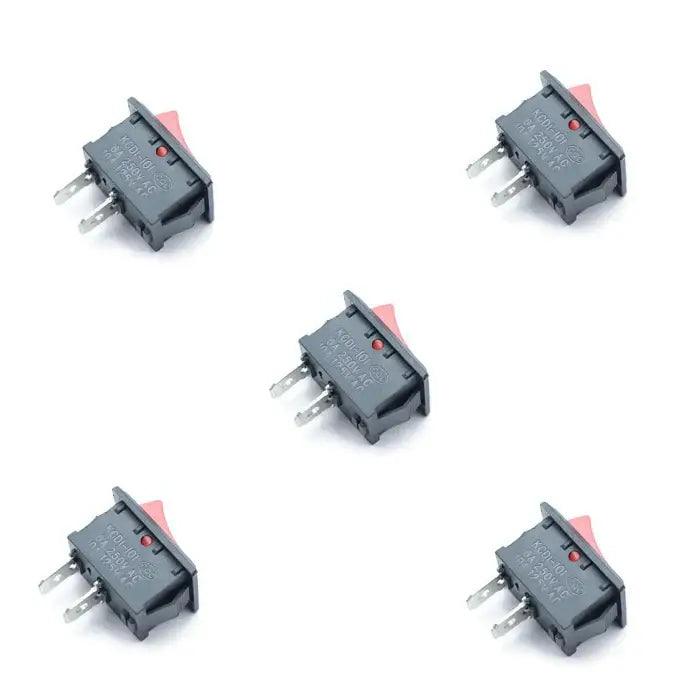

This mini On/Off rocker switch is an ideal solution for controlling power in electronic circuits, robotics, and various DIY applications. It is designed with a compact size and a high load capacity, making it suitable for general-purpose ON/OFF switching needs. The switch features two stable positions—ON and OFF—and remains in the selected state until pressed again. It includes two large rear terminals for easy soldering and secure circuit connections.

The rocker switch offers a simple and efficient way to control power in your projects. Its snap-in mounting design, with built-in tabs on the top and bottom, allows it to be securely fixed into an enclosure without requiring screws. Clearly marked ON and OFF labels help users quickly identify the switch position during operation.

This switch is well-suited for controlling DC motors in robotics, automotive applications such as cars and motorcycles, industrial machinery, water dispensers, and more. With a rated capacity of 6A at 250V AC, it is capable of handling most standard electrical applications.

It is a 2-pin SPST (Single Pole Single Throw) ON/OFF rocker switch designed for AC applications. Commonly used in household appliances like water dispensers, treadmills, coffee machines, and similar devices, it provides reliable and straightforward power control through its two-terminal configuration.
