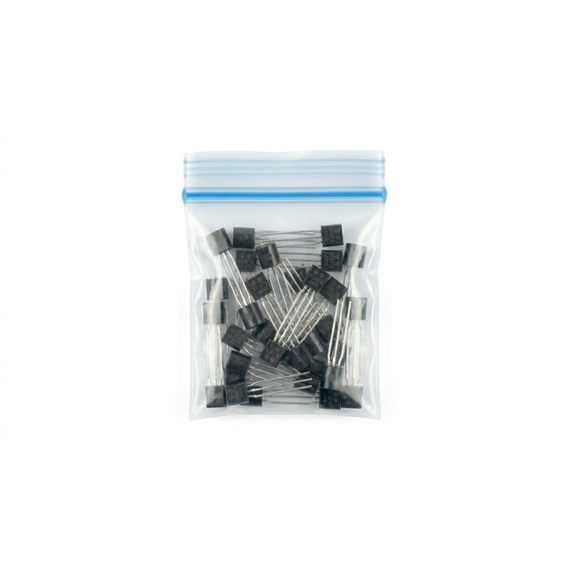

S9012 PNP Transistor (Packof 2)

SKU: SVY6W1EMUJ
The S9012 Transistor is a general-purpose PNP bipolar junction transistor (BJT) widely used for low-power amplification and switching applications. Designed to handle collector currents up to 500mA, it provides reliable performance in signal amplification, driver circuits, audio applications, and microcontroller-based electronic projects. The S9012 is commonly used as the complementary PNP counterpart to the S9013 NPN transistor in push-pull amplifier...
Rs. 6.00
Rs. 13.00 Rs. 6.00
Save Rs. 7
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Part Number: S9012
Transistor Type: PNP Bipolar Junction Transistor
Package Type: TO-92
Collector-Emitter Voltage (VCEO): −25V
Collector-Base Voltage (VCBO): −40V
Emitter-Base Voltage (VEBO): −5V
Maximum Collector Current (IC): −500mA
Power Dissipation (PC): 625mW
Transition Frequency (fT): 150MHz (typical)
Mounting Type: Through-Hole
Operating Temperature Range: −55°C to +150°C (storage)

Additional Resources

S9012.PDF

FAQ

1. What is a transistor?

A transistor is a semiconductor device used to amplify electrical signals or act as an electronic switch in circuits. It is one of the fundamental building blocks of modern electronic devices.

2. What are the main types of transistors?

The two most common types of transistors are Bipolar Junction Transistors (BJTs) and Field Effect Transistors (FETs). BJTs are available as NPN and PNP types, while FETs include MOSFETs and JFETs.

3. How does a transistor work as a switch?

A transistor works as a switch by controlling the flow of current between its terminals. A small input signal can turn a larger current on or off, making transistors useful in digital and control circuits.

4. Where are transistors commonly used?

Transistors are widely used in amplifiers, power supplies, microcontrollers, communication devices, computers, motor drivers, and countless other electronic applications.

5. Why are transistors important in electronics?

Transistors enable signal amplification, switching, voltage regulation, and digital logic operations. Their reliability, small size, and low power consumption have made modern electronics possible.

View full product details

The S9012 Transistor is a general-purpose PNP bipolar junction transistor (BJT) widely used for low-power amplification and switching applications. Designed to handle collector currents up to 500mA, it provides reliable performance in signal amplification, driver circuits, audio applications, and microcontroller-based electronic projects. The S9012 is commonly used as the complementary PNP counterpart to the S9013 NPN transistor in push-pull amplifier and switching circuits.

Housed in the compact TO-92 package, the S9012 offers easy through-hole mounting, making it suitable for prototyping, educational projects, and production electronics. Its high current gain and excellent linearity enable efficient operation in both analog and digital circuit designs. The transistor is widely utilized in consumer electronics, portable devices, control systems, and signal processing applications.

Key Features

  • PNP Silicon Bipolar Junction Transistor (BJT)
  • High collector current capability up to 500mA
  • Collector-Emitter Voltage (VCEO) up to −25V
  • Collector-Base Voltage (VCBO) up to −40V
  • High DC current gain (hFE)
  • Excellent linearity for amplification applications
  • Complementary transistor to S9013
  • Compact TO-92 through-hole package
  • Suitable for switching and signal amplification
  • Reliable performance and low-cost solution

Applications

  • General-purpose switching circuits
  • Signal amplification circuits
  • Audio amplifier stages
  • Push-pull amplifier designs
  • Microcontroller and Arduino projects
  • LED and relay drivers
  • Sensor interface circuits
  • Consumer electronics
  • Portable electronic devices
  • Educational and DIY electronics projects
