Specifications:

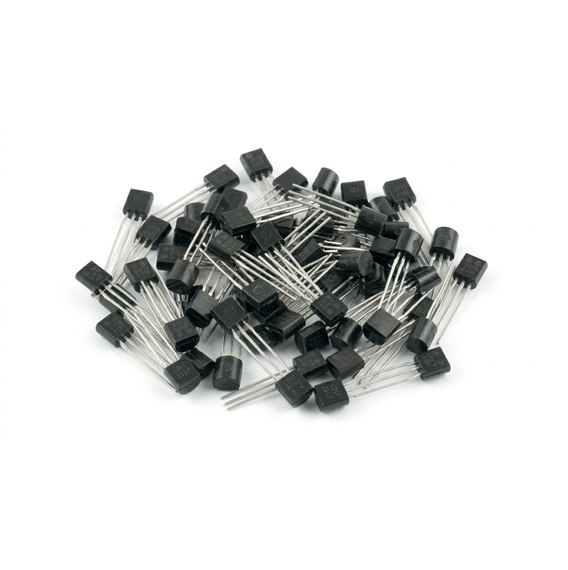

Part Number: S9013
Transistor Type: NPN Bipolar Junction Transistor
Package Type: TO-92
Collector-Emitter Voltage (VCEO): 40V
Collector-Base Voltage (VCBO): 60V
Emitter-Base Voltage (VEBO): 5V
Maximum Collector Current (IC): 500mA
Power Dissipation (PC): 625mW
DC Current Gain (hFE): 64 to 202
Transition Frequency (fT): 150MHz (typical)
Mounting Type: Through-Hole
Operating Temperature Range: -55°C to +150°C (storage)

1. What is a transistor?

A transistor is a semiconductor device used to amplify electrical signals or act as an electronic switch in circuits. It is one of the fundamental building blocks of modern electronic devices.

2. What are the main types of transistors?

The two most common types of transistors are Bipolar Junction Transistors (BJTs) and Field Effect Transistors (FETs). BJTs are available as NPN and PNP types, while FETs include MOSFETs and JFETs.

3. How does a transistor work as a switch?

A transistor works as a switch by controlling the flow of current between its terminals. A small input signal can turn a larger current on or off, making transistors useful in digital and control circuits.

4. Where are transistors commonly used?

Transistors are widely used in amplifiers, power supplies, microcontrollers, communication devices, computers, motor drivers, and countless other electronic applications.

5. Why are transistors important in electronics?

Transistors enable signal amplification, switching, voltage regulation, and digital logic operations. Their reliability, small size, and low power consumption have made modern electronics possible.
