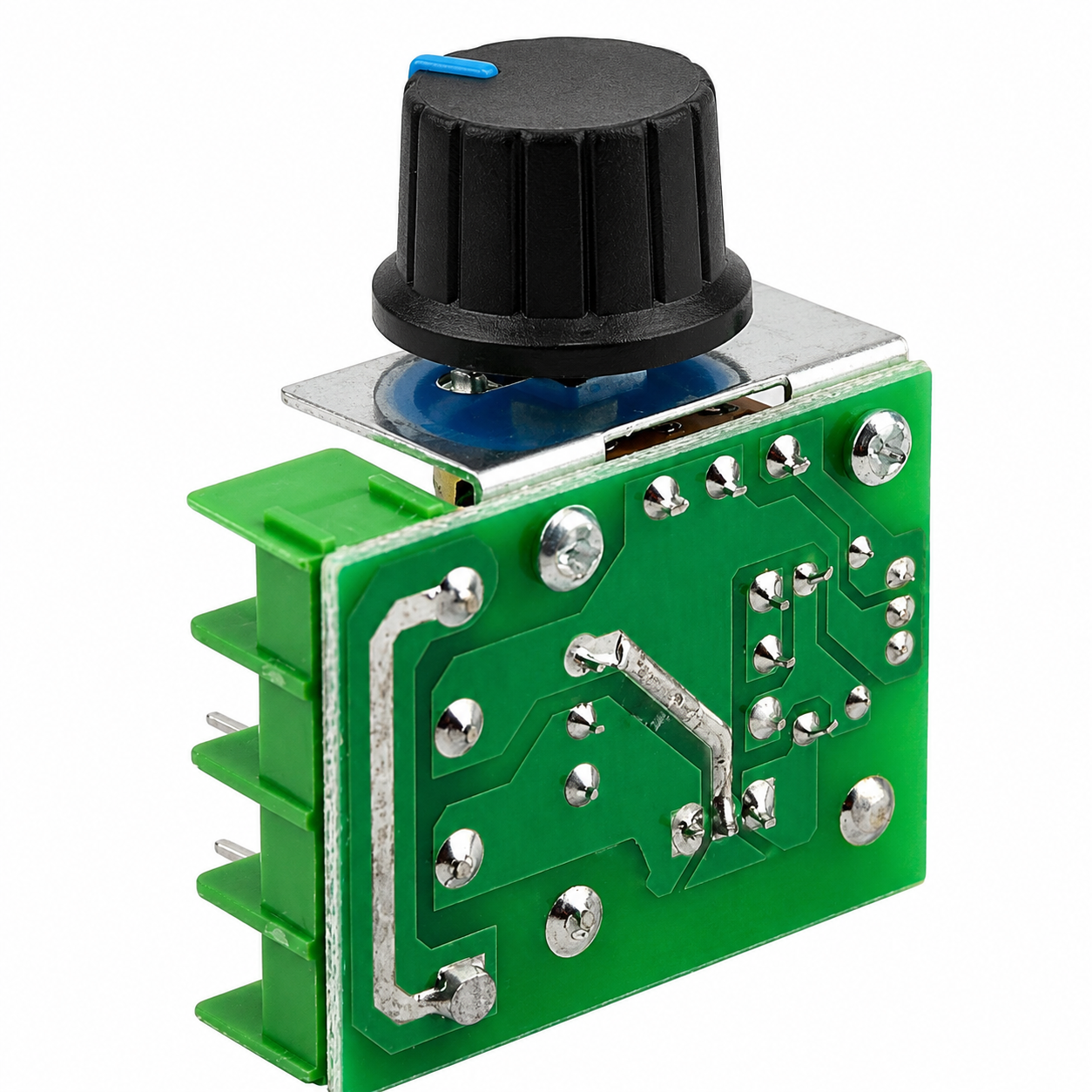

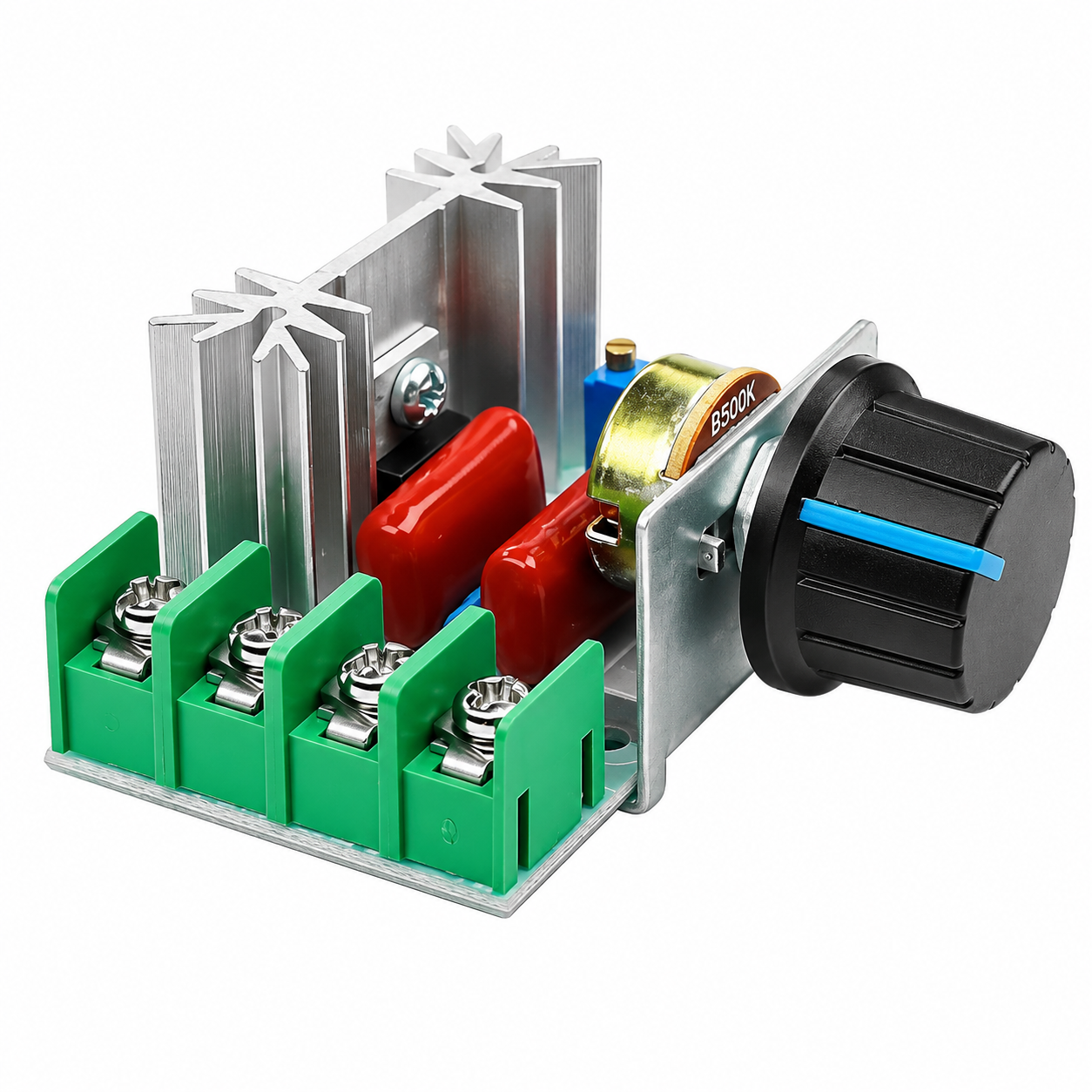

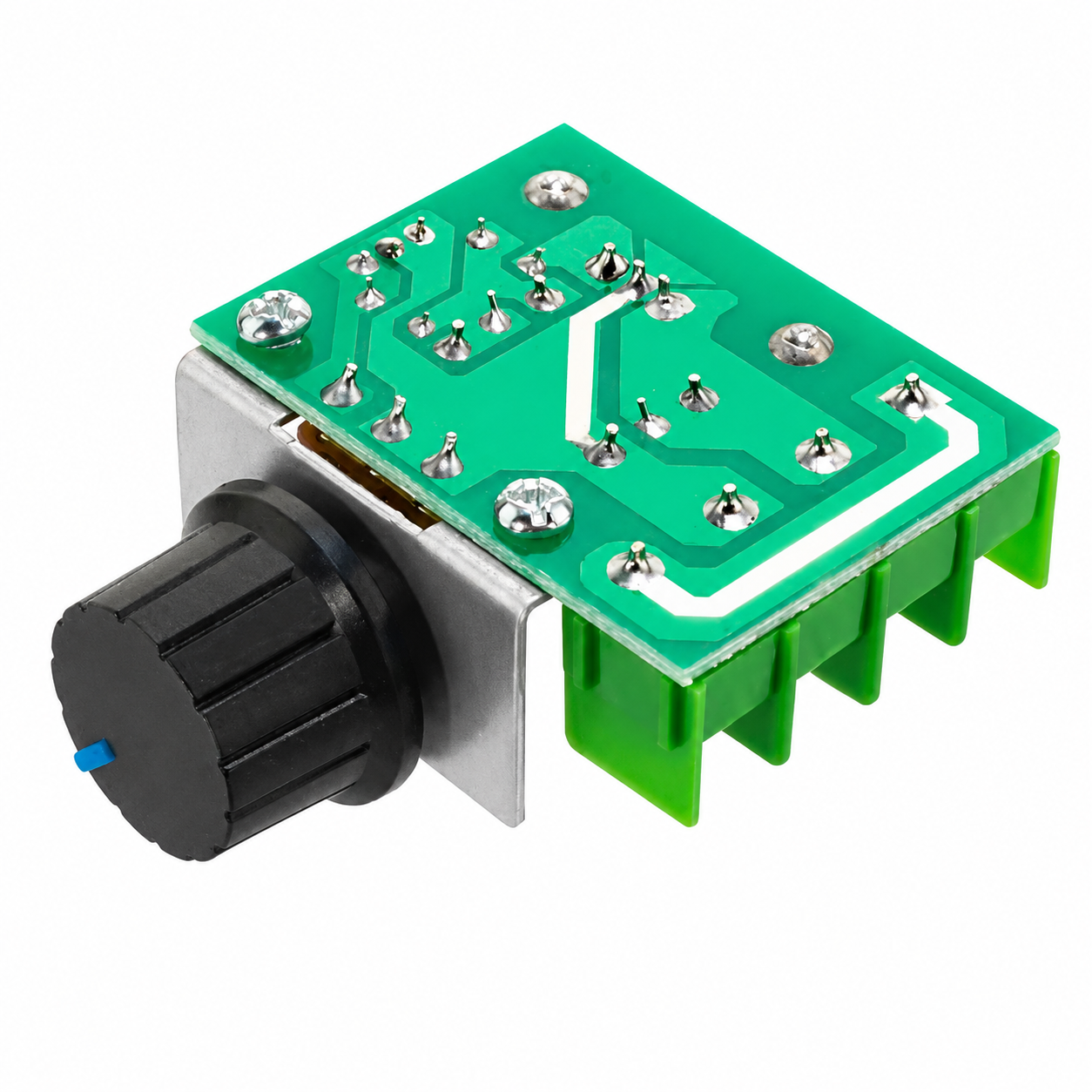

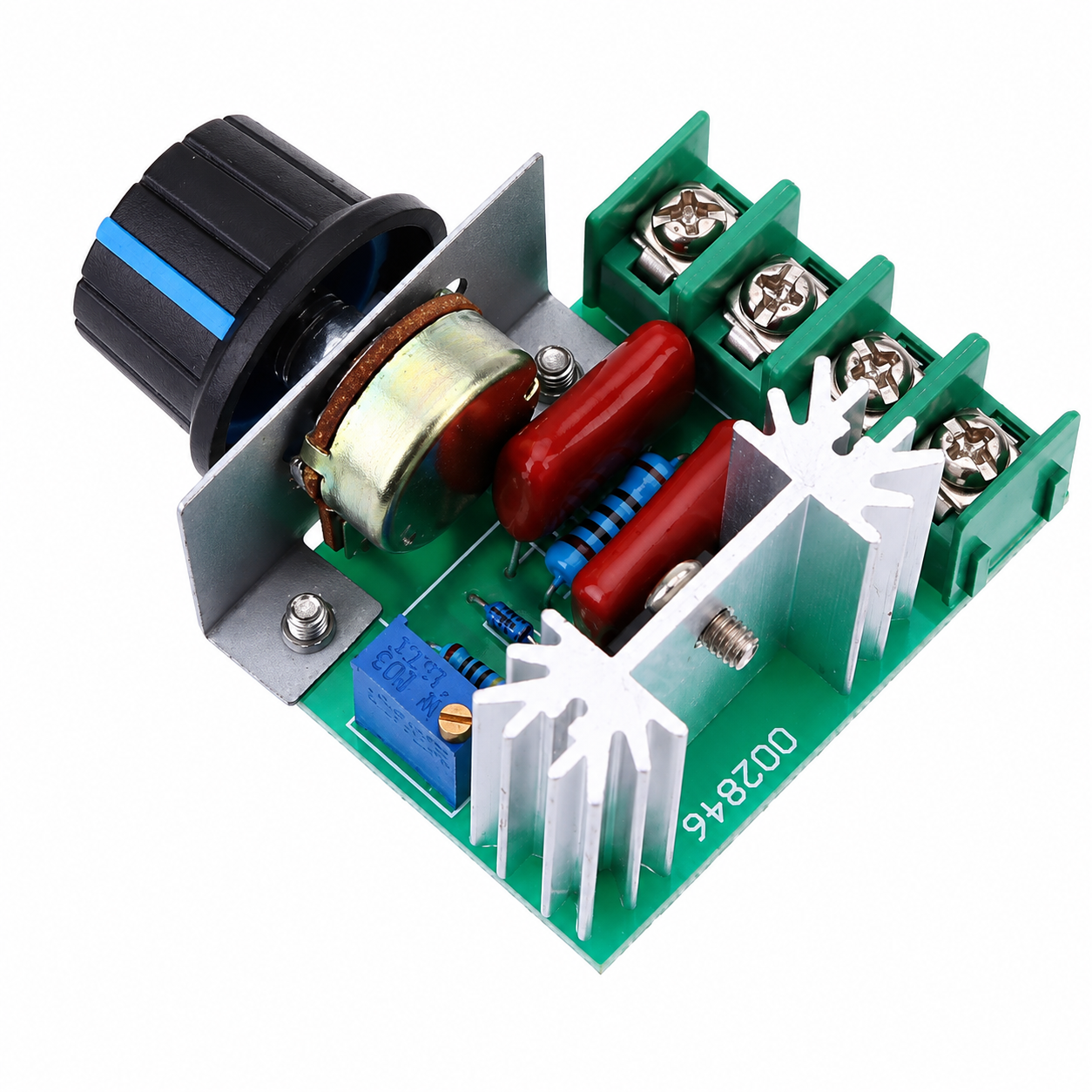

The SCR Voltage Regulator Dimmer Speed Controller Thermostat AC 220V 2000W is a compact AC power control module designed to regulate the output voltage supplied to compatible AC loads. Built around a high-power Silicon Controlled Rectifier (SCR) phase-angle control circuit, the module enables smooth adjustment of power delivered to connected devices. It is widely used for controlling the brightness of incandescent lamps, heating elements, soldering irons, electric heaters, universal AC motors, and other resistive or compatible inductive loads in DIY, industrial, and laboratory applications.

The module operates by adjusting the conduction angle of the SCR during each AC cycle, allowing the effective RMS output voltage to be varied continuously using the onboard rotary potentiometer. This provides smooth and efficient control of power without significant energy loss associated with traditional resistive control methods. The integrated heat sink improves thermal dissipation, allowing stable operation under moderate to high load conditions when used within its specified ratings.

Designed for 220V AC mains operation, the controller is capable of handling loads up to 2000W under suitable cooling and operating conditions. It is commonly used as a lamp dimmer, fan speed controller, heater temperature controller, soldering iron power regulator, and general-purpose AC voltage controller. The compact PCB design, screw terminal connections, and simple wiring make installation straightforward for compatible AC applications.

The SCR Voltage Regulator Module is an excellent choice for students, hobbyists, engineers, repair technicians, and automation developers requiring an economical solution for adjustable AC power control. Its compact size, smooth voltage regulation, robust construction, and simple operation make it suitable for electronics laboratories, educational demonstrations, prototype development, and industrial maintenance applications.

Note: This module is intended for AC mains applications only. It should be used only with compatible AC loads and must be installed with appropriate electrical safety precautions. It is not suitable for controlling brushless DC motors, induction motors requiring variable-frequency control, or sensitive electronic devices.

Key Features

• Based on high-power SCR phase-angle control
• Suitable for AC voltage regulation
• Supports up to 2000W resistive load
• Designed for 220V AC operation
• Smooth rotary voltage adjustment
• Compact PCB design
• High-efficiency power control
• Integrated aluminum heat sink
• Stable and reliable operation
• Easy screw terminal connections
• Suitable for incandescent lamp dimming
• Ideal for heater temperature control
• Compatible with soldering irons
• Suitable for universal AC motor speed control
• Low standby power consumption
• Durable electronic components
• Easy installation
• Compact and lightweight construction
• Suitable for laboratory and educational use
• Ideal for DIY electronics projects
• Reliable long-term performance
• Cost-effective AC power control solution
