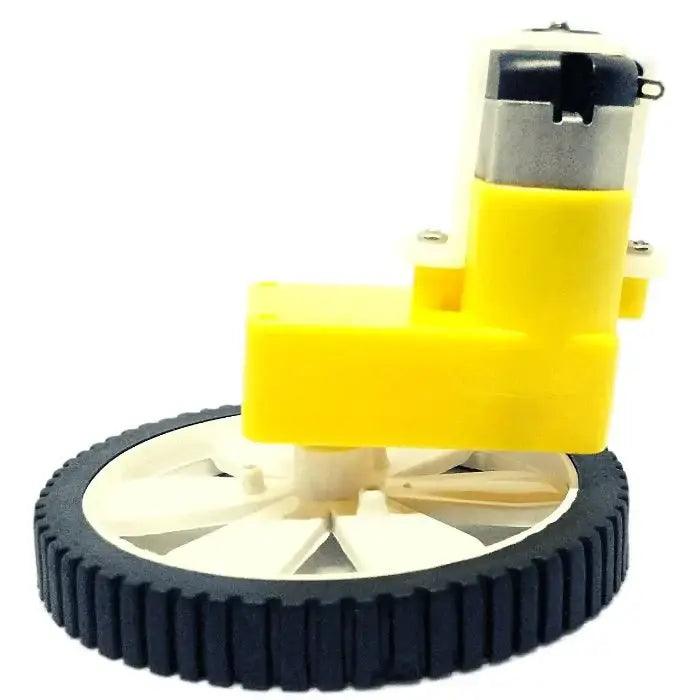

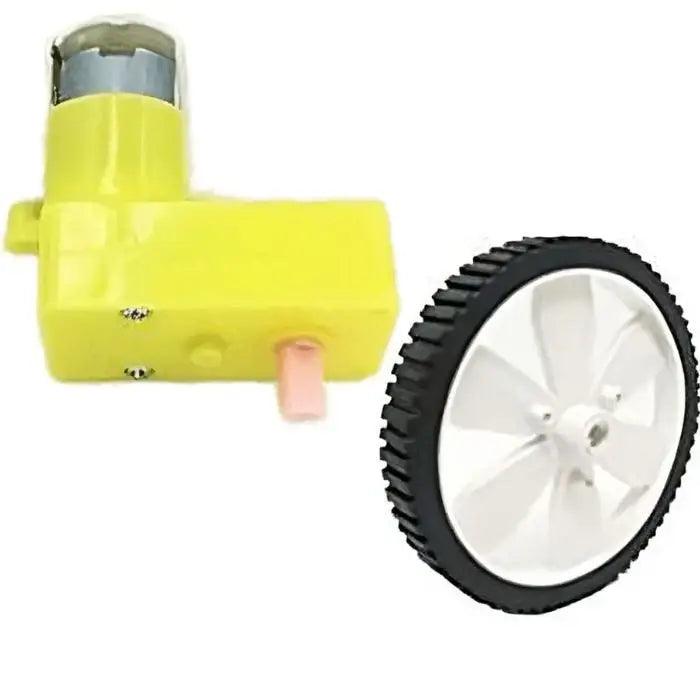

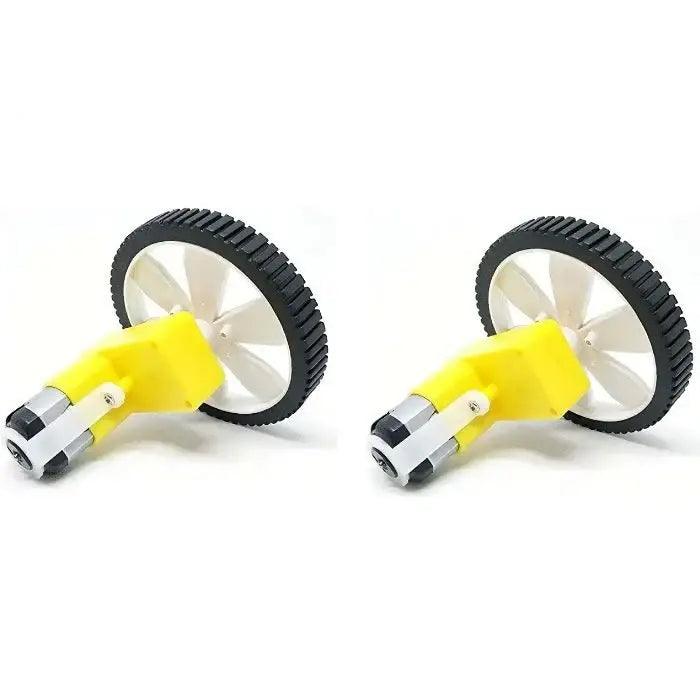

Single Shaft L-Shaped 60 RPM BO Motor with Wheel (2 sets)

SKU: UKFGMK7HPG
This set includes Single Shaft L-Shaped 60 RPM BO Motors with Wheels (2 Sets), providing a reliable and ready-to-use solution for building robotic systems. These BO motors deliver good torque and stable performance even at low operating voltages, which is one of their key advantages. As low-cost geared DC motors, they serve as an economical alternative to metal gear motors....
Rs. 179.00
Rs. 199.00 Rs. 179.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 3V – 12V DC
Shaft Length: 8.5 mm
Shaft Diameter: 5.5 mm
Rated Torque: 0.8 kg·cm
Wheel Diameter: 70 mm
Wheel Thickness: 10 mm

Additional Resources

Single Shaft L-Shaped 60 RPM BO Motor with Wheel.PDF

FAQ

1. What is included in this motor and wheel set?

The set includes two 60 RPM L-shaped single shaft BO motors and two compatible wheels, making it suitable for building a basic 2WD robotic platform.

2. What are the advantages of using a 60 RPM motor?

A 60 RPM motor provides high torque and low speed, making it ideal for applications that require strong pulling power and precise, controlled movement.

3. Are the wheels compatible with the motor shaft?

Yes, the wheels are designed for Double D-type shafts, ensuring a secure fit and preventing slipping during operation.

4. What type of projects can this set be used for?

This set is perfect for robot cars, obstacle avoidance robots, and other DIY robotics projects that require stability and control.

5. Is this motor set suitable for beginners?

Yes, it is affordable, easy to install, and beginner-friendly, making it an excellent choice for students and hobbyists.

View full product details

This set includes Single Shaft L-Shaped 60 RPM BO Motors with Wheels (2 Sets), providing a reliable and ready-to-use solution for building robotic systems. These BO motors deliver good torque and stable performance even at low operating voltages, which is one of their key advantages. As low-cost geared DC motors, they serve as an economical alternative to metal gear motors. With an operating voltage range of 3V to 12V, they are ideal for small to medium-sized robotics projects.

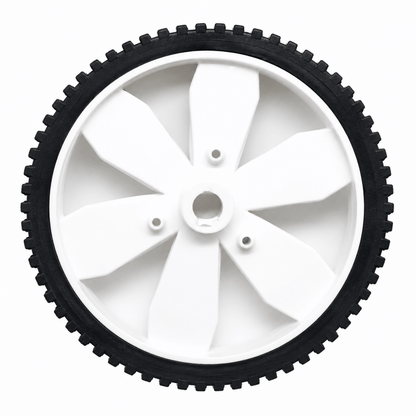

The included wheels are made from high-quality rubber, offering excellent traction during operation. They are strong and durable, and can be securely attached to the motor shafts using a small screw (not included).

These motors are well-suited for DIY enthusiasts, as they are affordable, compact, and easy to install. They are commonly used in mobile robot cars and similar applications. To effectively use this motor set in your projects, you will need essential components such as batteries, switches, connecting wires, and soldering tools.

Applications

  • Smart robot cars
  • DIY train models
  • Obstacle avoiding robots
  • 2WD robotic platforms
