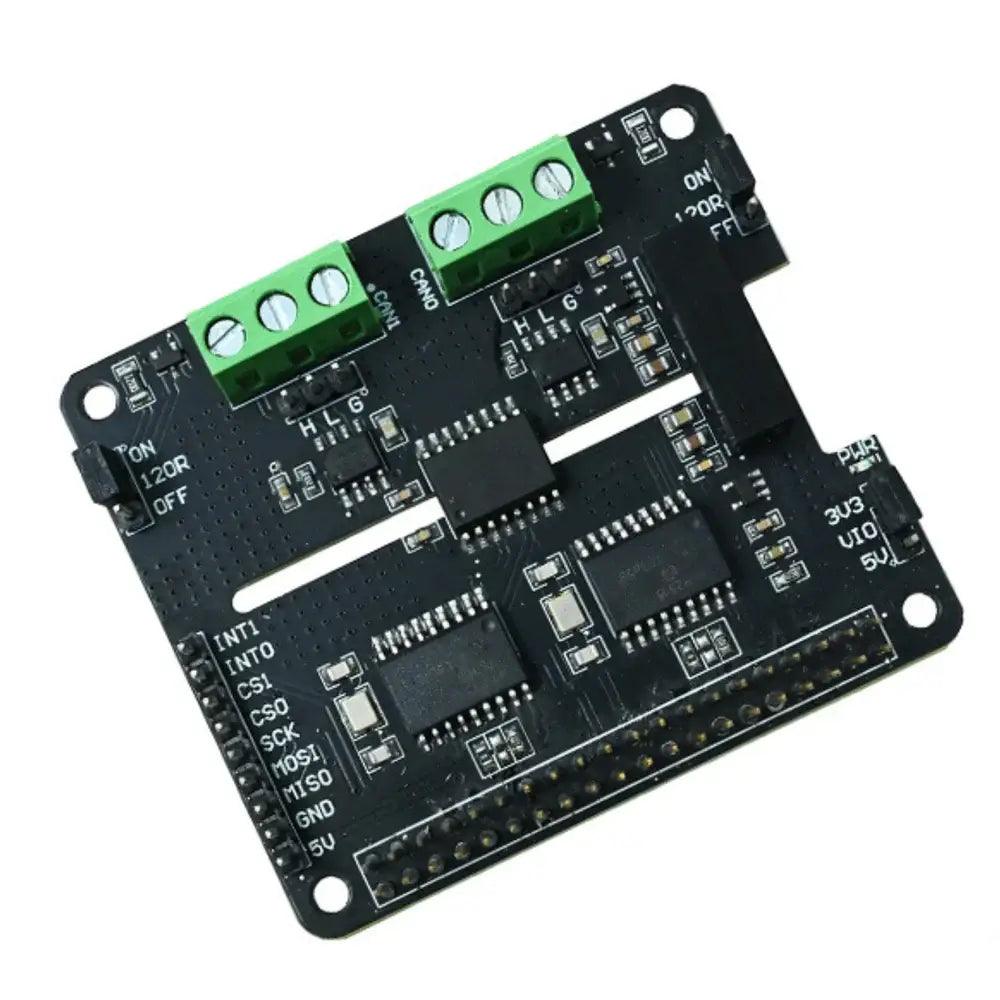

• CanHat - Roboracter

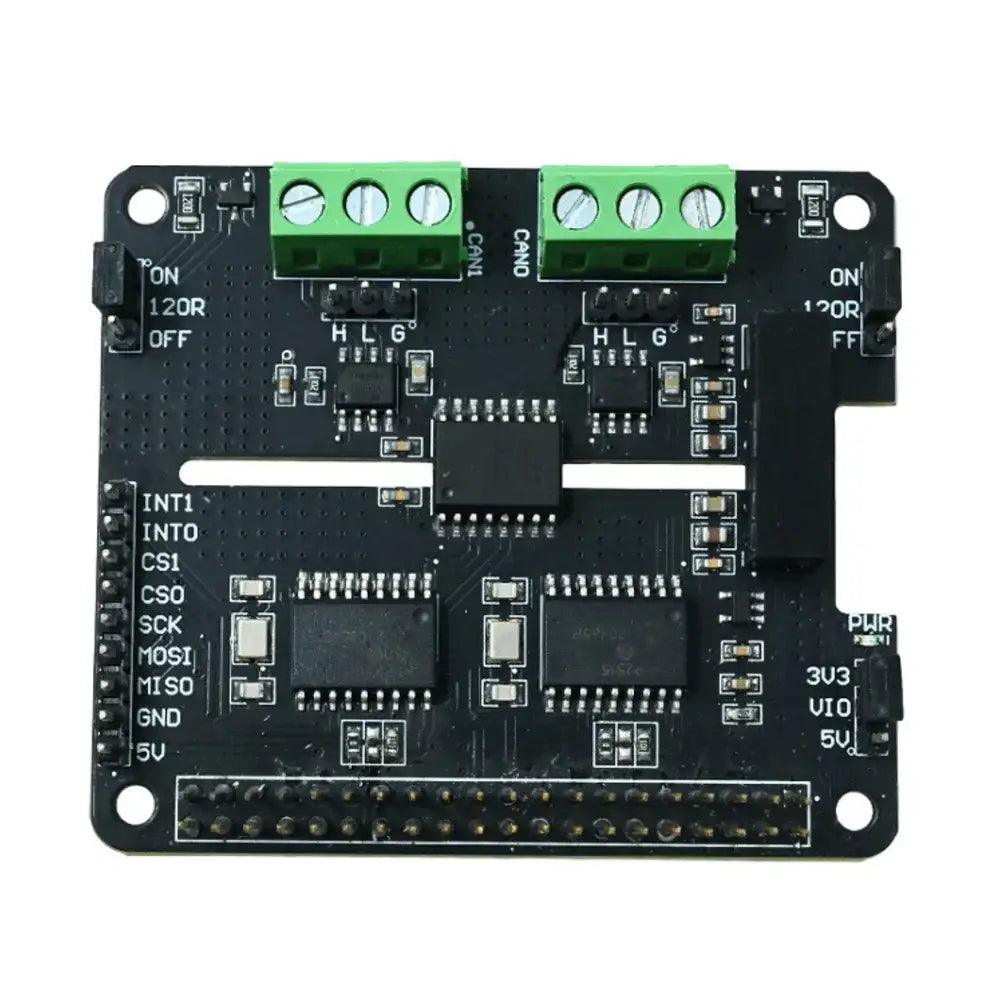

  • CanHat2 - Roboracter

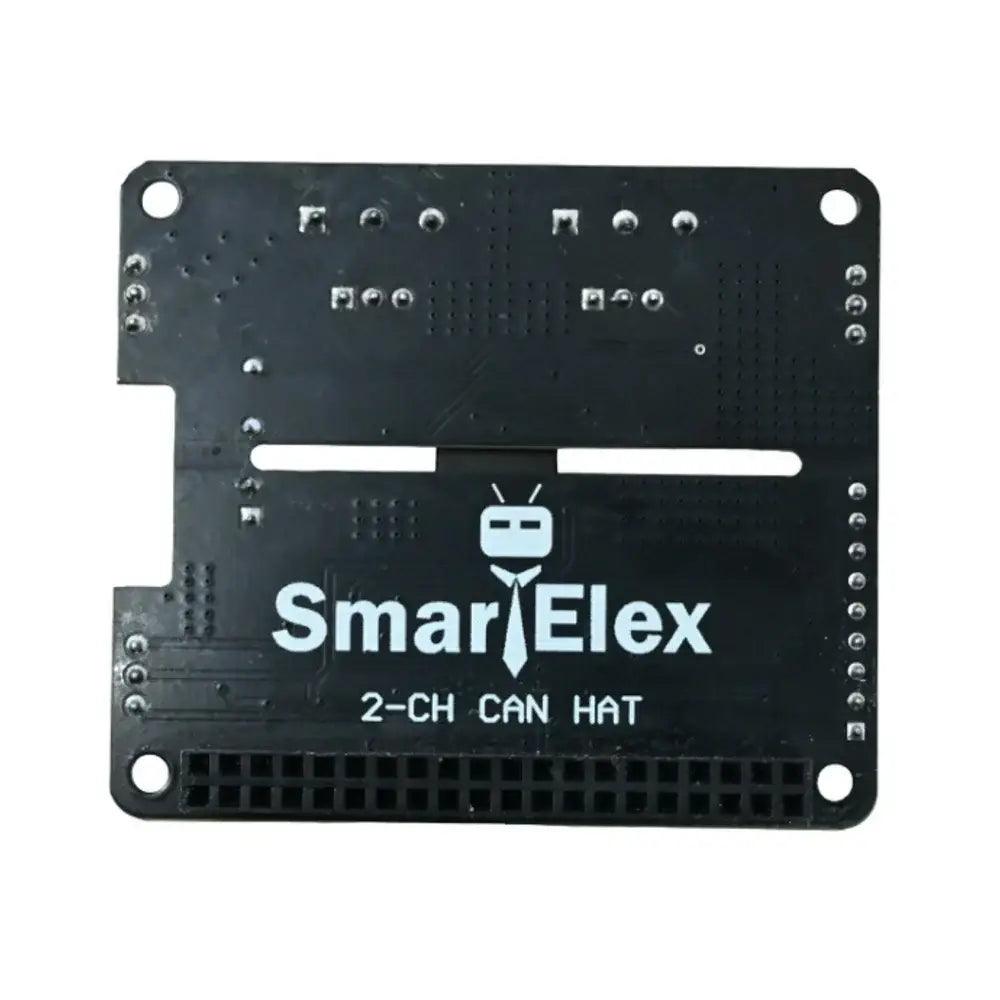

  • Canhat3 - Roboracter
1 3

SmartElex 2 Channel CAN HAT

SKU: NWHEUNN6L3
The SmartElex 2 Channel CAN HAT is a high-performance dual-channel CAN bus expansion board for Raspberry Pi, designed to provide reliable CAN communication with devices such as ECUs, motor controllers, sensors, and industrial equipment. It is built with two MCP2515 CAN controllers and TJA1050 CAN transceivers, enabling stable and efficient data exchange. The board supports communication speeds up to 1...
Rs. 969.00
Rs. 999.00 Rs. 969.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Item Type: HAT Model: CAN HAT
Number of Channels: 2 (Dual CAN Bus)
Compatibility: Raspberry Pi 4, Raspberry Pi 3, Raspberry Pi 2, Raspberry Pi Zero
Standby Current: 370 µA
Operating Temperature: Up to 85 °C
Length: 65 mm
Width: 56 mm Height: 23 mm
Weight: 29 g

Additional Resources

SmartElex 2 Channel CAN HAT.PDF

FAQ

1. What is the SmartElex 2 Channel CAN HAT?

The SmartElex 2 Channel CAN HAT is a dual CAN bus expansion board designed for Raspberry Pi. It allows the Raspberry Pi to communicate with CAN-enabled devices such as ECUs, motor controllers, industrial sensors, and automation equipment.

2. How many CAN channels does this HAT provide?

This board provides two independent CAN channels, allowing the Raspberry Pi to communicate with two separate CAN networks simultaneously.

3. Which Raspberry Pi models are compatible with this HAT?

The HAT is compatible with Raspberry Pi boards that feature the standard 40-pin GPIO header, including Raspberry Pi 4, Raspberry Pi 3, Raspberry Pi 2, and Raspberry Pi Zero series.

4. Which CAN controller and transceiver are used on the board?

The board uses MCP2515 CAN controllers connected through the SPI interface and TJA1050 CAN transceivers for reliable CAN bus communication.

5. What is the maximum CAN communication speed supported?

The SmartElex 2 Channel CAN HAT supports CAN bus speeds up to 1 Mbps, enabling fast and efficient data transmission.

View full product details

The SmartElex 2 Channel CAN HAT is a high-performance dual-channel CAN bus expansion board for Raspberry Pi, designed to provide reliable CAN communication with devices such as ECUs, motor controllers, sensors, and industrial equipment. It is built with two MCP2515 CAN controllers and TJA1050 CAN transceivers, enabling stable and efficient data exchange. The board supports communication speeds up to 1 Mbps, ensuring fast and dependable message transmission.

Designed for demanding environments, the HAT includes configurable 120Ω termination resistors, onboard status LEDs, extended temperature tolerance, and integrated ESD protection for reliable performance. Its compact and stackable design makes it an excellent choice for applications such as automotive diagnostics, robotics systems, and industrial automation projects.

Features:

  • Dual independent CAN channels for simultaneous communication.

  • Onboard MCP2515 CAN controllers with SPI interface.

  • TJA1050 CAN transceivers for strong and reliable signal transmission.

  • Compatible with all Raspberry Pi boards featuring a 40-pin GPIO header.

  • User-configurable 120Ω termination resistors for flexible network setup.

  • TX and RX indicator LEDs for monitoring communication status.

  • Supports CAN bus speeds up to 1 Mbps.

  • Industrial-grade temperature range and built-in ESD protection for enhanced durability.
