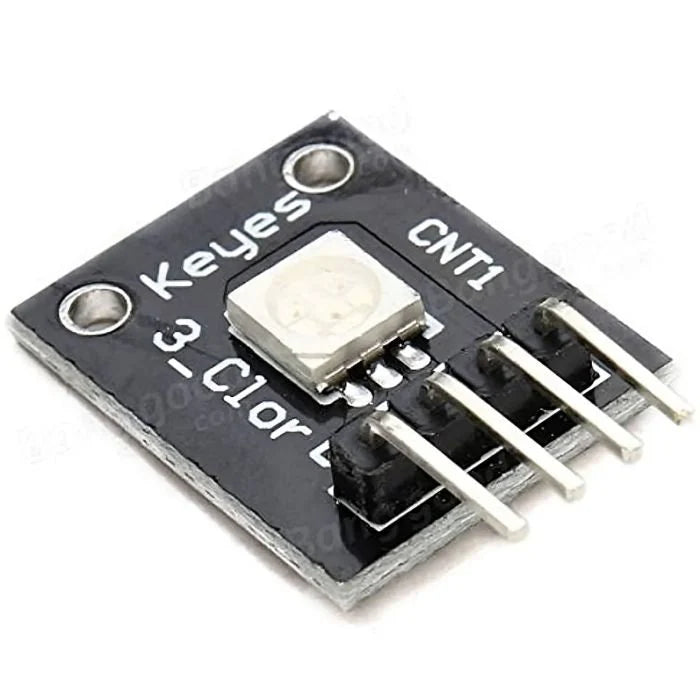

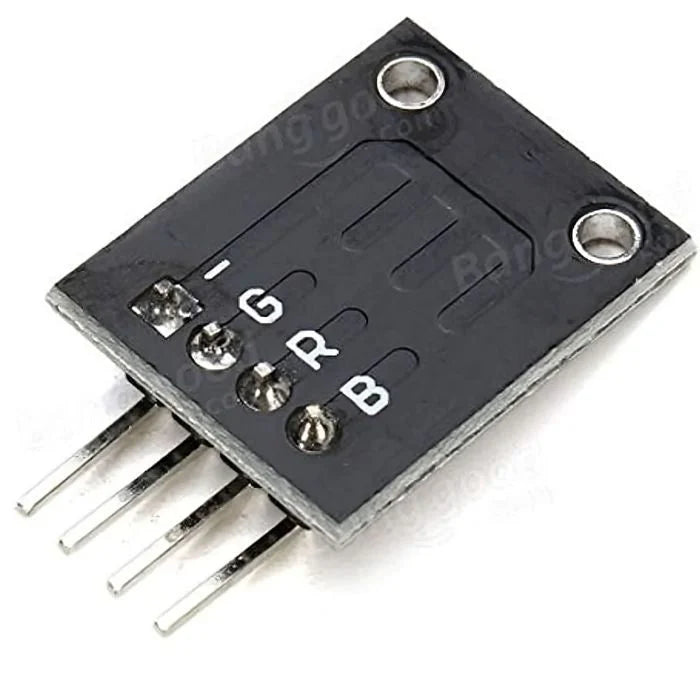

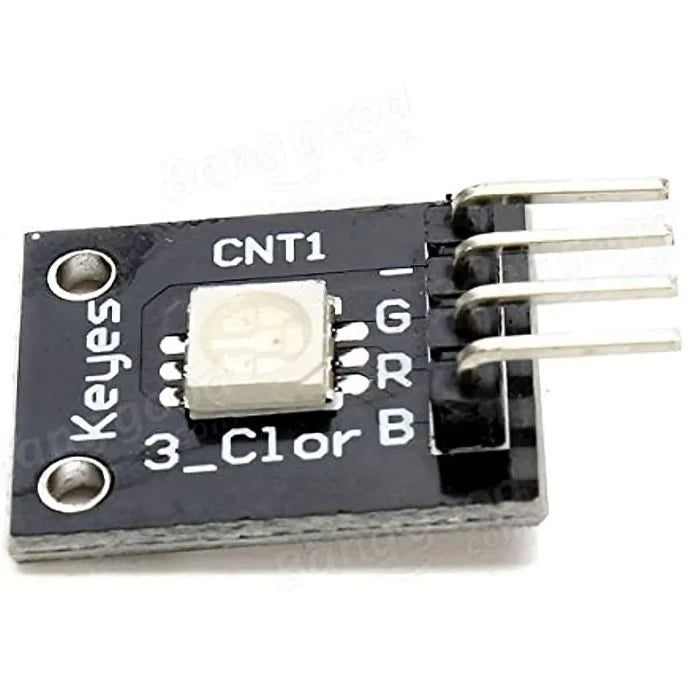

SMD RGB Led Module (KY-009)

SKU: NMSQMKPGMB
The SMD RGB LED Module is a compact lighting module featuring a high-brightness Surface Mount Device (SMD) RGB LED capable of producing a wide range of colors through the combination of red, green, and blue light. The module is designed for easy interfacing with microcontrollers and development boards, making it ideal for lighting effects, status indication, decorative electronics, and interactive...
Rs. 29.00
Rs. 35.00 Rs. 29.00
Save Rs. 6
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: SMD RGB LED Module
LED Type: Surface Mount RGB LED
LED Colors: Red, Green, Blue
Operating Voltage: 3.3V to 5V DC
Operating Current: Approximately 20mA per Color Channel
Control Method: Digital Output / PWM Control
Output Type: RGB Light Output
Viewing Angle: Approximately 120°
Brightness: High Brightness SMD LED
Wavelength (Red): 620nm – 630nm
Wavelength (Green): 520nm – 530nm
Wavelength (Blue): 460nm – 470nm
Response Time: Fast Switching
Interface Pins: R, G, B, VCC, GND (Varies by Module Design)
Mounting Type: Through-Hole Module
PCB Dimensions: Approximately 20mm × 15mm
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Compatibility: Arduino, ESP32, STM32, Raspberry Pi Pico, AVR, PIC

Additional Resources

RGB Module.PDF

FAQ

1. What is the SMD RGB LED Module used for?

The module is used for creating colorful lighting effects, status indicators, visual notifications, and decorative lighting in electronics projects.

2. How many colors can the SMD RGB LED Module produce?

By varying the brightness of the red, green, and blue LEDs, the module can generate a wide spectrum of colors and lighting effects.

3. Can the module be controlled using Arduino and ESP32?

Yes, the module can be controlled using digital outputs or PWM signals from Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers.

4. What is PWM used for with the RGB LED Module?

PWM allows precise control of the brightness of each color channel, enabling smooth color transitions and custom color generation.

5. What voltage does the SMD RGB LED Module operate on?

The module typically operates from a 3.3V to 5V DC power supply, making it compatible with most development boards and embedded systems.

View full product details

The SMD RGB LED Module is a compact lighting module featuring a high-brightness Surface Mount Device (SMD) RGB LED capable of producing a wide range of colors through the combination of red, green, and blue light. The module is designed for easy interfacing with microcontrollers and development boards, making it ideal for lighting effects, status indication, decorative electronics, and interactive projects.

By controlling each color channel individually using digital or PWM signals, users can generate millions of color combinations and dynamic lighting effects. The compact PCB design and low power consumption make it suitable for embedded systems, robotics, IoT devices, and educational electronics projects.

The module is fully compatible with Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontroller platforms.

Key Features

  • High-brightness SMD RGB LED
  • Generates multiple colors through RGB mixing
  • Supports PWM brightness control
  • Compact PCB module design
  • Low power consumption
  • Fast switching response
  • Easy microcontroller interfacing
  • High color uniformity
  • Durable SMD LED construction
  • Suitable for decorative lighting and indicators
  • Compatible with Arduino, ESP32, STM32, and Raspberry Pi
  • Supports dynamic lighting effects
  • Reliable and stable operation
  • Ideal for DIY and educational projects
