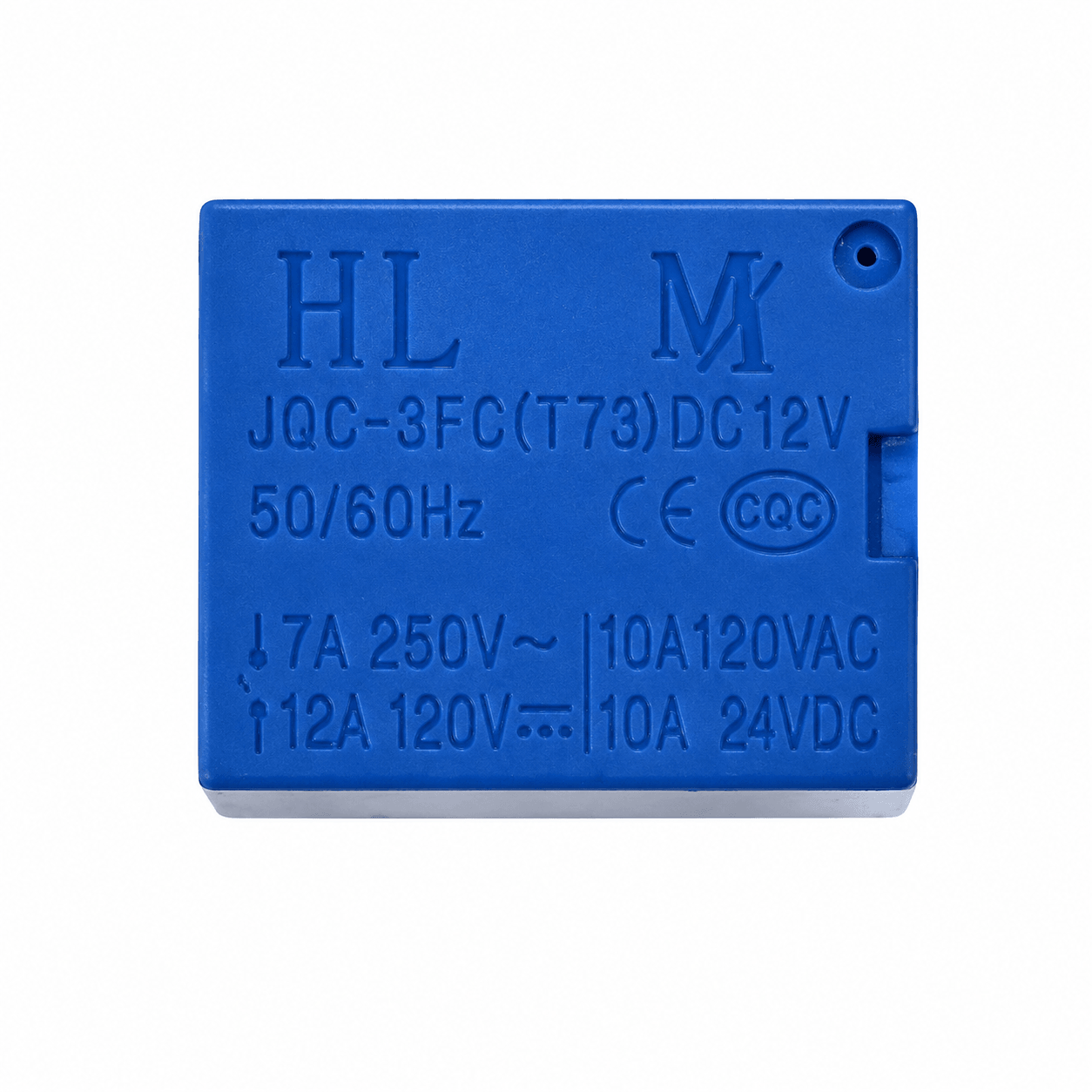

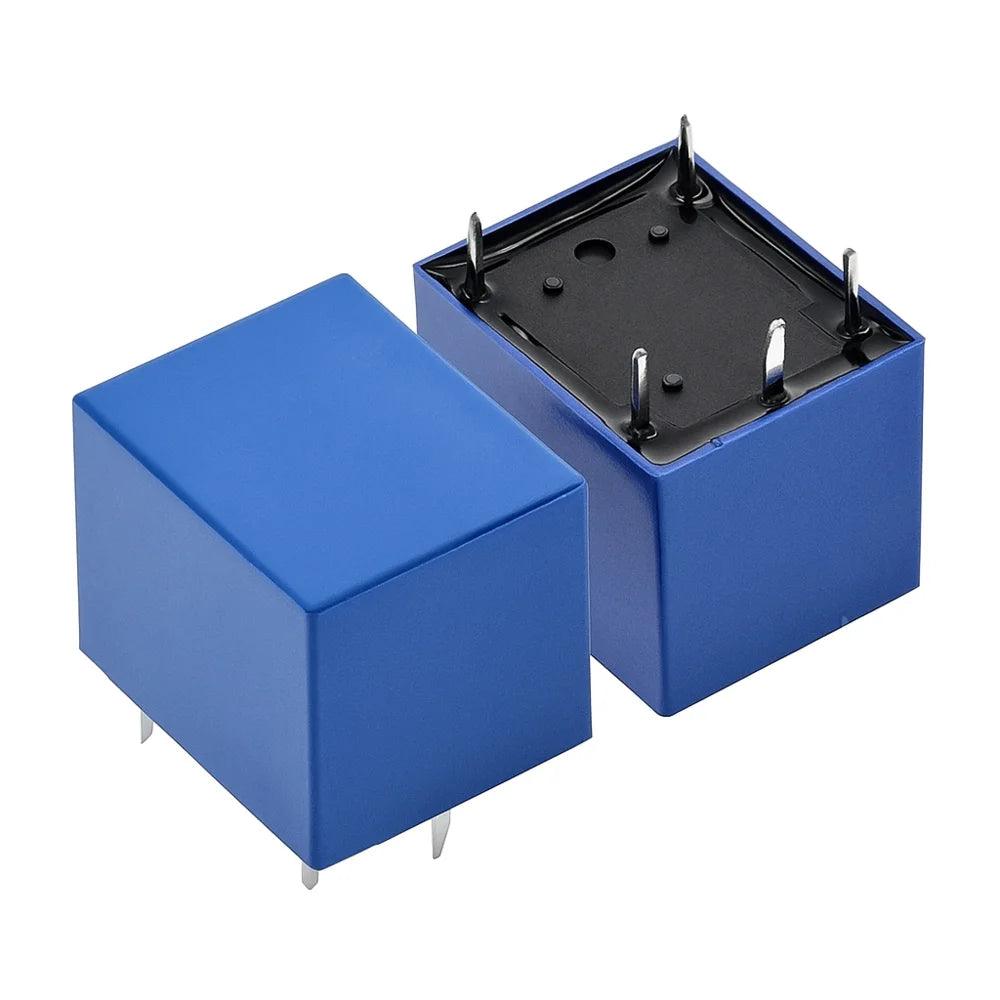

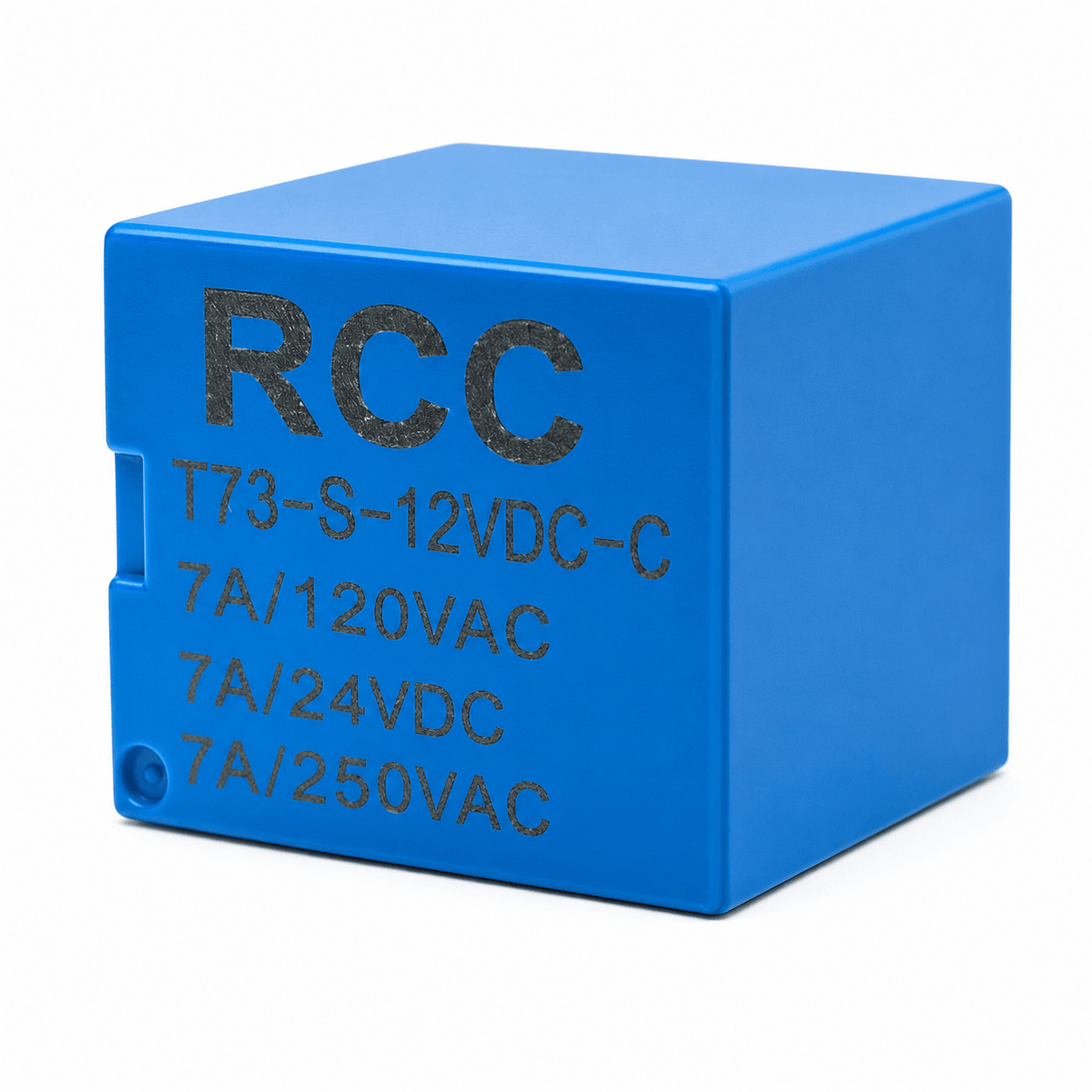

SPDT Relay 12VDC - PCB Mount 5 pin

SKU: X4N3FP4RTX
★★★★ ★ ★
4.5 (142 reviews)
The SPDT Relay 12VDC – PCB Mount 5 Pin is a compact electromechanical power relay designed to switch AC or DC electrical loads using a 12V DC coil supply. Featuring a Single Pole Double Throw (SPDT) contact arrangement, the relay provides Common (COM), Normally Open (NO), and Normally Closed (NC) contacts, allowing a single input circuit to switch between two...
Rs. 29.00
Rs. 35.00 Rs. 29.00
Save Rs. 6
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The SPDT Relay 12VDC – PCB Mount 5 Pin is a compact electromechanical power relay designed to switch AC or DC electrical loads using a 12V DC coil supply. Featuring a Single Pole Double Throw (SPDT) contact arrangement, the relay provides Common (COM), Normally Open (NO), and Normally Closed (NC) contacts, allowing a single input circuit to switch between two different output paths.

Designed for through-hole PCB mounting, this 5-pin relay is commonly used in automation systems, power control circuits, automotive electronics, home appliances, motor control systems, lighting controllers, security equipment, and embedded electronics. When the 12V coil is energized, the internal electromagnetic mechanism changes the position of the contacts, providing electrical isolation between the low-voltage control circuit and the switched load circuit.

The relay is commonly available in compact PCB relay formats with contact ratings of up to 10A at 250VAC or 30VDC, depending on the specific manufacturer and relay model. Its compact size, reliable mechanical switching, and flexible SPDT contact configuration make it suitable for a wide range of switching and control applications.

Key Features

  • 12V DC electromagnetic relay
  • Single Pole Double Throw (SPDT) contact configuration
  • Standard 5-pin PCB mount design
  • Provides COM, NO, and NC switching contacts
  • Suitable for switching both AC and DC loads
  • Contact capacity up to 10A on common relay variants
  • Compact and space-saving package
  • Through-hole PCB mounting
  • Electrical isolation between coil and switching contacts
  • Low coil power consumption
  • Fast switching operation
  • High dielectric strength
  • Long mechanical operating life
  • Suitable for transistor and relay driver circuits
  • Ideal for automation, appliances, motor control, and power switching applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Relay Type: Electromechanical Power Relay
Contact Configuration: SPDT (Single Pole Double Throw)
Contact Form: 1 Form C
Number of Pins: 5
Coil Voltage: 12V DC
Nominal Coil Voltage: 12V DC
Typical Coil Resistance: Approximately 400Ω
Typical Coil Current: Approximately 30mA
Typical Coil Power: Approximately 0.36W
Rated Contact Current: Up to 10A, depending on relay model
Typical Resistive Load Rating: 10A at 250VAC / 10A at 30VDC
Maximum Switching Voltage: Model Dependent
Contact Material: Silver Alloy, depending on manufacturer
Initial Contact Resistance: Typically 100mΩ Maximum
Operate Time: Typically 10ms Maximum
Release Time: Typically 10ms Maximum
Insulation Resistance: Typically 100MΩ Minimum at 500VDC
Dielectric Strength Between Coil and Contacts: Typically 1500VAC
Mechanical Life: Up to 10 Million Operations
Electrical Life: Typically 100,000 Operations at Rated Resistive Load
Operating Temperature: Approximately -25°C to +70°C
Mounting Type: PCB Through-Hole
Typical Dimensions: Approximately 19mm × 15.5mm × 15mm
Housing Type: Sealed Plastic Enclosure
Applications: Power Switching, Automation, Motor Control, Lighting and Electronic Equipment

Additional Resources

SPDT Relay.PDF

FAQ

1. What is the SPDT Relay 12VDC – PCB Mount 5 Pin used for?

The relay is used to switch AC or DC electrical loads using a 12V DC coil supply. It is commonly used in automation systems, motor control circuits, lighting systems, appliances, security equipment, and embedded electronics.

2. What does SPDT mean in a relay?

SPDT stands for Single Pole Double Throw. It means the relay has one Common terminal that can switch between a Normally Closed contact and a Normally Open contact.

3. Can a microcontroller directly control this 12V relay?

No. Most microcontroller GPIO pins cannot directly supply the voltage and current required by the 12V relay coil. A transistor, MOSFET, or relay driver IC should be used, along with a flyback diode across the coil.

4. What happens when 12V is applied to the relay coil?

When the coil is energized, the relay changes its contact position. The Common terminal disconnects from the Normally Closed contact and connects to the Normally Open contact.

5. Can this relay switch both AC and DC loads?

Yes. The relay contacts can switch both AC and DC loads within the voltage and current ratings specified for the exact relay model. The load type and whether it is resistive or inductive should also be considered when selecting the relay.
