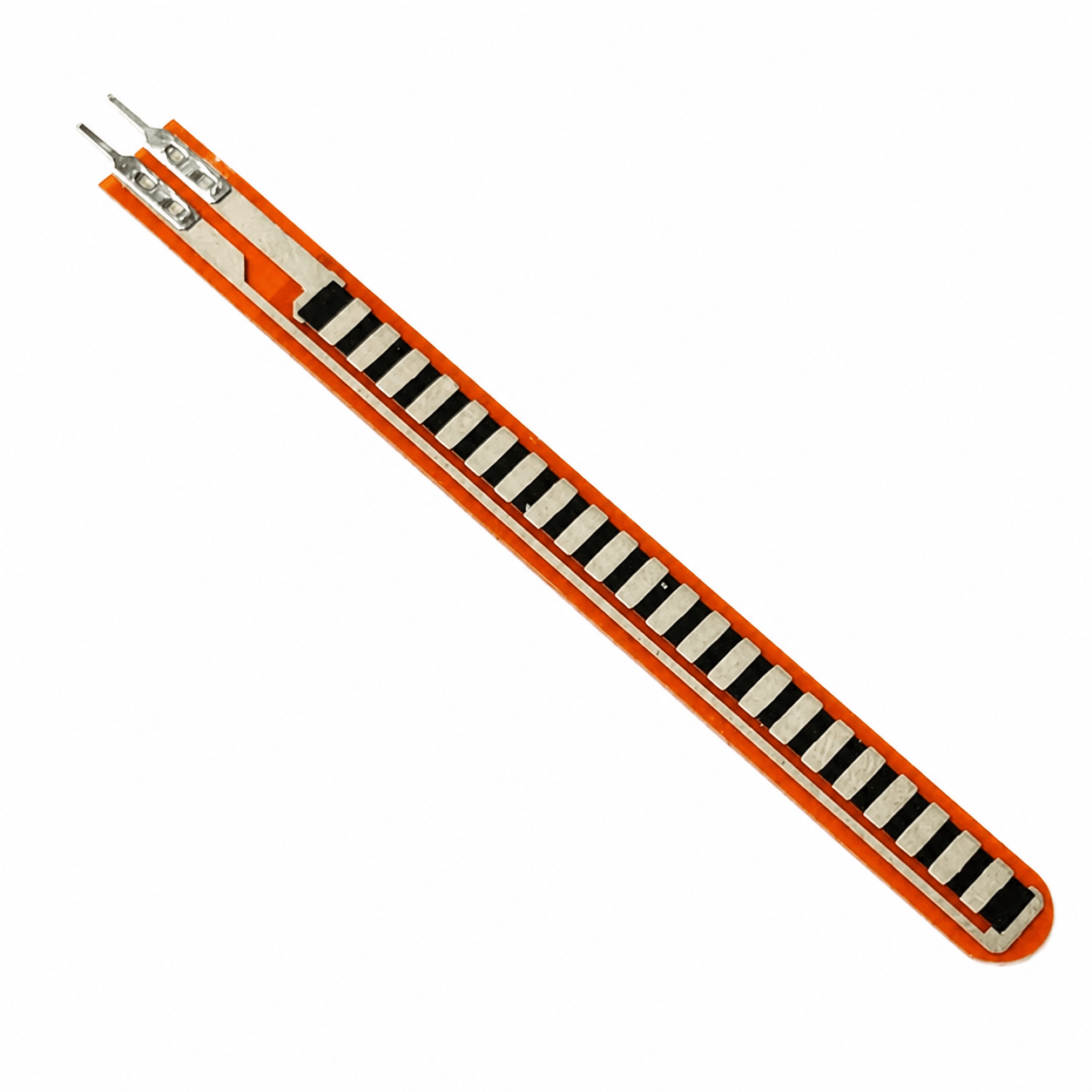

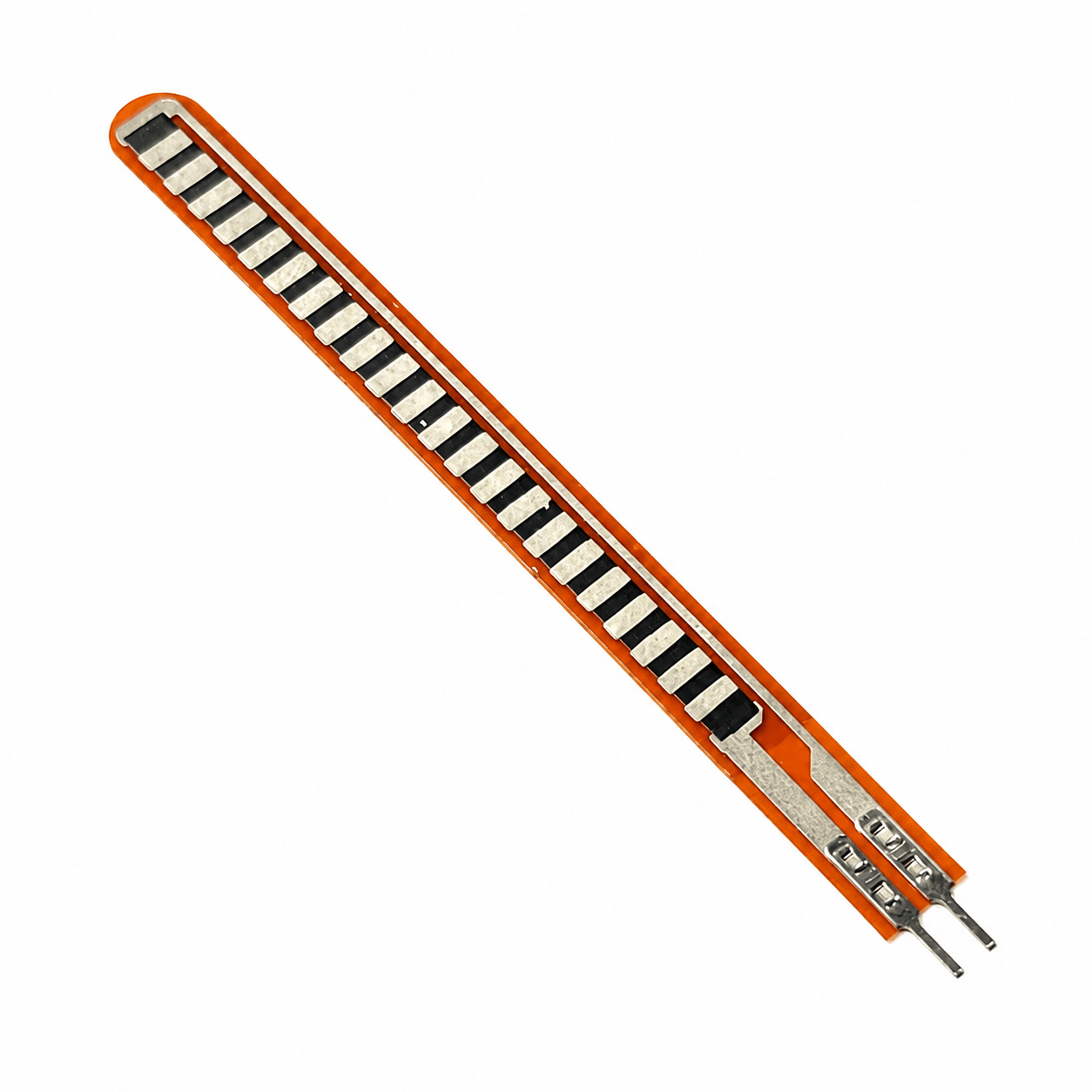

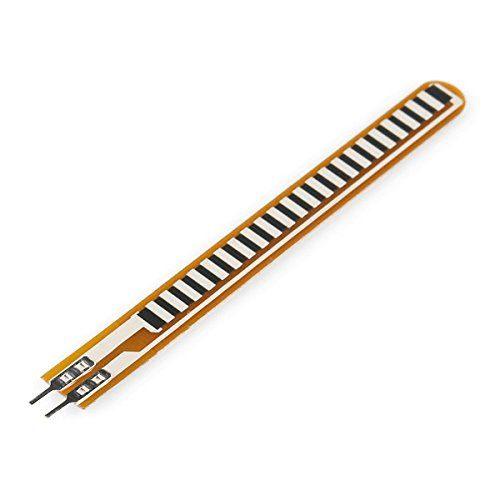

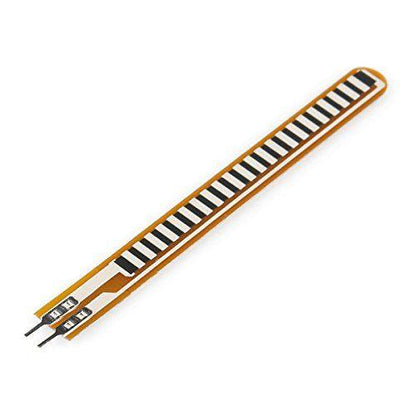

Spectra Flex Sensor 2.2 inch Bend Sensor for Hand Recognition

SKU: H8DZ5NV4AV
★★★★ ★ ★
4.1 (30 reviews)
The Spectra Flex Sensor 2.2 Inch Bend Sensor for Hand Recognition is a flexible resistive sensor designed to detect bending, flexing, and angular movement. Manufactured using patented resistive flex-sensing technology from Spectra Symbol, the sensor changes its electrical resistance as it bends, allowing a microcontroller or analog measurement circuit to determine relative bend position and movement. The sensor is approximately...
Rs. 309.00
Rs. 320.00 Rs. 309.00
Save Rs. 11
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Spectra Flex Sensor 2.2 Inch Bend Sensor for Hand Recognition is a flexible resistive sensor designed to detect bending, flexing, and angular movement. Manufactured using patented resistive flex-sensing technology from Spectra Symbol, the sensor changes its electrical resistance as it bends, allowing a microcontroller or analog measurement circuit to determine relative bend position and movement.

The sensor is approximately 2.2 inches (55.9mm) long and features a thin, lightweight, flexible construction suitable for mounting on fingers, gloves, robotic joints, and other moving surfaces. When the sensor is in a flat position, it has a nominal resistance specified by the particular model, and its resistance increases as the sensing area bends. The resistance response can be measured using a simple voltage divider circuit connected to the analog input of a microcontroller.

The Flex Sensor is particularly suitable for hand gesture recognition, sign language gloves, robotic hand control, virtual reality gloves, rehabilitation devices, motion tracking, and wearable electronics. Its simple two-terminal resistive interface makes it easy to use with Arduino, ESP32, STM32, Raspberry Pi with an ADC, PIC, AVR, and other development platforms.

Key Features

  • Original Spectra Symbol resistive flex sensing technology
  • 2.2-inch flexible bend sensing element
  • Detects bending and relative angular movement
  • Resistance increases as the sensor bends
  • Thin and lightweight construction
  • Simple two-terminal resistive interface
  • No external power supply required for the sensor element itself
  • Easy integration using a voltage divider circuit
  • Suitable for finger and hand movement detection
  • Ideal for wearable glove applications
  • Supports analog bend-position measurement
  • Breadboard-friendly 0.1-inch terminal spacing
  • Fast response to bending movement
  • Suitable for robotics and motion tracking
  • Easy interfacing with microcontrollers through an ADC input
  • Useful for human-machine interface applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Sensor Type: Resistive Flex / Bend Sensor
Brand: Spectra Symbol
Sensor Length: 2.2 Inches
Sensor Length in Metric: Approximately 55.9mm
Sensing Principle: Resistance Variation with Bending
Output Type: Variable Resistance
Electrical Interface: 2-Wire Resistive Output
Nominal Flat Resistance: Model Dependent; commonly specified around 10kΩ or 25kΩ for different variants
Resistance Tolerance: Model Dependent
Bend Resistance: Increases with bend angle and decreasing bend radius
Typical Maximum Bend Angle: Up to Approximately 180° with proper bend radius and mounting
Continuous Power Rating: Up to Approximately 0.5W for common variants
Peak Power Rating: Up to Approximately 1W for common variants
Terminal Pitch: 2.54mm / 0.1 Inch
Measurement Circuit: Voltage Divider or Suitable Signal Conditioning Circuit
Signal Type: Analog Resistance Change
Mounting Type: Flexible Surface Mounting / Wearable Integration
Compatibility: Arduino UNO, Nano, Mega, ESP32, STM32, Raspberry Pi with ADC, PIC, AVR, RP2040 and other ADC-equipped controllers.

Additional Resources

Spectra Flex Sensor.PDF

FAQ

1. What is the Spectra Flex Sensor 2.2 Inch used for?

The sensor is used to detect bending and relative angular movement. It is commonly used in hand gesture recognition, sign language gloves, robotic hands, virtual reality controllers, wearable electronics, and rehabilitation devices.

2. How does the Flex Sensor detect bending?

The sensor works as a variable resistor. Its resistance changes as the sensing strip bends, and this resistance variation can be measured using a voltage divider circuit and a microcontroller's analog input.

3. Can the Flex Sensor be used for hand gesture recognition?

Yes. The sensor can be mounted along a finger or integrated into a glove. Multiple sensors can be used together to measure the bending of individual fingers for gesture recognition and robotic hand control.

4. Is the Flex Sensor compatible with Arduino and ESP32?

Yes. The sensor can be used with Arduino, ESP32, STM32, PIC, AVR, and other microcontrollers with analog input capability. A voltage divider circuit is normally used to convert the resistance change into a measurable voltage.

5. Can the Flex Sensor be bent in both directions?

The sensor should be installed and bent according to its recommended sensing direction for predictable resistance change. Repeated reverse bending, sharp folding, twisting, or bending near the terminal base should be avoided to prevent damage and inconsistent readings.
