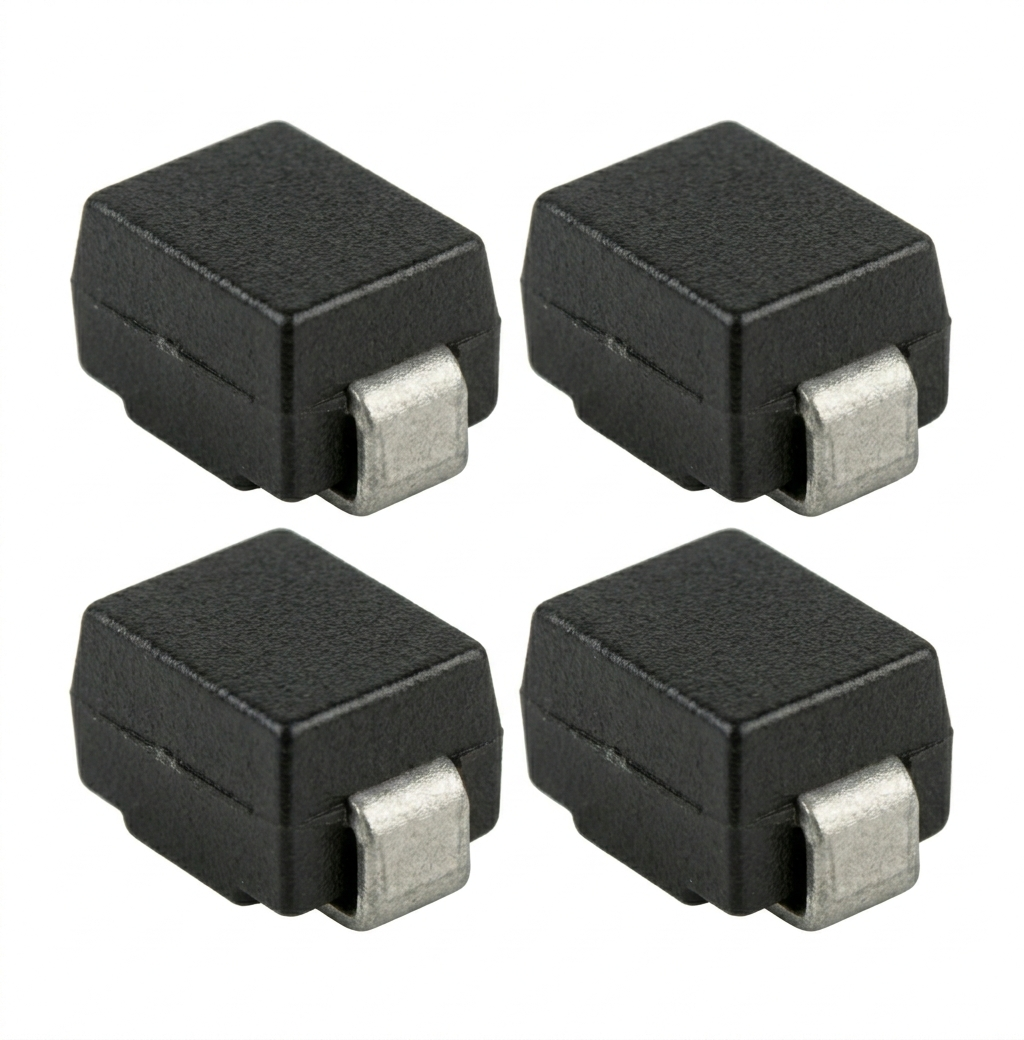

SS14 Diode – Schottky – SMA (DO-214AC) (Pack of 4)

SKU: Q4S2EO1IRV
★★★★ ★ ★
4.5 (146 reviews)
The SS14 is a surface-mount Schottky Barrier Rectifier diode designed for high-efficiency power applications. Featuring a low forward voltage drop and fast switching characteristics, the SS14 minimizes power losses and improves overall circuit efficiency. It is housed in the compact SMA (DO-214AC) package, making it suitable for modern electronic designs where board space and performance are critical. With a forward...
Rs. 6.00
Rs. 9.00 Rs. 6.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The SS14 is a surface-mount Schottky Barrier Rectifier diode designed for high-efficiency power applications. Featuring a low forward voltage drop and fast switching characteristics, the SS14 minimizes power losses and improves overall circuit efficiency. It is housed in the compact SMA (DO-214AC) package, making it suitable for modern electronic designs where board space and performance are critical.

With a forward current rating of 1A and a reverse voltage rating of 40V, the SS14 is widely used in power supplies, DC-DC converters, battery charging circuits, voltage regulators, and reverse polarity protection applications.

Features

  • Schottky Barrier Rectifier technology
  • Low forward voltage drop for improved efficiency
  • Fast switching speed
  • Low power loss and reduced heat generation
  • Compact SMA (DO-214AC) package
  • High reliability and long service life

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Diode Type: Schottky Barrier Rectifier
Package Type: SMA (DO-214AC)
Maximum Repetitive Reverse Voltage (VRRM): 40V
Maximum DC Blocking Voltage (VR): 40V
Average Forward Rectified Current (IF(AV)): 1A
Peak Forward Surge Current (IFSM): 30A
Forward Voltage Drop (VF): Typically 0.5V at 1A
Reverse Leakage Current (IR): Low leakage design
Operating Junction Temperature Range: -55°C to +125°C
Mounting Type: Surface Mount Device (SMD)

Additional Resources

SS14 Diode – Schottky – SMA (DO-214AC).PDF

FAQ

1. What is the SS14 Schottky diode used for?

The SS14 is a Schottky barrier rectifier diode commonly used for reverse polarity protection, power supply rectification, DC-DC converters, battery charging circuits, and high-frequency switching applications.

2. What are the key electrical ratings of the SS14 diode?

The SS14 typically features a maximum repetitive reverse voltage of 40V and an average forward current rating of 1A, making it suitable for a wide range of low-voltage power applications.

3. Why is the SS14 preferred over a standard rectifier diode?

The SS14 has a lower forward voltage drop and faster switching characteristics than conventional silicon rectifier diodes, resulting in improved efficiency and reduced power loss.

4. What package does the SS14 diode come in?

The SS14 is housed in an SMA (DO-214AC) surface-mount package, which provides good thermal performance while maintaining a compact PCB footprint.

5. Where is the SS14 diode commonly used?

The SS14 is widely used in switching power supplies, solar-powered systems, battery-powered devices, voltage regulators, LED drivers, DC-DC converters, and general-purpose power management circuits.
