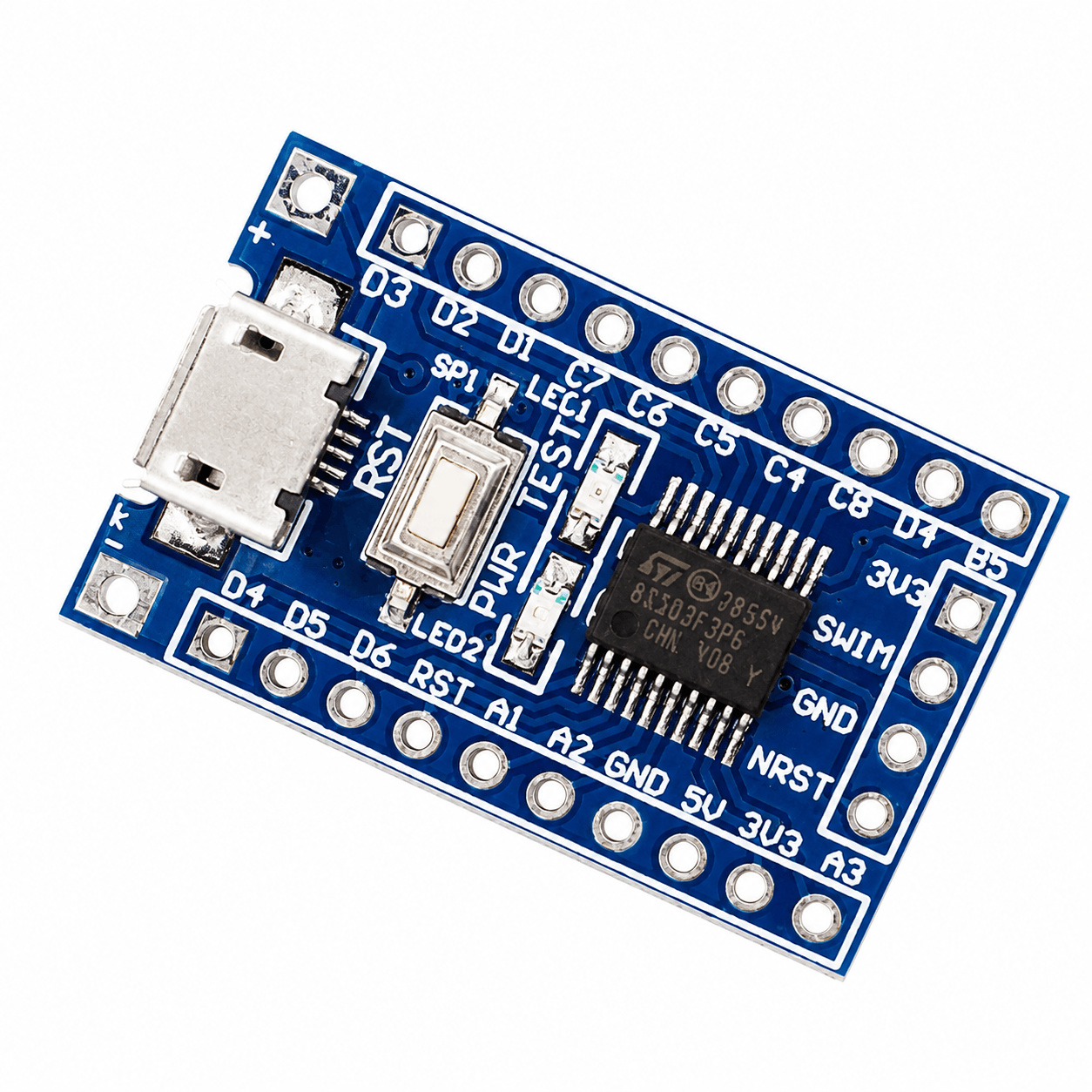

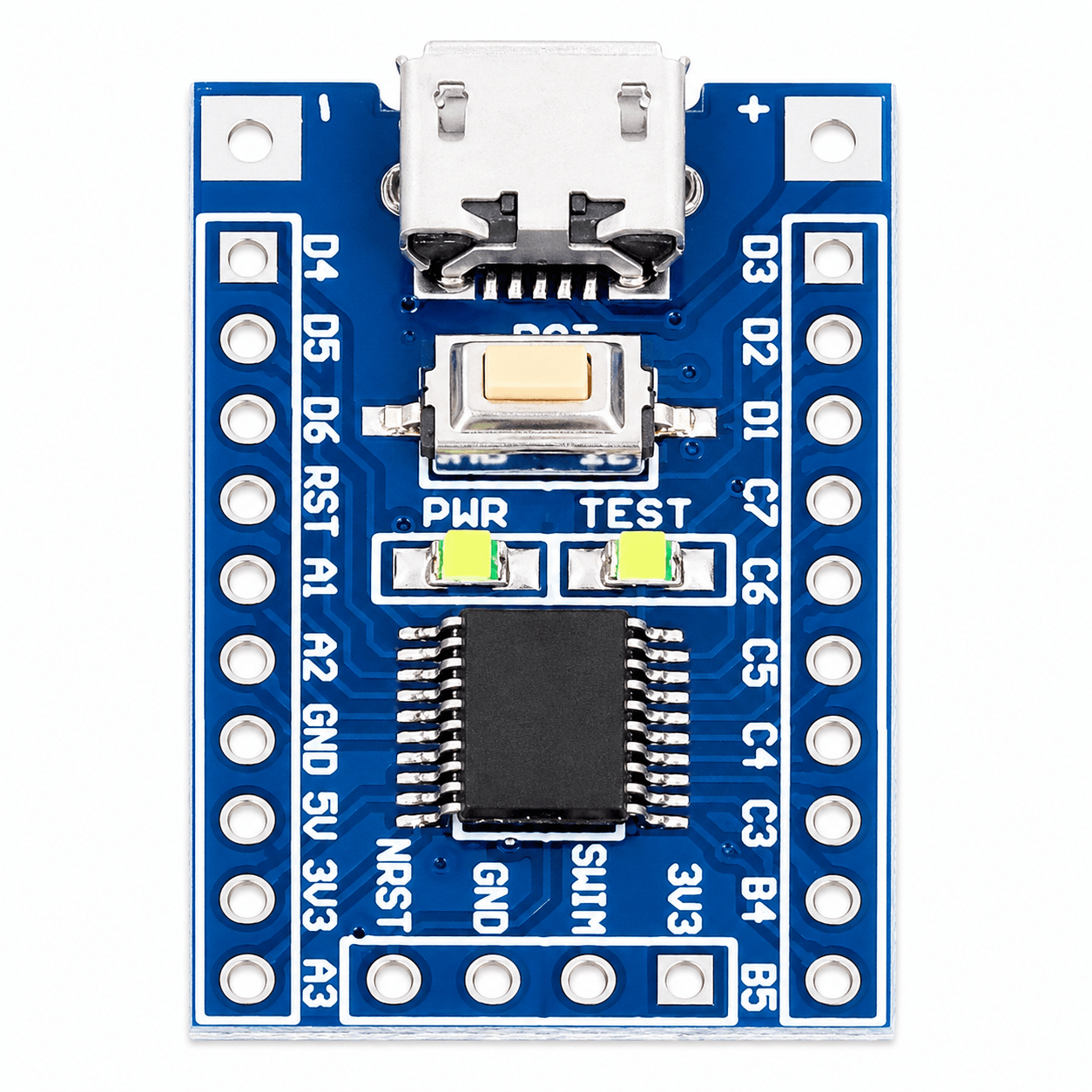

STM8 Development Board -STM8S103F3P6

SKU: 5S7312X4HK
★★★★ ★ ★
4.1 (40 reviews)
The STM8 Development Board (STM8S103F3P6) is a compact and cost-effective minimum system board built around the STM8S103F3P6 8-bit microcontroller from STMicroelectronics. Powered by the 16MHz STM8 CPU core, it offers an excellent balance of performance, low power consumption, and integrated peripherals, making it ideal for beginners, students, hobbyists, and embedded system developers. The board includes the STM8S103F3P6 microcontroller, onboard voltage...
Rs. 149.00
Rs. 169.00 Rs. 149.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The STM8 Development Board (STM8S103F3P6) is a compact and cost-effective minimum system board built around the STM8S103F3P6 8-bit microcontroller from STMicroelectronics. Powered by the 16MHz STM8 CPU core, it offers an excellent balance of performance, low power consumption, and integrated peripherals, making it ideal for beginners, students, hobbyists, and embedded system developers.

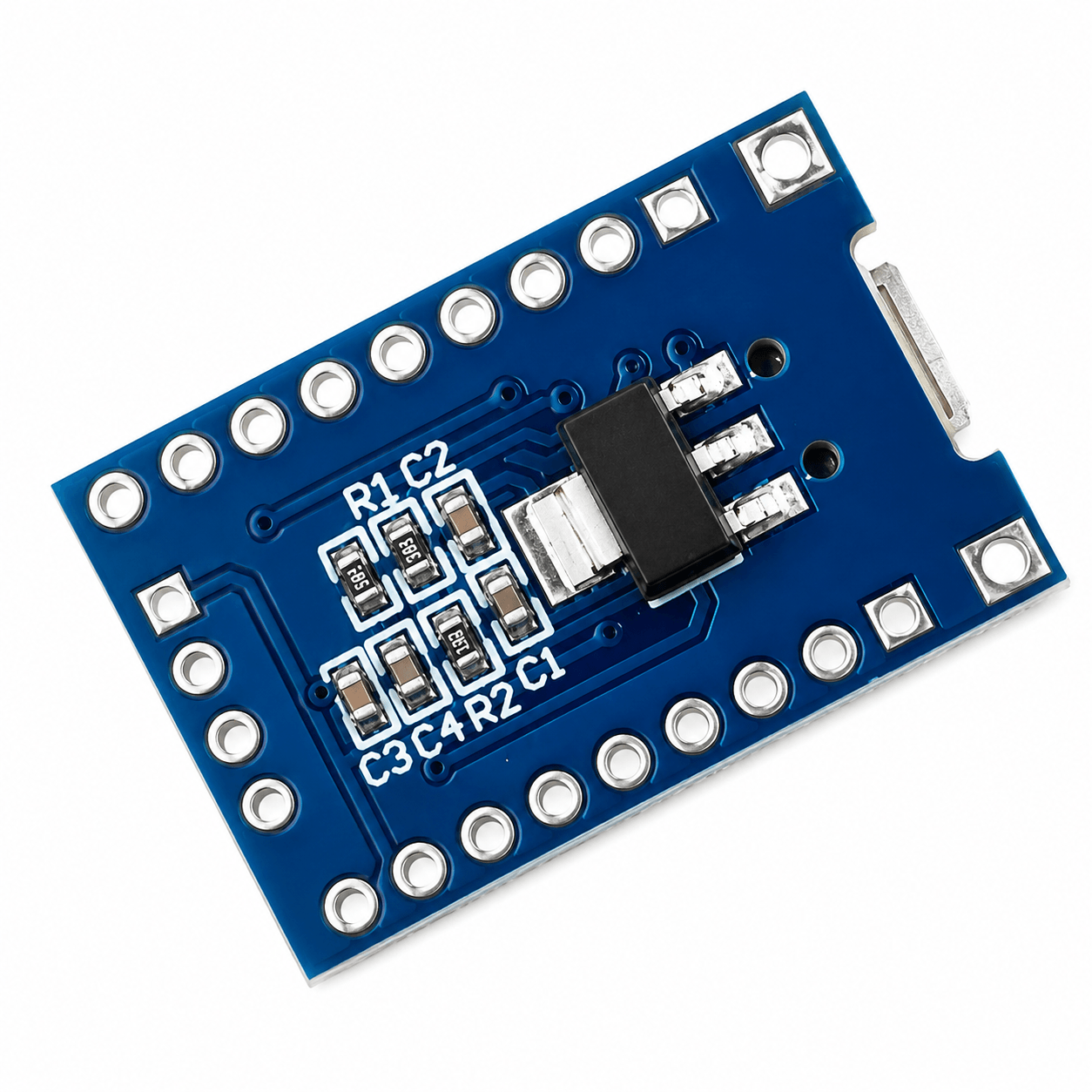

The board includes the STM8S103F3P6 microcontroller, onboard voltage regulation, reset circuitry, SWIM programming interface, clock circuitry, power indicator LED, and GPIO breakout pins for easy prototyping. It supports multiple communication interfaces including UART, SPI, and I²C, along with PWM timers, ADC channels, watchdog timers, and EEPROM for non-volatile data storage.

The STM8 development board is fully compatible with ST Visual Develop (STVD), COSMIC C Compiler, IAR Embedded Workbench, and the STM8Cube ecosystem. It is widely used for industrial control, home automation, robotics, motor control, sensor interfacing, and educational embedded system projects.

Key Features

  • Based on STM8S103F3P6 8-bit microcontroller
  • High-performance STM8 CPU running at 16MHz
  • 8KB Flash program memory
  • 1KB SRAM
  • 640 Bytes integrated EEPROM
  • Up to 16 programmable GPIO pins
  • 10-bit Analog-to-Digital Converter (ADC)
  • Multiple UART, SPI, and I²C communication interfaces
  • PWM-capable timers
  • SWIM programming and debugging interface
  • Onboard reset button
  • Onboard power indicator LED
  • Compact minimum system board design
  • Low power consumption with multiple sleep modes
  • Compatible with STVD, IAR Embedded Workbench, and COSMIC Compiler

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Board Type: STM8 Minimum System Development Board
Microcontroller: STM8S103F3P6
CPU Core: STM8 8-bit Core
Maximum Clock Speed: 16MHz
Flash Memory: 8KB
SRAM: 1KB
EEPROM: 640 Bytes
Operating Voltage (MCU): 2.95V to 5.5V
Board Supply Voltage: 3.3V to 5V DC
GPIO Pins: Up to 16
ADC Resolution: 10-bit
ADC Channels: Up to 5
Timers: 2 × 16-bit Timers, 1 × 8-bit Timer
PWM Output: Supported
UART/USART Interfaces: 1
SPI Interfaces: 1
I²C Interfaces: 1
Watchdog Timers: Independent Watchdog (IWDG) and Window Watchdog (WWDG)
Clock Sources: Internal 16MHz RC Oscillator, External Crystal Support
Programming Interface: SWIM (Single Wire Interface Module)
Reset Button: Yes
Power Indicator LED: Yes
Operating Temperature: -40°C to +85°C
Board Dimensions: Approximately 53mm × 22mm (Board Version Dependent)
Mounting Type: Through-Hole Header Board
Development Support: ST Visual Develop (STVD), COSMIC C Compiler, IAR Embedded Workbench, STM8 Standard Peripheral Library

Additional Resources

STM8S103F3P6.PDF

FAQ

1. What is the STM8S103F3P6 Development Board used for?

The STM8S103F3P6 Development Board is used for embedded system development, robotics, home automation, industrial control, sensor interfacing, and educational electronics projects.

2. Can the STM8S103F3P6 board be programmed using ST development tools?

Yes. The board supports programming and debugging through the SWIM interface and is compatible with ST Visual Develop (STVD), COSMIC C Compiler, IAR Embedded Workbench, and the STM8 Standard Peripheral Library.

3. What communication interfaces are available on the STM8S103F3P6?

The microcontroller provides UART, SPI, and I²C communication interfaces, allowing easy connection to displays, sensors, memory devices, and other peripherals.

4. How much memory does the STM8S103F3P6 provide?

The microcontroller includes 8KB of Flash memory, 1KB of SRAM, and 640 Bytes of integrated EEPROM for program execution and non-volatile data storage.

5. What is the maximum operating frequency of the STM8S103F3P6?

The STM8S103F3P6 operates at a maximum CPU clock frequency of 16MHz, providing efficient performance for a wide range of embedded control applications.
