Specifications:

Switch Type: Tactile Push Button (Momentary)
Operation Mode: Normally Open (NO)
Dimensions: 6mm × 6mm × 6mm
Mounting Type: Through-hole PCB mount
Number of Pins: 4 (internally paired contacts)
Operating Voltage: 12V DC (typical)
Operating Current: 50mA max
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 1.6N – 3.5N (approx.)
Travel Distance: ~0.25mm – 1.0mm
Mechanical Life: 100,000 – 300,000 cycles
Body Material: Thermoplastic (PA/Nylon)
Contact Material: Metal alloy

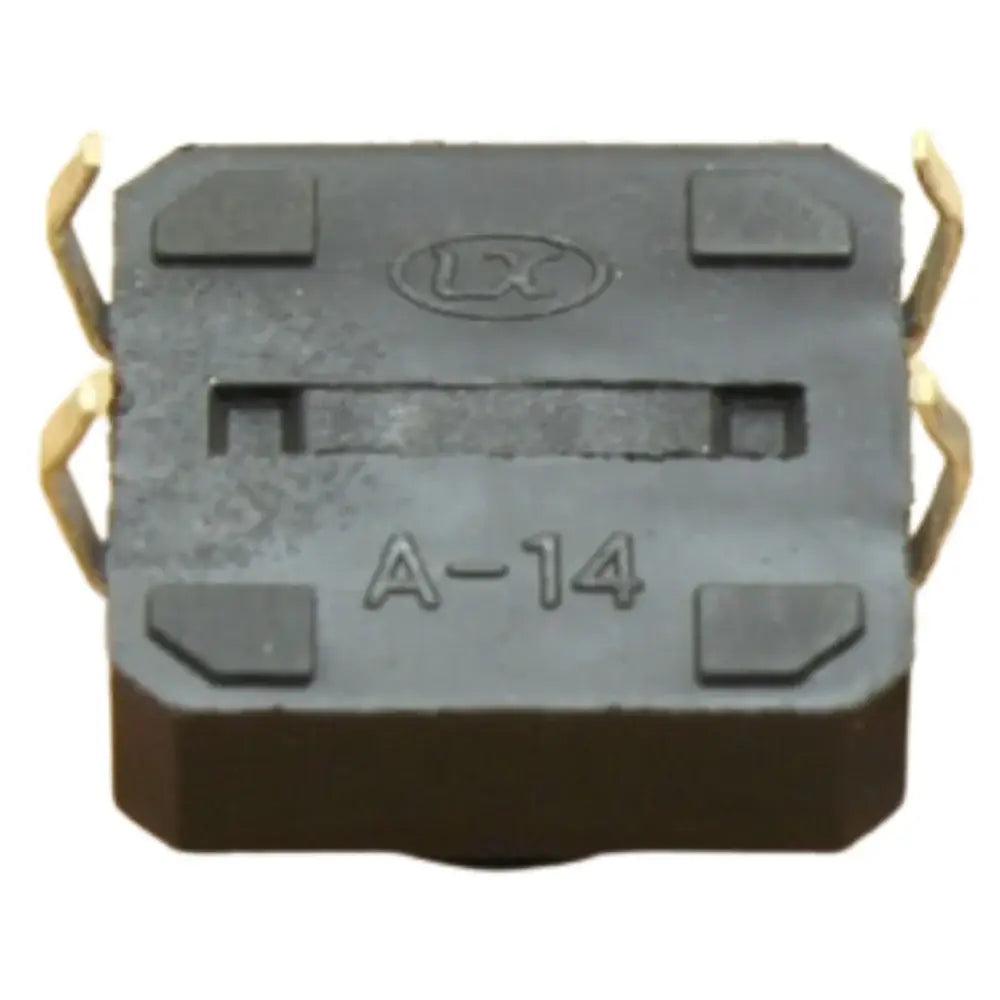

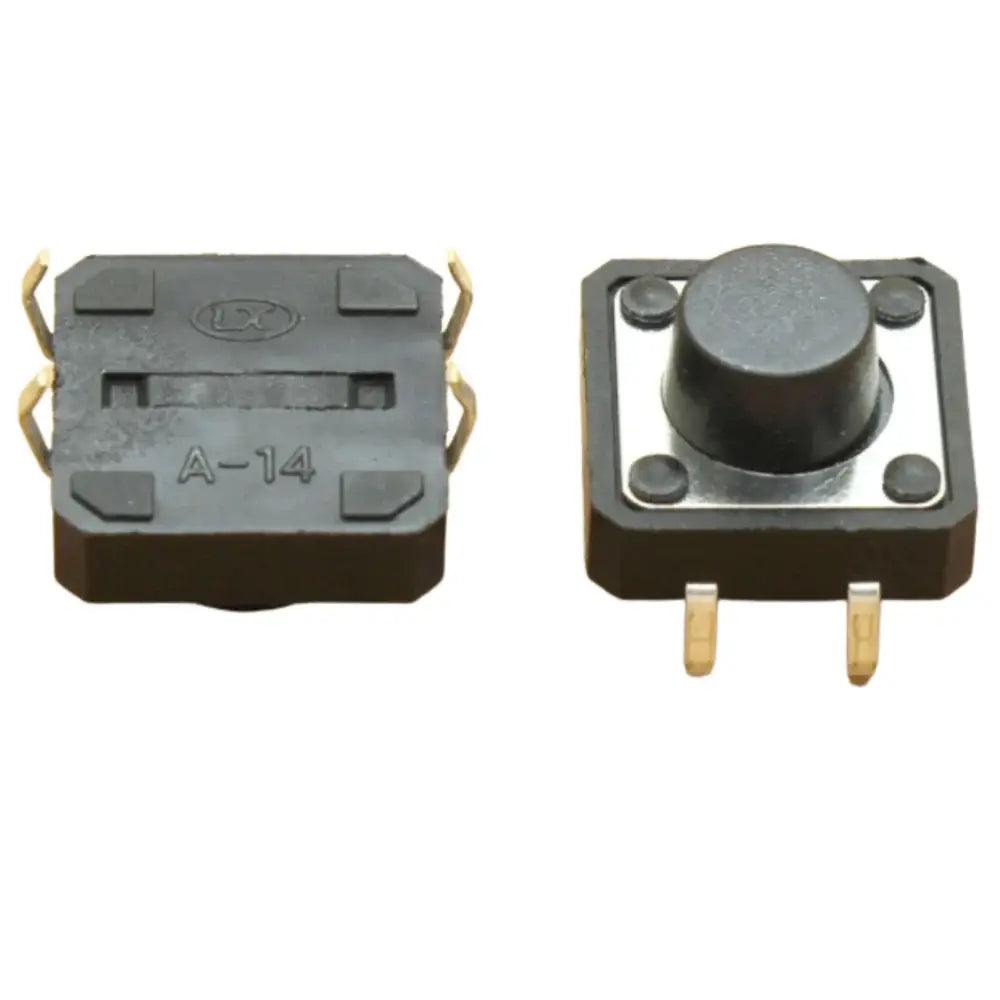

1. What is a 6X6X6mm 4-pin tactile push button switch?

It is a compact push button switch with four pins that provides momentary ON/OFF control in electronic circuits, delivering clear tactile feedback with every press.

2. How does this switch operate?

This switch is momentary (normally open), meaning the circuit is completed only while the button is pressed. Once released, it returns to its default OFF state.

3. Where can this switch be used?

It is ideal for:

• Arduino and Raspberry Pi projects
• DIY electronics kits
• Control panels and embedded systems
• Prototyping and repair of electronic devices

4. What are the mounting options for this switch?

It features a through-hole (THT) mounting design for stable installation on PCBs, with an 8 mm height from the board for secure placement and easy soldering.

5. What are the key advantages of this switch?

Provides crisp tactile feedback for precise control
Compact and durable, suitable for small electronic projects
Easy to integrate into PCB circuits
Pack of 5 ensures multiple replacements or uses in projects
