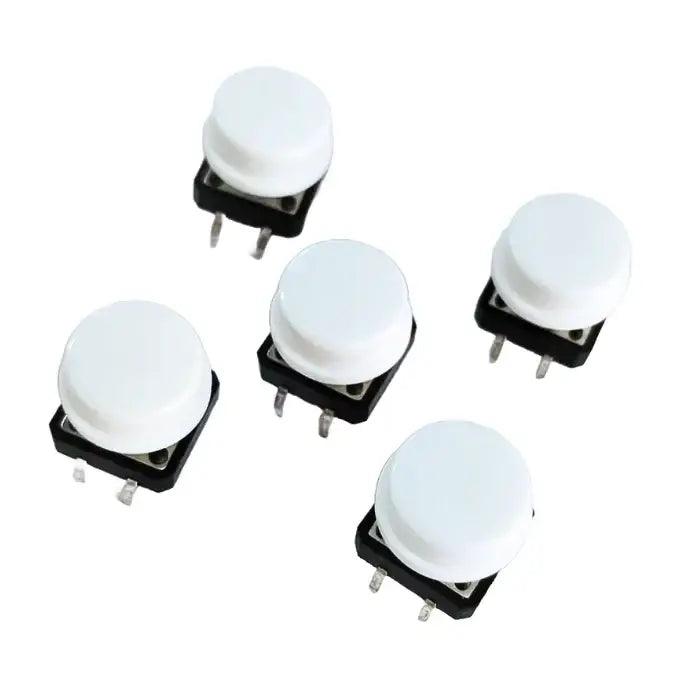

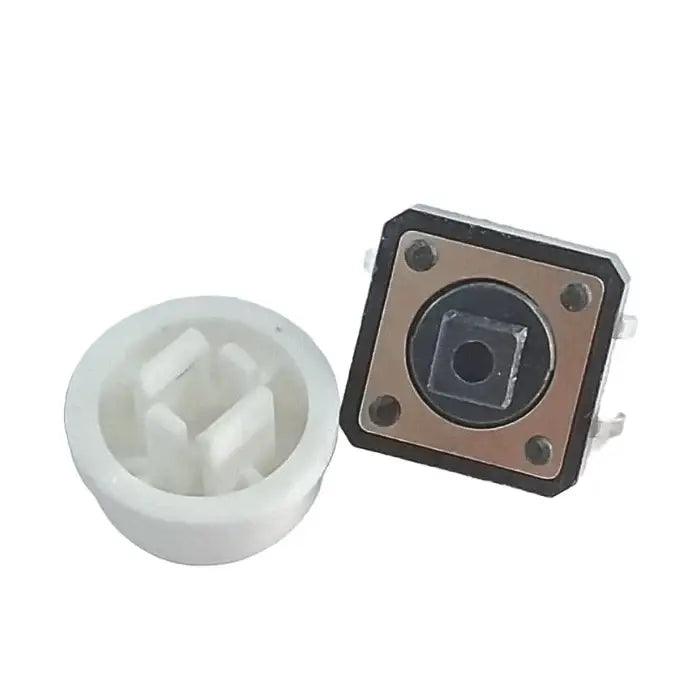

Tactile 4 Pin Push Button Switch - Pack of 5 (12x12x7.3 mm)

6x6x6mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These push button switch work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed...
Rs. 69.00
Rs. 89.00 Rs. 69.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 12 V DC
Maximum Operating Current: 50 mA
Switch Function: Push-to-ON
Switch Type: Momentary
Mounting Type: Through-hole
Contact Resistance: 50 mΩ
Insulation Resistance: 100 MΩ
Operating Temperature Range: -20°C to +70°C
Operating Stroke: 0.25 mm (+0.2 / -0.1 mm)
Operating Force: 1.56 N ± 0.5 NDimensions: 12 × 12 × 7.3 mm
Weight: 1 g (per piece)

Additional Resources

Tactile 4 Pin Push Button Switch.PDF

FAQ

1. What is a 4-pin tactile push button switch?

A 4-pin tactile push button switch is a momentary switch that only remains ON while being pressed. It has four pins internally connected in pairs, making it easy to mount on PCBs and ensuring stable connections.

2. How does the 4-pin configuration work?

The switch has two pairs of internally connected pins. When the button is pressed, the two pairs get connected, completing the circuit. This design improves mechanical stability and simplifies PCB layout.

3. What are the typical applications of this switch?

These switches are widely used in:

  • Arduino and microcontroller projects
  • Consumer electronics (remote controls, toys)
  • DIY circuits and prototypes
  • Control panels and keypads

4. What does “momentary” mean in this switch?

“Momentary” means the switch only stays active while you press it. Once you release the button, it automatically returns to its original OFF state.

5. What are the key specifications of this push button?

  • Size: 12 × 12 × 7.3 mm
  • Type: Tactile (momentary)
  • Pins: 4 (through-hole mounting)
  • Operation: Push to ON
  • Pack: 5 pieces
View full product details

6x6x6mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These push button switch work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from.

Applications:

  • Can be used in Prototyping

  • Can be used in DIY Projects for triggering input.

  • Can be used with Arduino for IOT Applications
