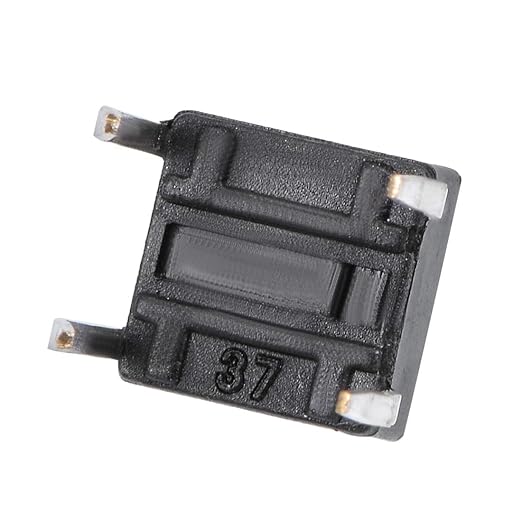

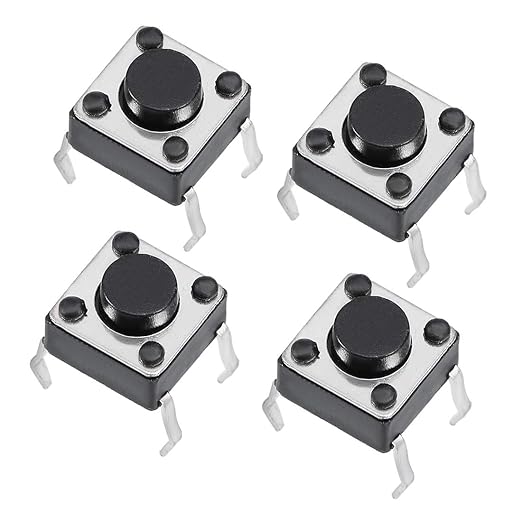

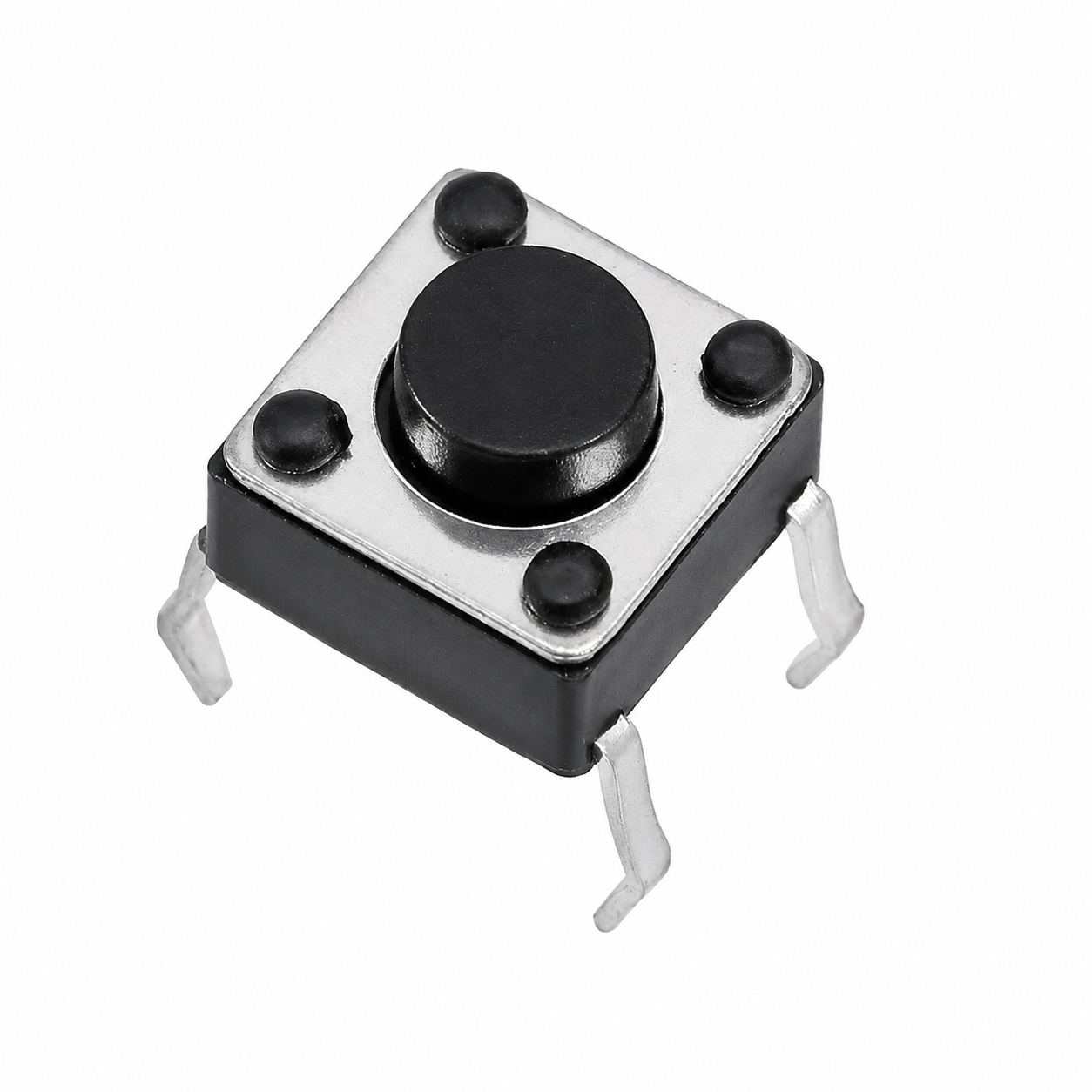

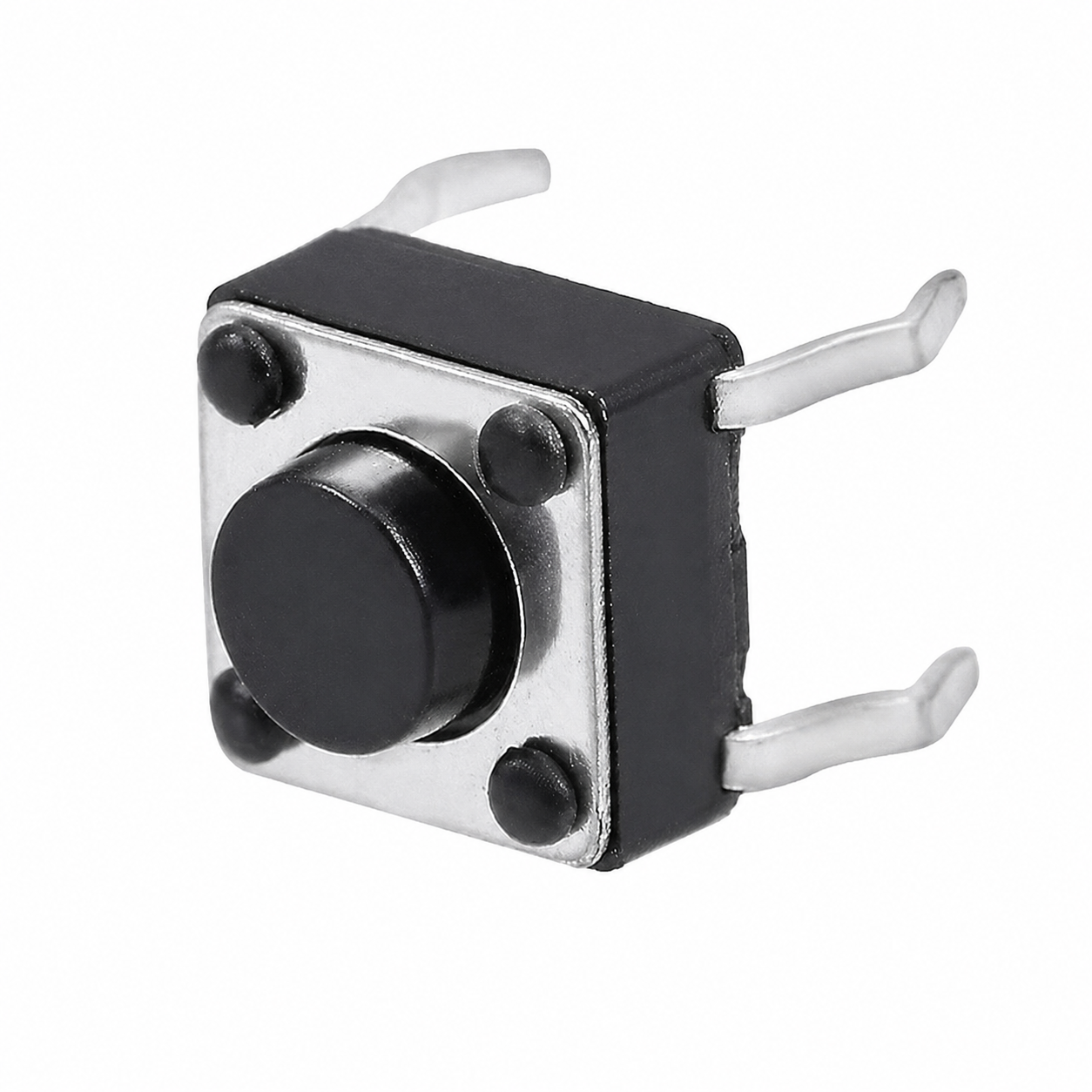

Tactile Push Button Switch 6X6X4.3mm

SKU: CYLPV2OB6Y
The 6×6×4.3mm Tactile Push Button Switch is an ultra-miniature, low-profile momentary switch designed for compact and high-density electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and only closes during actuation. With its extremely low 4.3mm height, this switch is ideal for ultra-slim devices, miniaturized PCB layouts, wearables, handheld...
Rs. 5.00
Rs. 12.00 Rs. 5.00
Save Rs. 7
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: Tactile Push Button (Momentary)
Operation Mode: Normally Open (NO)
Dimensions: 6mm × 6mm × 4.3mm
Mounting Type: Through-hole PCB mount
Number of Pins: 4 (internally paired contacts)
Operating Voltage: 12V DC (typical)
Operating Current: 50mA max
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 1.6N – 3.5N (approx.)
Travel Distance: ~0.25mm – 1.0mm
Mechanical Life: 100,000 – 300,000 cycles
Body Material: Thermoplastic (PA/Nylon)
Contact Material: Metal alloy

Additional Resources

Tactile Push Button.PDF

FAQ

1: What type of switch is this?

This is a tactile push button switch with a 4-pin configuration, designed for momentary operation.

2: What are the dimensions of the switch?

Each switch measures 6mm x 6mm x 4.3mm (Length x Width x Height).

3: How does the switch operate?

The switch is normally open (OFF) and closes the circuit only while the button is pressed (momentary ON).

4: Can it be mounted on a PCB?

Yes, it is designed for through-hole PCB mounting but can also be used on breadboards for prototyping.

5: What are common applications for this switch?

It is widely used in DIY electronics, Arduino/Raspberry Pi projects, consumer electronics, and control panels for testing or input purposes.

View full product details

The 6×6×4.3mm Tactile Push Button Switch is an ultra-miniature, low-profile momentary switch designed for compact and high-density electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and only closes during actuation.

With its extremely low 4.3mm height, this switch is ideal for ultra-slim devices, miniaturized PCB layouts, wearables, handheld electronics, and space-critical applications. It provides precise tactile feedback while maintaining a very compact form factor, making it suitable for consumer electronics, embedded systems, Arduino-based projects, and precision control circuits.

Key Features

  • Ultra-compact 6×6mm footprint with 4.3mm ultra-low profile height
  • Momentary ON (Normally Open) switching action
  • Ideal for high-density and miniature PCB designs
  • Sharp and reliable tactile feedback
  • Through-hole PCB mounting type
  • Excellent durability and stable performance
  • Low contact resistance for clean signal switching
  • Suitable for wearables, IoT, and embedded systems
