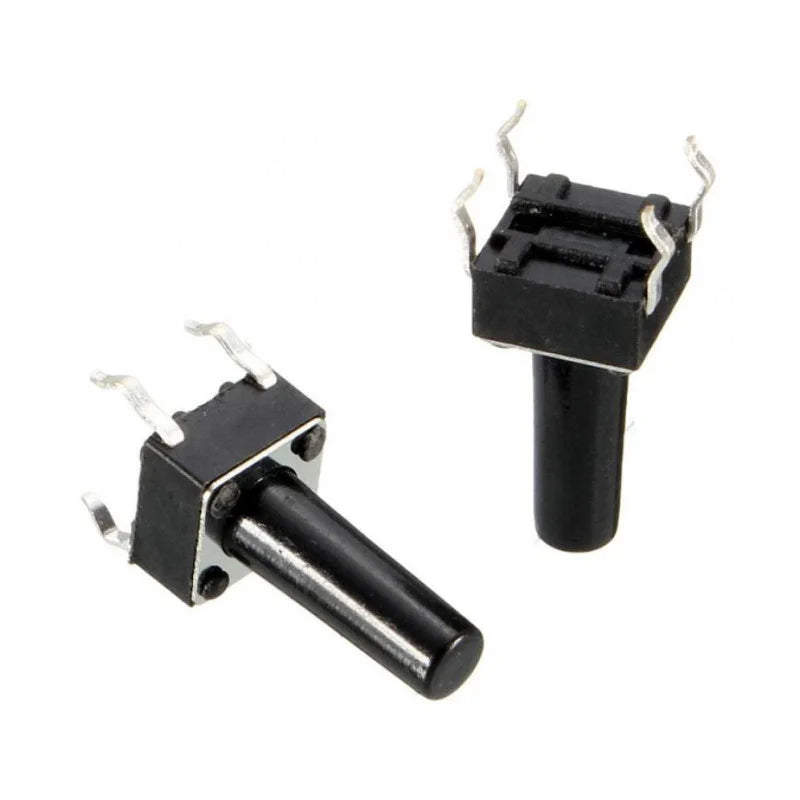

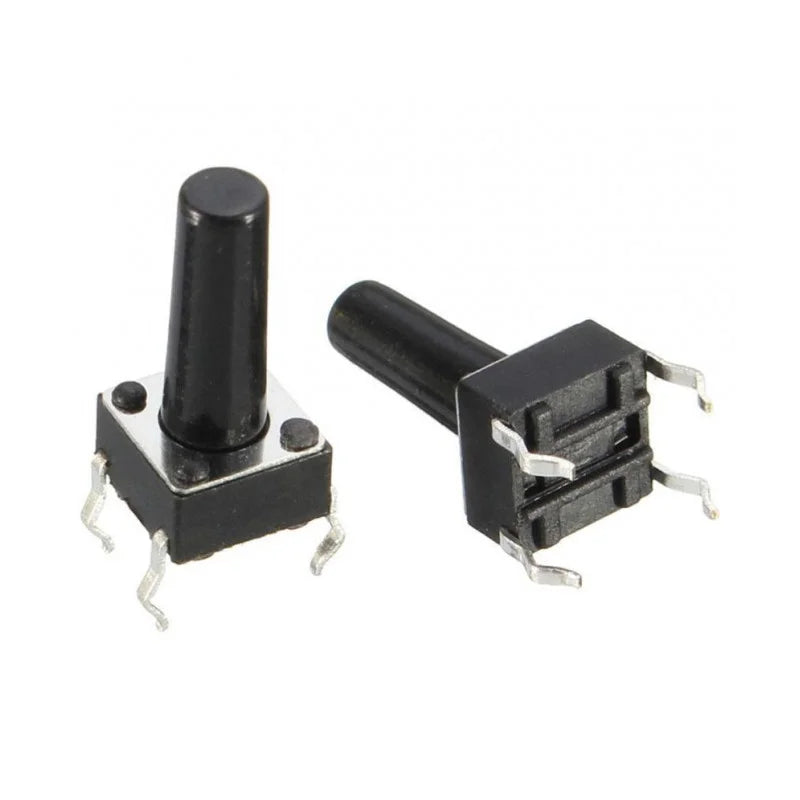

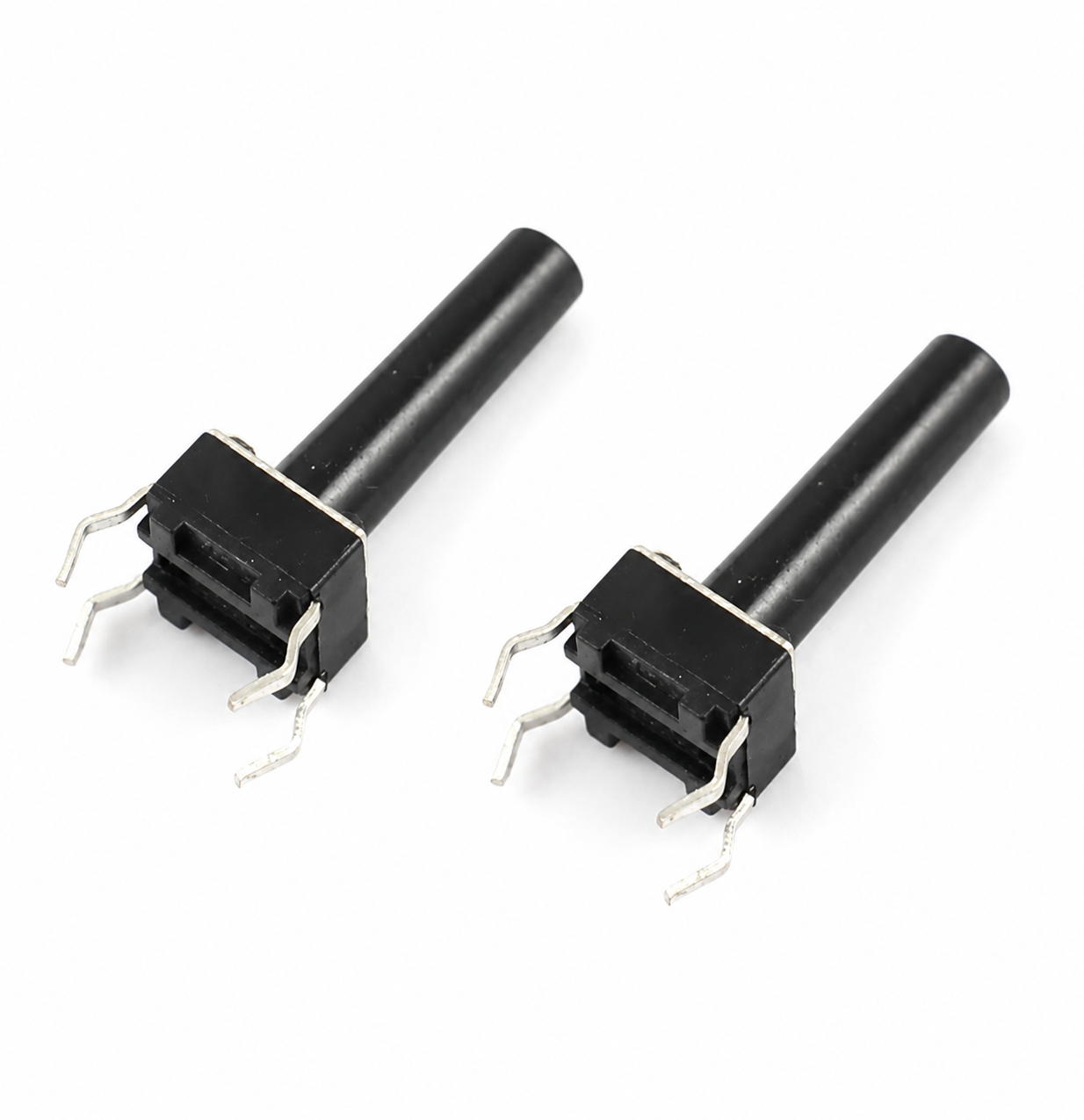

Tactile Push Button Switch 6X6X14mm

SKU: L2R0LRX507
The Tactile Push Button Switch 6×6×14mm is a compact momentary switch designed for reliable signal input in electronic circuits. It provides a crisp tactile feedback when pressed, ensuring accurate user interaction in control and input applications. With a 6mm × 6mm compact footprint and a 14mm actuator height, this switch is ideal for PCB-mounted designs where moderate panel reach is...
Rs. 6.00
Rs. 9.00 Rs. 6.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Tactile Push Button Switch
Body Size: 6mm × 6mm
Actuator Height: 14mm
Switch Type: Momentary
Contact Configuration: Normally Open (NO)
Number of Pins: 4
Mounting Type: Through-Hole PCB Mount

Additional Resources

Tactile Push Button.PDF

FAQ

1. What is the main function of this switch?

It provides momentary input with tactile feedback in electronic circuits.

2. What does 6×6×14mm represent?

It indicates a 6mm × 6mm base size with a 14mm actuator height.

3. Is this switch self-locking?

No, it is a momentary switch that activates only when pressed.

4. Where is this switch commonly used?

It is used in Arduino projects, embedded systems, and consumer electronics.

5. Why is tactile feedback important?

It confirms successful button press without needing visual confirmation.

View full product details

The Tactile Push Button Switch 6×6×14mm is a compact momentary switch designed for reliable signal input in electronic circuits. It provides a crisp tactile feedback when pressed, ensuring accurate user interaction in control and input applications.

With a 6mm × 6mm compact footprint and a 14mm actuator height, this switch is ideal for PCB-mounted designs where moderate panel reach is required. It operates as a normally open (NO) switch and returns to its original position immediately after release.

This switch is widely used in embedded systems, consumer electronics, Arduino projects, control panels, and DIY electronics due to its durability, compact size, and easy integration into PCB layouts.

Key Features

  • Compact 6mm × 6mm body size
  • 14mm actuator height for panel accessibility
  • Momentary push button operation
  • Clear tactile click feedback
  • Normally Open (NO) contact type
  • 4-pin through-hole PCB mounting
  • High durability and long mechanical life
  • Suitable for compact electronic designs
