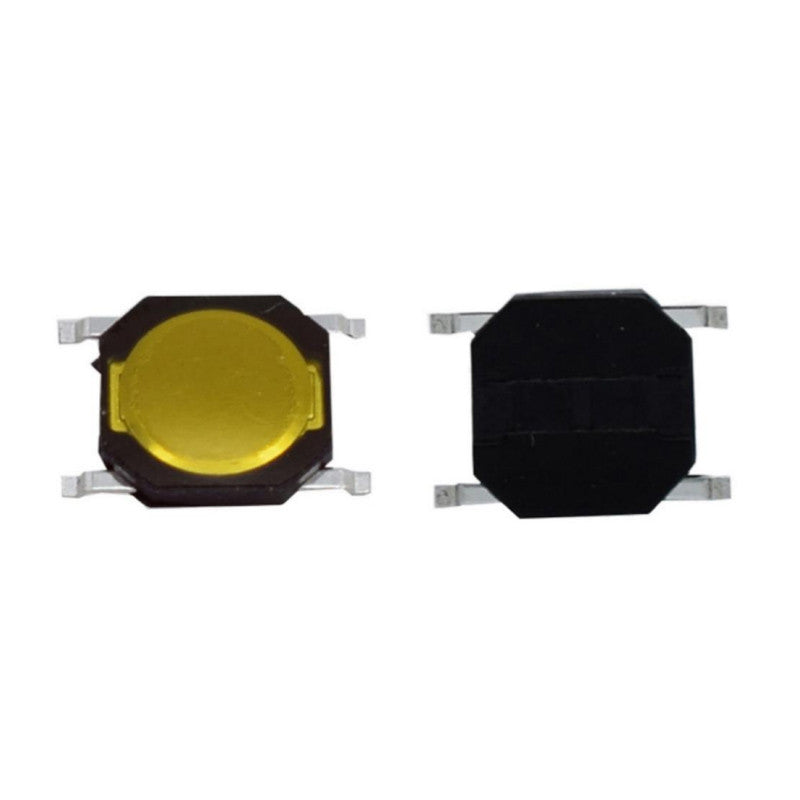

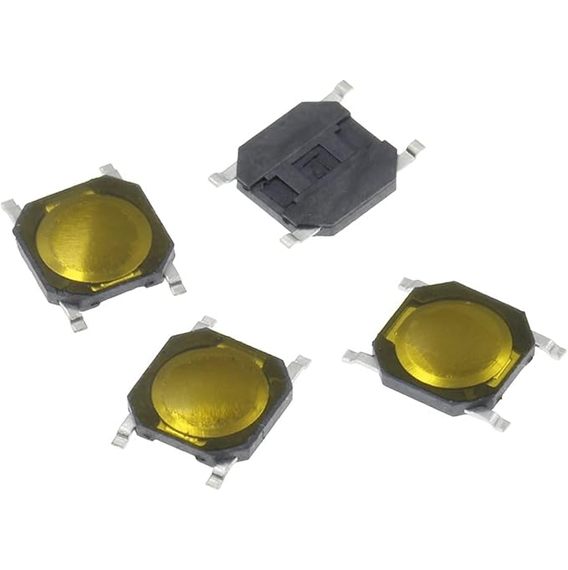

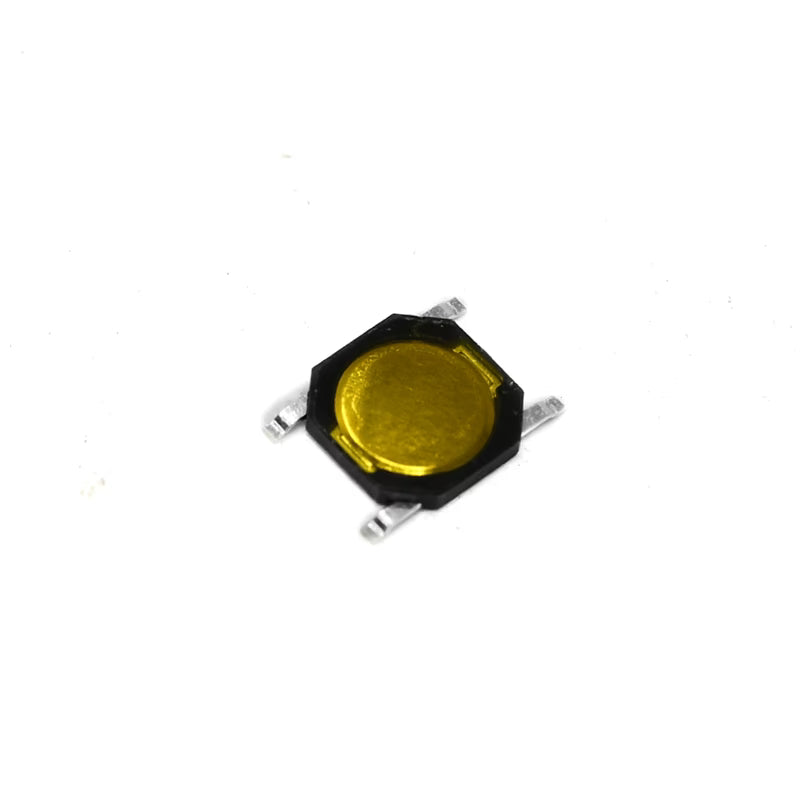

Tactile Switch 4X4X0.8mm 4 Pins SMD (Pack of 2)

SKU: Z4CC2YMWG3
★★★★ ★ ★
4.1 (126 reviews)
The 4×4×0.8mm 4-Pin SMD Tactile Switch is an ultra-thin, surface-mount momentary push-button switch designed for modern electronic devices requiring minimal height and compact PCB layouts. With an exceptionally low profile of just 0.8mm, this switch is ideal for slim products such as wearable devices, portable electronics, smart gadgets, and other space-constrained applications. Operating in a normally open (NO) configuration, the...
Rs. 14.00
Rs. 18.00 Rs. 14.00
Save Rs. 4 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 4×4×0.8mm 4-Pin SMD Tactile Switch is an ultra-thin, surface-mount momentary push-button switch designed for modern electronic devices requiring minimal height and compact PCB layouts. With an exceptionally low profile of just 0.8mm, this switch is ideal for slim products such as wearable devices, portable electronics, smart gadgets, and other space-constrained applications.

Operating in a normally open (NO) configuration, the switch completes the electrical circuit only when pressed and automatically returns to its open state when released. Its 4-pin SMD design provides enhanced mounting stability and reliable performance, making it suitable for high-density PCB assemblies and automated manufacturing processes.

Key Features

  • Ultra-slim 4×4mm footprint with only 0.8mm height
  • 4-pin Surface Mount Device (SMD) design
  • Momentary ON (Normally Open) operation
  • Excellent tactile feedback despite low-profile construction
  • Ideal for ultra-thin electronic products
  • Compatible with automated SMT assembly processes
  • Enhanced PCB stability through 4-pin mounting
  • Reliable and durable switching performance

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Tactile Push Button Switch
Switch Action: Momentary
Operation Mode: Normally Open (NO)
Dimensions: 4mm × 4mm × 0.8mm
Mounting Type: Surface Mount Device (SMD)
Number of Pins: 4
Rated Voltage: 12V DC
Rated Current: 50mA Max
Contact Resistance: ≤ 100 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 160gf – 260gf (typical)
Travel Distance: 0.10mm – 0.20mm
Mechanical Life: Up to 100,000 operations
Operating Temperature Range: -20°C to +70°C
Contact Material: Metal Alloy
Housing Material: High-Temperature Thermoplastic
Color: Silver/Black (varies by manufacturer)

Additional Resources

Tactile Switch.PDF

FAQ

1. What is a 4×4×0.8mm 4-Pin SMD Tactile Switch used for?

It is used as a momentary input switch in ultra-thin electronic devices such as wearables, smart gadgets, remote controls, mobile accessories, and compact IoT products.

2. How does the 4×4×0.8mm tactile switch operate?

It works on a normally open (NO) mechanism, completing the circuit only while the button is pressed and returning to the open state when released.

3. What is the advantage of the 0.8mm ultra-low profile design?

The ultra-thin 0.8mm height allows the switch to be used in slim electronic products where minimizing device thickness is essential.

4. Why does this tactile switch have 4 pins?

The 4-pin design improves mechanical stability on the PCB, provides secure mounting, and enhances reliability during operation.

5. Is this switch suitable for automated SMT manufacturing?

Yes, its Surface Mount Device (SMD) design is fully compatible with automated pick-and-place and reflow soldering processes used in modern electronics production.
