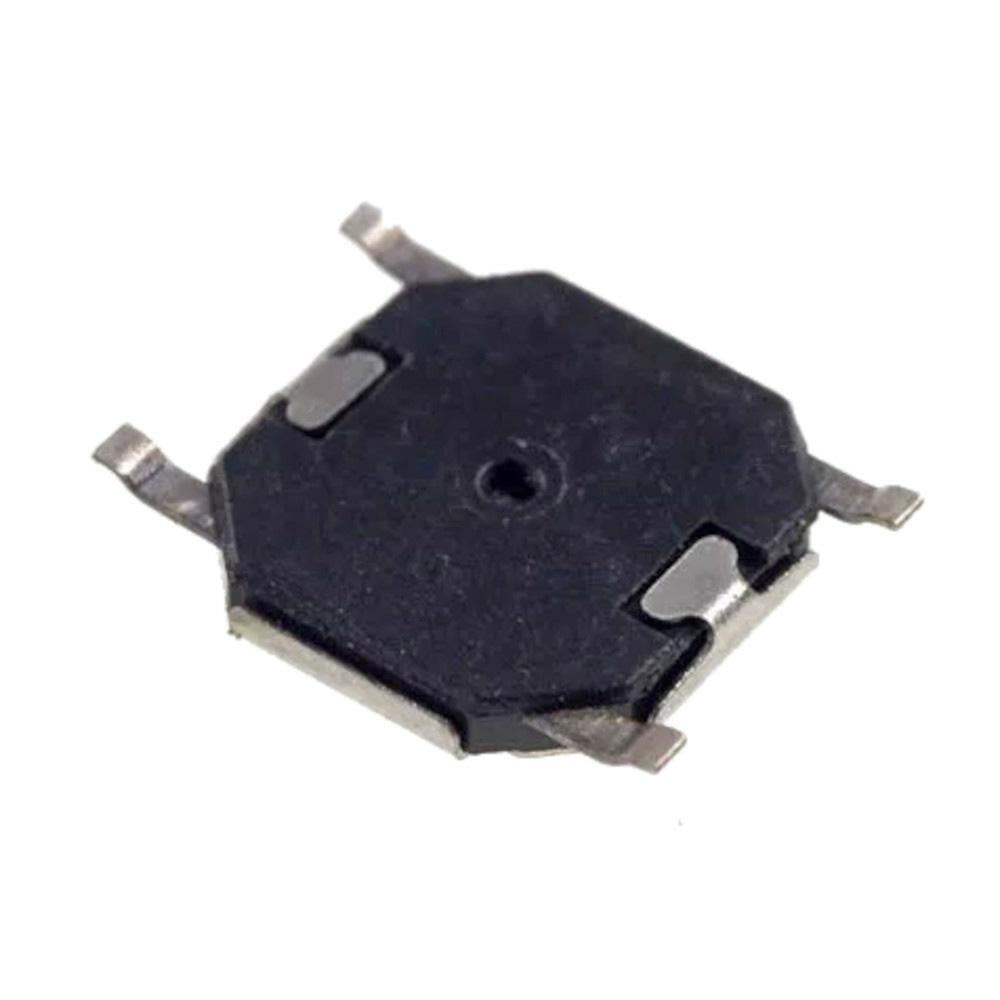

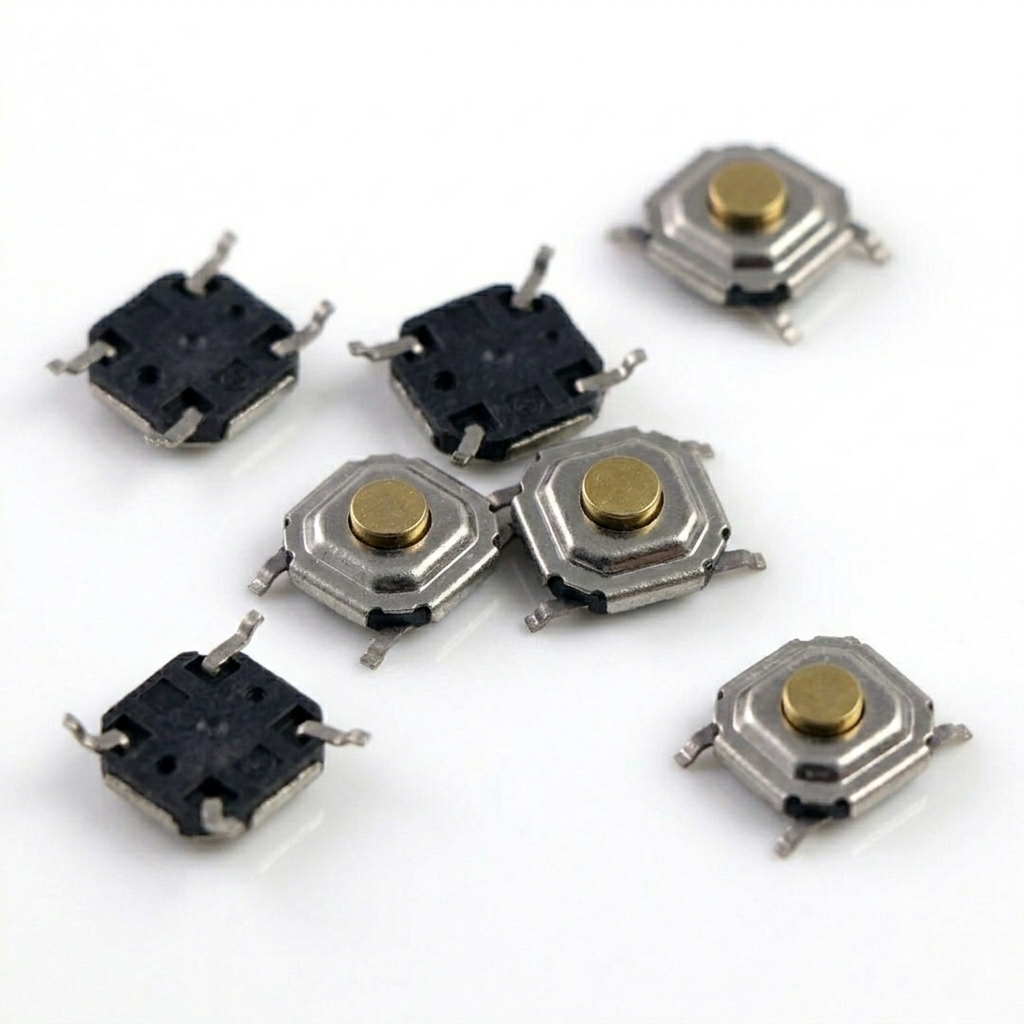

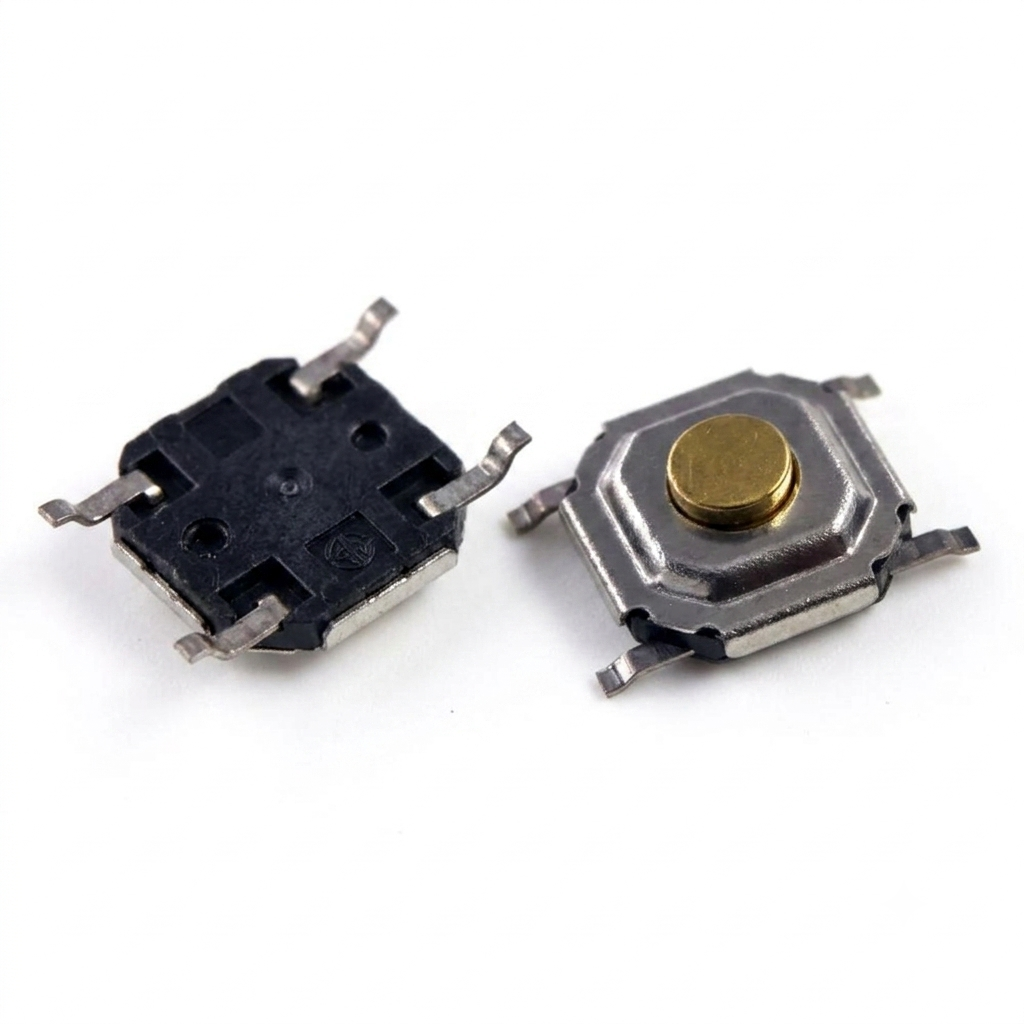

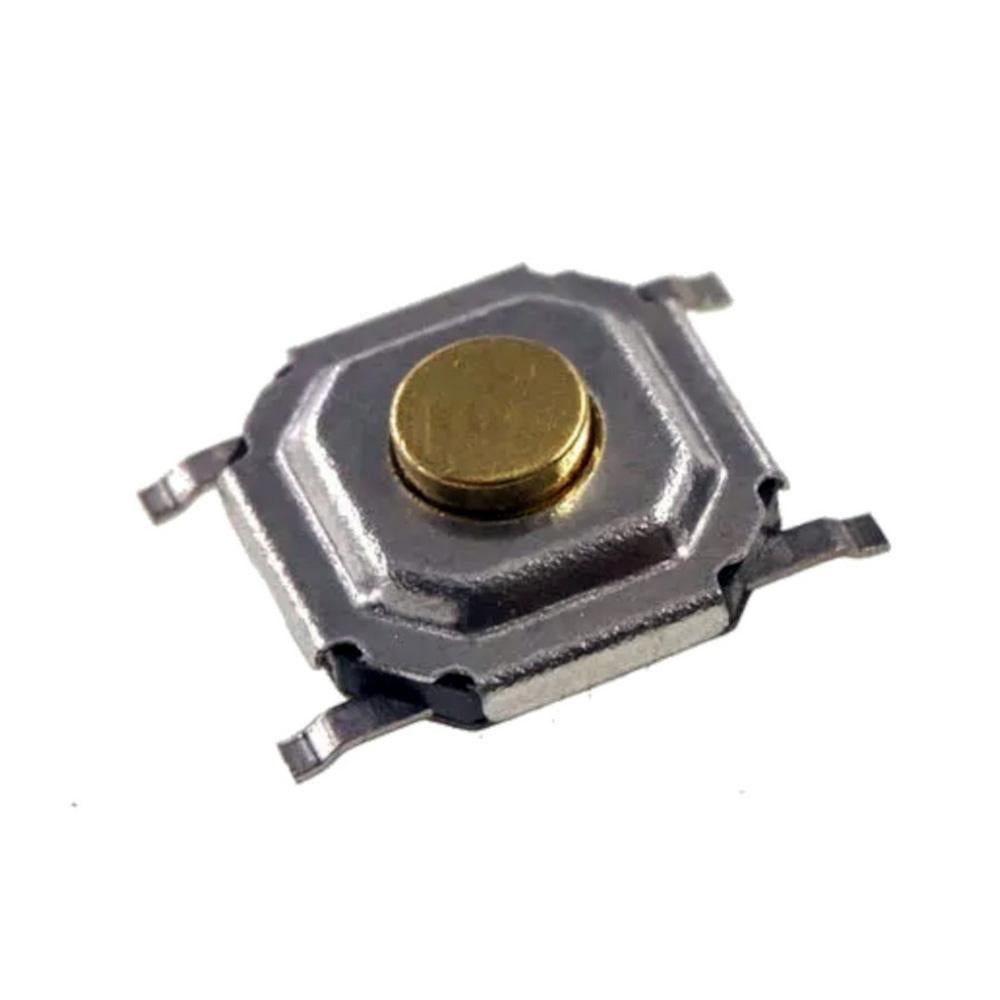

Tactile Switch 4X4X1.5mm 4 Pins SMD (Pack of 2)

SKU: L0OMQWSZ8A
★★★★ ★ ★
4.5 (28 reviews)
The 4×4×1.5mm 2-Pin SMD Tactile Switch is an ultra-low-profile momentary push-button switch designed for compact electronic devices and high-density PCB layouts. With its slim 1.5mm height and compact 4×4mm footprint, this switch is ideal for applications where space is limited and a low-profile design is essential. Operating in a normally open (NO) configuration, the switch completes the circuit only when...
Rs. 14.00
Rs. 17.00 Rs. 14.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 4×4×1.5mm 2-Pin SMD Tactile Switch is an ultra-low-profile momentary push-button switch designed for compact electronic devices and high-density PCB layouts. With its slim 1.5mm height and compact 4×4mm footprint, this switch is ideal for applications where space is limited and a low-profile design is essential.

Operating in a normally open (NO) configuration, the switch completes the circuit only when pressed and automatically returns to its open state when released. Its surface-mount design supports automated assembly processes and provides reliable tactile feedback, making it suitable for consumer electronics, wearable devices, mobile accessories, IoT products, and embedded systems.

Key Features

  • Ultra-low-profile 4×4mm footprint with 1.5mm height
  • 2-pin Surface Mount Device (SMD) design
  • Momentary ON (Normally Open) operation
  • Crisp tactile feedback for precise user input
  • Ideal for slim and compact electronic products
  • Compatible with automated SMT assembly
  • Durable construction with reliable performance
  • Suitable for wearables, IoT devices, and portable electronics

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Tactile Push Button Switch
Switch Action: Momentary
Operation Mode: Normally Open (NO)
Dimensions: 4mm × 4mm × 1.5mm
Mounting Type: Surface Mount Device (SMD)
Number of Pins: 2
Rated Voltage: 12V DC
Rated Current: 50mA Max
Contact Resistance: ≤ 100 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 160gf – 260gf (typical)
Travel Distance: 0.10mm – 0.25mm
Mechanical Life: Up to 100,000 operations
Operating Temperature Range: -20°C to +70°C
Contact Material: Metal Alloy
Housing Material: High-Temperature Thermoplastic

Additional Resources

Tactile Switch.PDF

FAQ

1. What is a 4×4×1.5mm 2-Pin SMD Tactile Switch used for?

It is used as a momentary input switch in compact electronic devices such as wearables, remote controls, mobile accessories, IoT products, and embedded systems.

2. How does the 4×4×1.5mm tactile switch operate?

It works on a normally open (NO) mechanism, completing the circuit only when the button is pressed and returning to the open state when released.

3. Why is the 1.5mm height important?

The ultra-low-profile 1.5mm height makes the switch ideal for slim and space-constrained electronic products where PCB height is a critical factor.

4. Is this switch suitable for automated PCB assembly?

Yes, its Surface Mount Device (SMD) design is compatible with automated pick-and-place and reflow soldering processes used in electronics manufacturing.

5. Can this switch be used in custom PCB and microcontroller projects?

Yes, it can be integrated into custom PCB designs for Arduino, ESP32, STM32, and other embedded systems that require a compact tactile input switch.
