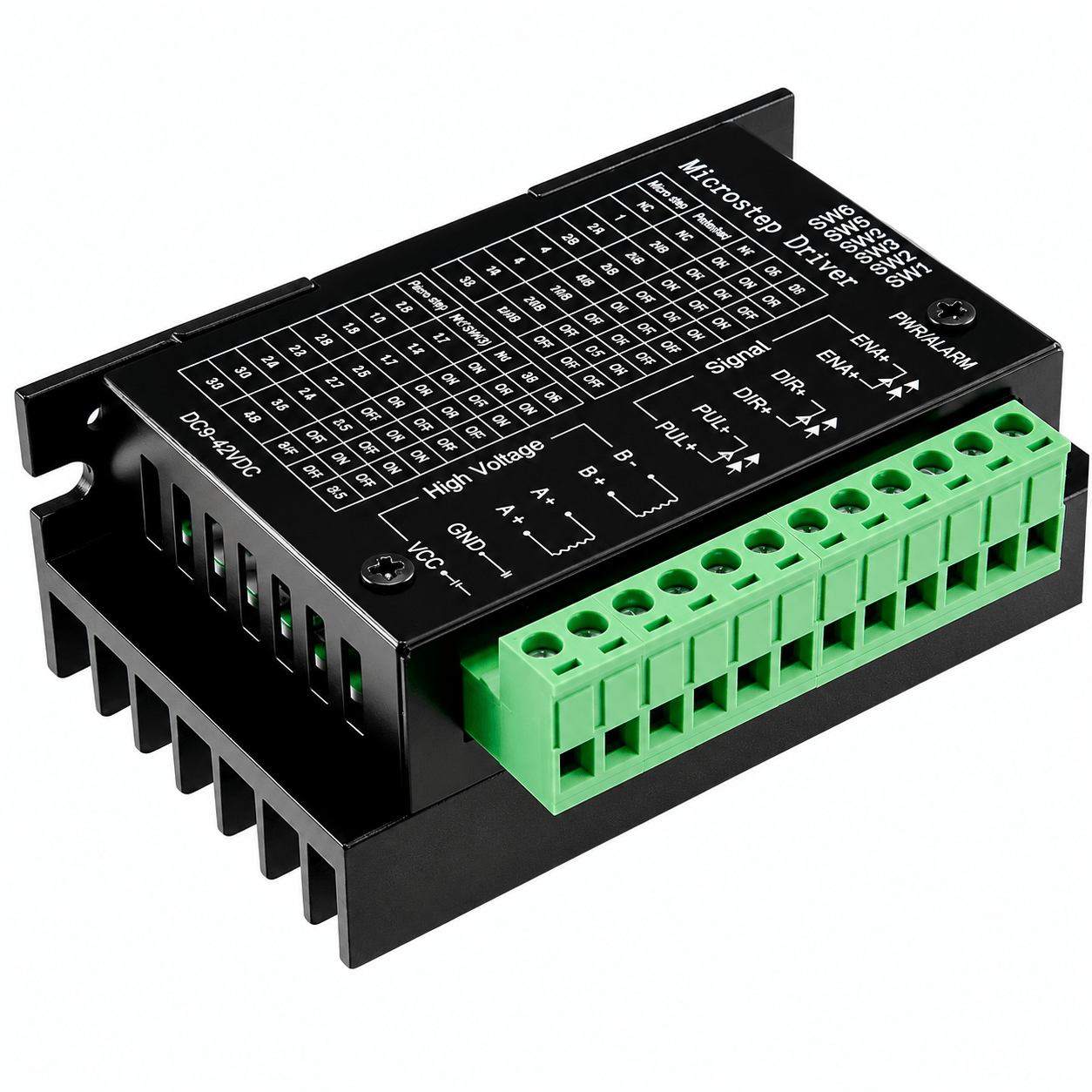

The TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC is a high-performance bipolar stepper motor driver designed for precision motion control applications including CNC machines, laser engravers, 3D printers, robotics, conveyor systems, industrial automation, pick-and-place machines, camera sliders, and DIY electronics projects. Based on the Toshiba TB6600 stepper motor driver IC, this driver supports adjustable output current up to 4A, wide operating voltage from 9V to 42V DC, and up to 1/16 microstepping resolution, delivering smooth, accurate, and reliable motor control. Its optically isolated TTL control inputs, robust protection features, and simple configuration make it an ideal solution for both professional and hobbyist motion control systems.
Powered by the Toshiba TB6600HG stepper motor driver IC, the TB6600 driver supports 2-phase bipolar stepper motors with adjustable current settings to match various motor specifications. It provides selectable microstepping modes from full step up to 1/16 step, significantly improving positioning accuracy, reducing vibration, and enabling smoother motor operation. With a maximum output current of 4A and advanced PWM constant-current chopper control technology, the driver delivers excellent torque performance while minimizing heat generation and ensuring stable operation even under demanding loads.
The TB6600 Stepper Motor Driver features optically isolated Pulse (PUL), Direction (DIR), and Enable (ENA) TTL input signals for enhanced noise immunity and reliable communication with controllers. It is fully compatible with Arduino, Raspberry Pi, ESP32, STM32, PLCs, Mach3 CNC controllers, GRBL controllers, DSP motion controllers, and other CNC control systems. The driver includes DIP switches for easy configuration of output current and microstepping resolution, screw terminal connections for secure wiring, and integrated protection against over-current, over-temperature, and short circuits for improved operational safety.
Designed for students, hobbyists, makers, engineers, researchers, and industrial automation professionals, the TB6600 Stepper Motor Driver Controller is widely used in precision motion control systems requiring reliable high-current motor driving capability. Its rugged aluminum enclosure, efficient heat dissipation, wide voltage compatibility, and support for numerous CNC software platforms make it an excellent choice for educational projects, industrial equipment, laboratory automation, commercial machinery, and advanced robotics applications.
Toshiba TB6600HG stepper motor driver IC
Supports 2-phase bipolar stepper motors
Wide operating voltage from 9V to 42V DC
Adjustable output current up to 4A

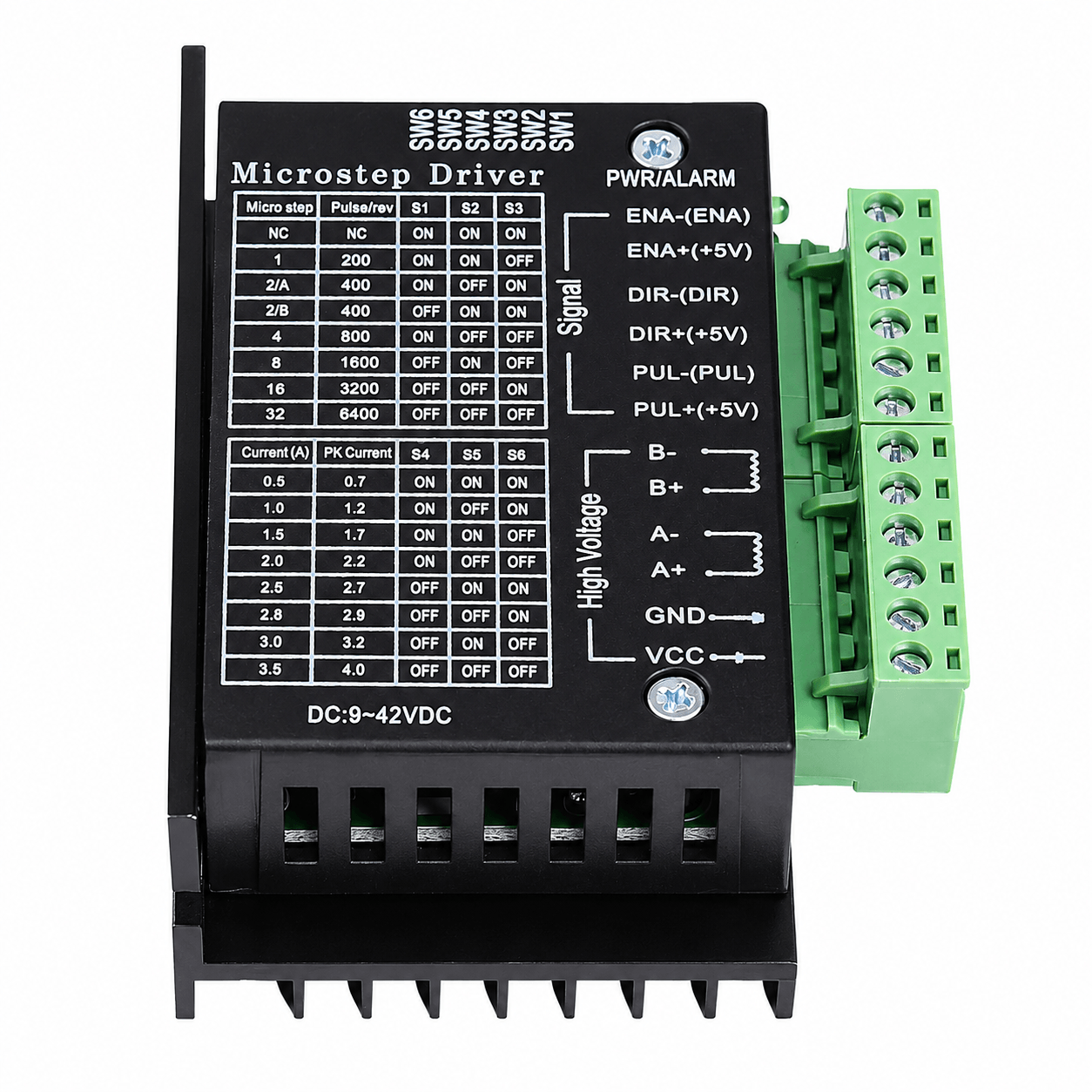

Selectable output current settings via DIP switches
Supports full-step, half-step, and microstepping modes
Up to 1/16 microstep resolution
PWM constant-current chopper control technology
Optically isolated TTL control inputs
Pulse (PUL), Direction (DIR), and Enable (ENA) inputs
Compatible with Arduino, Raspberry Pi, ESP32, STM32, and PLC controllers
Supports Mach3, GRBL, and CNC motion controllers
Integrated over-current protection
Integrated over-temperature protection
Integrated short-circuit protection

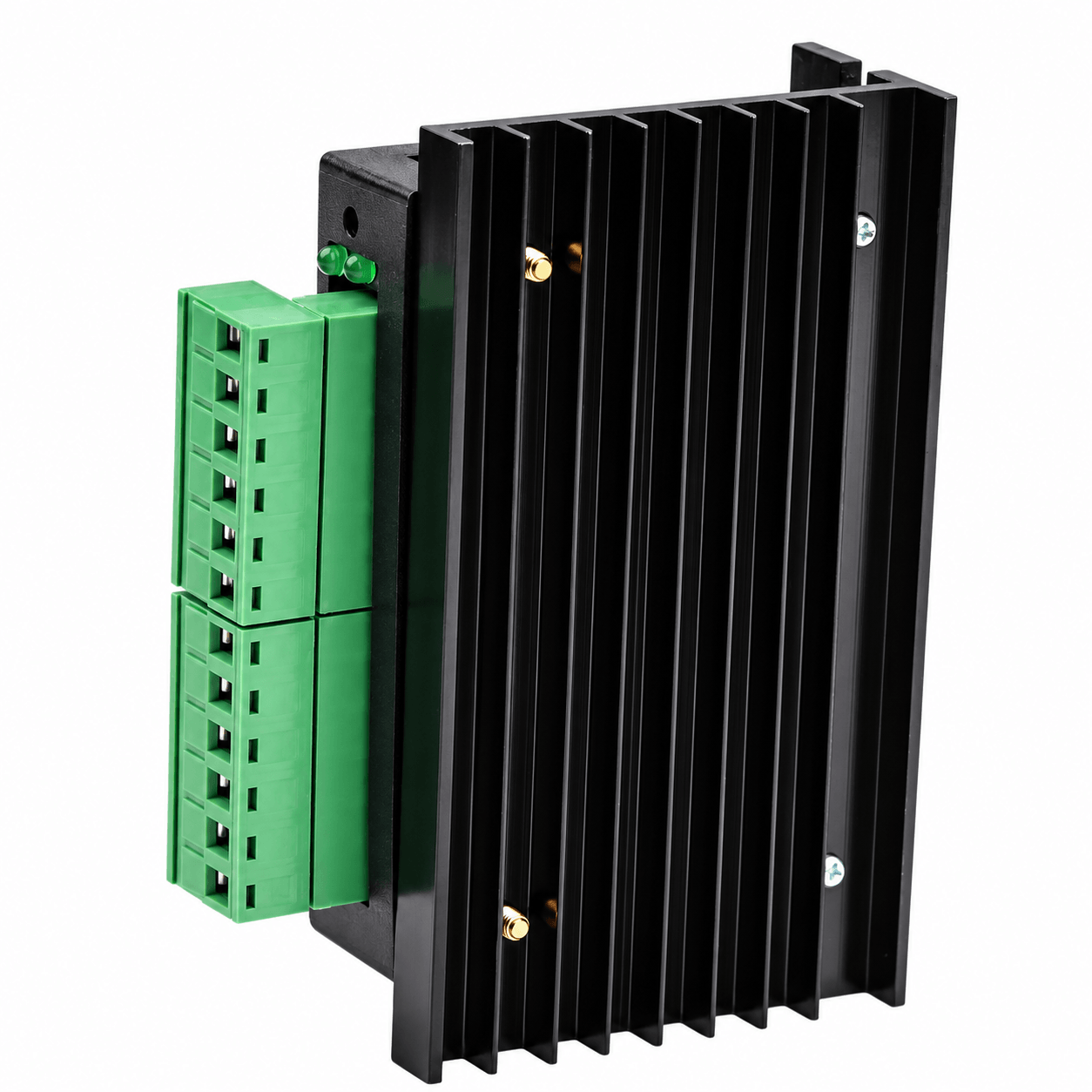

Aluminum housing for efficient heat dissipation
Stable and low-noise motor operation
Suitable for CNC machines and laser engravers
Ideal for robotics and industrial automation
Perfect for education, embedded systems, research, and commercial applications
